Model # GMR03DAMAWW Official GE refrigerator - m series

Here are the diagrams and repair parts for Official GE GMR03DAMAWW refrigerator - m series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Refrigerator Shelf WR71X10190
#25

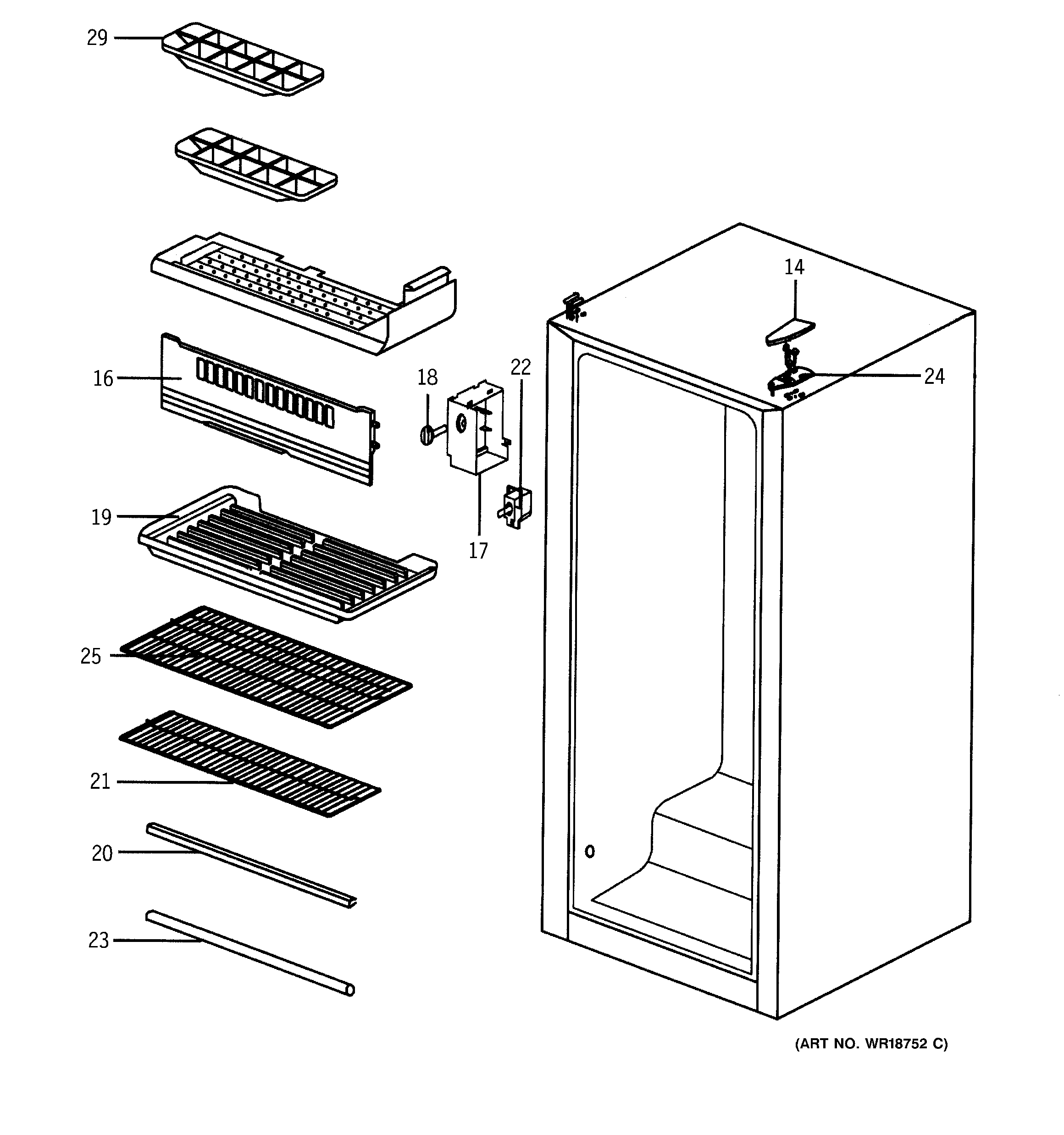

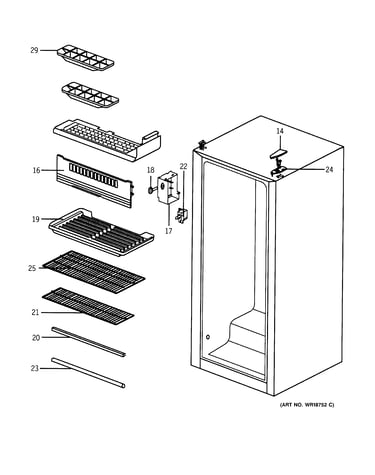

Cabinet diagram

Refrigerator shelf

Part #WR71X10190

The manufacturer no longer makes this part, and there's no substitute part

Guard WR08X5195
#6

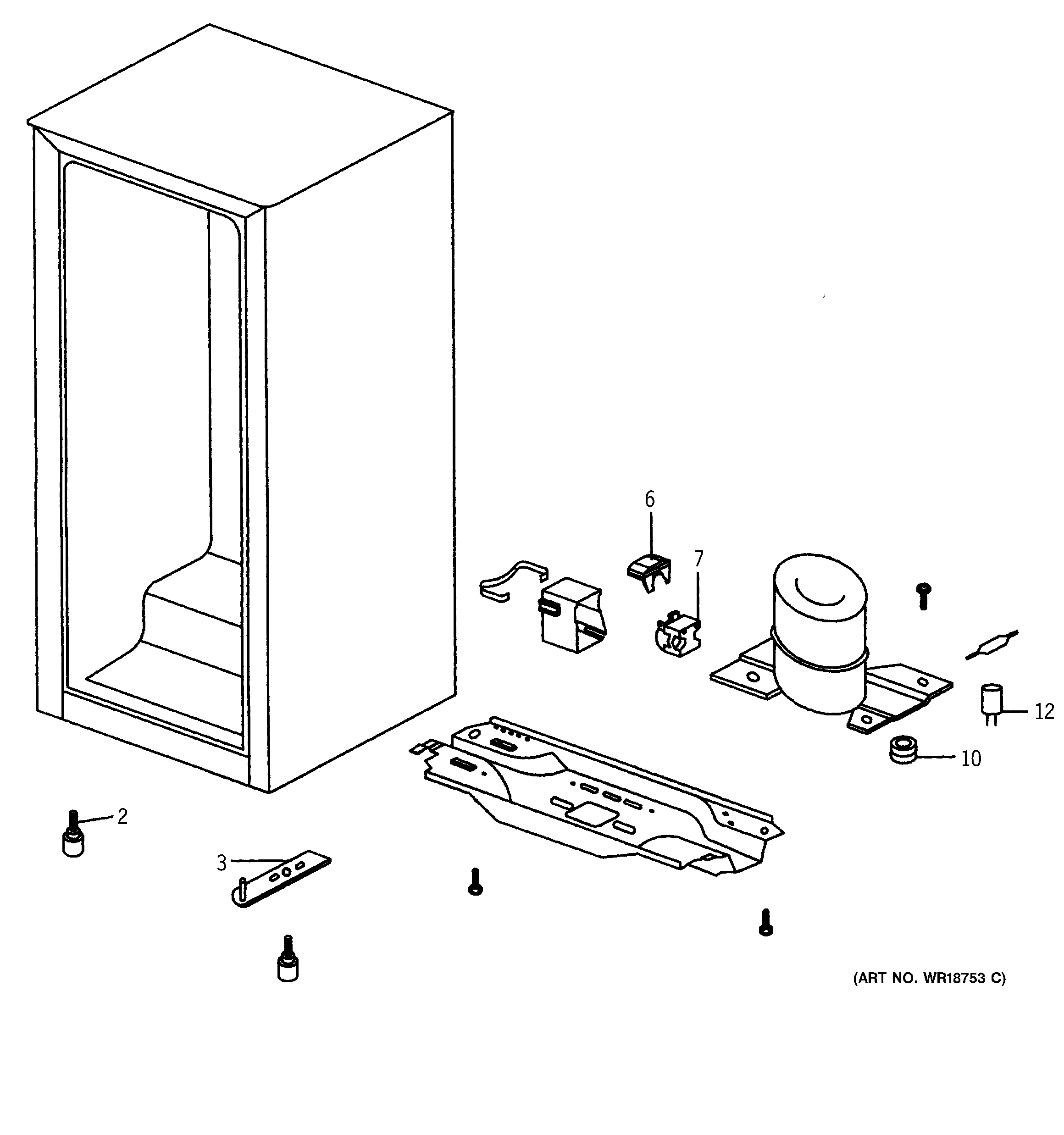

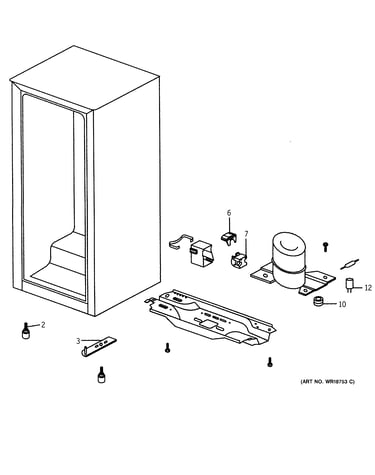

Unit parts diagram

Guard

Part #WR08X5195

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat WR09X10034
#22

Cabinet diagram

Refrigerator thermostat

Part #WR09X10034

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Cover WR37X10001
#16

Cabinet diagram

Refrigerator freezer cover

Part #WR37X10001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf WR71X10189
#21

Cabinet diagram

Refrigerator shelf

Part #WR71X10189

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf Trim WR17X10621
#20

Cabinet diagram

Refrigerator shelf trim

Part #WR17X10621

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Guard WR17X10469
#23

Cabinet diagram

Refrigerator guard

Part #WR17X10469

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Hinge WR13X10074
#24

Cabinet diagram

Refrigerator hinge

Part #WR13X10074

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Tray WR30X10011
#29

Cabinet diagram

Refrigerator ice tray

Part #WR30X10011

The manufacturer no longer makes this part, and there's no substitute part

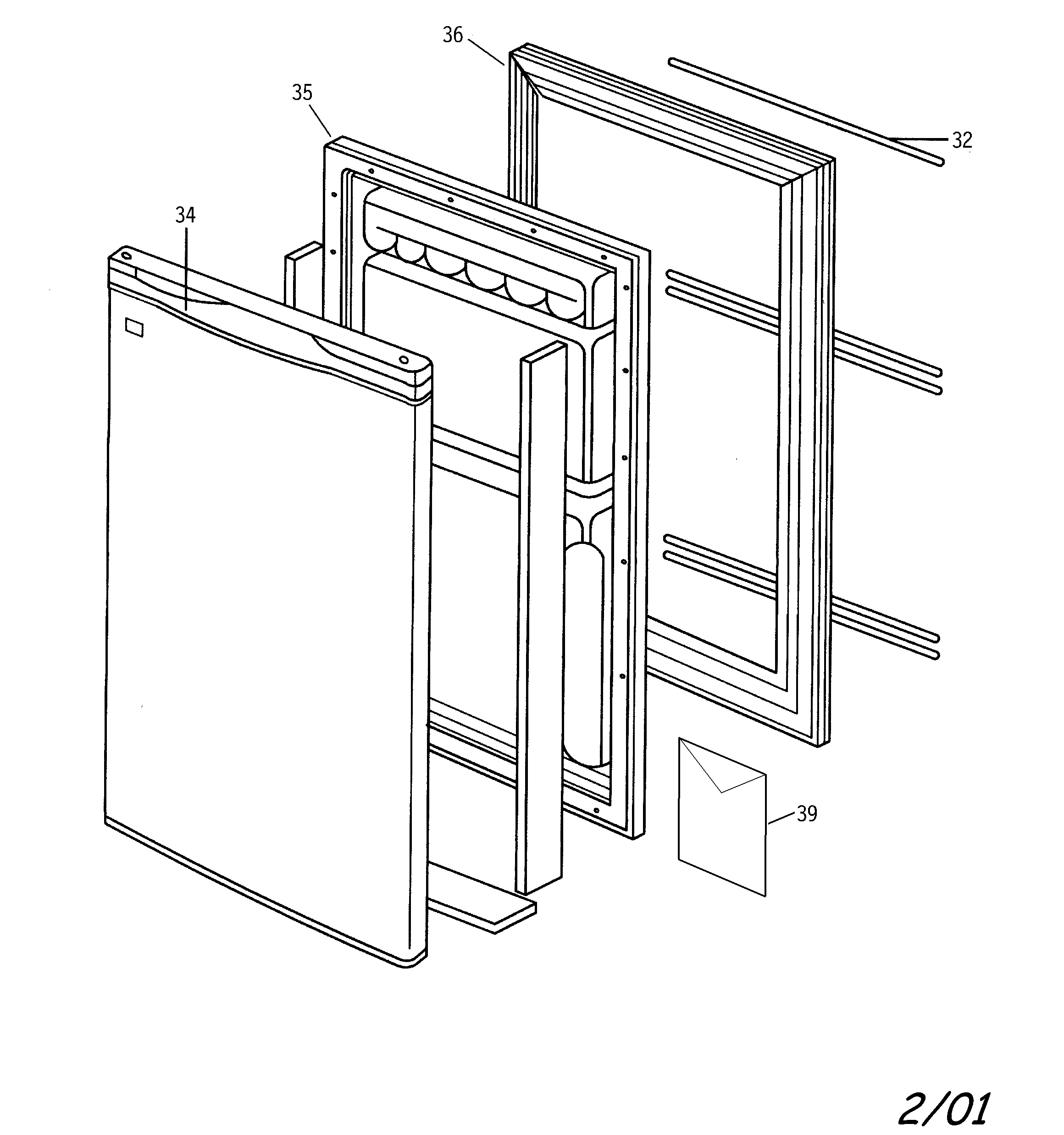

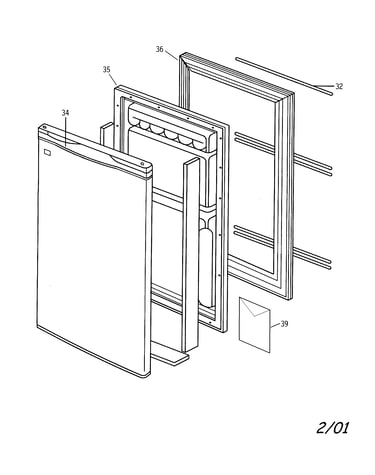

Refrigerator Door Guard WR17X10467
#32

Door diagram

Refrigerator door guard

Part #WR17X10467

The manufacturer no longer makes this part, and there's no substitute part
