Electrolux
Electric Cooktop

Model # E30EC65ESS1 Official Electrolux cooktop

Here are the diagrams and repair parts for Official Electrolux E30EC65ESS1 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

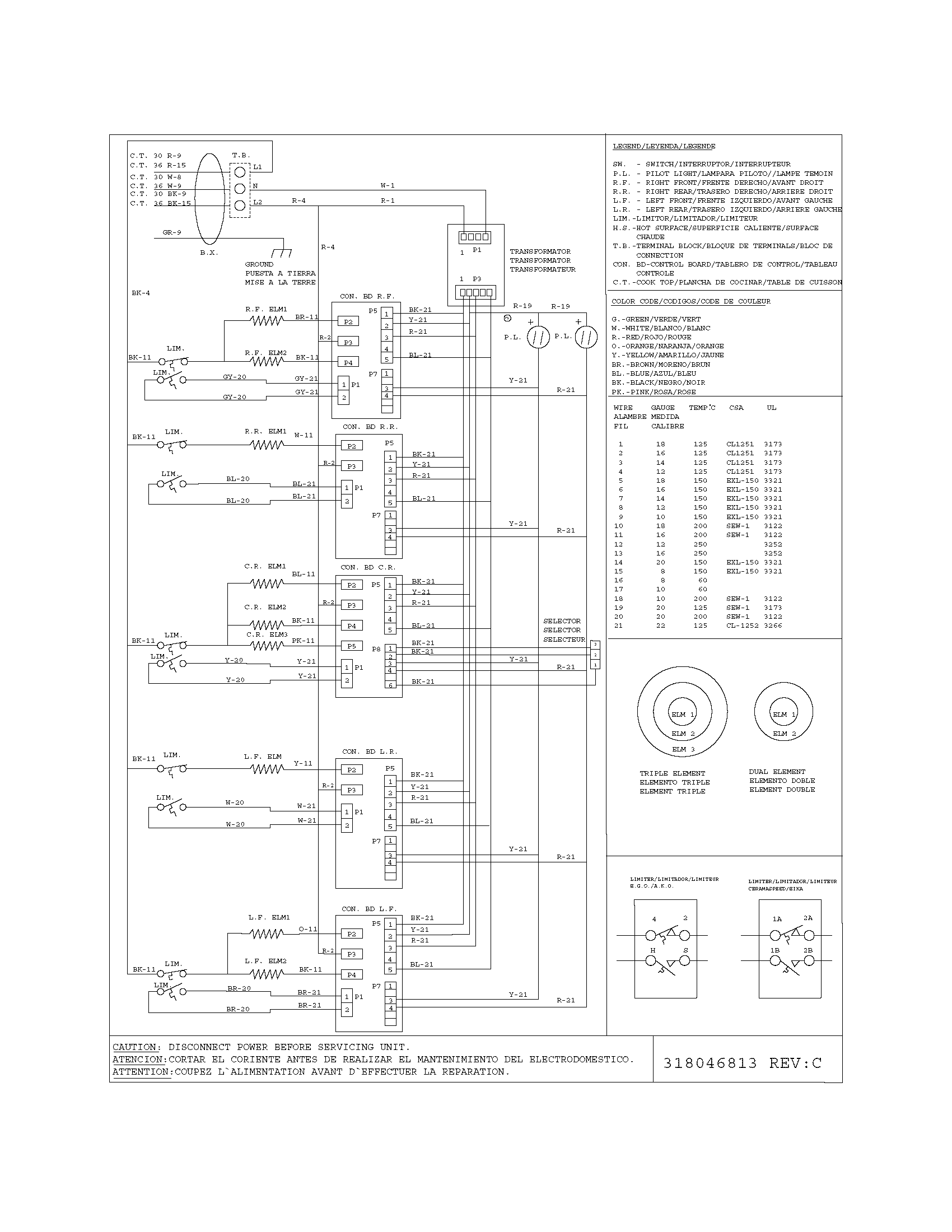

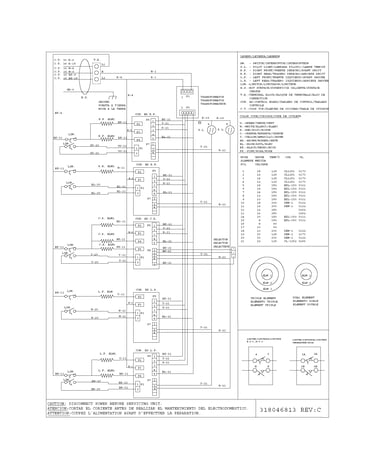

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Kenmore Pro Range Radiant Surface Element, 6-in (replaces 318198810) 318198817
#15

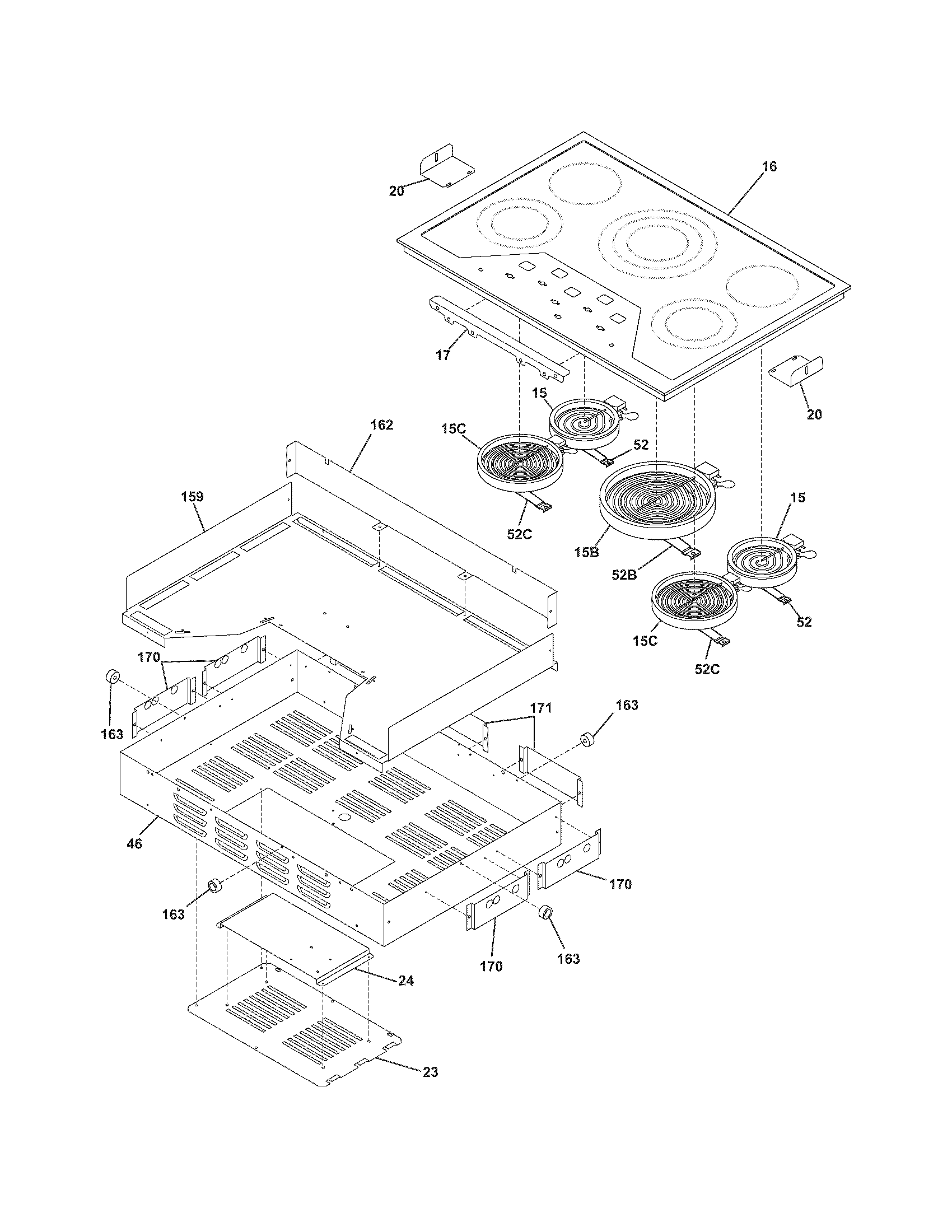

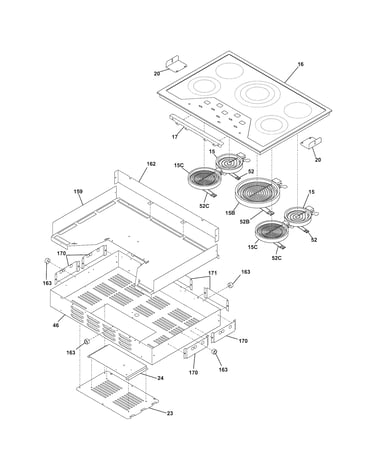

Maintop diagram

Kenmore pro range radiant surface element, 6-in (replaces 318198810)

Part #318198817

$149.91 |
7% OFF Phone Price : $161.91
In Stock
Range Radiant Surface Element 316419901
#15C

Maintop diagram

Range radiant surface element

Part #316419901

Replaced by #318198952

?
Manufacturer substitution
This part replaces 316419901. Substitute parts can look different from the original.
$151.30 |
7% OFF Phone Price : $163.30
In Stock
Range Lock Washer 316247800
#55A

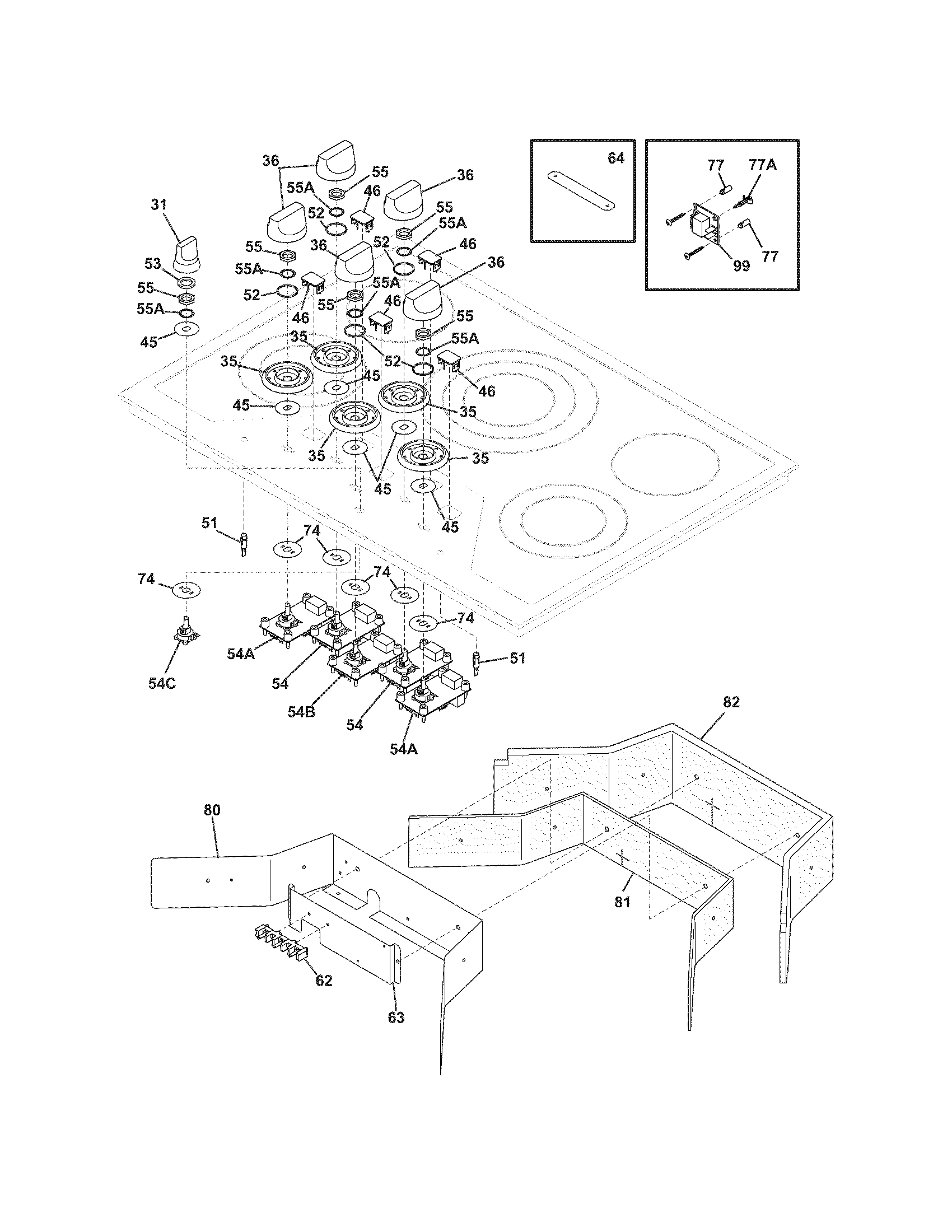

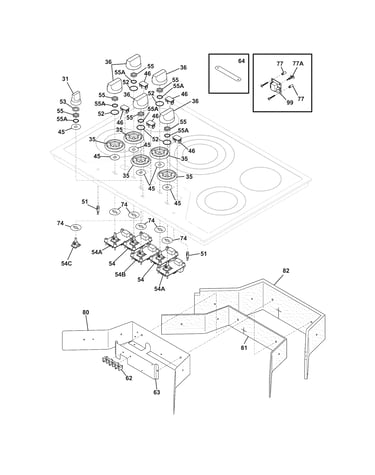

Controls diagram

Range lock washer

Part #316247800

This item is not returnable
$16.77
In Stock
Range Nut 316247700
#55

Controls diagram

Range nut

Part #316247700

This item is not returnable
$16.77
In Stock
Panel 318310103
#23

Maintop diagram

Panel

Part #318310103

$44.77
In Stock
Crosley Range Surface Element Mounting Spring, 3,000-watt 318122010
#52B

Maintop diagram

Crosley range surface element mounting spring, 3,000-watt

Part #318122010

$45.71
In Stock
Kenmore Pro Range Screw, 10 X 24 X 29/32-in 5303323130
#NI

Maintop diagram

Kenmore pro range screw, 10 x 24 x 29/32-in

Part #5303323130

$14.69
In Stock
Cooktop Indicator Light Lens (green) 318319001
#46

Controls diagram

Cooktop indicator light lens (green)

Part #318319001

$37.29
In Stock
Cooktop Burner Knob Gasket 318337100
#52

Controls diagram

Cooktop burner knob gasket

Part #318337100

$13.29
In Stock
Range Nut 5303323144
#NI

Controls diagram

Range nut

Part #5303323144

$8.83
In Stock
