Countertop Microwave

Model # 72189952590 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72189952590 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

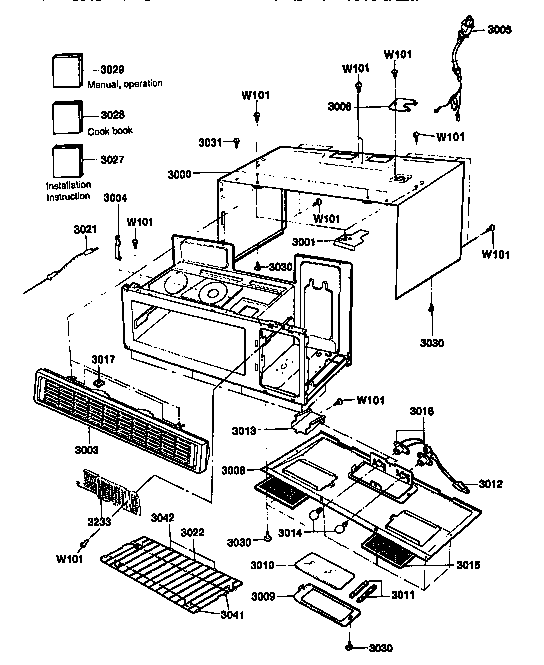

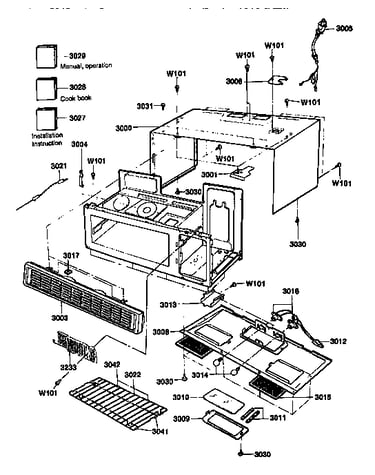

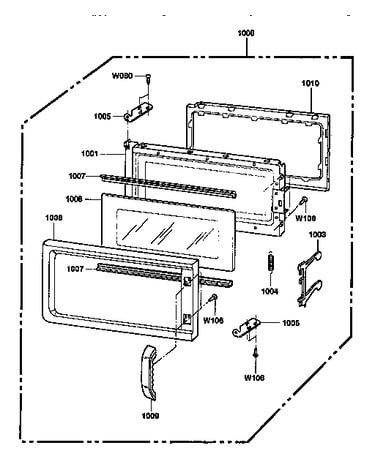

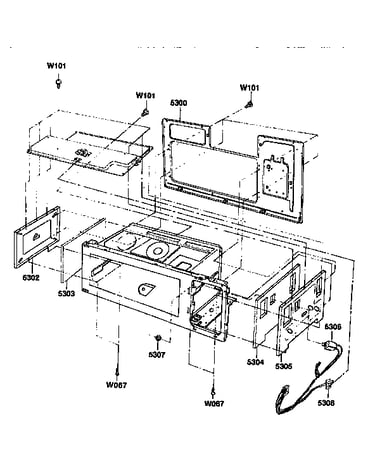

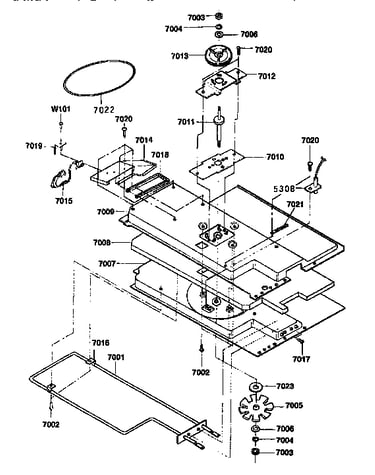

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Adapter 503532
#6001

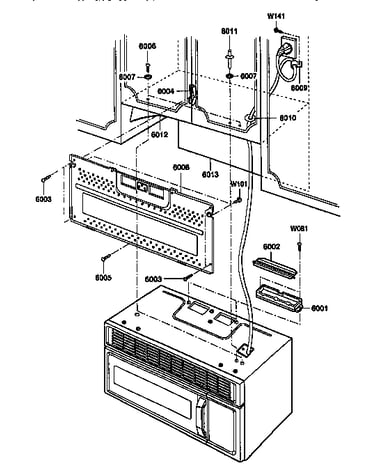

Installation parts diagram

Adapter

Part #503532

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 503532. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Us Pressed Steel Microwave Door Latch Lever 4510W4A005A
#4005

Latch board diagram

Us pressed steel microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Screw 500218
#2010

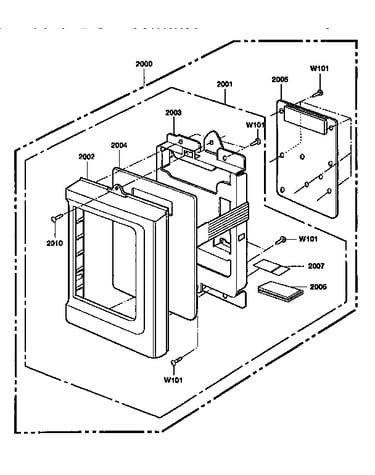

Controller parts diagram

Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Switch 503388
#4003

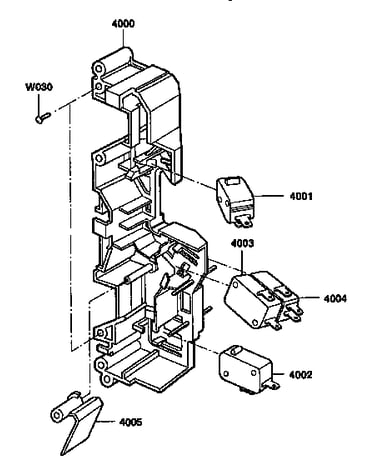

Latch board diagram

Switch

Part #503388

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 507316
#5001

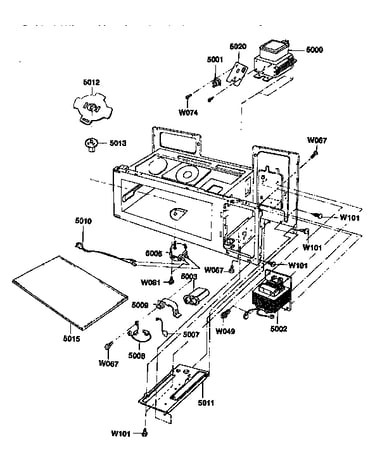

Interior parts (1) diagram

Thermostat

Part #507316

Replaced by #6930W1A003G

?
Manufacturer substitution
This part replaces 507316. Substitute parts can look different from the original.
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Switch 505427
#4004

Latch board diagram

Switch

Part #505427

The manufacturer no longer makes this part, and there's no substitute part

Condenser 503545
#5111

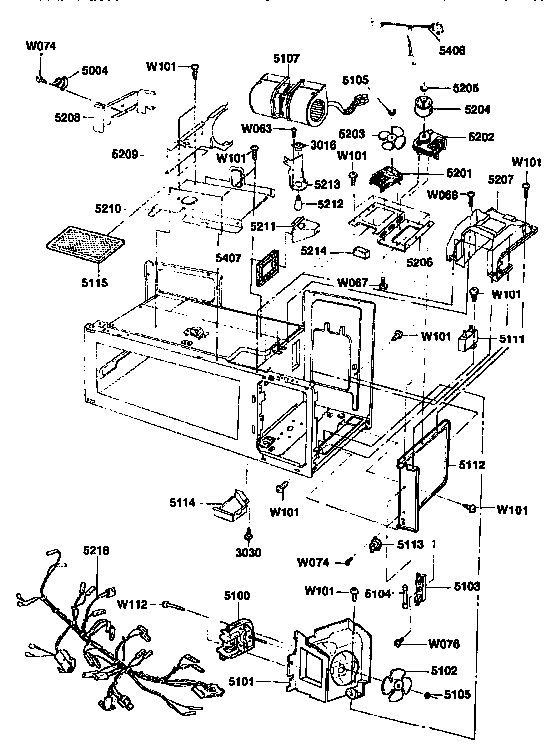

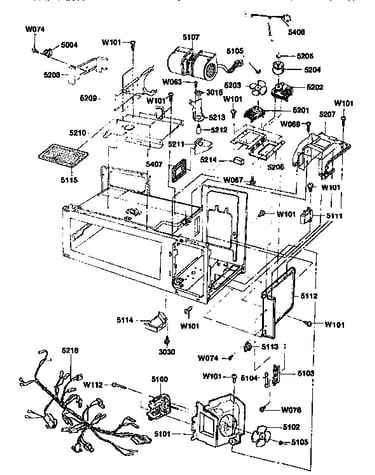

Interior parts (2) diagram

Condenser

Part #503545

Replaced by #0CZZW1M001A

?
Manufacturer substitution
This part replaces 503545. Substitute parts can look different from the original.
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Connector 6630W5YA10D
#CN2

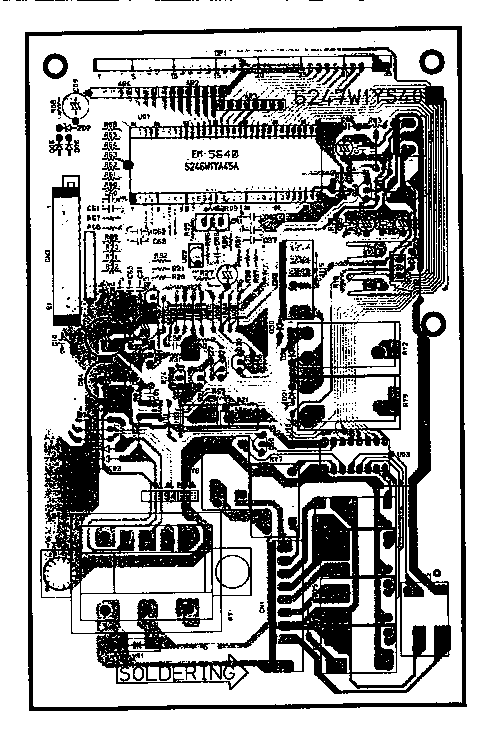

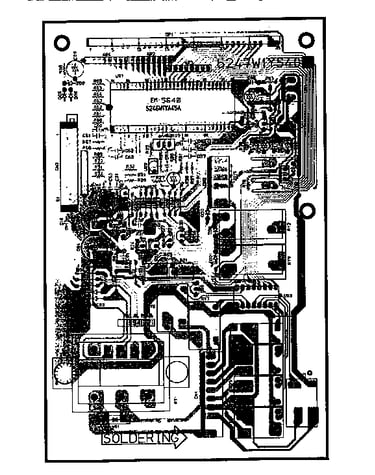

Power and control circuit board diagram

Connector

Part #6630W5YA10D

$8.29
In Stock
Us Pressed Steel Microwave Tapping Screw 1TTL0403818
#W112

Interior parts (2) diagram

Us pressed steel microwave tapping screw

Part #1TTL0403818

This item is not returnable
$8.29
In Stock
Connector 6630W5YA10H
#CN1

Power and control circuit board diagram

Connector

Part #6630W5YA10H

$8.29
In Stock
