Craftsman
Water Pump

Model # 390250096 Official Craftsman 1/2-hp shallow well water system

Here are the diagrams and repair parts for Official Craftsman 390250096 1/2-hp shallow well water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Pump Body Gasket J20-18
#16

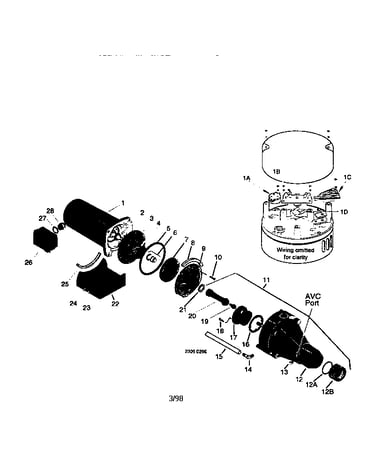

Pump only model 390.250096 diagram

Pump body gasket

Part #J20-18

Replaced by #J20-18C

?
Manufacturer substitution
This part replaces J20-18. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
Back Order
Slinger C69-2
#2

Pump only model 390.250096 diagram

Slinger

Part #C69-2

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces C69-2. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Shaft Seal 2784
#6

Pump only model 390.250096 diagram

Shaft seal

Part #2784

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces 2784. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
Back Order
Pump Hose Fitting, 90-degree U111-212T
#14

Pump only model 390.250096 diagram

Pump hose fitting, 90-degree

Part #U111-212T

This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
Back Order
Screw U30-738SS
#10

Pump only model 390.250096 diagram

Screw

Part #U30-738SS

$15.43
In Stock
Pump Check Valve (replaces N12-12p) N166-5P
#12B

Pump only model 390.250096 diagram

Pump check valve (replaces n12-12p)

Part #N166-5P

$123.89 |
9% OFF Phone Price : $135.89
In Stock
Pump Impeller J105-40PF
#7

Pump only model 390.250096 diagram

Pump impeller

Part #J105-40PF

$139.59 |
8% OFF Phone Price : $151.59
In Stock
Pump Diffuser N1-28P
#9

Pump only model 390.250096 diagram

Pump diffuser

Part #N1-28P

$82.91
In Stock
Pump Housing O-ring U9-390
#5

Pump only model 390.250096 diagram

Pump housing o-ring

Part #U9-390

This item is not returnable
$43.59 |
12% OFF Phone Price : $49.59
In Stock
Pump Contactor U18-1098
#1C

Pump only model 390.250096 diagram

Pump contactor

Part #U18-1098

$161.62 |
7% OFF Phone Price : $173.62
In Stock
