Whirlpool
Top-Mount Refrigerator

Model # 8ET1FTKXKT01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 8ET1FTKXKT01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

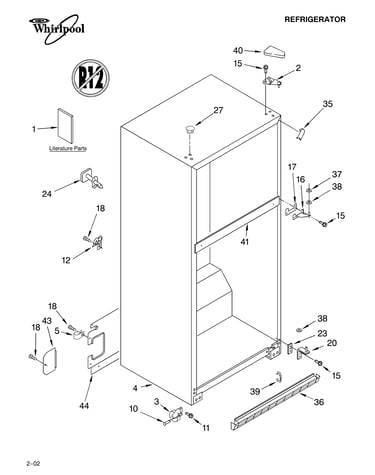

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Light Bulb 527949
#17

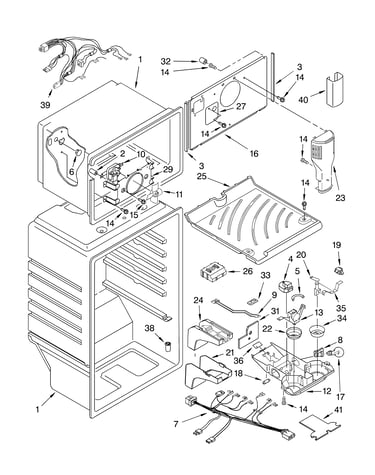

Liner diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Dryer Tube 4387019
#29A

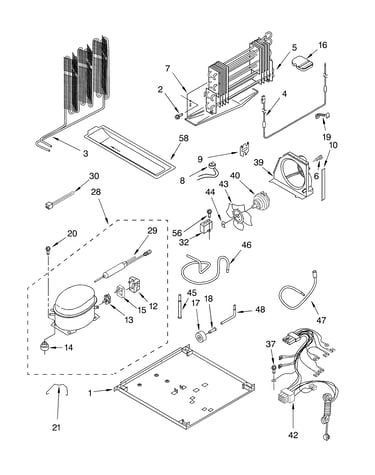

Unit diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Drier-tue 2199167
#29

Unit diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Upright Freezer Run Capacitor 2169373
#32

Unit diagram

Upright freezer run capacitor

Part #2169373

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2169373. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Refrigerator Compressor 2216050
#28

Unit diagram

Refrigerator compressor

Part #2216050

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 2216050. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Ice Maker 2155469
#NI

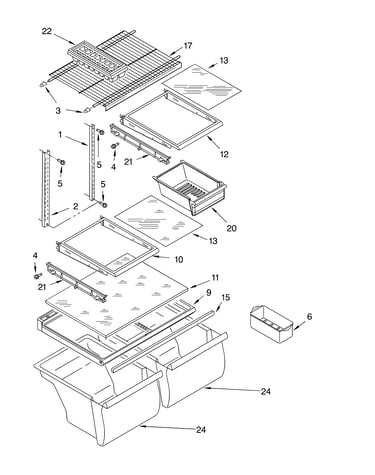

Shelf/optional diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Condenser Motor 2188537
#40

Unit diagram

Condenser motor

Part #2188537

Replaced by #W10822259

?
Manufacturer substitution
This part replaces 2188537. Substitute parts can look different from the original.
BEST SELLER
$128.22 |
9% OFF Phone Price : $140.22
In Stock
Refrigerator Deli Drawer 2218132K
#20

Shelf/optional diagram

Refrigerator deli drawer

Part #2218132K

Replaced by #WP2218132K

?
Manufacturer substitution
This part replaces 2218132K. Substitute parts can look different from the original.
BEST SELLER
$94.14 |
6% OFF Phone Price : $100.14
In Stock
Gasket Panel 2214967
#23

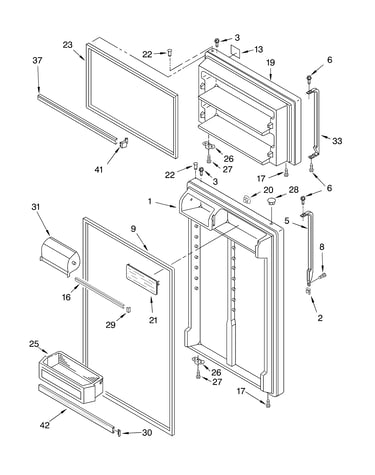

Door diagram

Gasket panel

Part #2214967

Replaced by #2159060

?
Manufacturer substitution
This part replaces 2214967. Substitute parts can look different from the original.
BEST SELLER
$146.92 |
8% OFF Phone Price : $158.92
In Stock
