Model # AZ91H09D2EW1 Official GE room air conditioner
Here are the diagrams and repair parts for Official GE AZ91H09D2EW1 room air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
AZ91H09D2EW1 Room Air Conditioner
#10

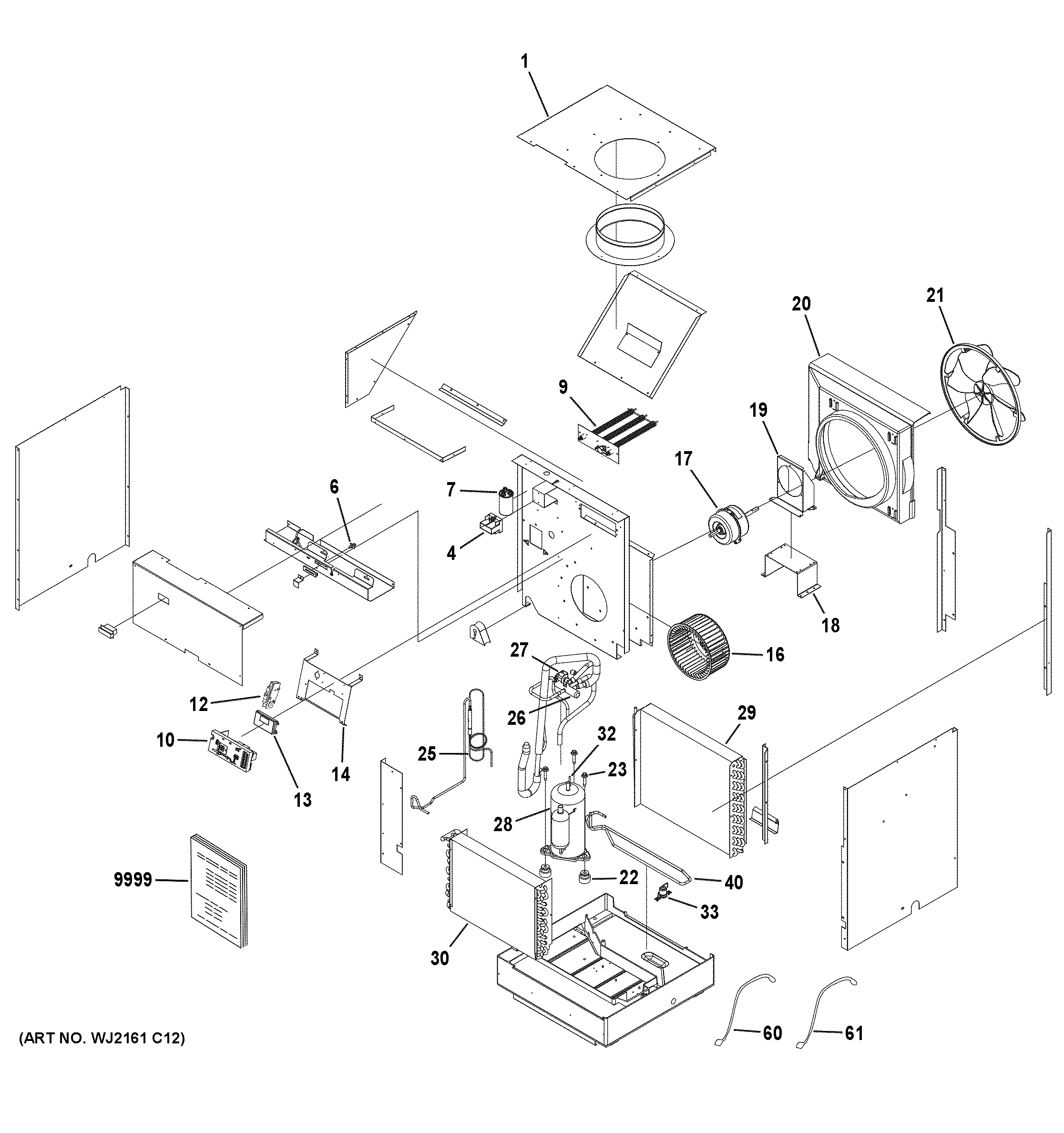

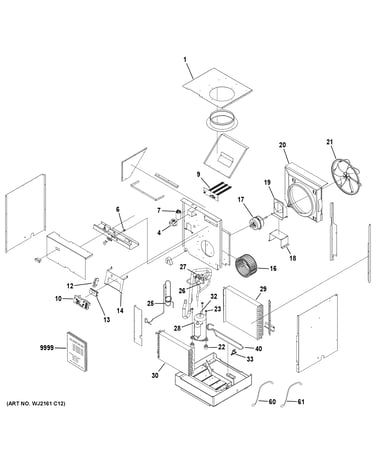

Vertical zoneline diagram
Main board
Part #WP26X21993
$380.35
In Stock
#40
Vertical zoneline diagram
Sump tube
Part #WP53X24843
$71.18
In Stock
#9
Vertical zoneline diagram
Heater assembly
Part #WP27X21947
$134.78
In Stock
#6
Vertical zoneline diagram
Vent slide
Part #WP71X21961
$15.74
In Stock
#12
Vertical zoneline diagram
Circuit breaker
Part #WP20X25601
$33.93
In Stock
#7
Vertical zoneline diagram
Room air conditioner compressor capacitor
Part #WP20X25600
$32.84
In Stock
#32
Vertical zoneline diagram
Overload
Part #WP20X21957
$41.60
In Stock
#28
Vertical zoneline diagram
Compressor and electricals
Part #WP98X21938
$614.08
In Stock
#26
Vertical zoneline diagram
Valve reversing assembly
Part #WP53X25606
$146.64
In Stock
#61
Vertical zoneline diagram
Outdoor coil temp sensor
Part #WP26X27655
$37.51
In Stock
