Model # JBS10DF2CC Official GE electric freestanding range
Here are the diagrams and repair parts for Official GE JBS10DF2CC electric freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forJBS10DF2CC Ranges
- #235

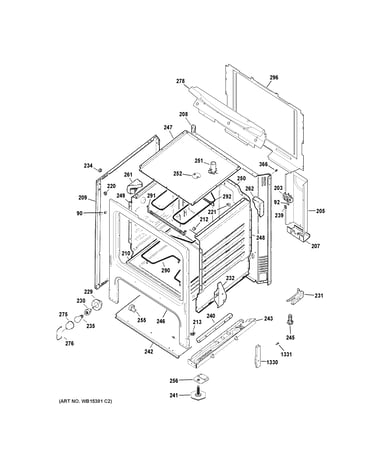

Body parts diagram
40a15bulbPart #STD372401
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #4

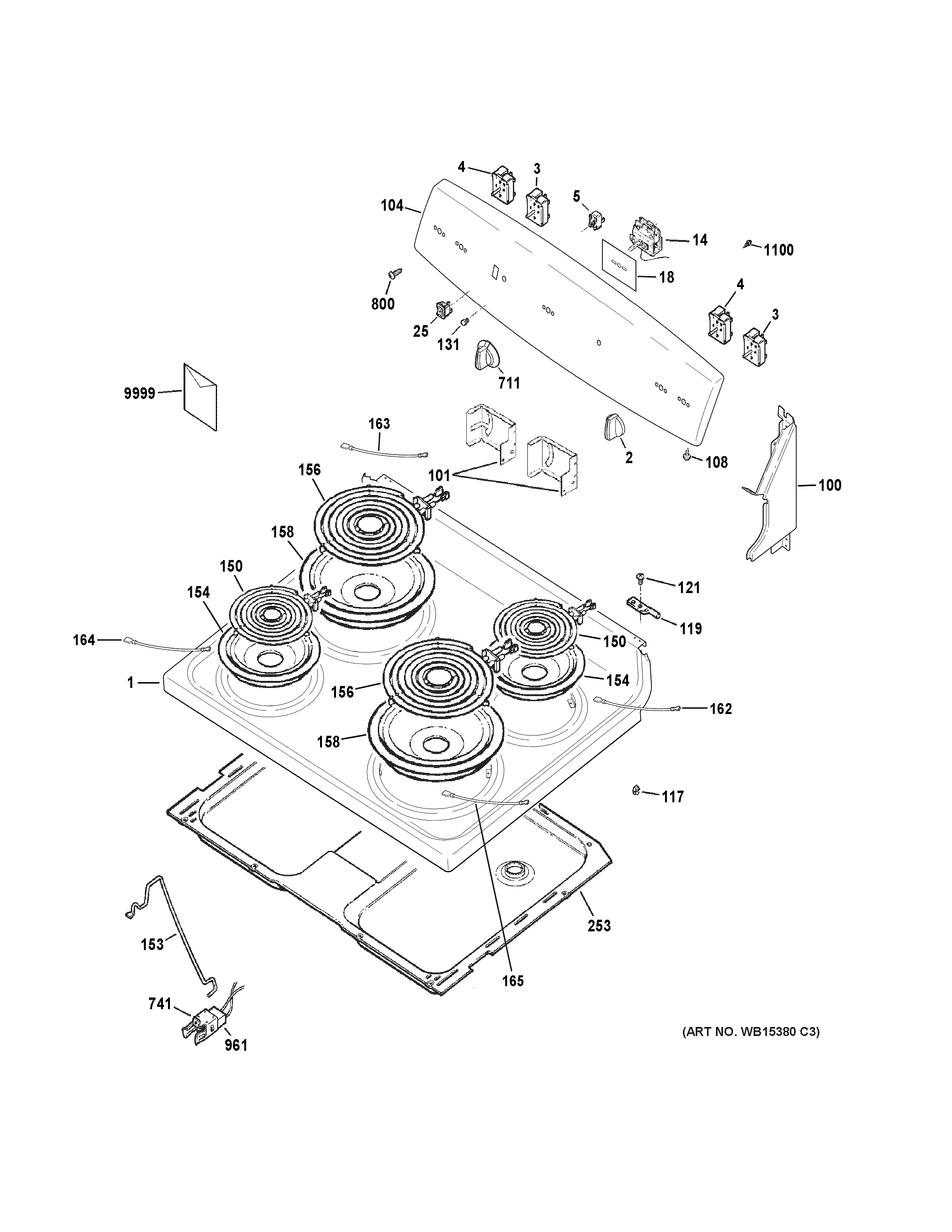

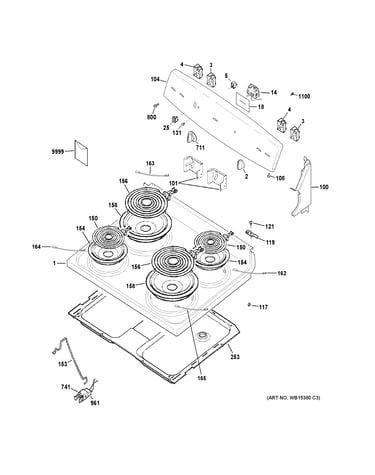

Control panel & cooktop diagram
Range surface element control switch, 1,500-wattPart #WB24T10029
$40.12 |13% OFF Phone Price : $46.12In Stock - #14
Control panel & cooktop diagram
Range oven control thermostatPart #WB24X21192
$73.48 |8% OFF Phone Price : $79.48In Stock - #203
Body parts diagram
Range terminal blockPart #WB17T10011
$54.72 |10% OFF Phone Price : $60.72In Stock - #158
Control panel & cooktop diagram
Range drip panPart #WB31T10015
$17.65 |10% OFF Phone Price : $19.65In Stock - #230
Body parts diagram
Range light socketPart #WB08T10026
This item is not returnable$8.96 |10% OFF Phone Price : $9.96In Stock - #154
Control panel & cooktop diagram
Range drip panPart #WB31T10014
$10.77 |16% OFF Phone Price : $12.77In Stock - #91

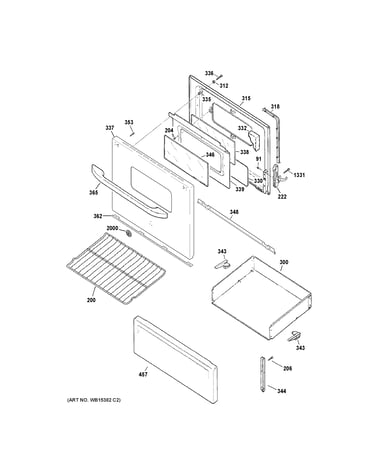

Door & drawer parts diagram
Cooking appliance screw, #10-32Part #WB01T10008
This item is not returnable$9.89 |9% OFF Phone Price : $10.89In Stock - #1330
Body parts diagram
Range oven door hinge receiverPart #WB10X20220
This item is not returnable$11.94 |14% OFF Phone Price : $13.94In Stock - #318
Door & drawer parts diagram
Range oven door gasketPart #WB35X29721
Replaced by #WB35X29720
?Manufacturer substitutionThis part replaces WB35X29721. Substitute parts can look different from the original.$24.40 |20% OFF Phone Price : $30.40In Stock
