Radial Arm Saw

Model # 113198610 Official Craftsman 10" deluxe electronic radial saw

Here are the diagrams and repair parts for Official Craftsman 113198610 10" deluxe electronic radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 313 parts  |
Bolt STD533107
#25

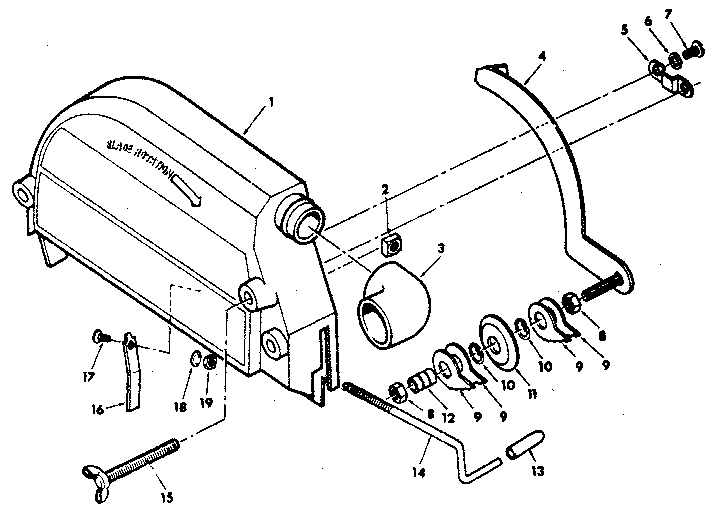

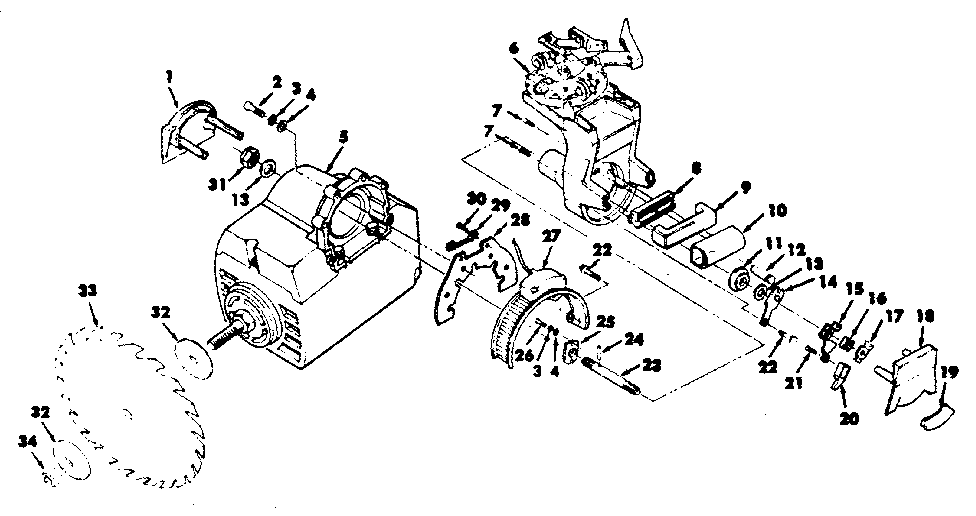

Figure 14 - guard diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Screw 815935
#51

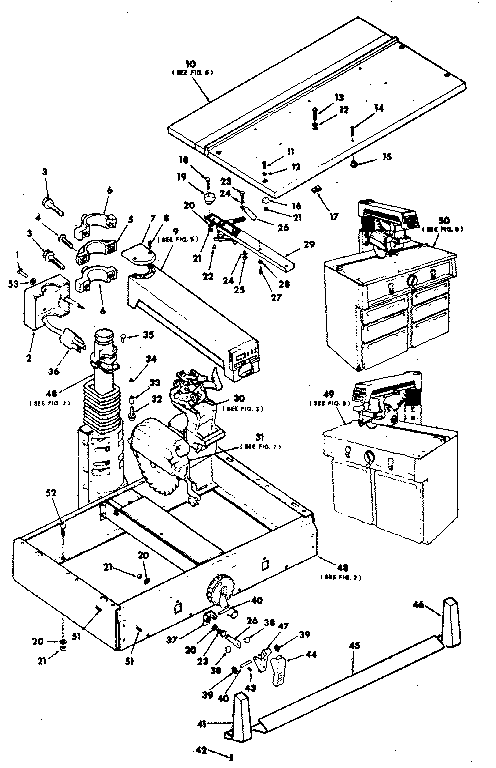

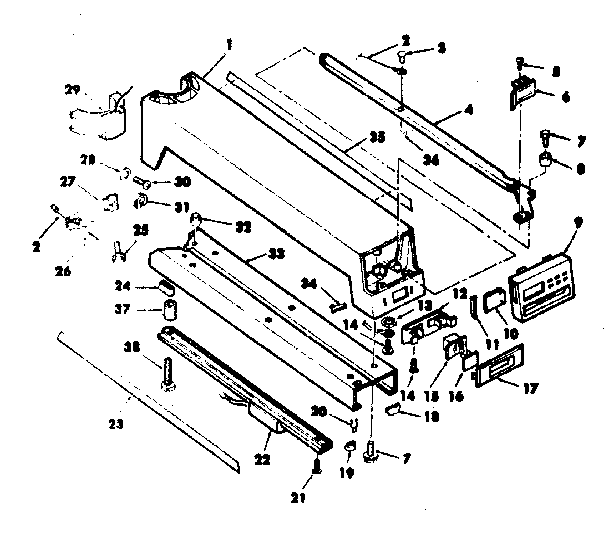

Figure 1 diagram

Screw

Part #815935

The manufacturer no longer makes this part, and there's no substitute part

Table, Front 820568
#10A

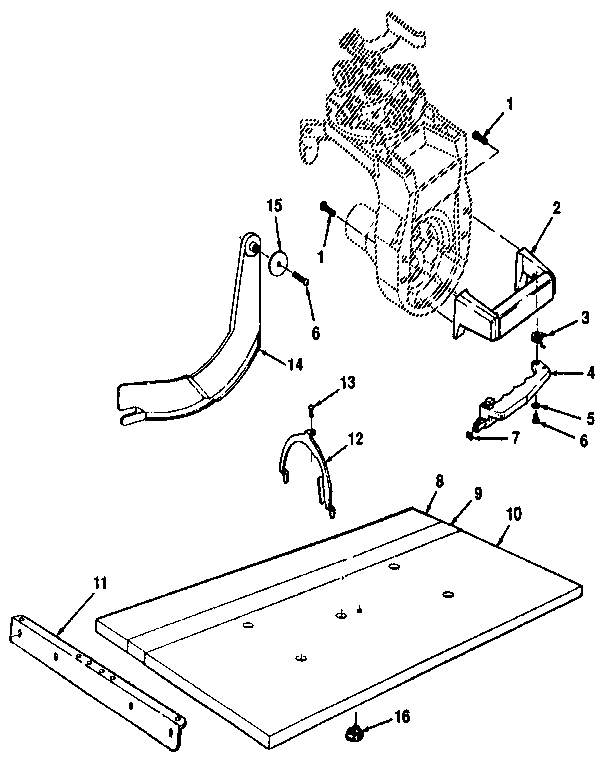

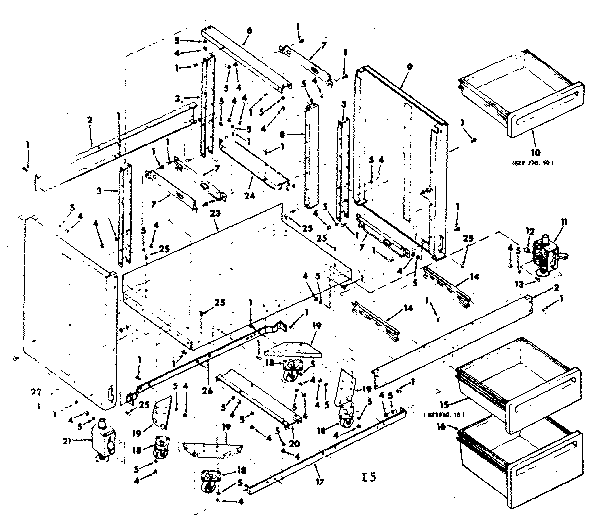

Figure 13 diagram

Table, front

Part #820568

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Clip Nut, 1/4 X 20-in 815989
#17

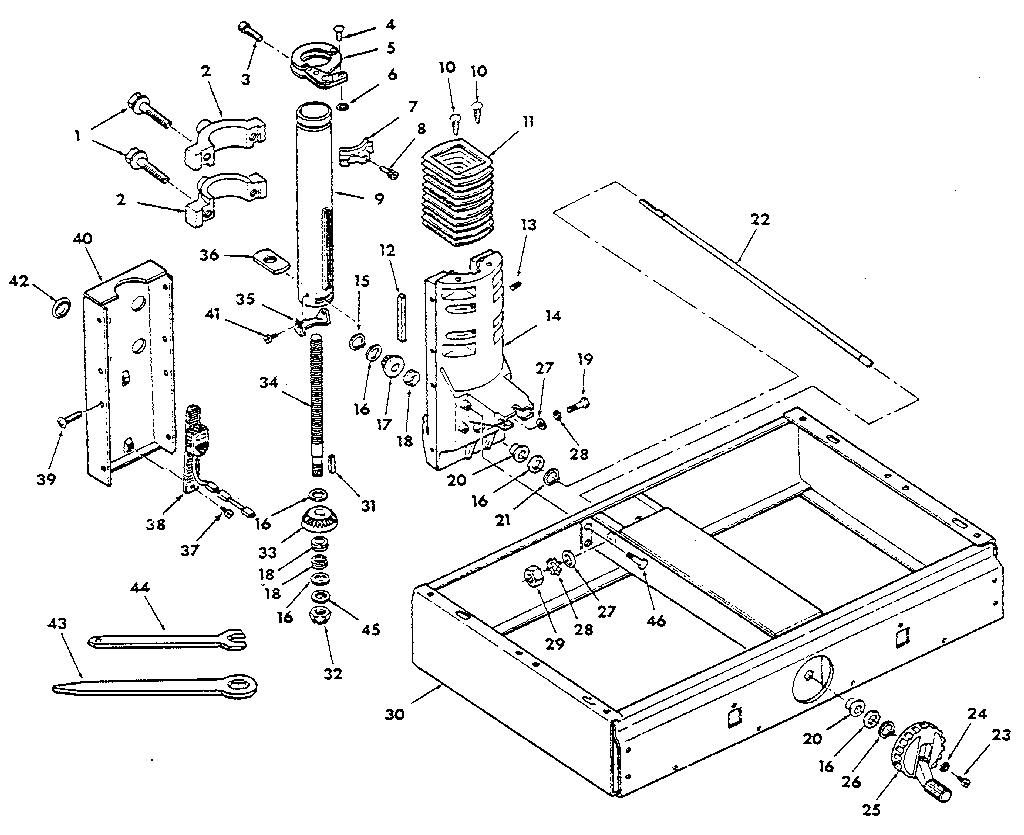

Figure 1 diagram

Radial arm saw clip nut, 1/4 x 20-in

Part #815989

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 60413
#33

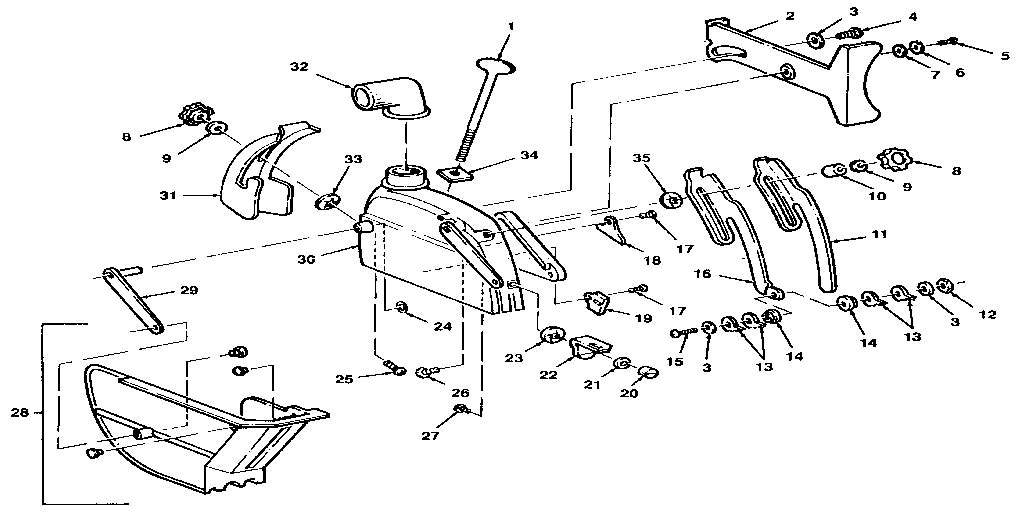

Figure 14 - guard diagram

Push nut

Part #60413

The manufacturer no longer makes this part, and there's no substitute part

Hex Screw 141594-31
Hex screw

Part #141594-31

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Eccentric Screw 810214-3
#1

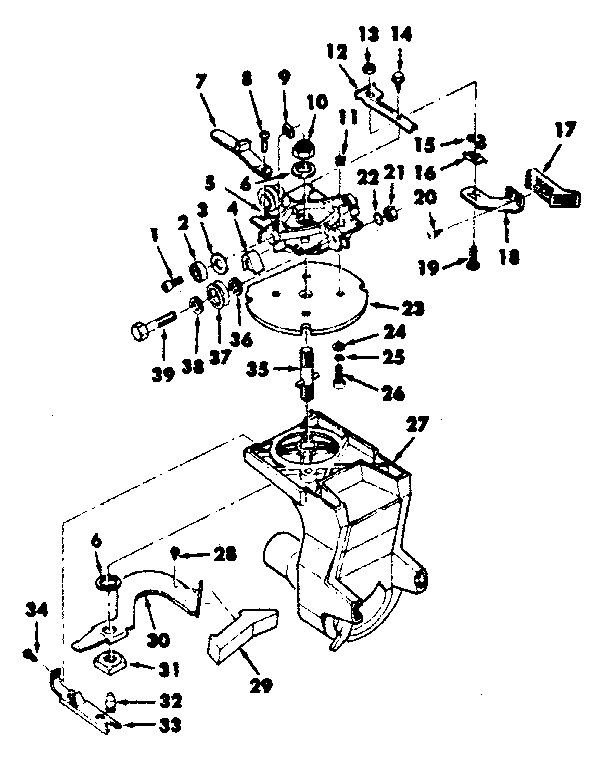

Figure 4-yoke assembly diagram

Radial arm saw eccentric screw

Part #810214-3

The manufacturer no longer makes this part, and there's no substitute part

Washer 805548-10
#15

Figure 13 diagram

Washer

Part #805548-10

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Rear 818169
#8

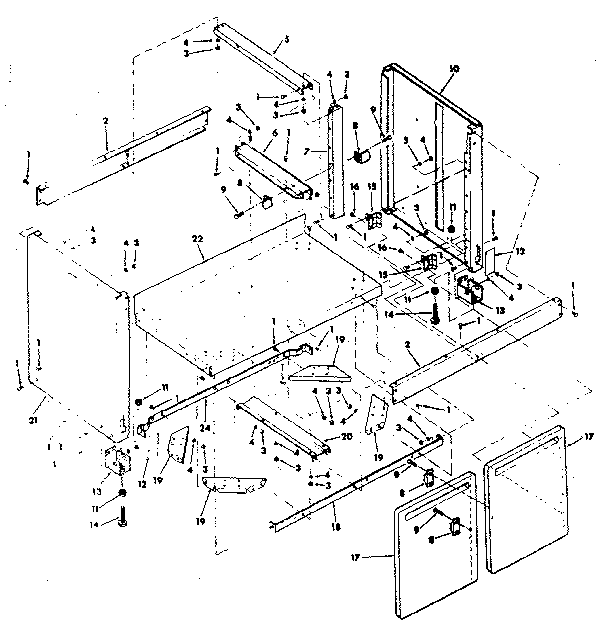

Figure 13 diagram

Radial arm saw table, rear

Part #818169

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Front 815756
#4A

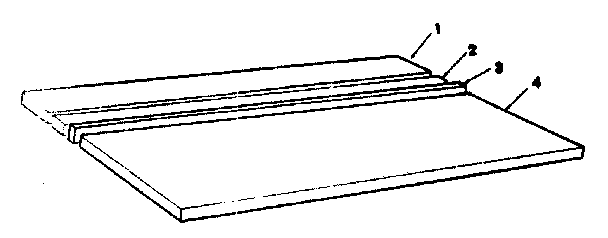

Figure 6 - table assembly diagram

Radial arm saw table, front

Part #815756

The manufacturer no longer makes this part, and there's no substitute part
