Lawn & Garden Engine

Model # 289707-1186-E1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 289707-1186-E1 engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
289707-1186-E1 Engine
Filter 394358

#240

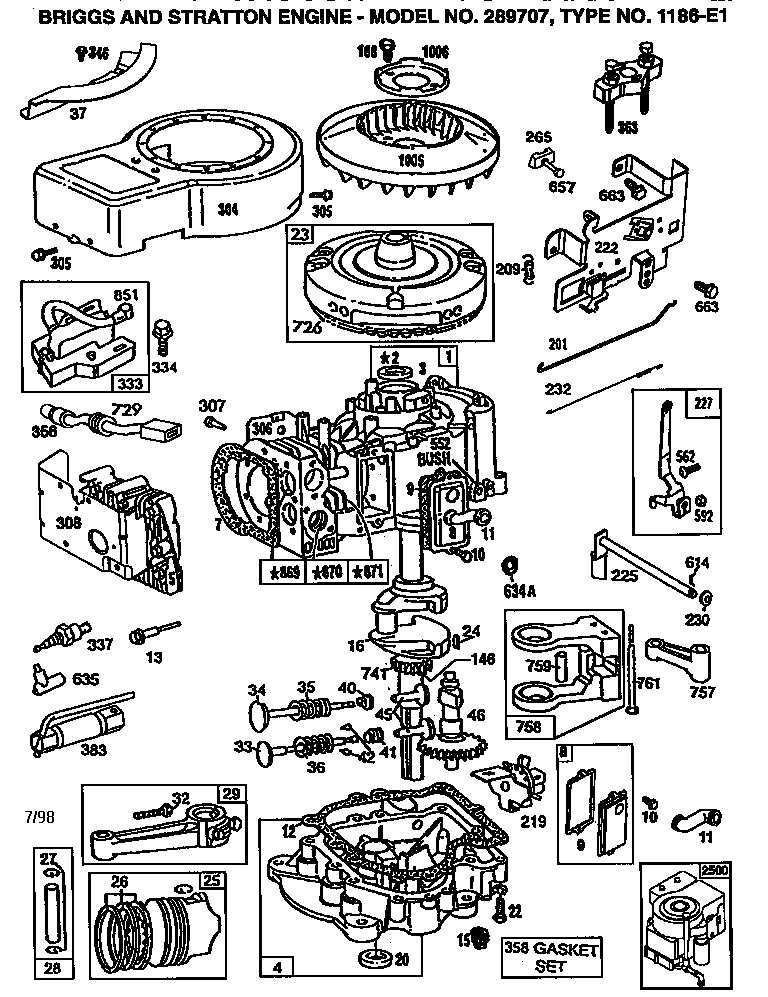

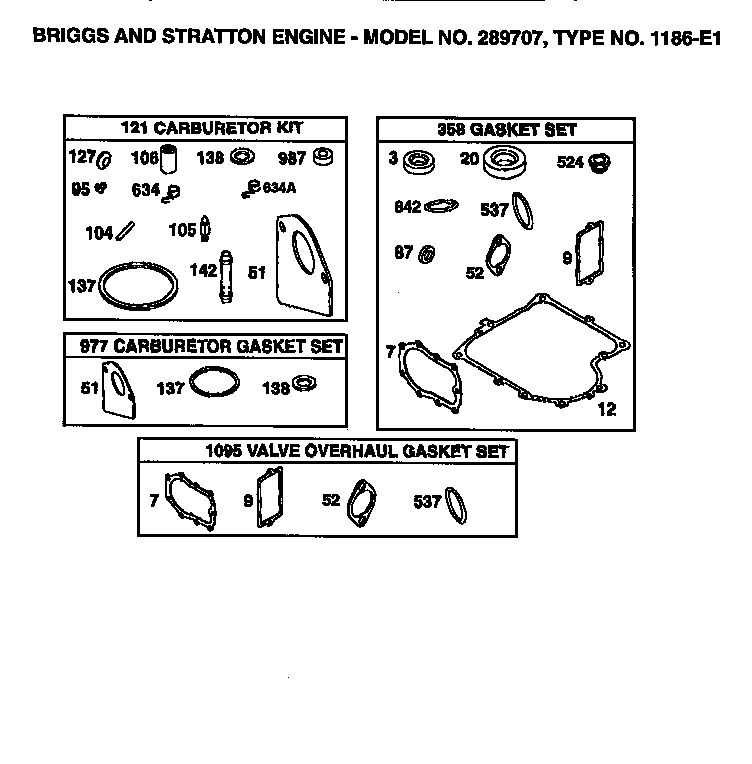

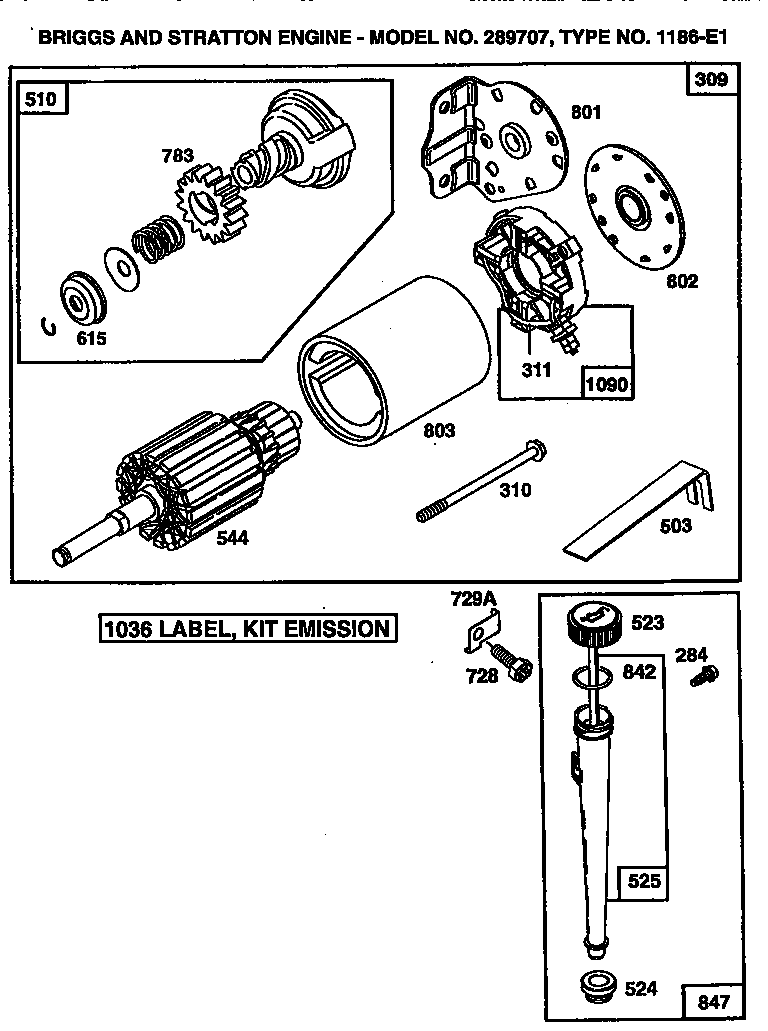

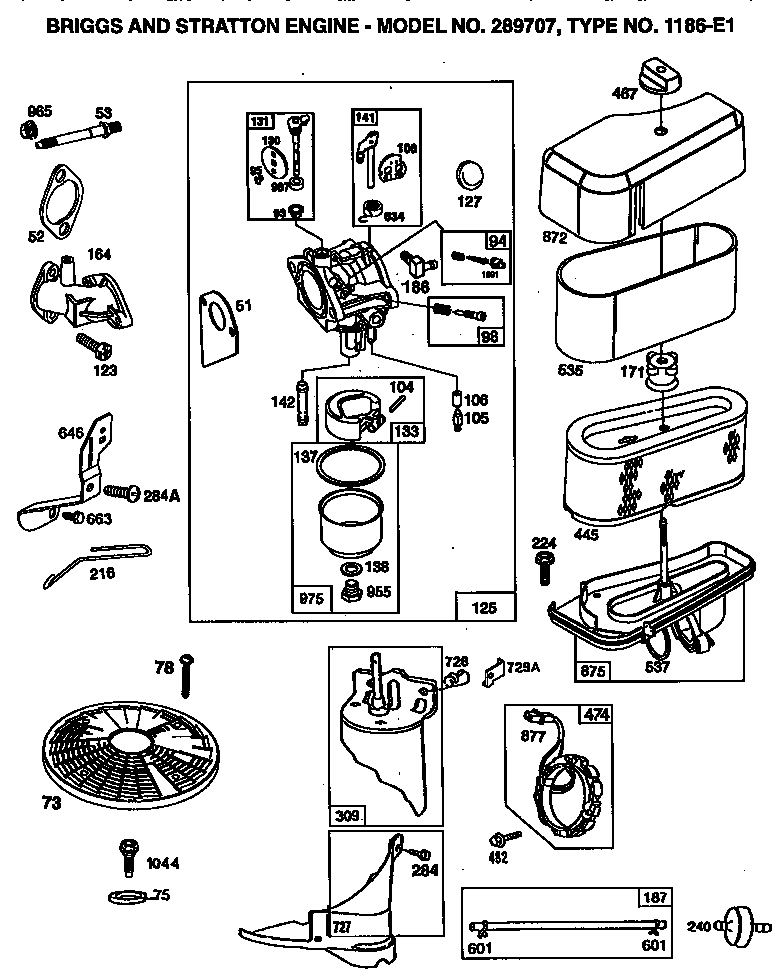

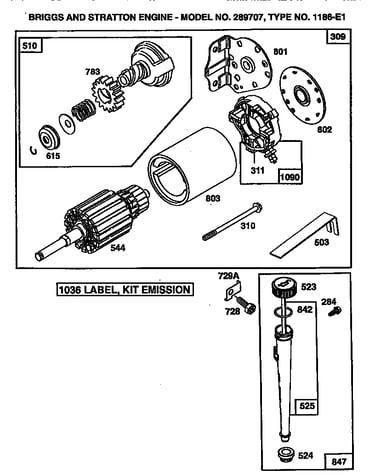

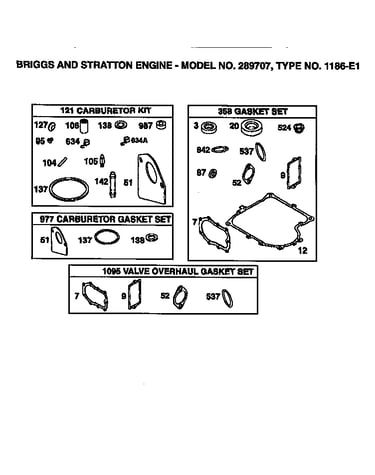

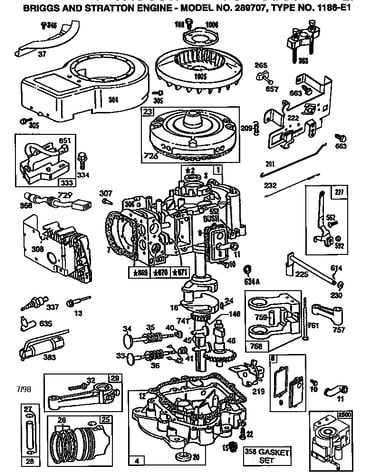

All parts diagram

Filter

Part #394358

Replaced by #394358S

?
Manufacturer substitution
This part replaces 394358. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.46
13% OFF Phone Price : $7.46
In Stock
Air Filter 496894

#445

All parts diagram

Air filter

Part #496894

Replaced by #496894S

?
Manufacturer substitution
This part replaces 496894. Substitute parts can look different from the original.
BEST SELLER
$25.22
19% OFF Phone Price : $31.22
In Stock
Elbow 493496

#186

All parts diagram

Elbow

Part #493496

Replaced by #692317

?
Manufacturer substitution
This part replaces 493496. Substitute parts can look different from the original.
BEST SELLER
$8.31
11% OFF Phone Price : $9.31
In Stock
Key 222698

#24

All parts diagram

Key

Part #222698

Replaced by #222698S

?
Manufacturer substitution
This part replaces 222698. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.29
23% OFF Phone Price : $4.29
In Stock
Filter 272403

#535

All parts diagram

Filter

Part #272403

Replaced by #272403S

?
Manufacturer substitution
This part replaces 272403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.30
16% OFF Phone Price : $6.30
In Stock
Gear Box 490815

#219

All parts diagram

Gear box

Part #490815

Replaced by #691968

?
Manufacturer substitution
This part replaces 490815. Substitute parts can look different from the original.
$44.07
12% OFF Phone Price : $50.07
In Stock
Retainer 263080

#615

All parts diagram

Retainer

Part #263080

Replaced by #691265

?
Manufacturer substitution
This part replaces 263080. Substitute parts can look different from the original.
This item is not returnable
$8.99
10% OFF Phone Price : $9.99
In Stock
Lawn & Garden Equipment Engine Flywheel Puller, Large 19203

#363

All parts diagram

Lawn & garden equipment engine flywheel puller, large

Part #19203

This item is not returnable
$25.45
19% OFF Phone Price : $31.45
In Stock
Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 494378, Bs-495933) 495933

#975

All parts diagram

Lawn & garden equipment engine carburetor float bowl (replaces 494378, bs-495933)

Part #495933

This item is not returnable
$17.29
10% OFF Phone Price : $19.29
In Stock
Hose Clamp 690249

#601

All parts diagram

Hose clamp

Part #690249

Replaced by #791850

?
Manufacturer substitution
This part replaces 690249. Substitute parts can look different from the original.
This item is not returnable
$4.74
17% OFF Phone Price : $5.74
In Stock
