Dehumidifier

Model # AHG40LKG1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHG40LKG1 dehumidifier, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AHG40LKG1 Dehumidifier
Om Room Air 49-7545
#9999

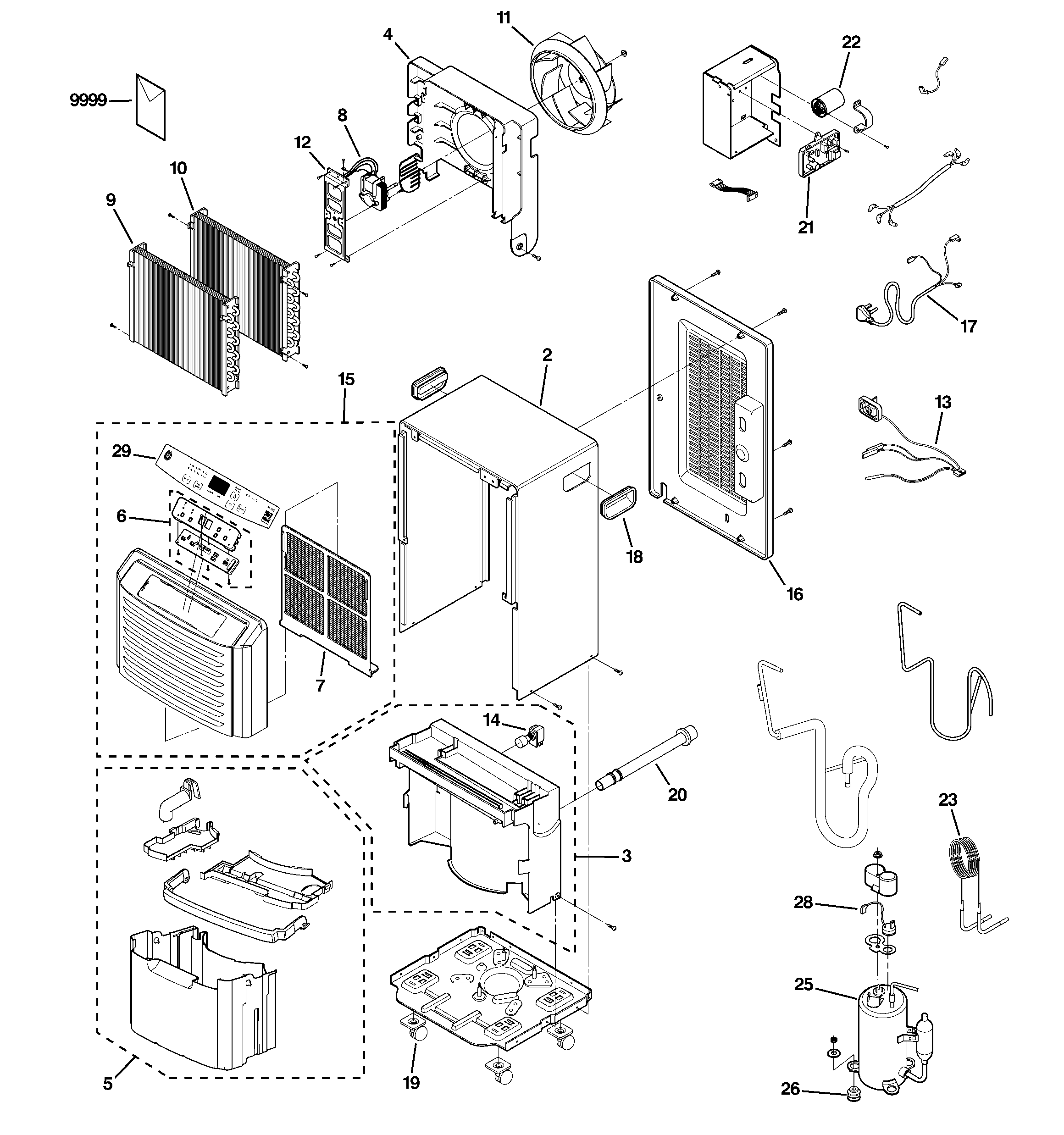

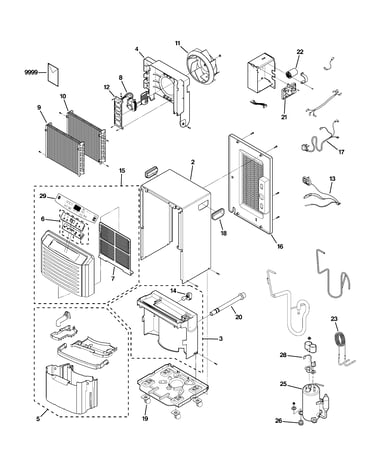

Dehumidifier diagram

Om room air

Part #49-7545

In Stock
Mounting Motor WK65X10002
#12

Dehumidifier diagram

Mounting motor

Part #WK65X10002

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WK71X10018
#29

Dehumidifier diagram

Escutcheon

Part #WK71X10018

The manufacturer no longer makes this part, and there's no substitute part

Pwb(pcb) Asm Main WK27X10024
#21

Dehumidifier diagram

Pwb(pcb) asm main

Part #WK27X10024

The manufacturer no longer makes this part, and there's no substitute part

Evaporator WK87X10016
#9

Dehumidifier diagram

Evaporator

Part #WK87X10016

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WK35X10008
#17

Dehumidifier diagram

Power cord

Part #WK35X10008

The manufacturer no longer makes this part, and there's no substitute part

Rear Grille WK71X10016
#16

Dehumidifier diagram

Rear grille

Part #WK71X10016

The manufacturer no longer makes this part, and there's no substitute part

Condenser WK88X10015
#10

Dehumidifier diagram

Condenser

Part #WK88X10015

The manufacturer no longer makes this part, and there's no substitute part

Caster Asm R WK05X10005
#19

Dehumidifier diagram

Caster asm r

Part #WK05X10005

The manufacturer no longer makes this part, and there's no substitute part

Bushing WK01X10019
#26

Dehumidifier diagram

Bushing

Part #WK01X10019

The manufacturer no longer makes this part, and there's no substitute part
