Kelvinator
Top-Mount Refrigerator

Model # TSK180EN0W Official Kelvinator refrigerator - lk30587250

Here are the diagrams and repair parts for Official Kelvinator TSK180EN0W refrigerator - lk30587250, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Filter Drier G186717
#1

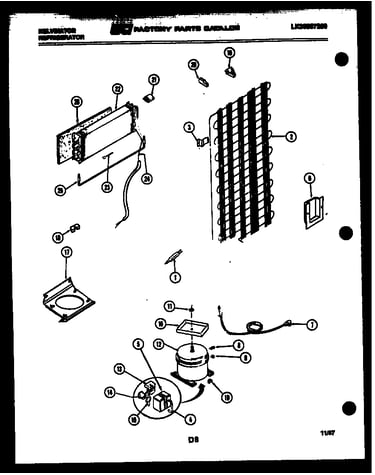

System and automatic defrost parts diagram

Filter drier

Part #G186717

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G186717. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Defrost Thermostat G162690-01
#21

System and automatic defrost parts diagram

Defrost thermostat

Part #G162690-01

Replaced by #5303917954

?
Manufacturer substitution
This part replaces G162690-01. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Tube G142176-11
#16

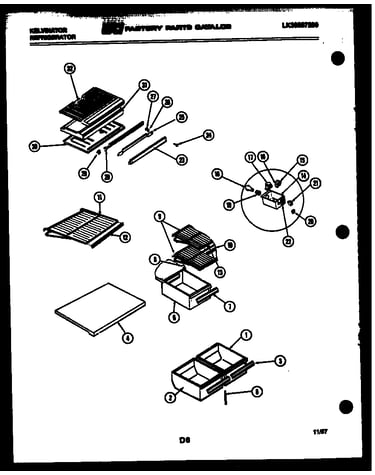

Racks and trays diagram

Tube

Part #G142176-11

Replaced by #5303916855

?
Manufacturer substitution
This part replaces G142176-11. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
Refrigerator Gasket G186932-13
Refrigerator gasket

Part #G186932-13

Replaced by #218730609

?
Manufacturer substitution
This part replaces G186932-13. Substitute parts can look different from the original.
$107.82 |
10% OFF Phone Price : $119.82
In Stock
Refrigerator Ice Tray G156376-18
#19

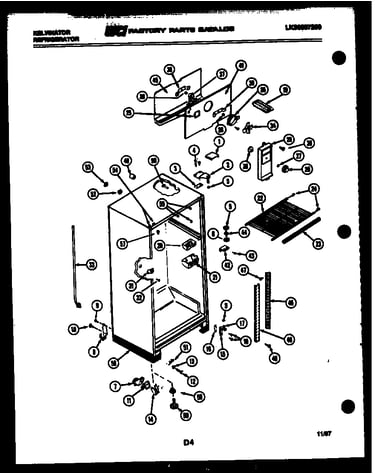

Cabinet parts diagram

Refrigerator ice tray

Part #G156376-18

Replaced by #215667501

?
Manufacturer substitution
This part replaces G156376-18. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Refrigerator Grommet G176993
#55A

Cabinet parts diagram

Refrigerator grommet

Part #G176993

Replaced by #5304500407

?
Manufacturer substitution
This part replaces G176993. Substitute parts can look different from the original.
This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
Light Switch G162672
#29

Racks and trays diagram

Light switch

Part #G162672

Replaced by #5309918806

?
Manufacturer substitution
This part replaces G162672. Substitute parts can look different from the original.
This item is not returnable
$22.76 |
21% OFF Phone Price : $28.76
In Stock
Refrigerator Button Plug G162977-01
#8

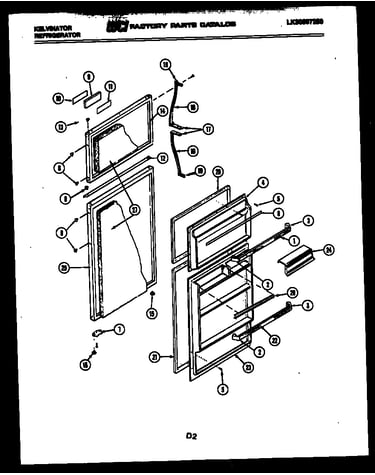

Door parts diagram

Refrigerator button plug

Part #G162977-01

Replaced by #240494001

?
Manufacturer substitution
This part replaces G162977-01. Substitute parts can look different from the original.
This item is not returnable
$19.78 |
9% OFF Phone Price : $21.78
In Stock
Refrigerator Screw G187009
#9

Cabinet parts diagram

Refrigerator screw

Part #G187009

Replaced by #5304455651

?
Manufacturer substitution
This part replaces G187009. Substitute parts can look different from the original.
$13.26
In Stock
Refrigerator Screw G181104
#47

Cabinet parts diagram

Refrigerator screw

Part #G181104

Replaced by #5304455852

?
Manufacturer substitution
This part replaces G181104. Substitute parts can look different from the original.
$12.57
In Stock
