Model # AZ26E09EACV2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AZ26E09EACV2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

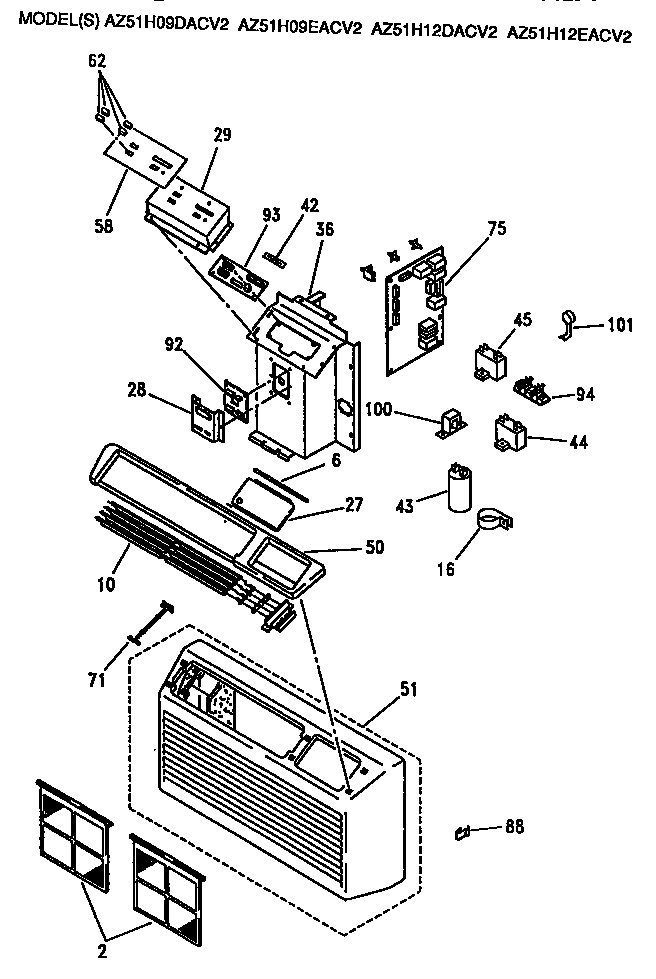

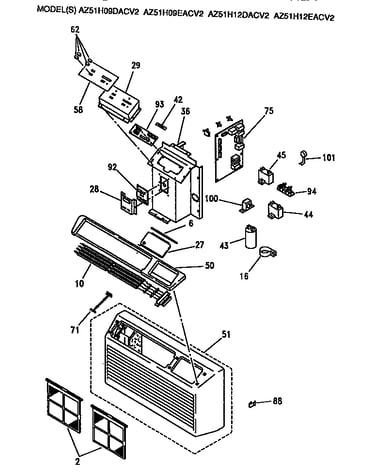

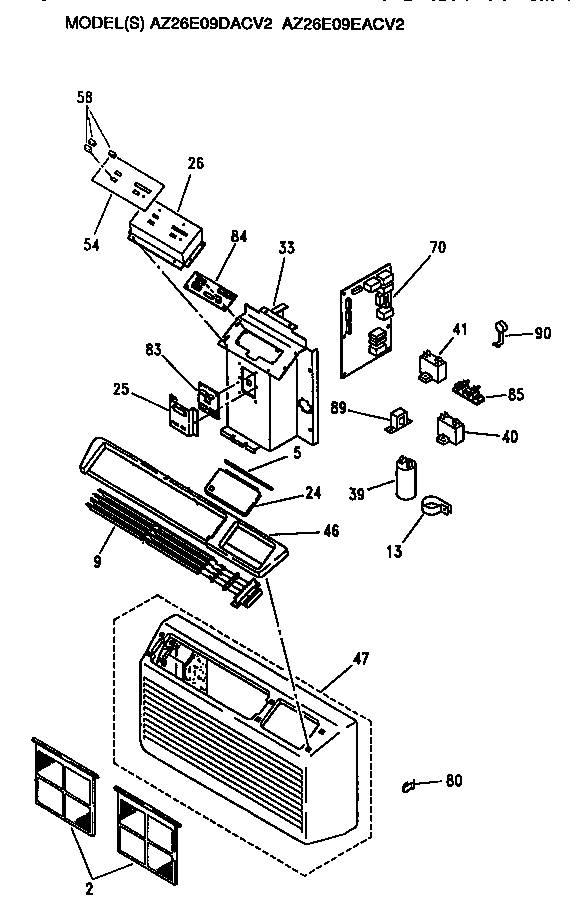

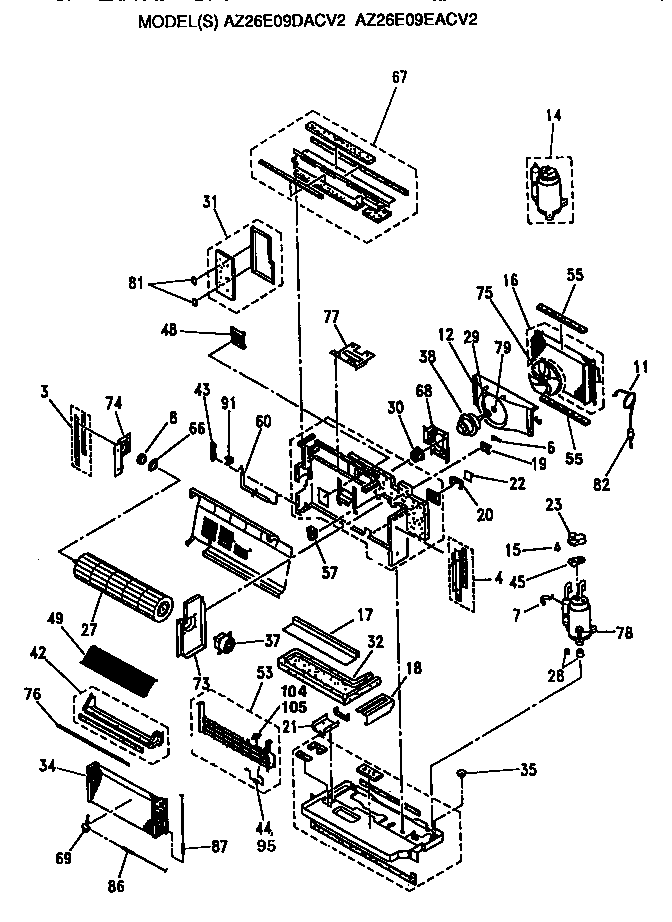

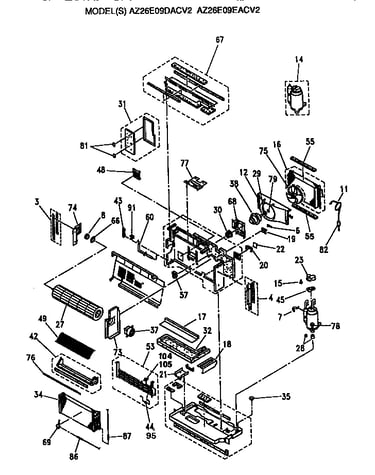

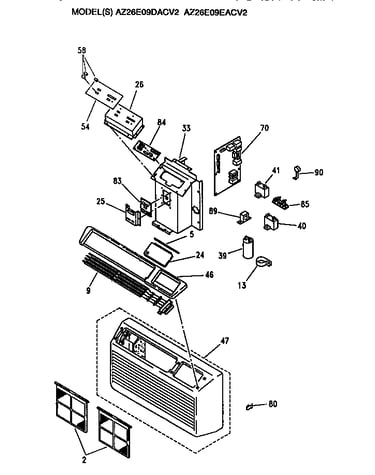

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Mini Package Rack 31-6048

#9999

All parts diagram

Mini package rack

Part #31-6048

Replaced by #31-8818

?
Manufacturer substitution
This part replaces 31-6048. Substitute parts can look different from the original.
$39.49
In Stock
Uc/installat 49-7268

#9999

All parts diagram

Uc/installat

Part #49-7268

Replaced by #49-7315

?
Manufacturer substitution
This part replaces 49-7268. Substitute parts can look different from the original.
$8.49
In Stock
Escutcheon WP7X70

#54

All parts diagram

Escutcheon

Part #WP7X70

The manufacturer no longer makes this part, and there's no substitute part

Terminal Base WP27X42

#81

All parts diagram

Terminal base

Part #WP27X42

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover WP79X69

#25

All parts diagram

Switch cover

Part #WP79X69

The manufacturer no longer makes this part, and there's no substitute part

Ovrld Comp WP23X64

#17

All parts diagram

Ovrld comp

Part #WP23X64

The manufacturer no longer makes this part, and there's no substitute part

Clip WP2X36

#76

All parts diagram

Clip

Part #WP2X36

The manufacturer no longer makes this part, and there's no substitute part

Heater WP70X120

#53

All parts diagram

Heater

Part #WP70X120

The manufacturer no longer makes this part, and there's no substitute part

Cap Clamp WP3X13

#13

All parts diagram

Cap clamp

Part #WP3X13

The manufacturer no longer makes this part, and there's no substitute part

Bi-metal Thermostat WP23X79

#117

All parts diagram

Bi-metal thermostat

Part #WP23X79

The manufacturer no longer makes this part, and there's no substitute part
