Lawn Sweeper

Model # 486240383 Official Craftsman 38" lawn sweeper

Here are the diagrams and repair parts for Official Craftsman 486240383 38" lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Lawn Sweeper Brush Retainer (replaces Af-23580) 23580
#8

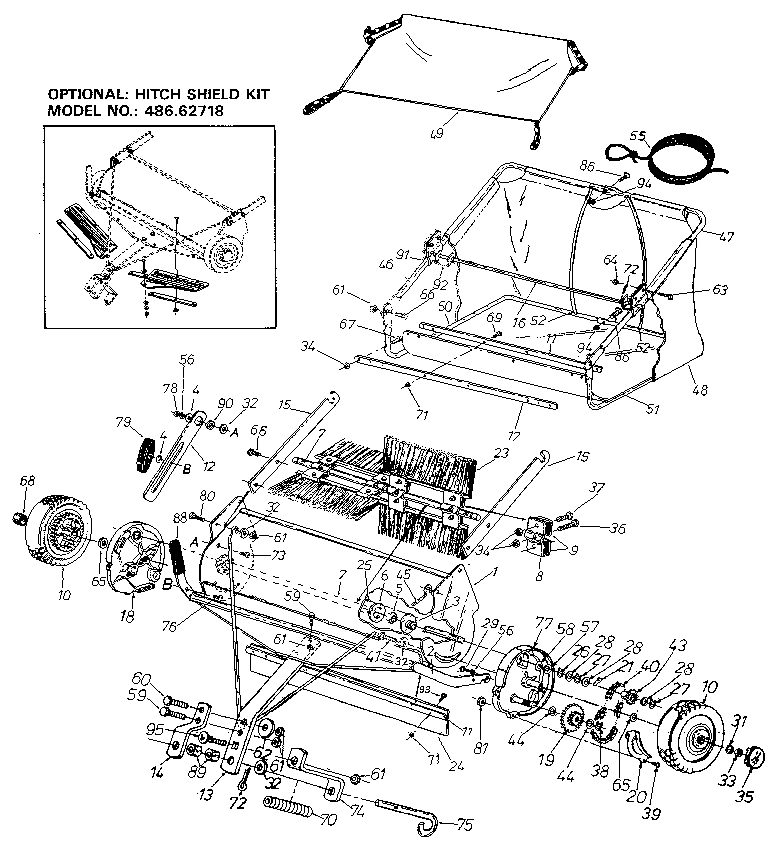

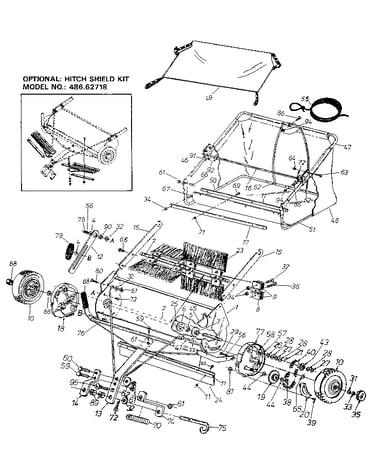

Replacement parts diagram

Lawn sweeper brush retainer (replaces af-23580)

Part #23580

BEST SELLER
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Lawn & Garden Equipment Wing Knob (replaces Af-43720) 43720
#79

Replacement parts diagram

Lawn & garden equipment wing knob (replaces af-43720)

Part #43720

BEST SELLER
This item is not returnable
$3.39 |
23% OFF Phone Price : $4.39
In Stock
Lawn Sweeper Brush Retainer (replaces Af-23581) 23581
#9

Replacement parts diagram

Lawn sweeper brush retainer (replaces af-23581)

Part #23581

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Ratchet Sprocket 43889
#43

Replacement parts diagram

Lawn tractor lawn sweeper attachment ratchet sprocket

Part #43889

This item is not returnable
$11.43 |
15% OFF Phone Price : $13.43
Back Order
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#4

Replacement parts diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Ball Bearing .5915" I.d. 1652-13
#5

Replacement parts diagram

Ball bearing .5915" i.d.

Part #1652-13

Replaced by #44232

?
Manufacturer substitution
This part replaces 1652-13. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Lawn & Garden Equipment Lock Washer 43086
#56

Replacement parts diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
#32

Replacement parts diagram

Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Hopper Rope (replaces Af-43737) 43737
#55

Replacement parts diagram

Lawn tractor lawn sweeper attachment hopper rope (replaces af-43737)

Part #43737

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Carriage Bolt, 3/8-16 X 1-in 43350
#95

Replacement parts diagram

Lawn tractor attachment carriage bolt, 3/8-16 x 1-in

Part #43350

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
