Kenmore
Top-Mount Refrigerator

Model # 1069354701 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 1069354701 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

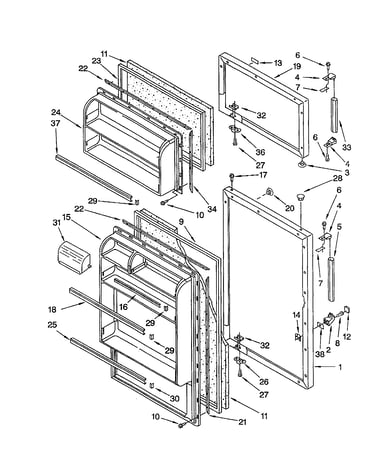

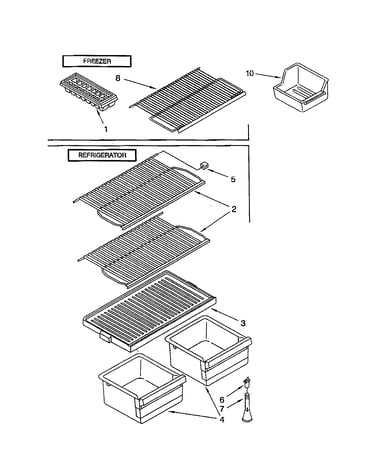

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#0

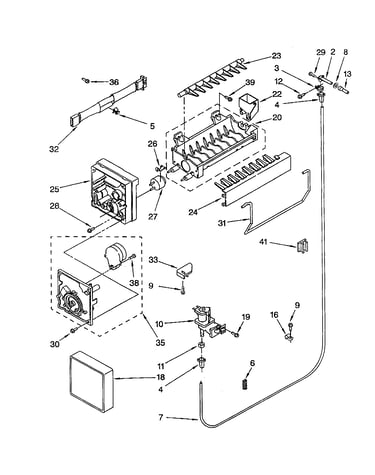

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Light Bulb 946059
#17

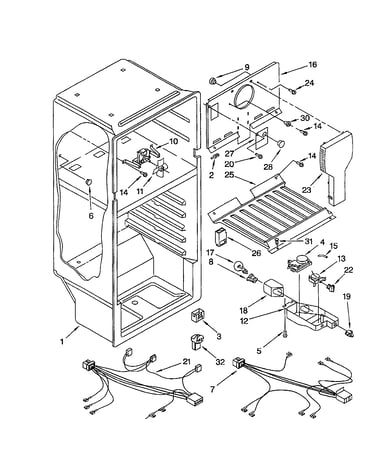

Liner diagram

Light bulb

Part #946059

Replaced by #40A15

?
Manufacturer substitution
This part replaces 946059. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 2174865
#29

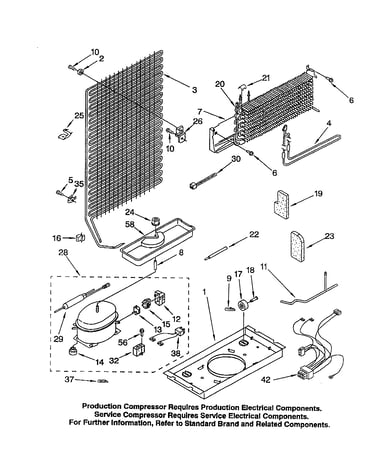

Unit diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Water Tube 1108197
#7

Icemaker diagram

Refrigerator water tube

Part #1108197

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 1108197. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Compressor 2169441
#28

Unit diagram

Refrigerator compressor

Part #2169441

Replaced by #W10309988

?
Manufacturer substitution
This part replaces 2169441. Substitute parts can look different from the original.
BEST SELLER
$285.83 |
6% OFF Was : $304.56
In Stock
Refrigerator Inlet Valve 2181702
#10

Icemaker diagram

Refrigerator inlet valve

Part #2181702

Replaced by #WP2315576

?
Manufacturer substitution
This part replaces 2181702. Substitute parts can look different from the original.
BEST SELLER
$46.01 |
12% OFF Phone Price : $52.01
In Stock
Ice Maker Kit 8560

#NI09

All parts diagram

Ice maker kit

Part #8560

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 8560. Substitute parts can look different from the original.
BEST SELLER
$108.60 |
10% OFF Phone Price : $120.60
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI14

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Washer 487576
#41

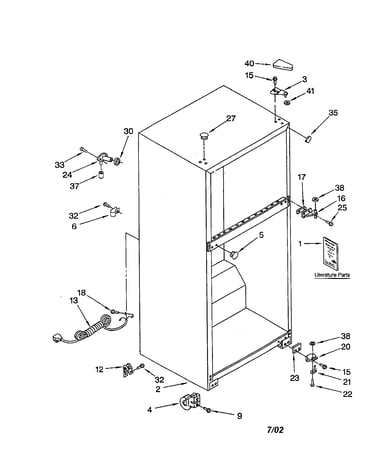

Cabinet diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
