Amana
Side-By-Side Refrigerator

Model # ASE526M-P1164004W Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana ASE526M-P1164004W side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

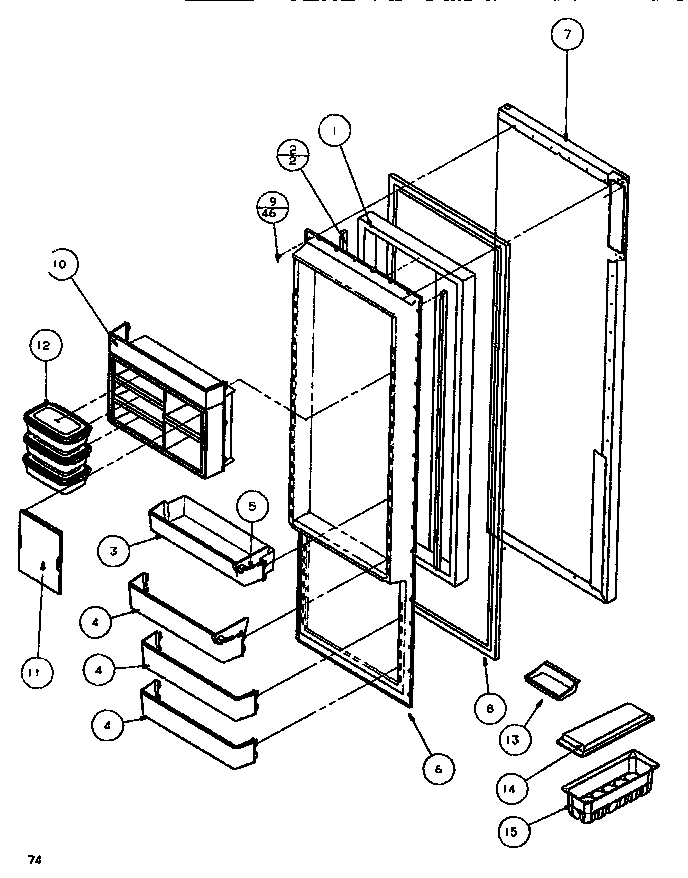

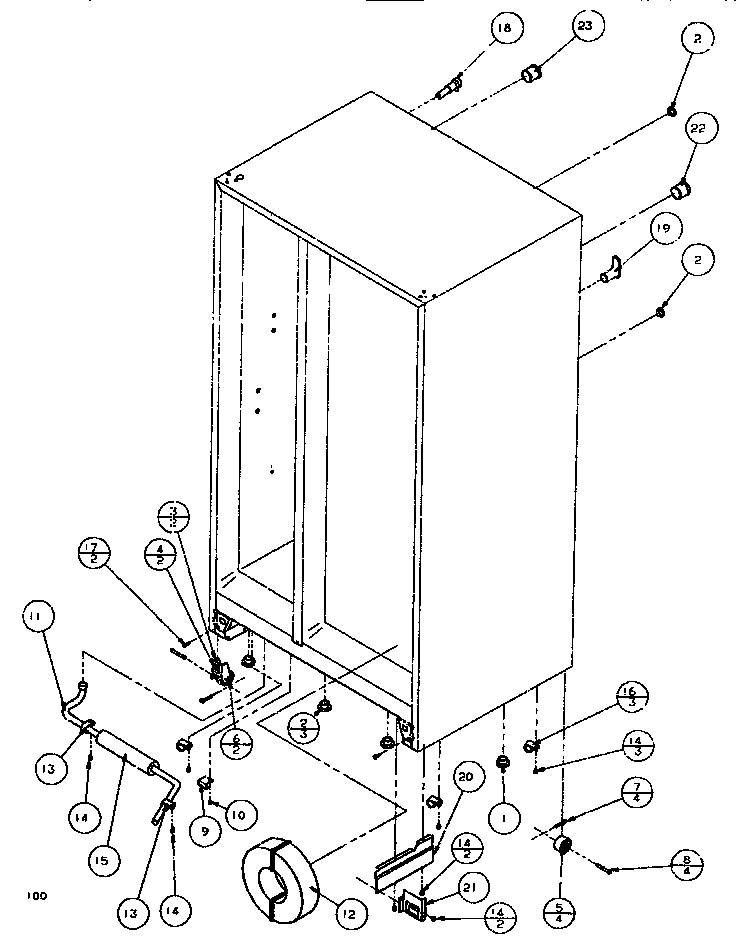

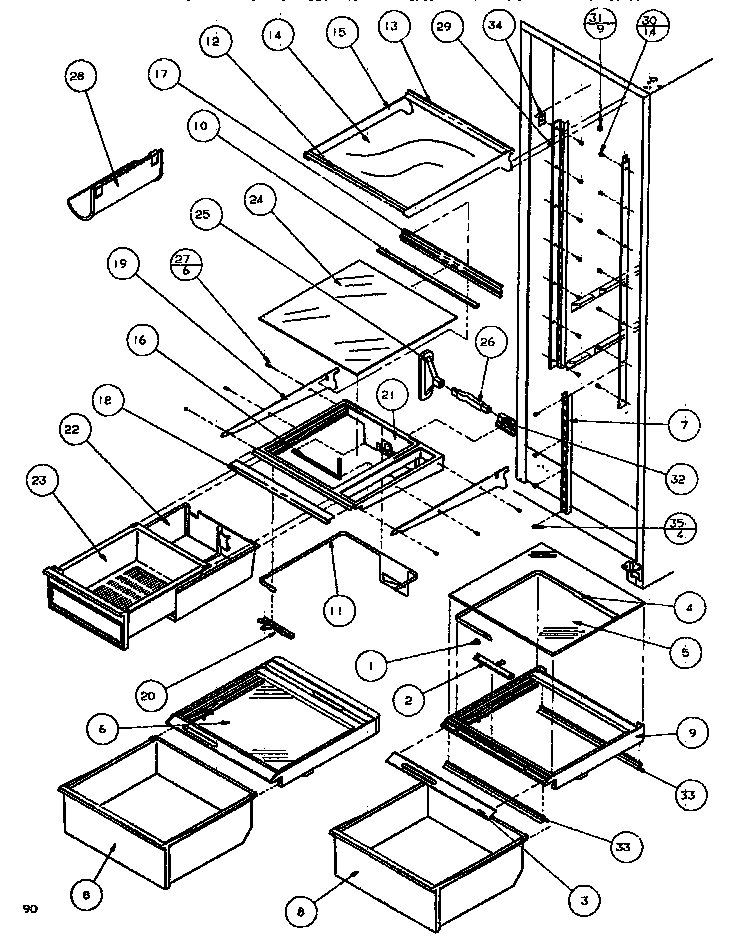

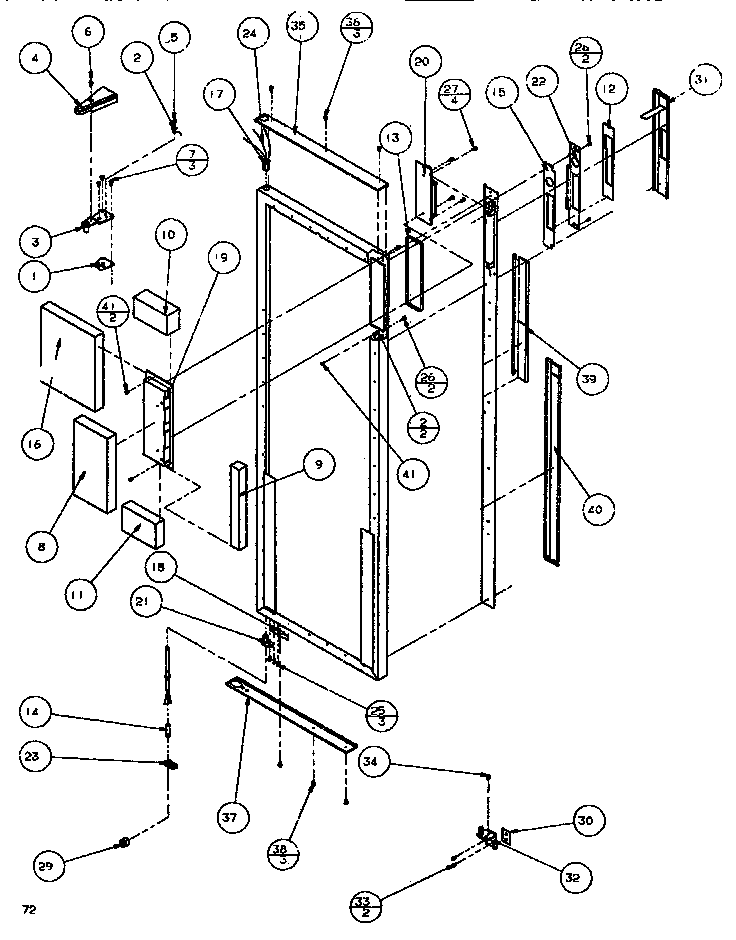

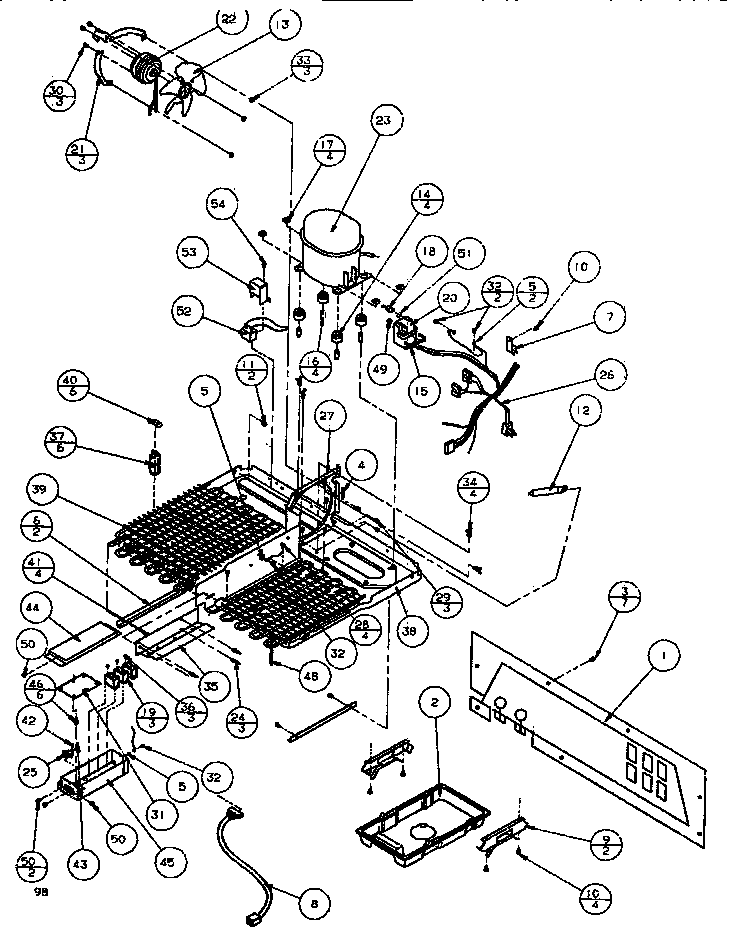

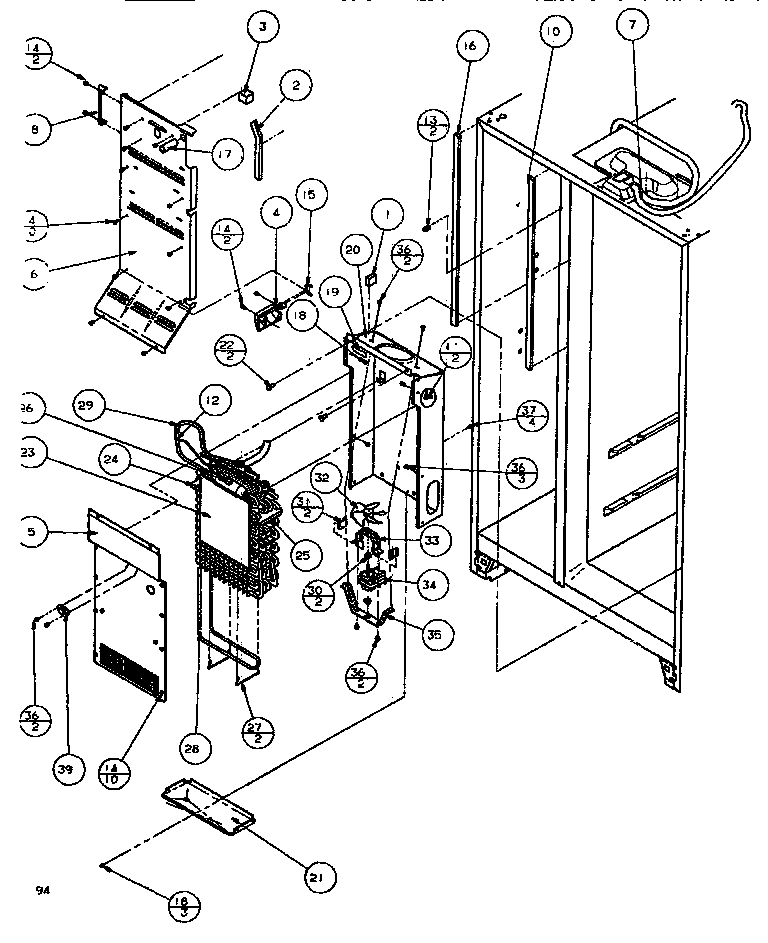

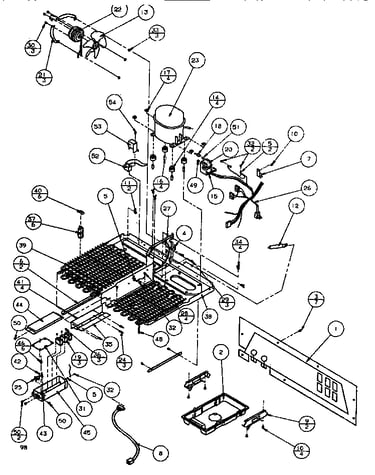

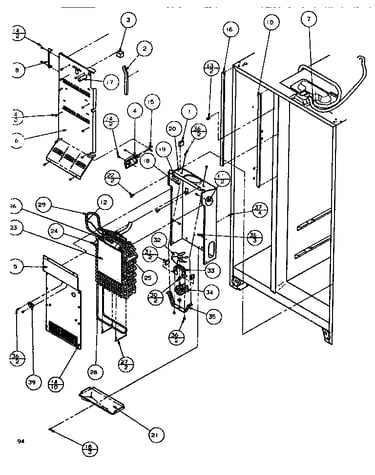

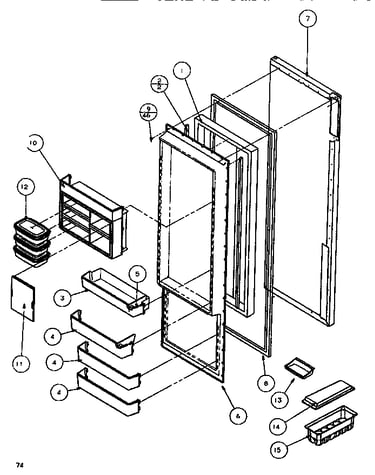

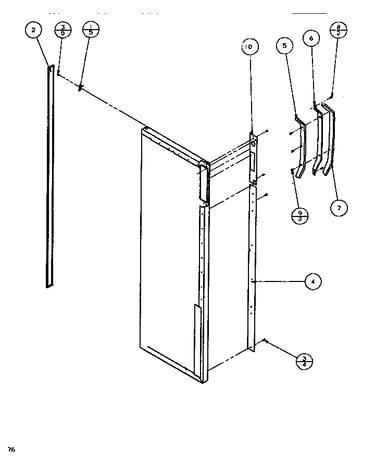

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 487 parts  |
Refrigerator Tubing B5705321
Refrigerator tubing

Part #B5705321

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705321. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock

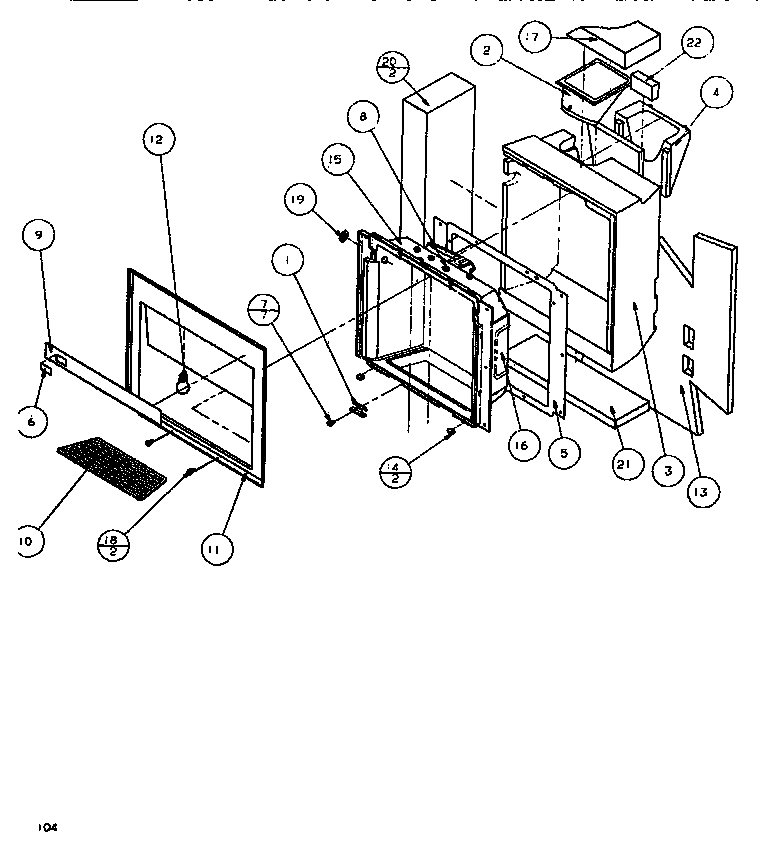

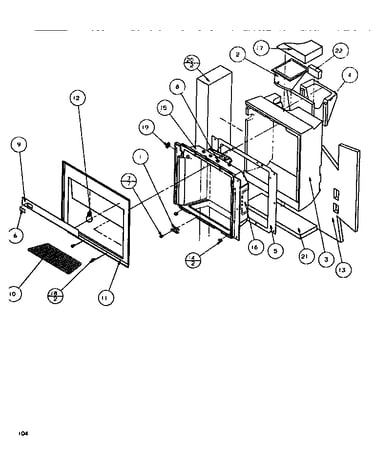

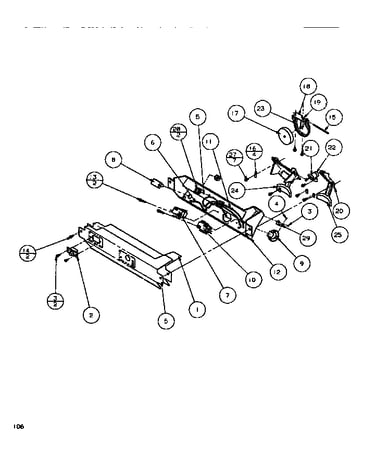

Refrigerator Dispenser Water Tube B5705308
#32

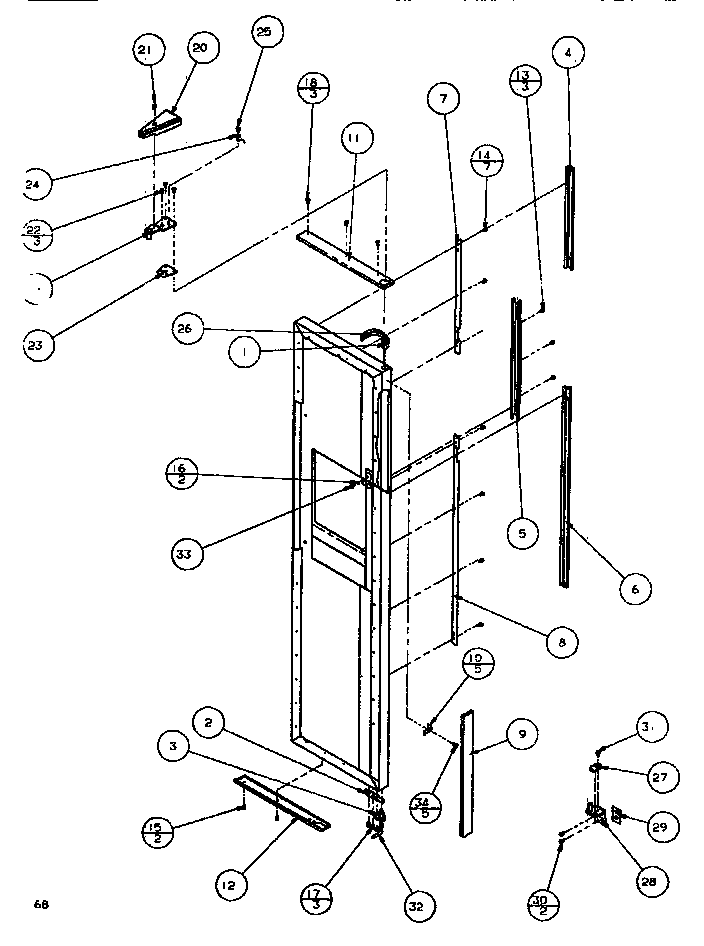

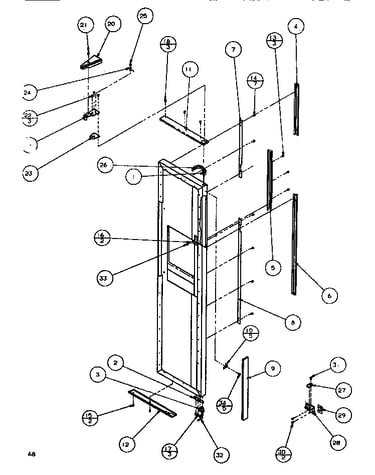

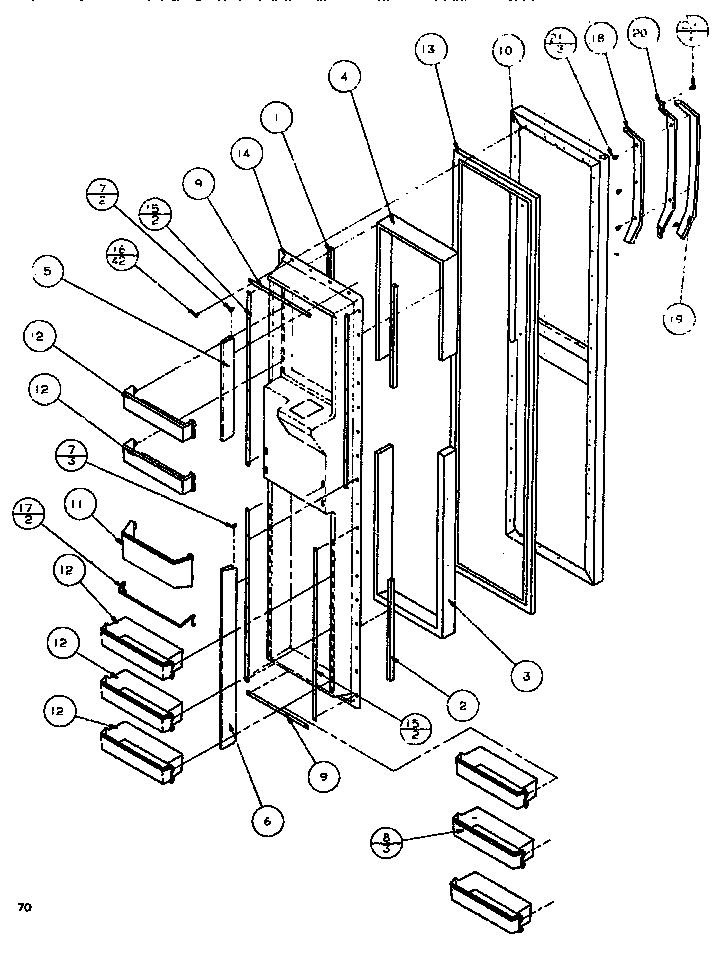

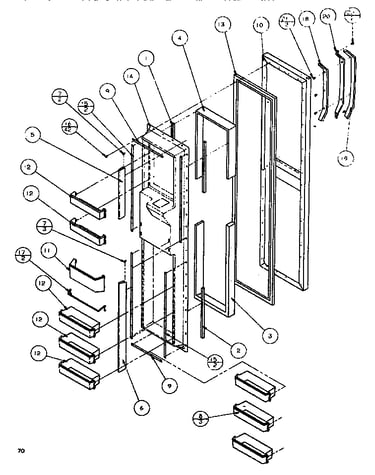

Door/hinge/trim freezer diagram

Refrigerator dispenser water tube

Part #B5705308

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705308. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Screw M0220617
Refrigerator screw

Part #M0220617

Replaced by #WP489069

?
Manufacturer substitution
This part replaces M0220617. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Union B5706901
#18

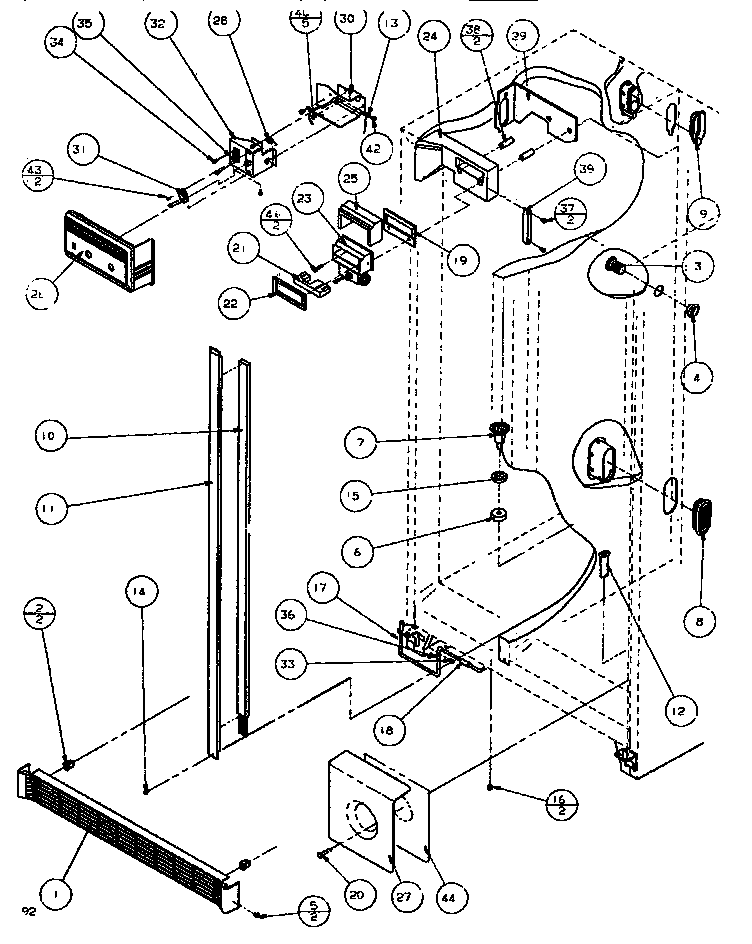

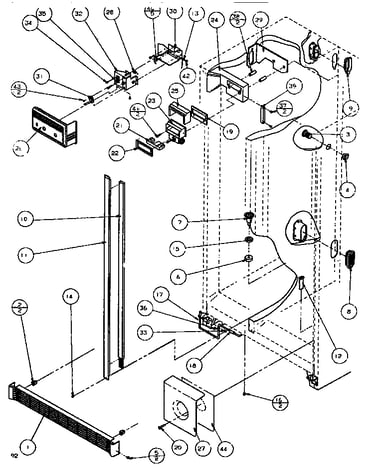

Controls & cabinet (ref/frz) diagram

Refrigerator union

Part #B5706901

Replaced by #WP4373559

?
Manufacturer substitution
This part replaces B5706901. Substitute parts can look different from the original.
$30.47 |
16% OFF Phone Price : $36.47
In Stock
Refrigerator Screw M0211017
#17

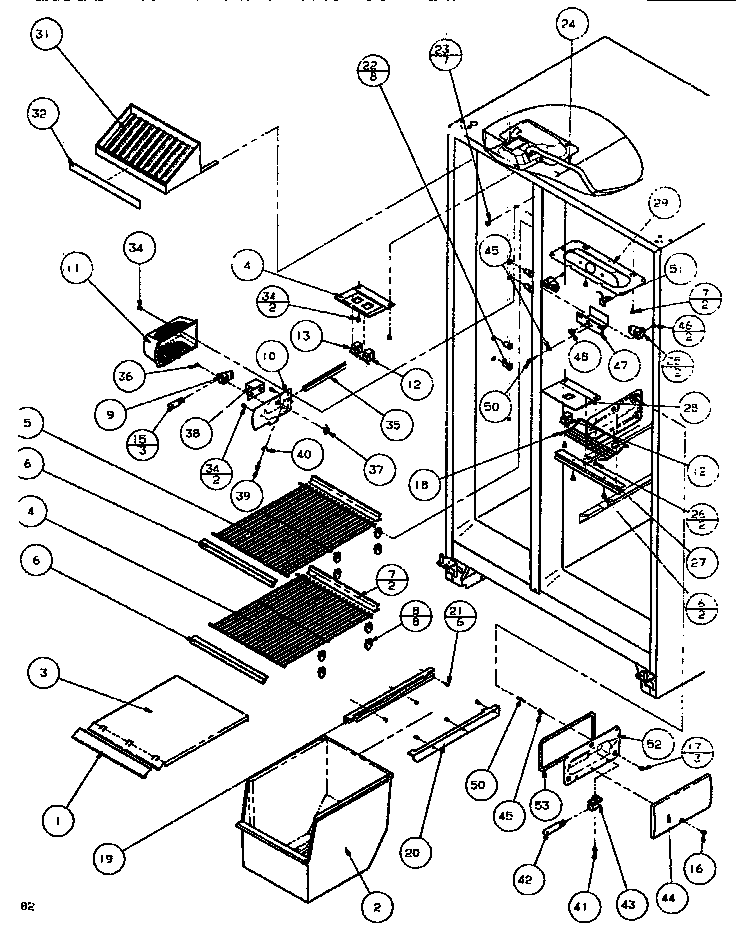

Freezer shelving & ref light diagram

Refrigerator screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw M0209616
Refrigerator screw

Part #M0209616

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0209616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Helix End Cap D7749401
Helix end cap

Part #D7749401

Replaced by #WPD7749401

?
Manufacturer substitution
This part replaces D7749401. Substitute parts can look different from the original.
This item is not returnable
$22.49 |
21% OFF Phone Price : $28.49
In Stock
Refrigerator Clamp M0114003
#9

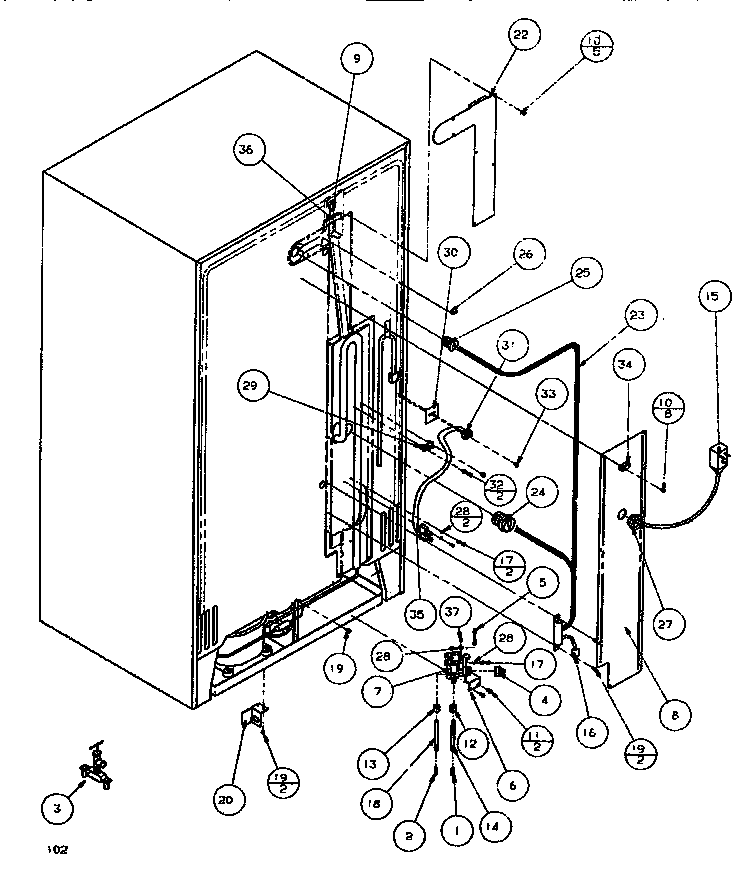

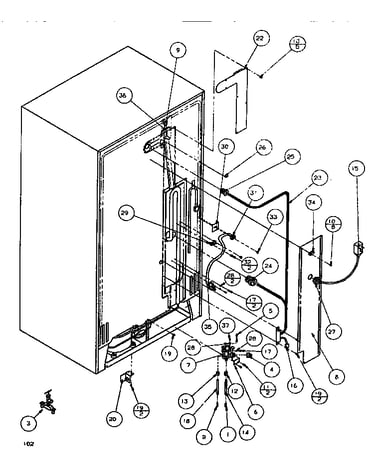

Cabinet back diagram

Refrigerator clamp

Part #M0114003

Replaced by #WPM0114003

?
Manufacturer substitution
This part replaces M0114003. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Screw M0211019
#26

Freezer shelving & ref light diagram

Refrigerator screw

Part #M0211019

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211019. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock

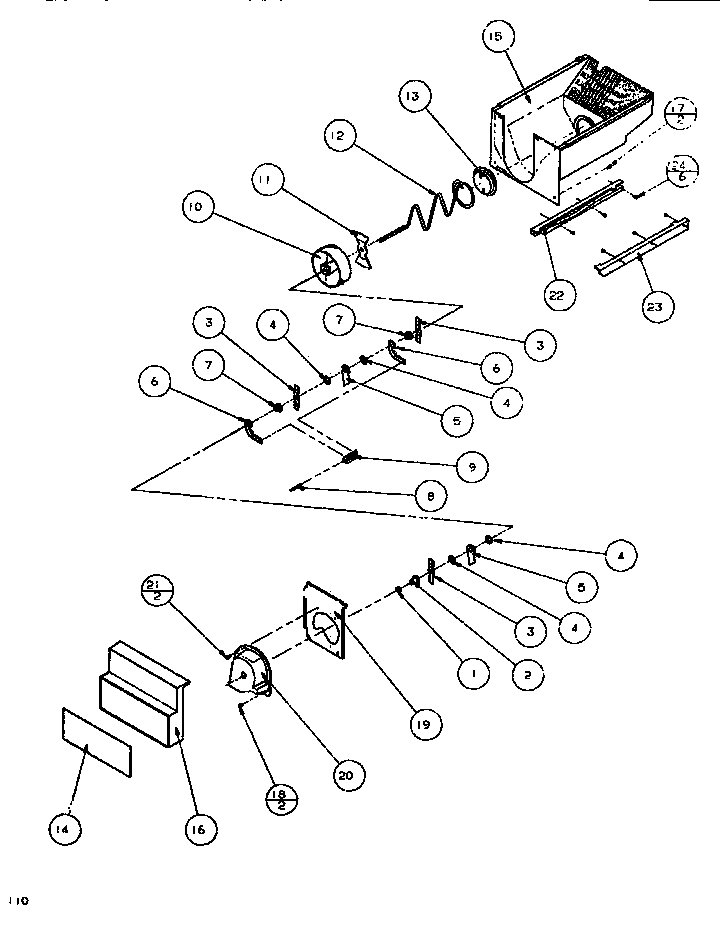

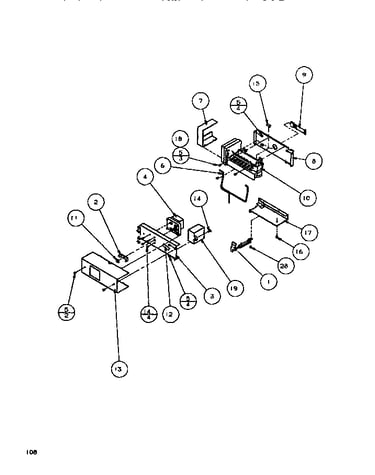

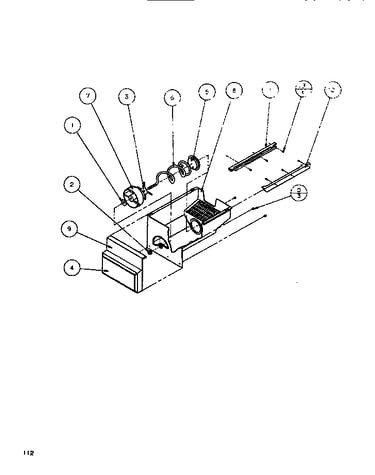

Ice Agitator R0156803

#NI

All parts diagram

Ice agitator

Part #R0156803

The manufacturer no longer makes this part, and there's no substitute part
