Frigidaire
Gas Wall Oven

Model # FGB24T3ECF Official Frigidaire wall oven

Here are the diagrams and repair parts for Official Frigidaire FGB24T3ECF wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

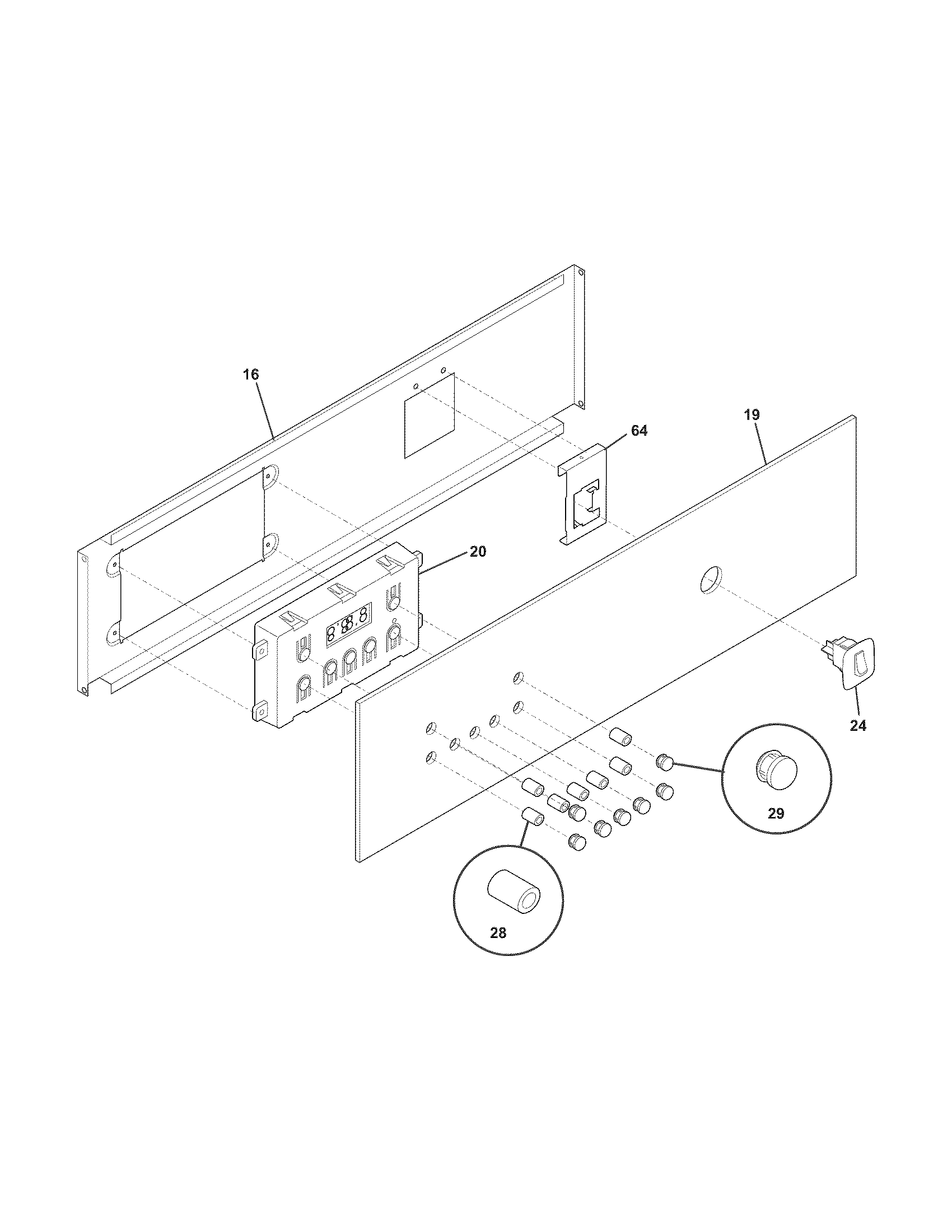

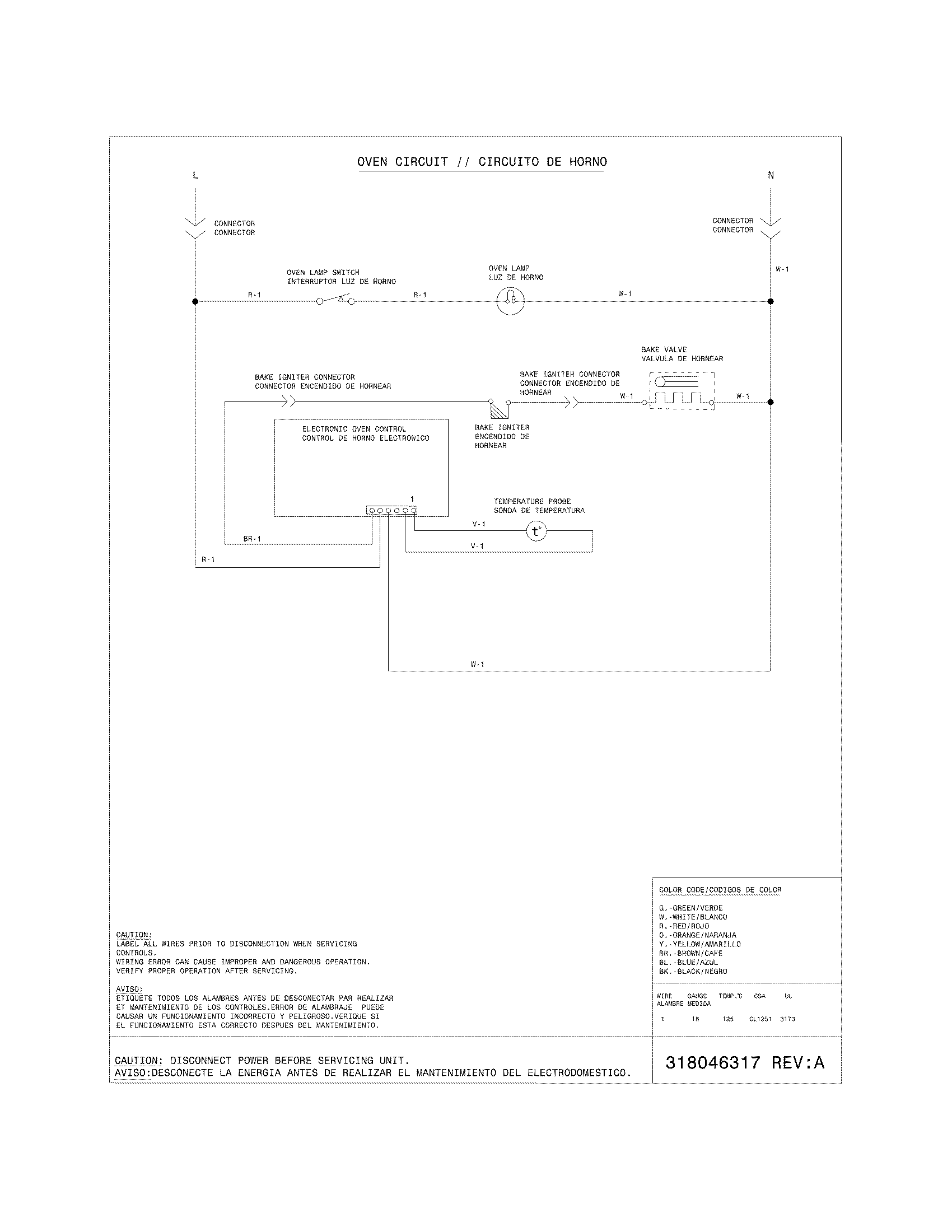

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Range Oven Light Bulb 5303013071
#15

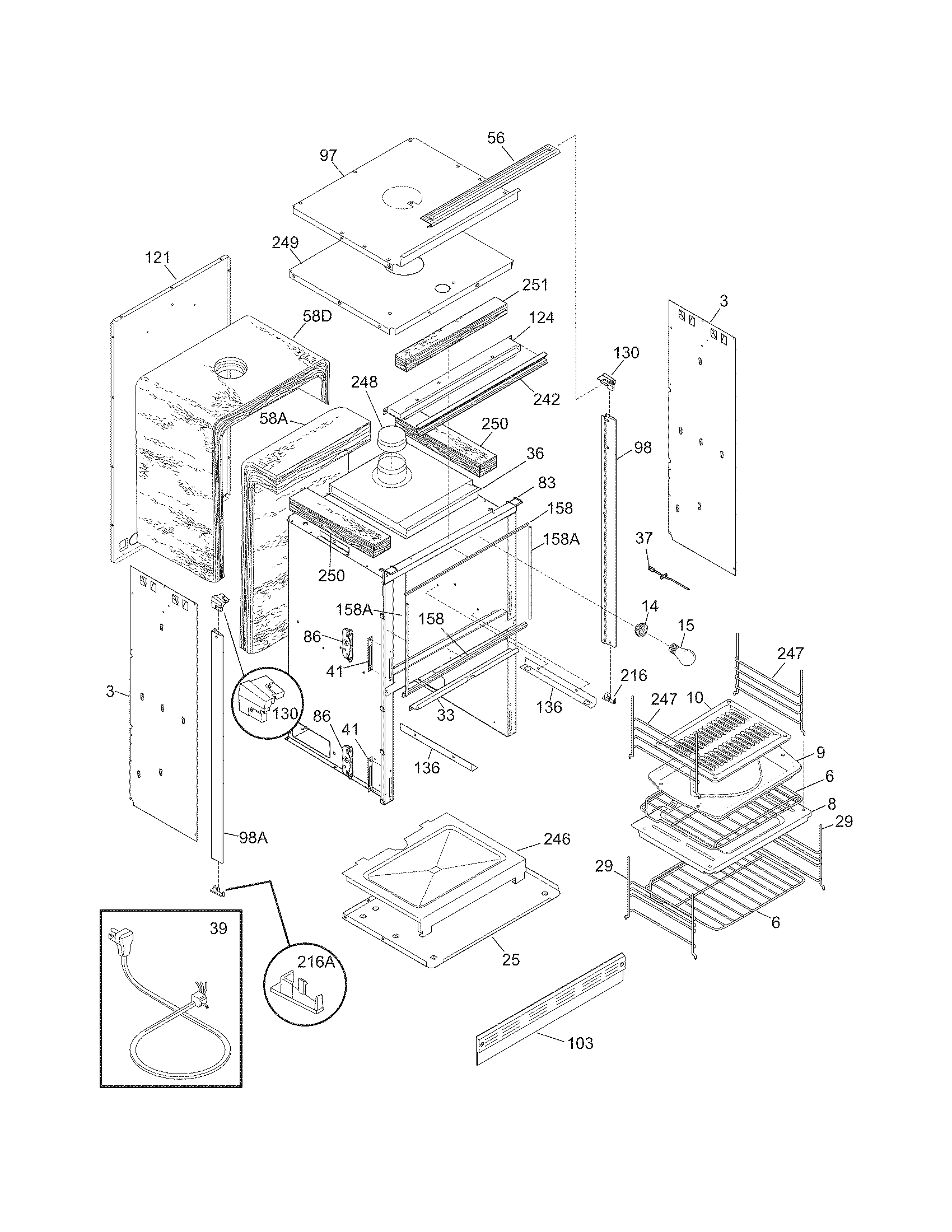

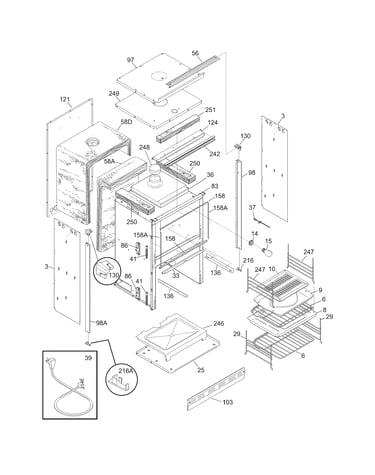

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Broil Pan Insert 316082000
#10

Body diagram

Range broil pan insert

Part #316082000

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316082000. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Broil Pan 316081900
#9

Body diagram

Range broil pan

Part #316081900

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316081900. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Screw, 10-24 X 1-3/4-in (replaces 75304416408) 5304416408
#10

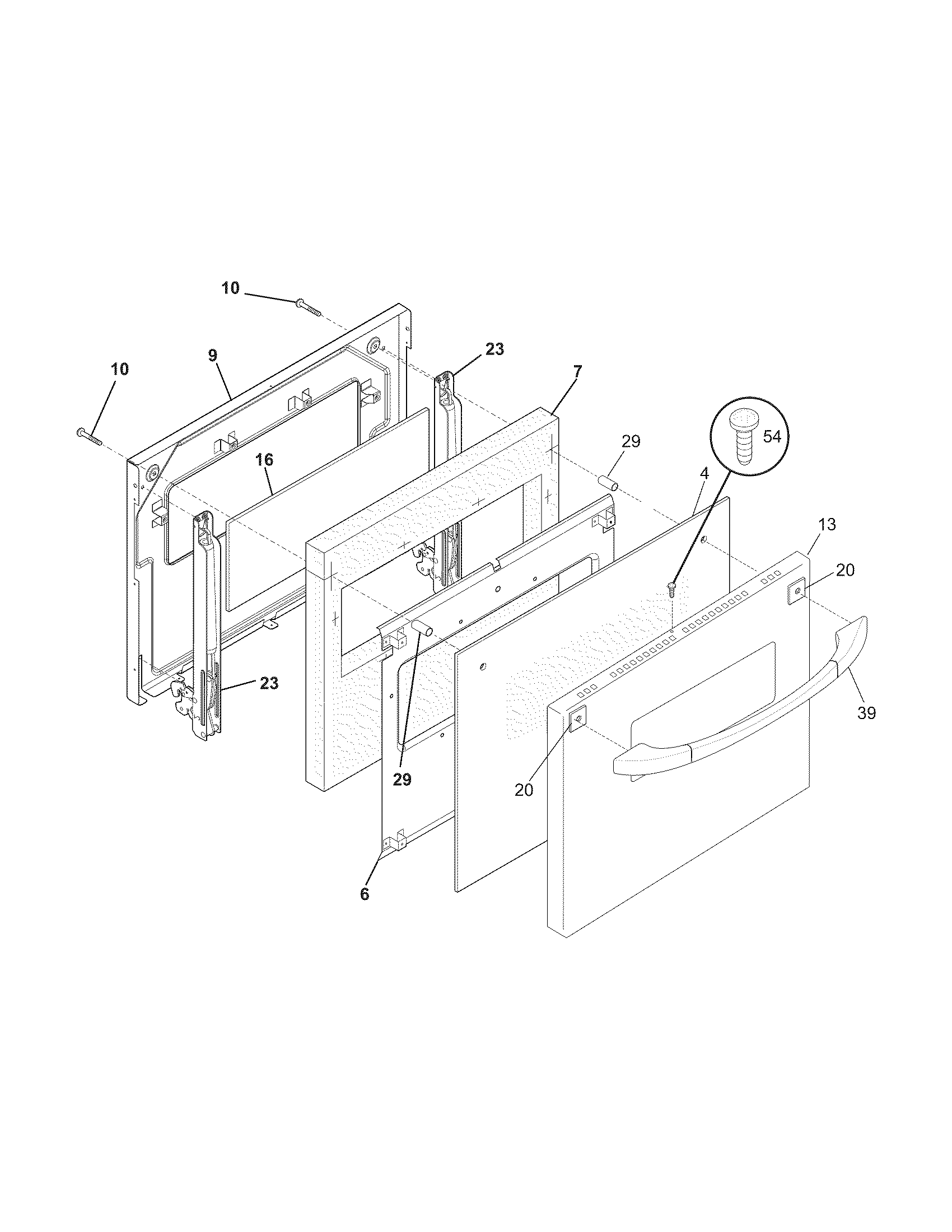

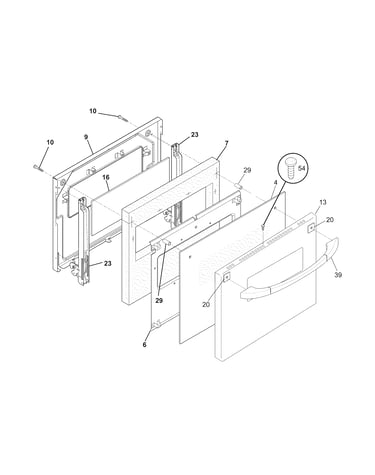

Door diagram

Range screw, 10-24 x 1-3/4-in (replaces 75304416408)

Part #5304416408

Replaced by #5304500008

?
Manufacturer substitution
This part replaces 5304416408. Substitute parts can look different from the original.
$13.29
In Stock
Nut 3201885
#21

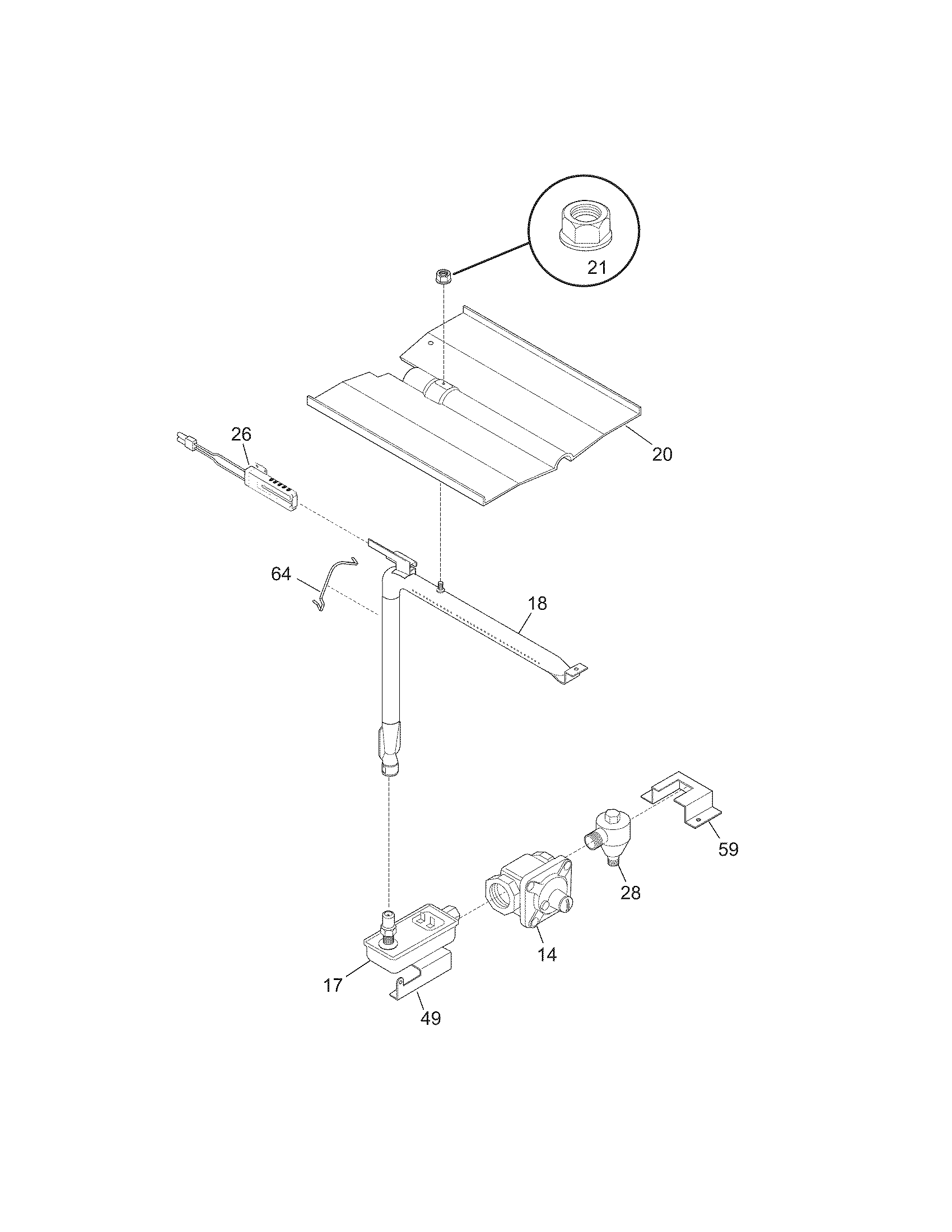

Burner diagram

Nut

Part #3201885

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3201885. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Kenmore Range Oven Temperature Sensor 316217005
#37

Body diagram

Kenmore range oven temperature sensor

Part #316217005

$64.09 |
9% OFF Phone Price : $70.09
In Stock
Range Screw 5304436875
#NI

Burner diagram

Range screw

Part #5304436875

This item is not returnable
$13.92 |
13% OFF Phone Price : $15.92
In Stock
Range Screw 5303300265
#NI

Body diagram

Range screw

Part #5303300265

This item is not returnable
$16.63
In Stock
Range Screw 5303308456
#54

Door diagram

Range screw

Part #5303308456

$9.91
In Stock
Kenmore Wall Oven Gas Valve (replaces 5303295305, 5303317688) 5303210156
#17

Burner diagram

Kenmore wall oven gas valve (replaces 5303295305, 5303317688)

Part #5303210156

$198.87 |
6% OFF Phone Price : $210.87
In Stock
