Model # GU3200XTXQ1 Official Whirlpool undercounter dishwasher
Here are the diagrams and repair parts for Official Whirlpool GU3200XTXQ1 undercounter dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part

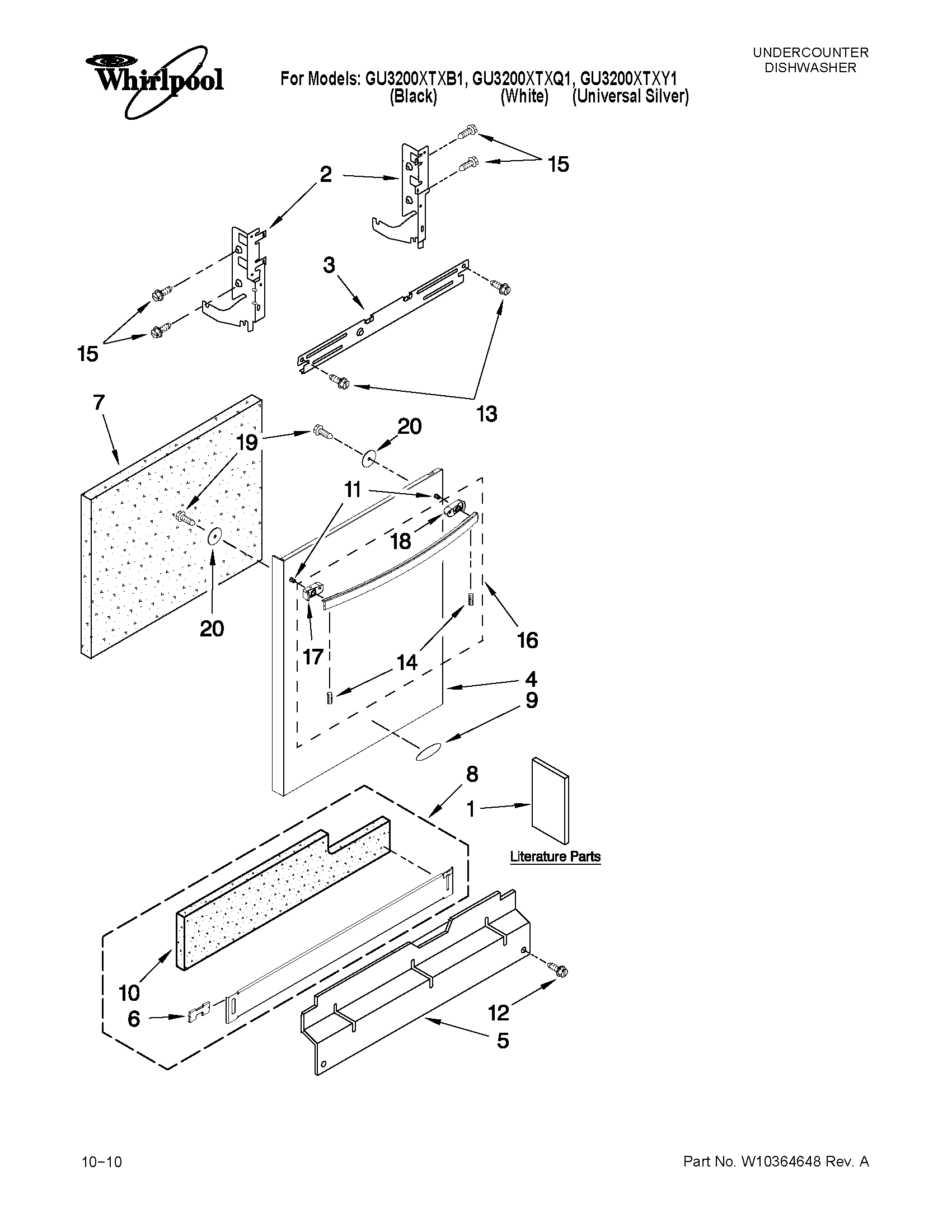

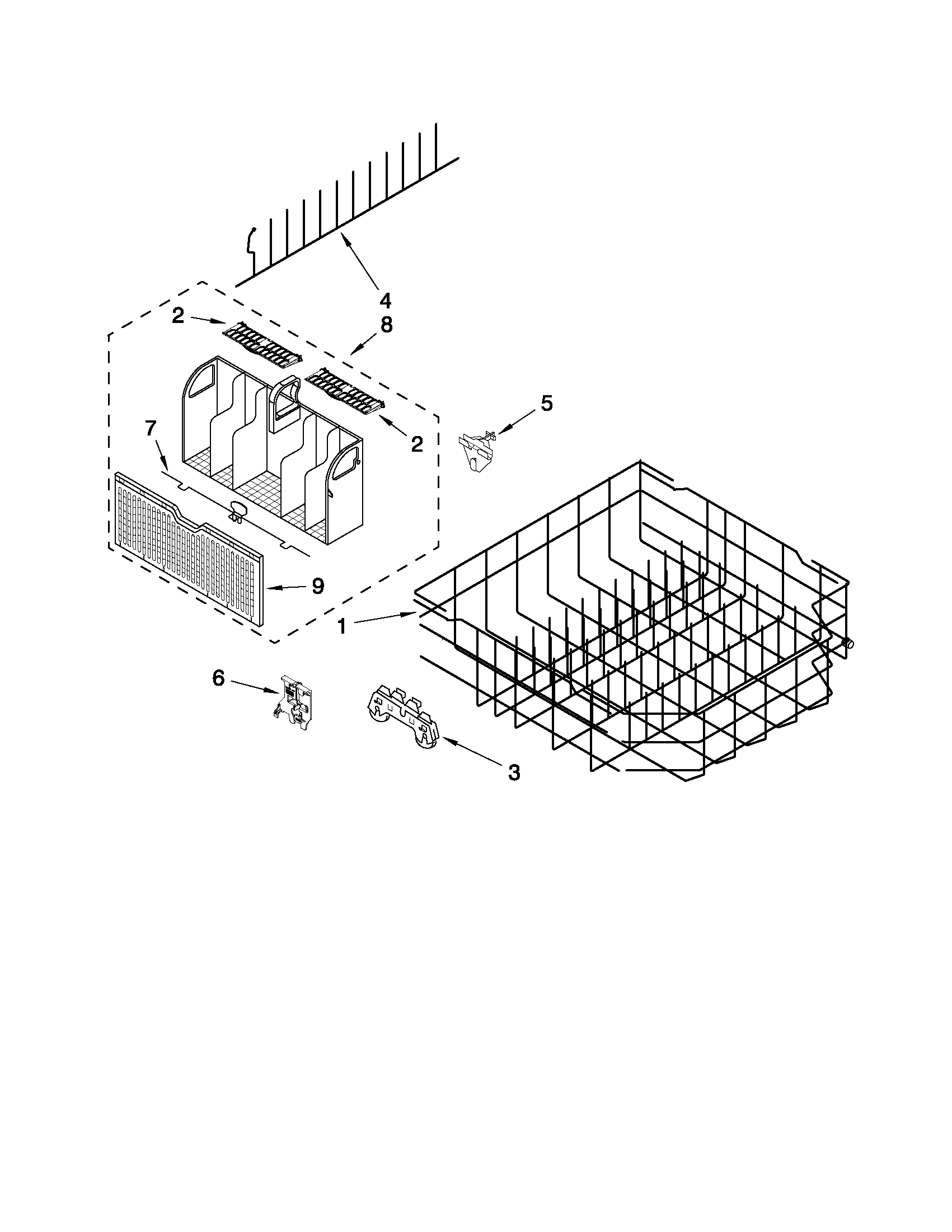

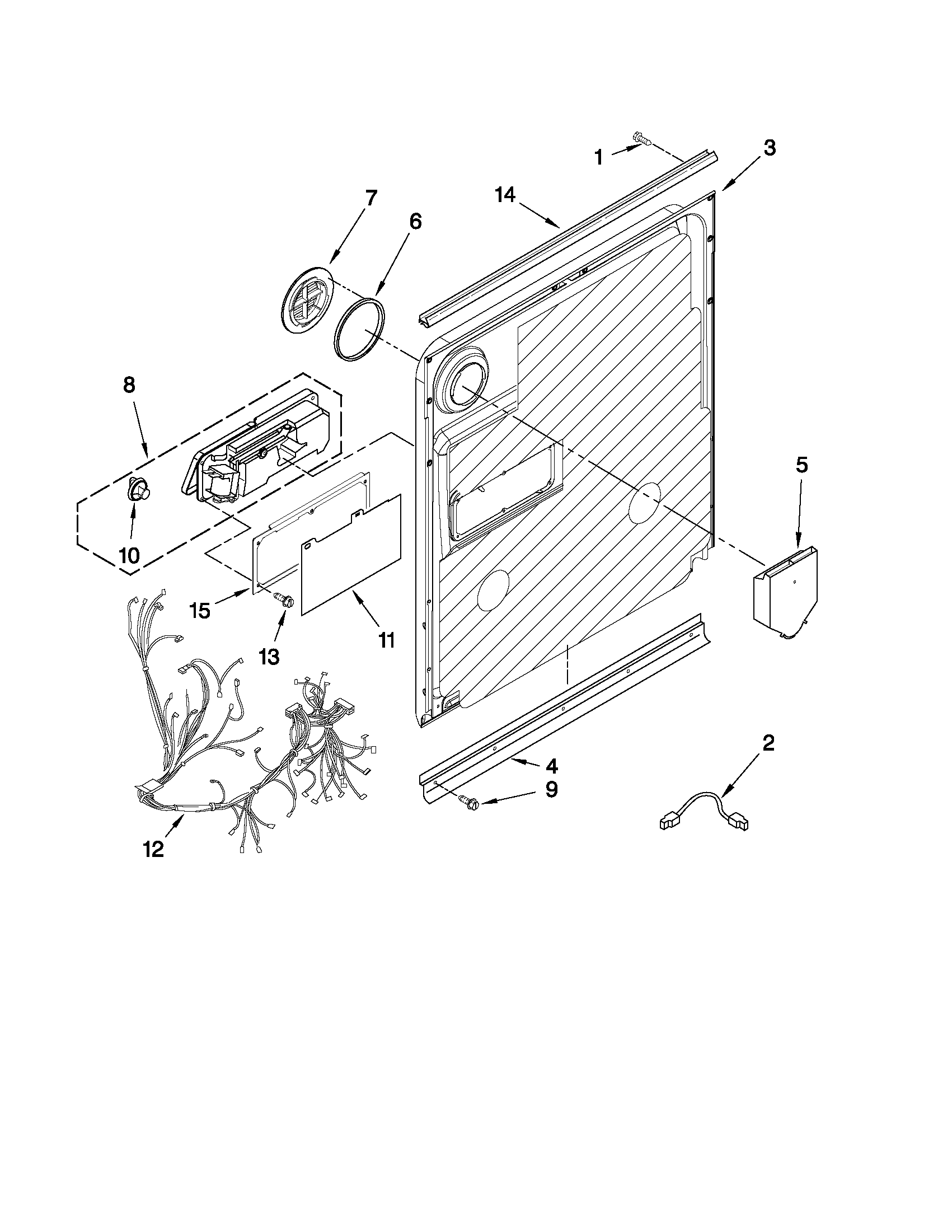

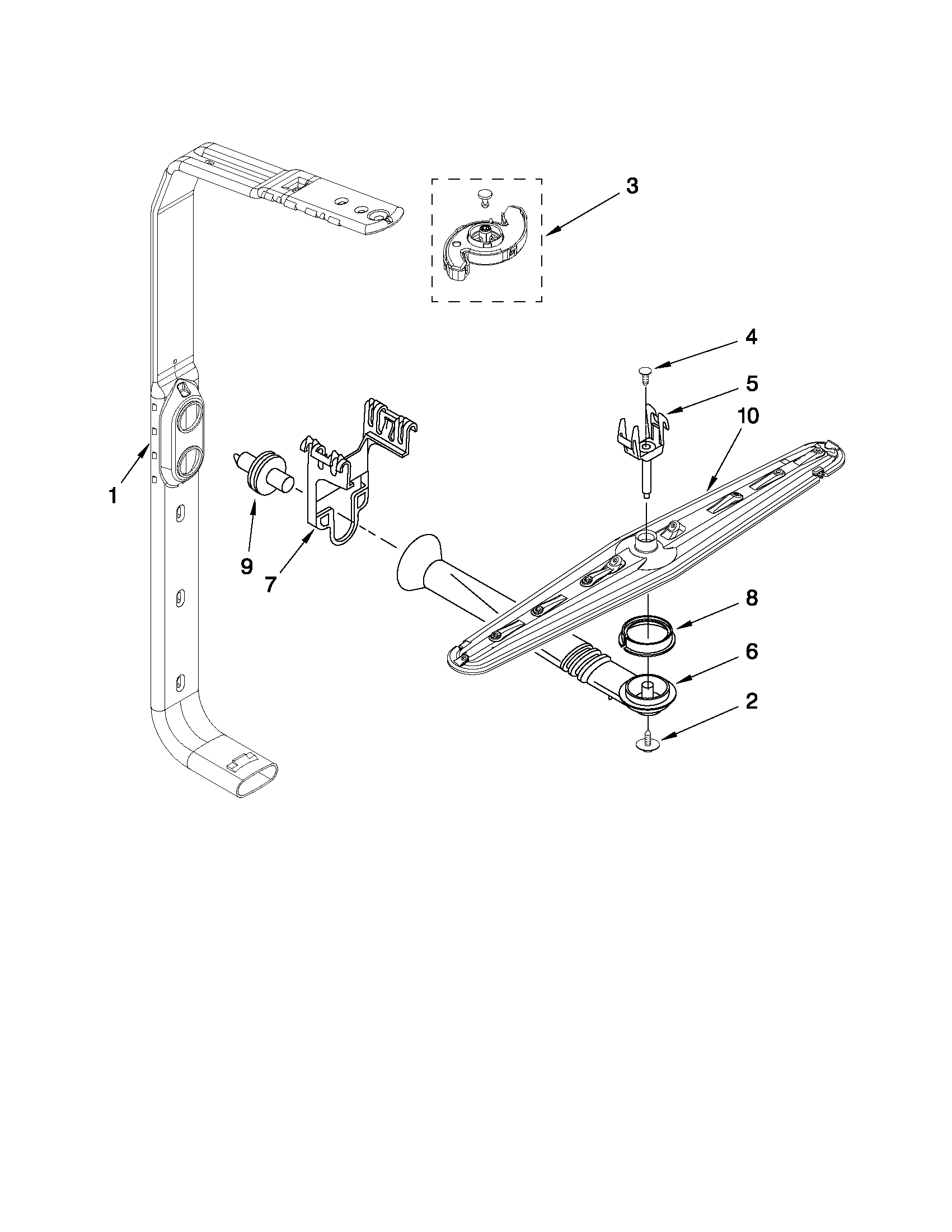

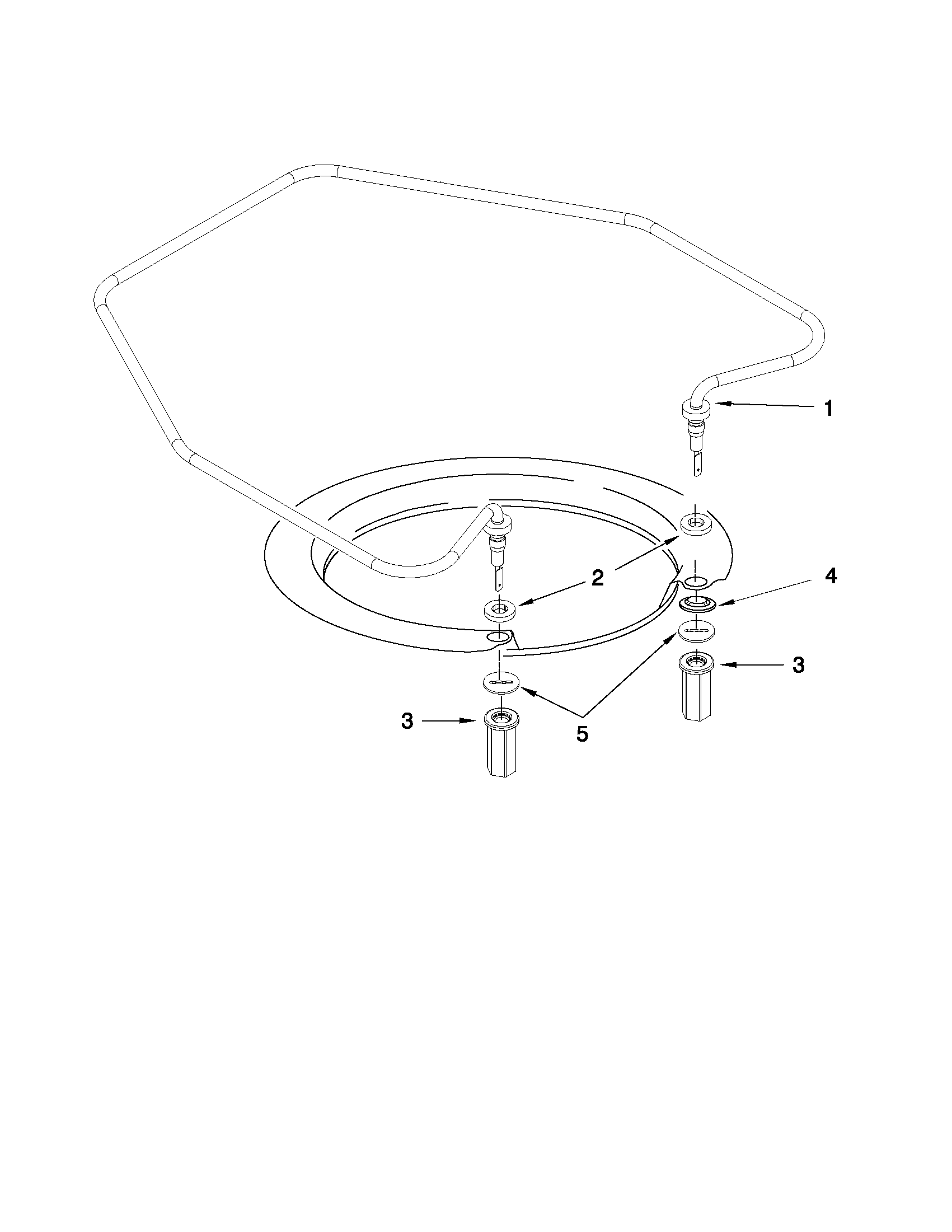

SELECT DIAGRAM
Browse Parts for
GU3200XTXQ1 Undercounter Dishwasher
#15

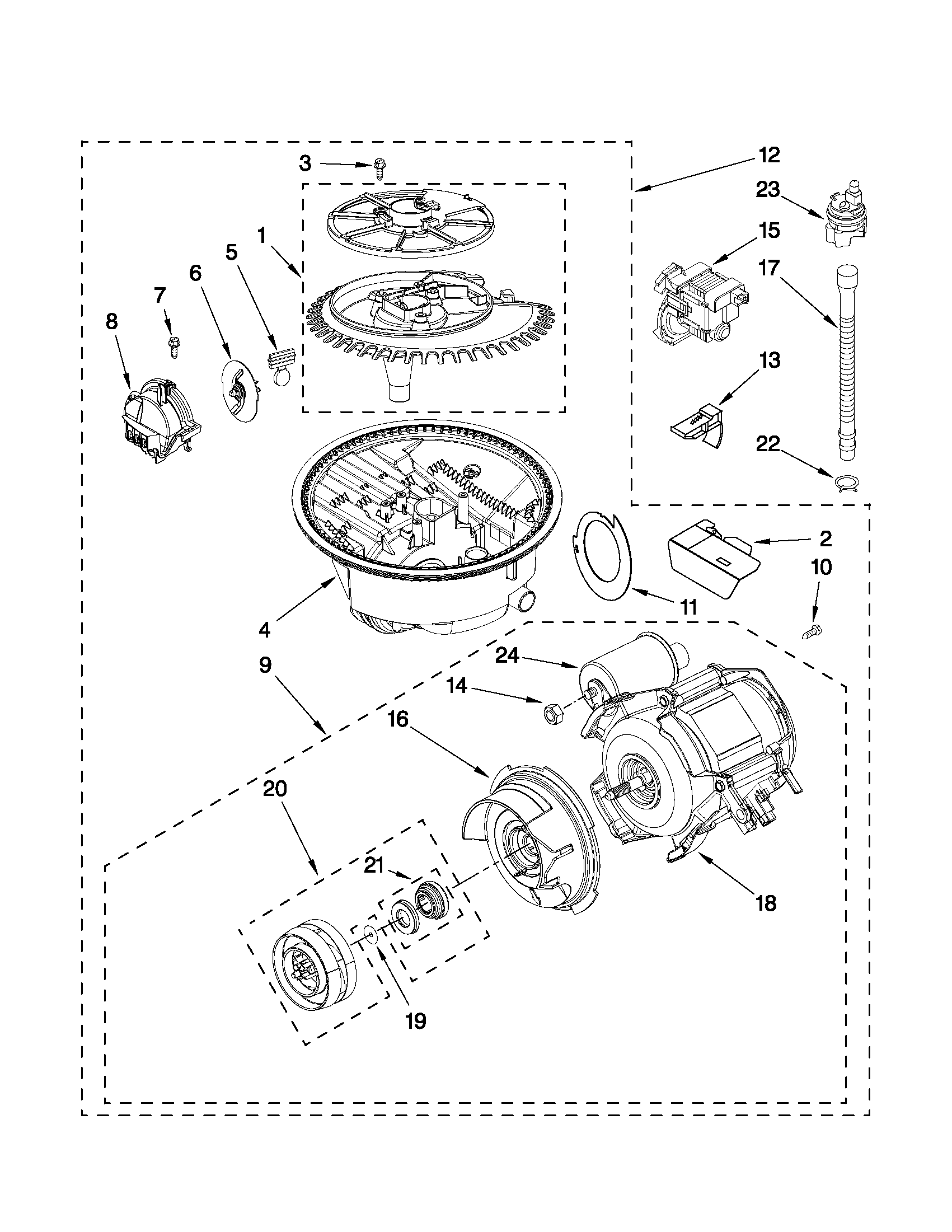

Pump and motor parts diagram
Dishwasher drain pump
Part #8558995
Replaced by #WPW10348269
?
Manufacturer substitution
This part replaces 8558995. Substitute parts can look different from the original.
$52.01 |
10% OFF Phone Price : $58.01
In Stock
#20

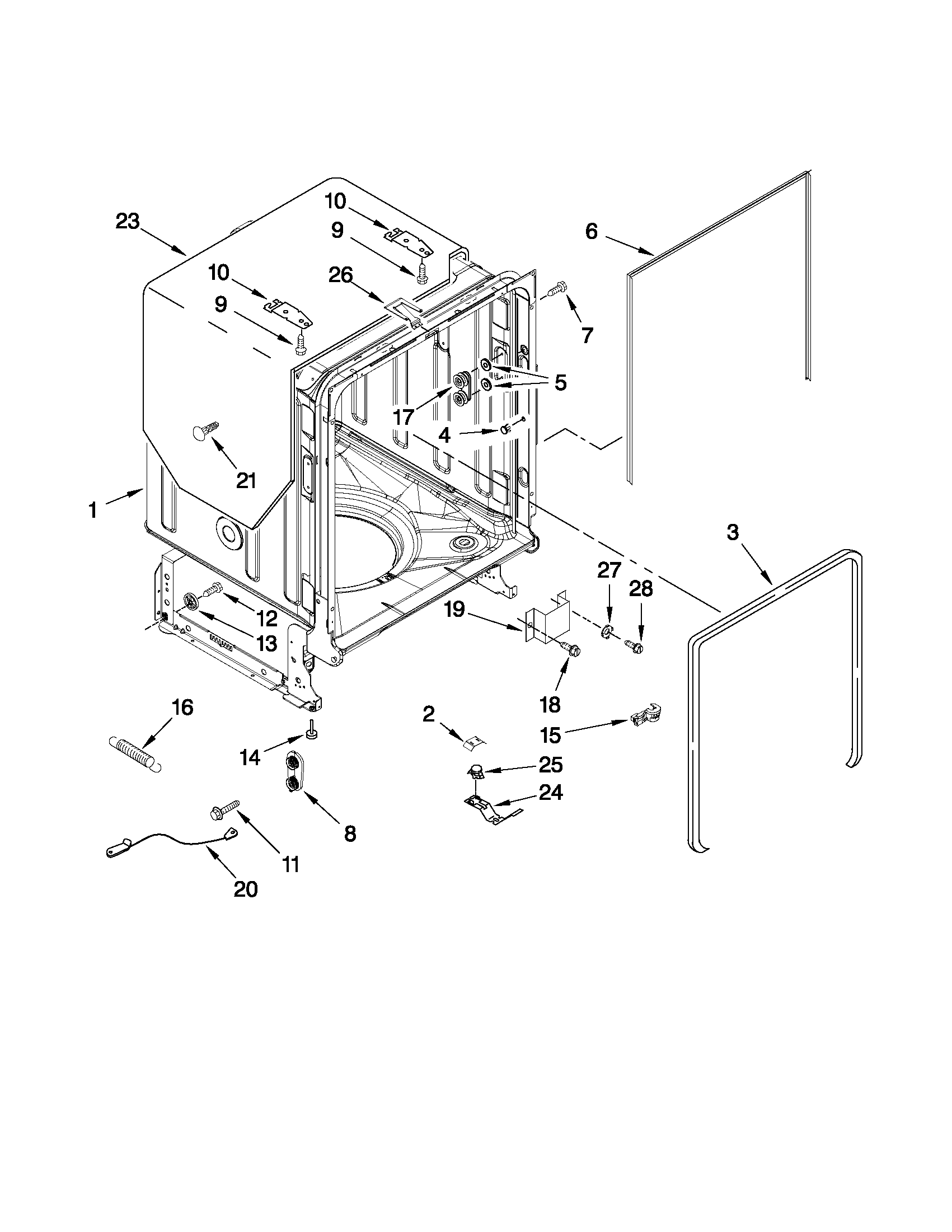

Tub and frame parts diagram
Dishwasher door balance link
Part #W10158291
Replaced by #8194001
?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
$23.54 |
20% OFF Phone Price : $29.54
In Stock
#17
Pump and motor parts diagram
Dishwasher drain hose
Part #8269144
Replaced by #8269144A
?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
$18.09 |
10% OFF Phone Price : $20.09
In Stock
#6

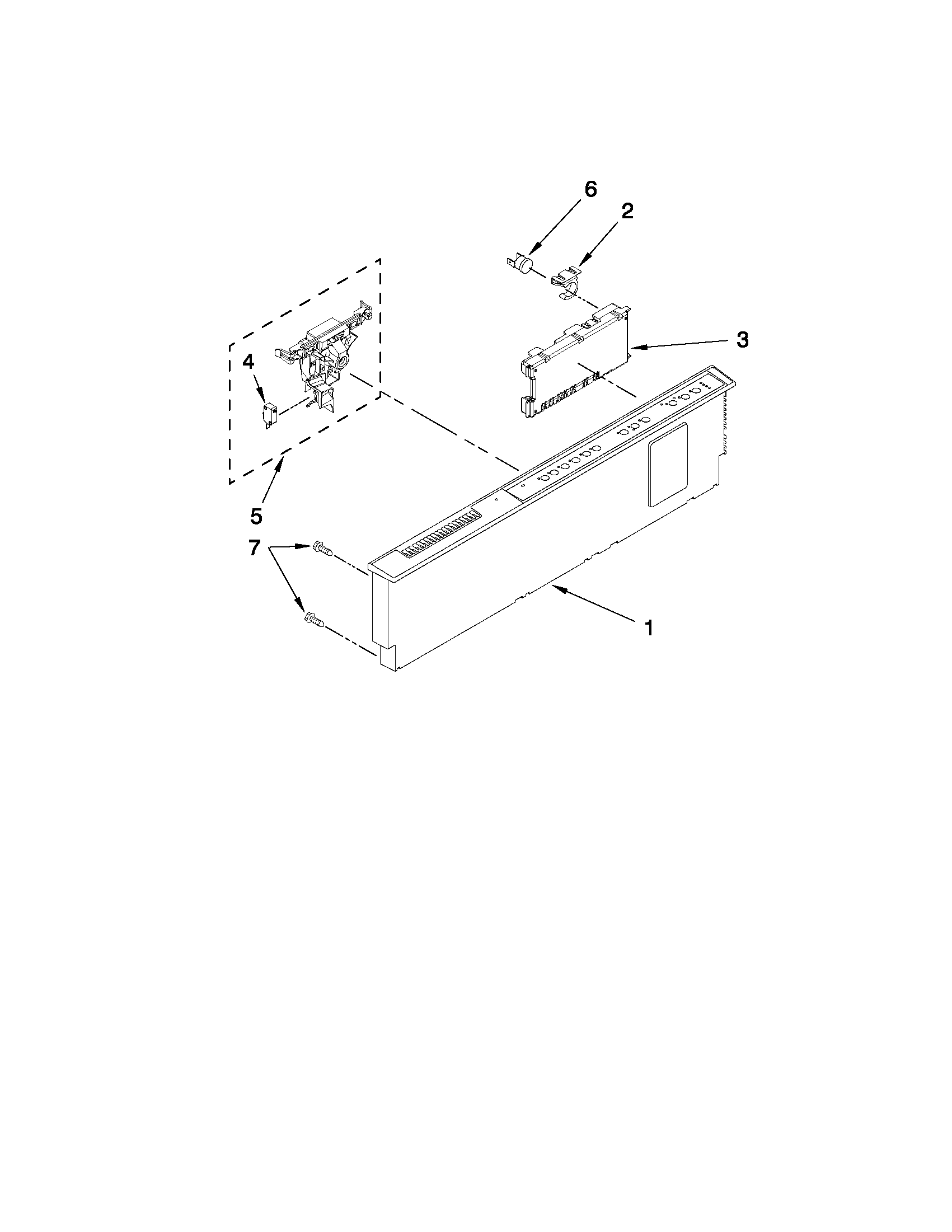

Control panel and latch parts diagram
Fuse
Part #661663
Replaced by #W10258275
?
Manufacturer substitution
This part replaces 661663. Substitute parts can look different from the original.
$23.71 |
20% OFF Phone Price : $29.71
In Stock
#2

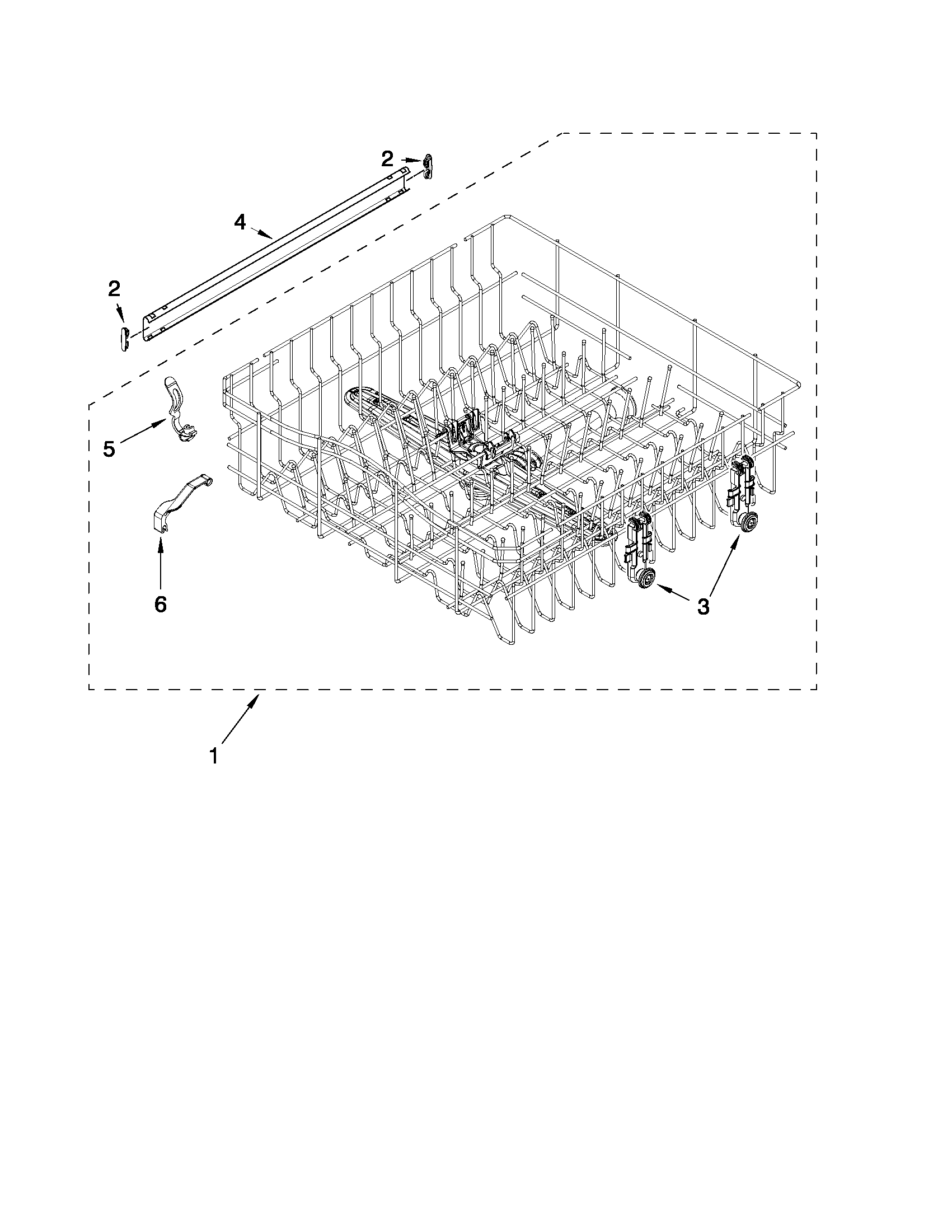

Upper rack and track parts diagram
Dishwasher dishrack slide rail stop, upper
Part #8565925
Replaced by #WP8565925
?
Manufacturer substitution
This part replaces 8565925. Substitute parts can look different from the original.
$7.79 |
11% OFF Phone Price : $8.79
In Stock
#10

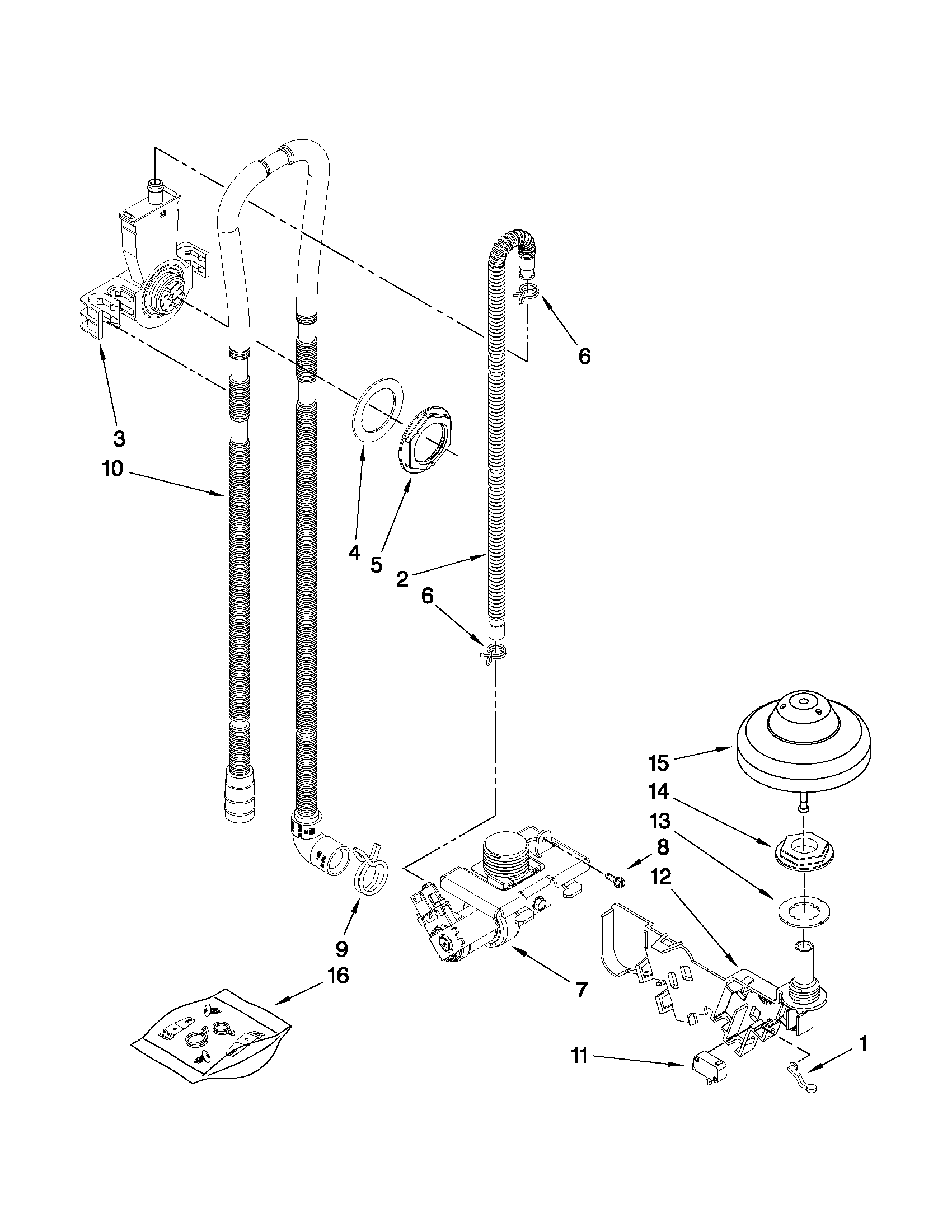

Fill, drain and overfill parts diagram
Dishwasher drain hose
Part #W10195750
Replaced by #WPW10545278
?
Manufacturer substitution
This part replaces W10195750. Substitute parts can look different from the original.
$42.64 |
12% OFF Phone Price : $48.64
In Stock
#23
Pump and motor parts diagram
Dishwasher turbidity sensor
Part #W10134017
Replaced by #WPW10705575
?
Manufacturer substitution
This part replaces W10134017. Substitute parts can look different from the original.
$22.13 |
21% OFF Phone Price : $28.13
In Stock
#6
Tub and frame parts diagram
Seal
Part #8269110
Replaced by #W10864081
?
Manufacturer substitution
This part replaces 8269110. Substitute parts can look different from the original.
$48.42 |
11% OFF Phone Price : $54.42
In Stock
#3
Control panel and latch parts diagram
Dishwasher electronic control board
Part #W10285180
Replaced by #WPW10285180
?
Manufacturer substitution
This part replaces W10285180. Substitute parts can look different from the original.
$191.16 |
9% OFF Was : $210.65
In Stock
#3
Tub and frame parts diagram
Dishwasher door seal
Part #W10112096
Replaced by #W11196317
?
Manufacturer substitution
This part replaces W10112096. Substitute parts can look different from the original.
$63.23 |
9% OFF Phone Price : $69.23
In Stock
