Bosch
Dishwasher

Model # SHY56A05UC/14 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHY56A05UC-14 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

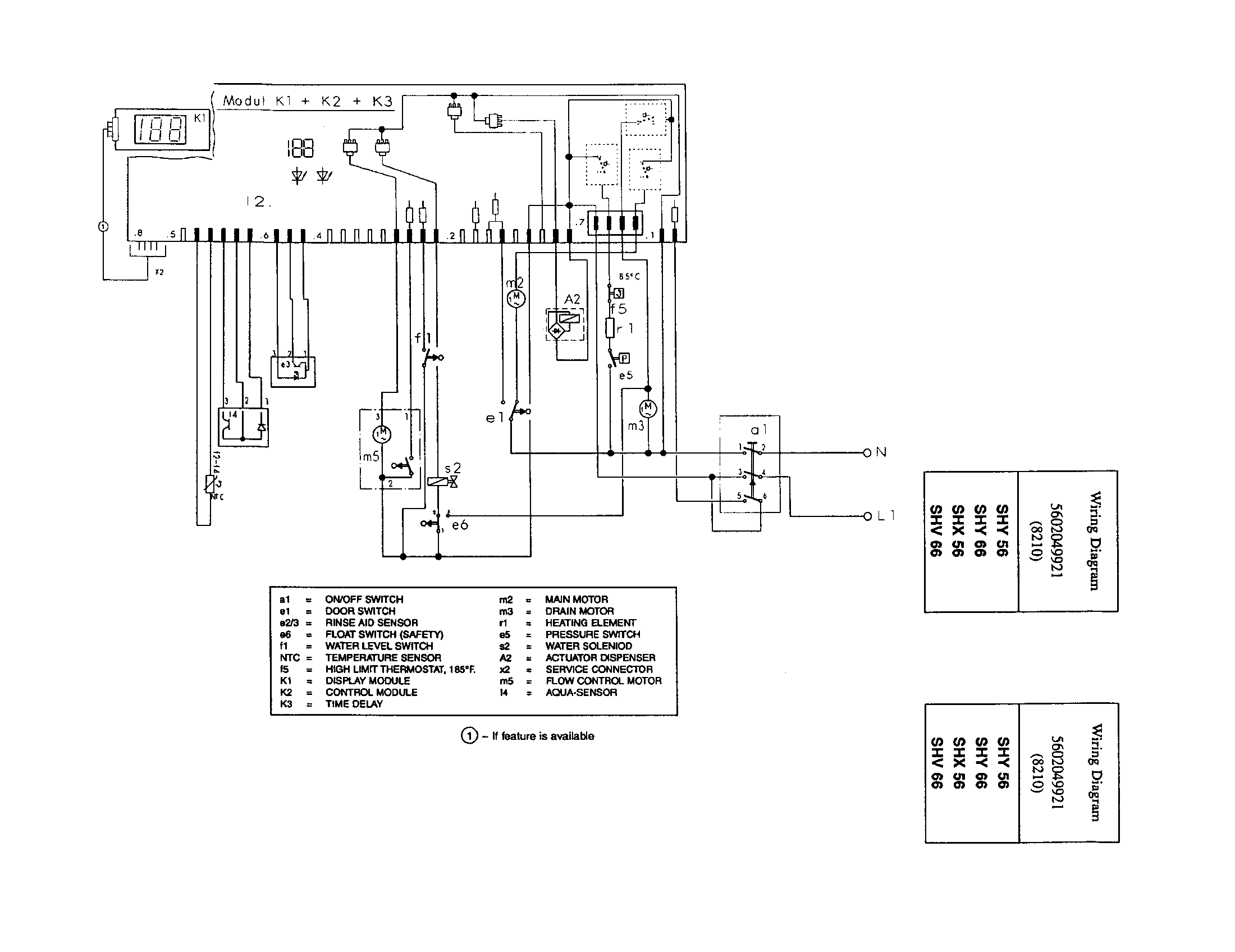

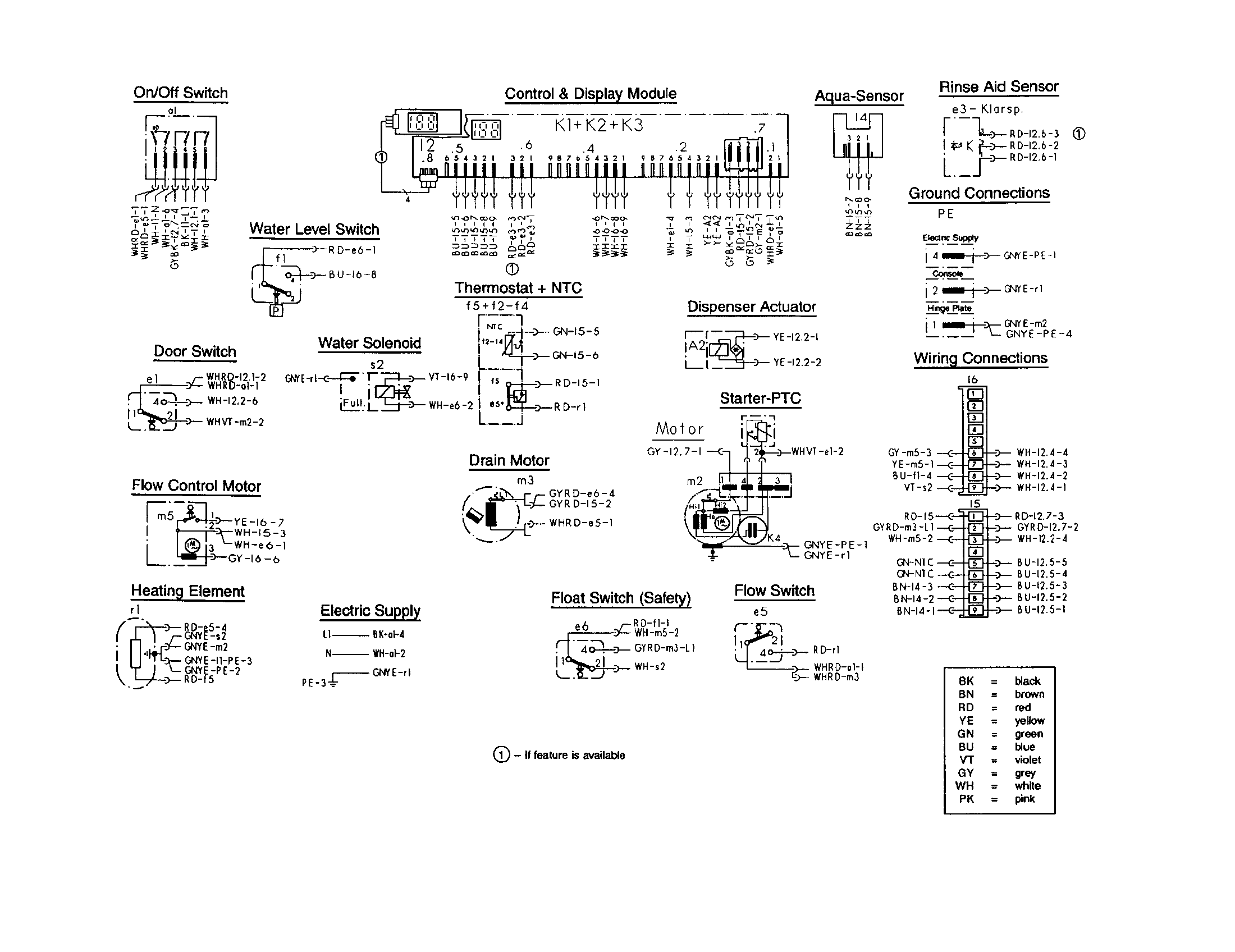

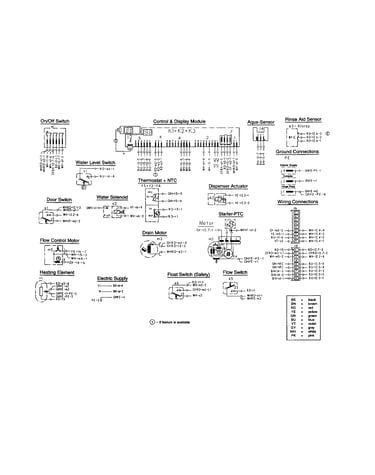

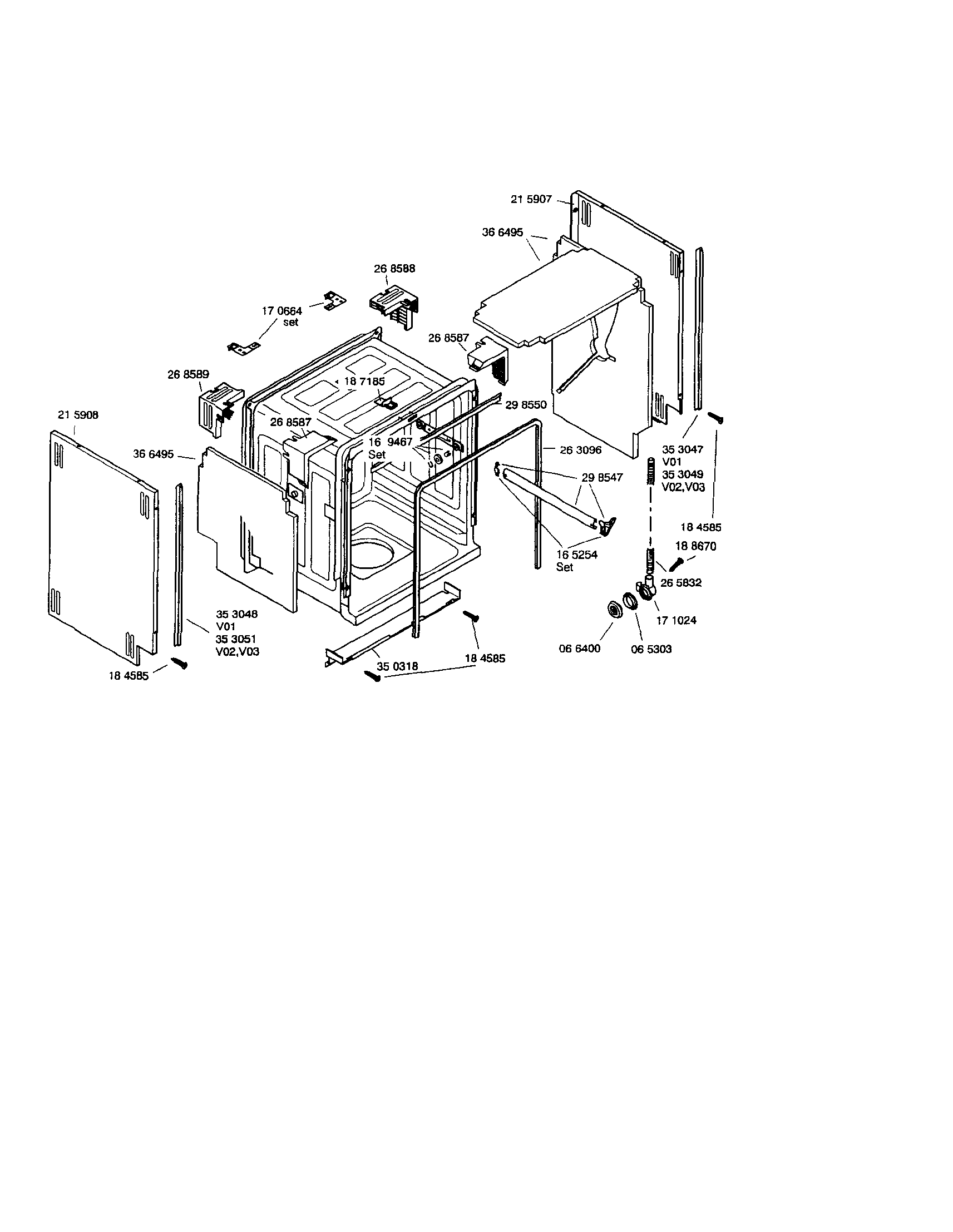

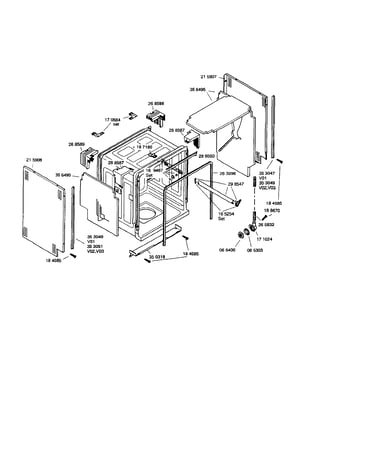

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Motor 167082
#15

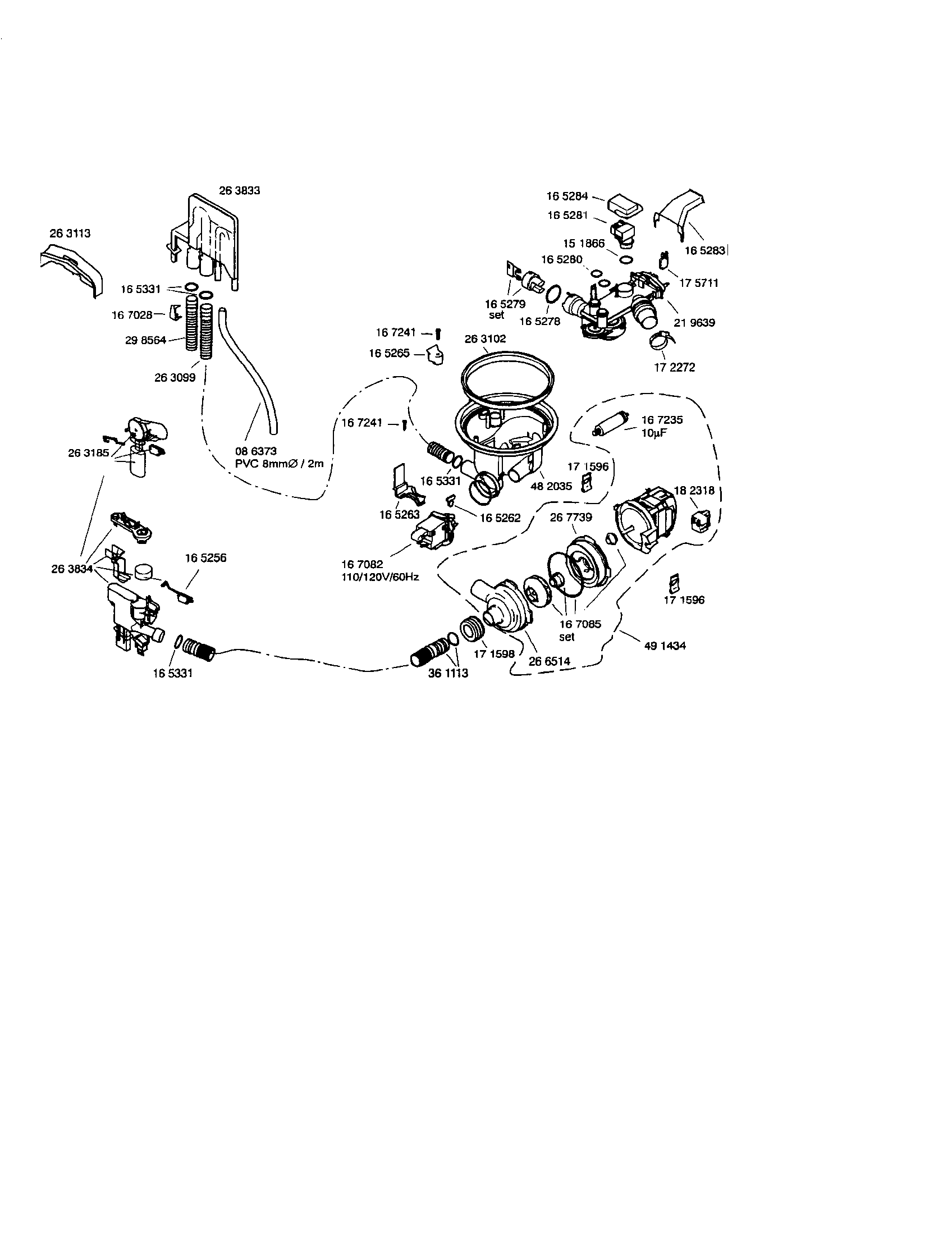

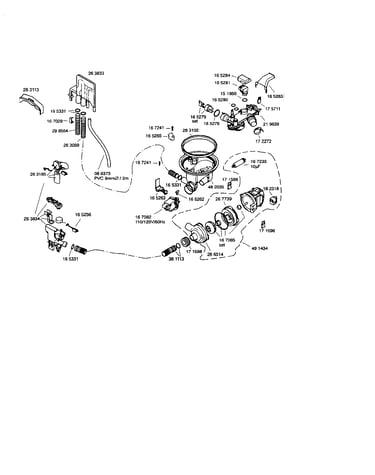

Component assembly diagram

Motor

Part #167082

The manufacturer no longer makes this part, and there's no substitute part

Door Seal 432490
#4

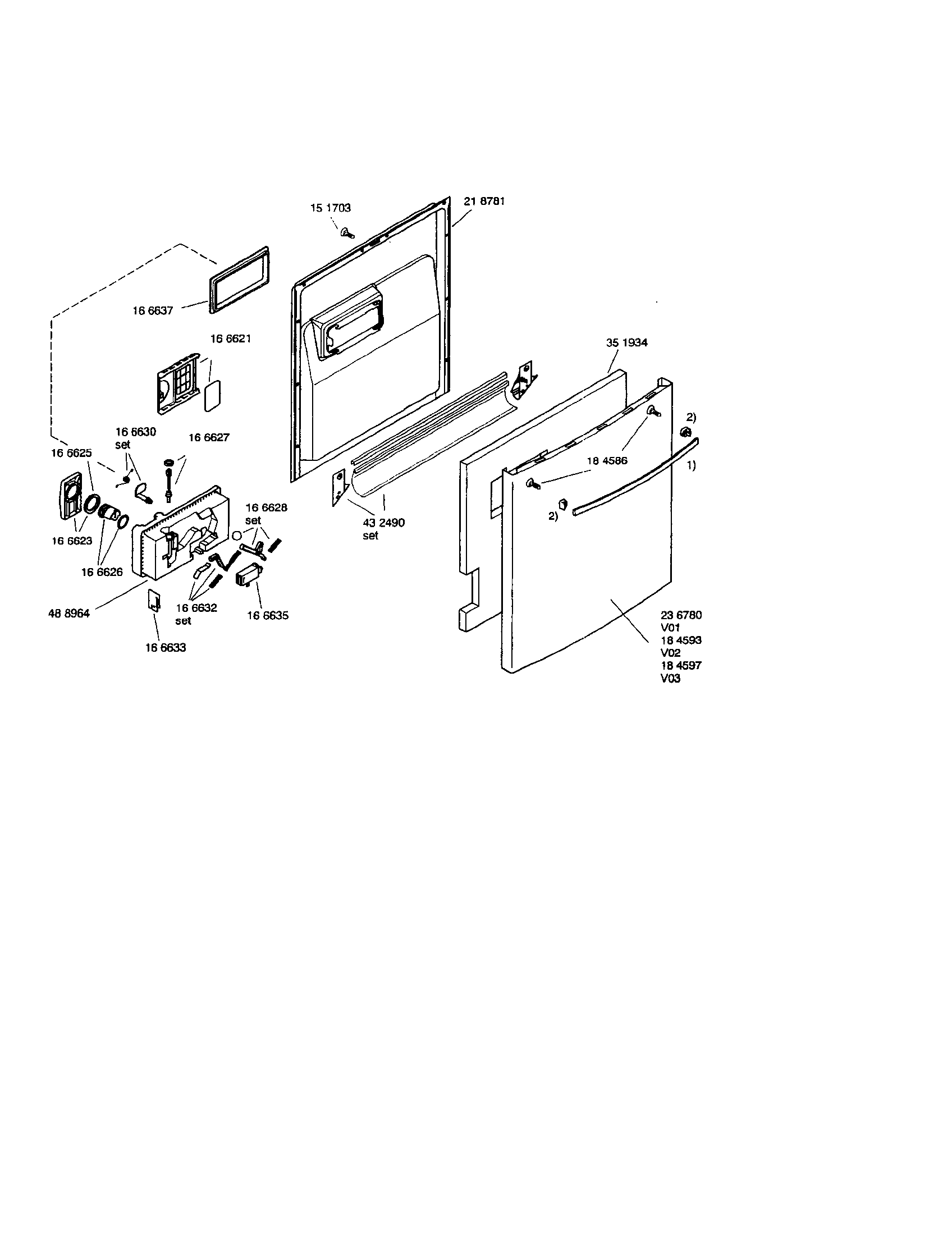

Door assembly diagram

Door seal

Part #432490

Replaced by #00432490

?
Manufacturer substitution
This part replaces 432490. Substitute parts can look different from the original.
BEST SELLER
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Lower Rack 434644
#6

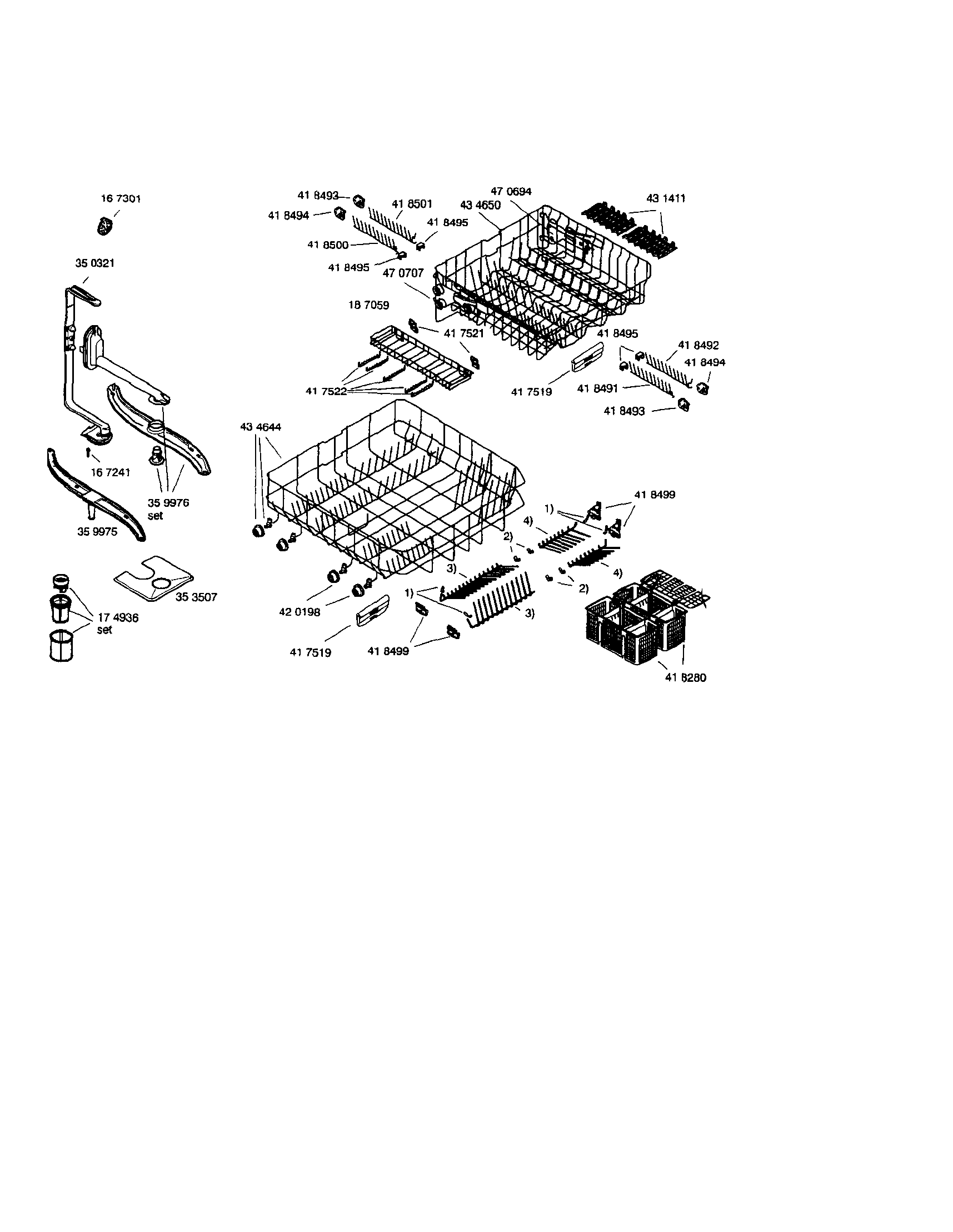

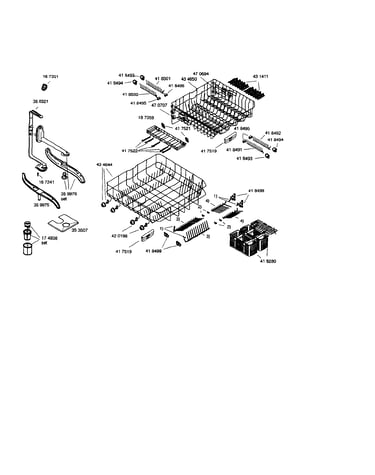

Racks diagram

Lower rack

Part #434644

Replaced by #00249276

?
Manufacturer substitution
This part replaces 434644. Substitute parts can look different from the original.
$278.54 |
$12.00 OFF Phone Price : $290.54
Back Order

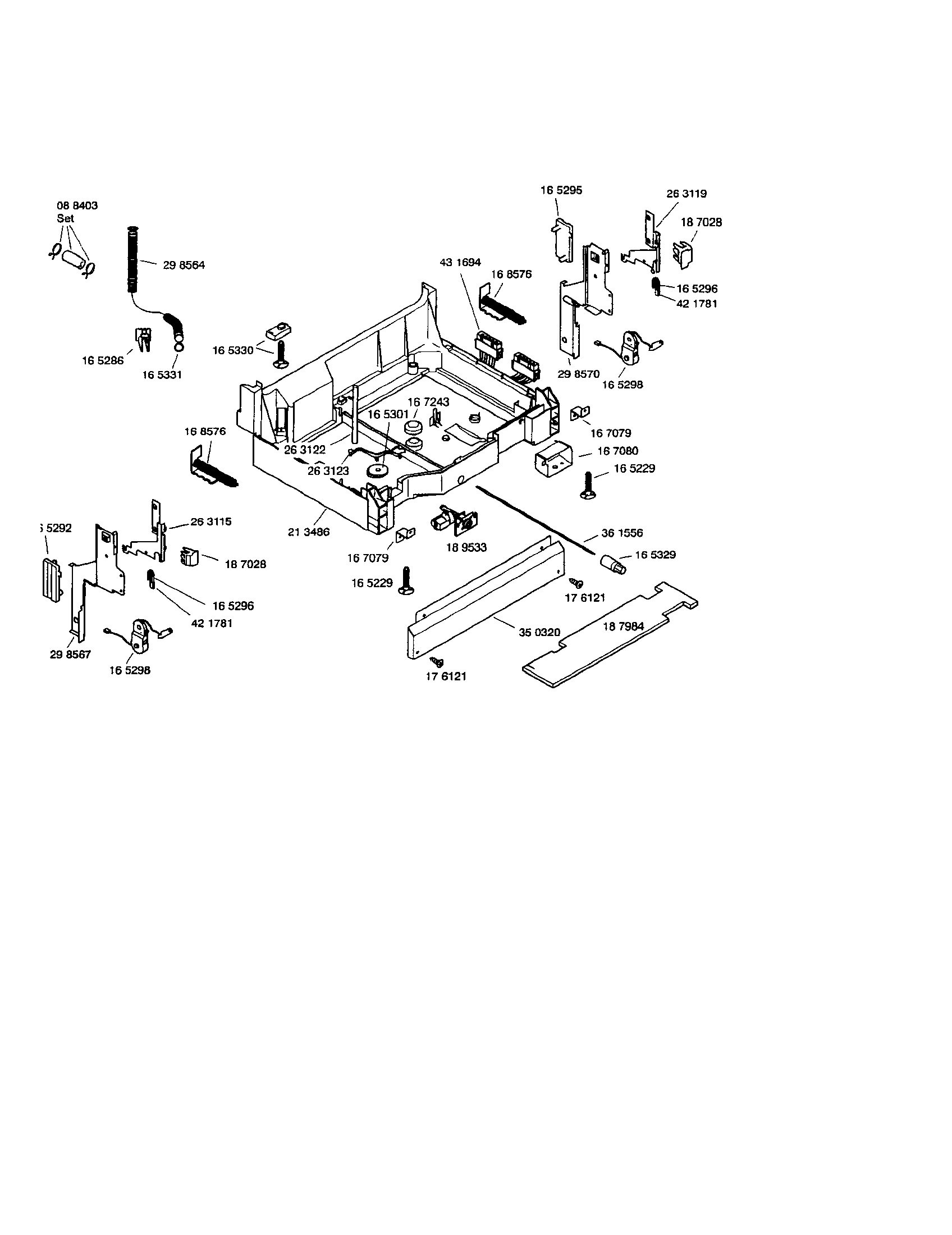

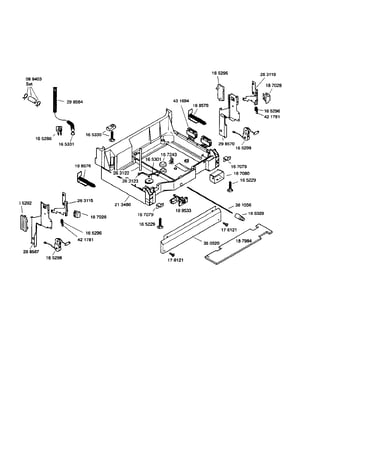

Dishwasher Drain Hose 298564
Dishwasher drain hose

Part #298564

Replaced by #00298564

?
Manufacturer substitution
This part replaces 298564. Substitute parts can look different from the original.
$31.39 |
16% OFF Phone Price : $37.39
In Stock
Dishwasher Water Inlet Valve 263833
#36

Component assembly diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Latch 187184
#3

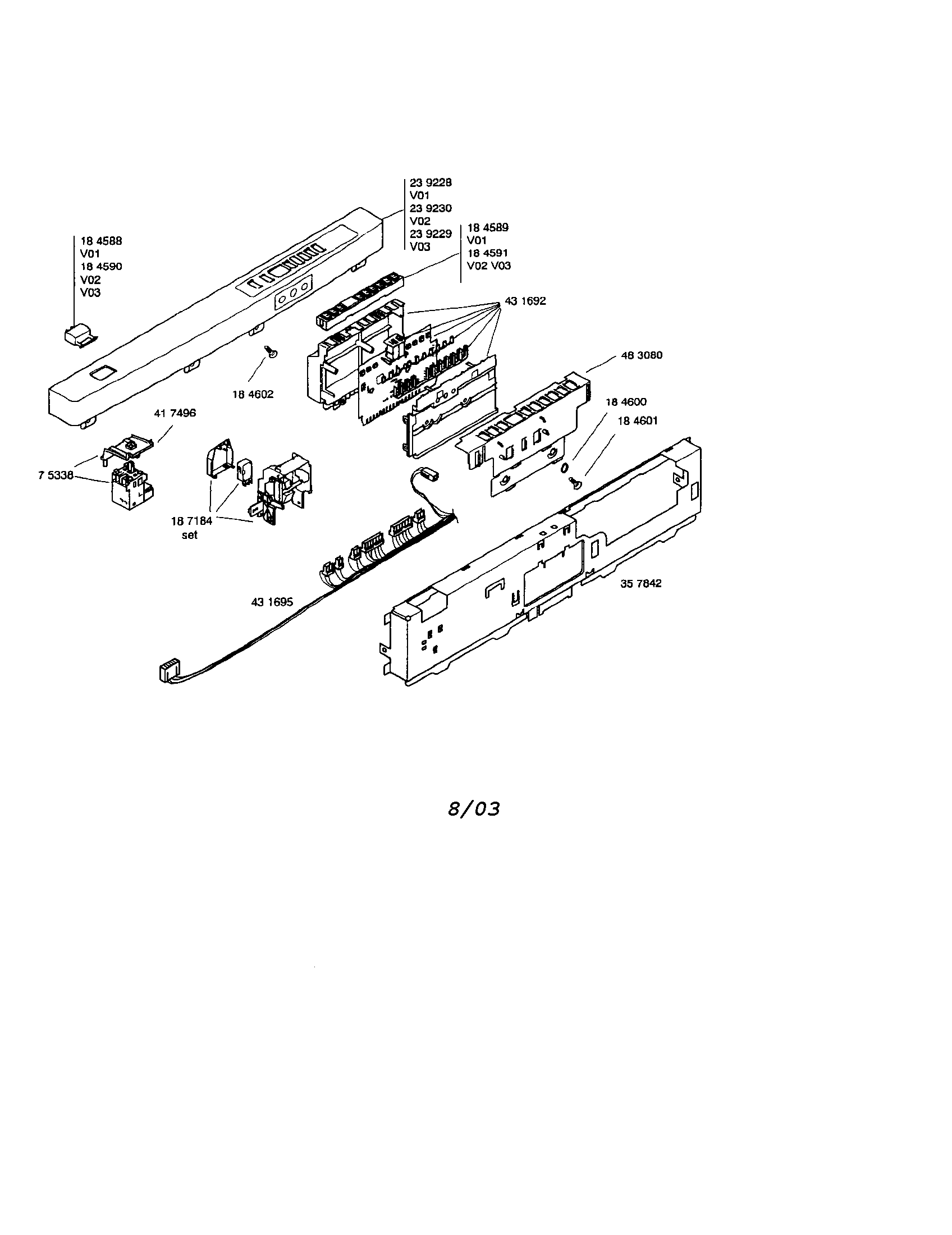

Fascia panel diagram

Latch

Part #187184

Replaced by #00438026

?
Manufacturer substitution
This part replaces 187184. Substitute parts can look different from the original.
$90.49 |
6% OFF Phone Price : $96.49
In Stock
Tine Latch 418498
#28

Racks diagram

Tine latch

Part #418498

Replaced by #00418498

?
Manufacturer substitution
This part replaces 418498. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dishwasher Screw 151703
#2

Door assembly diagram

Dishwasher screw

Part #151703

Replaced by #00151703

?
Manufacturer substitution
This part replaces 151703. Substitute parts can look different from the original.
This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Dishwasher Spray Arm Assembly, Upper 359976
#5

Racks diagram

Dishwasher spray arm assembly, upper

Part #359976

Replaced by #00359976

?
Manufacturer substitution
This part replaces 359976. Substitute parts can look different from the original.
$58.41 |
9% OFF Phone Price : $64.41
In Stock
Dishwasher Run Capacitor 167235
#18

Component assembly diagram

Dishwasher run capacitor

Part #167235

$53.96
In Stock
