Craftsman
Front-Engine Lawn Tractor

Model # 502250791 Official Craftsman 30" 7-hp riding lawn mower with recoil start

Here are the diagrams and repair parts for Official Craftsman 502250791 30" 7-hp riding lawn mower with recoil start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

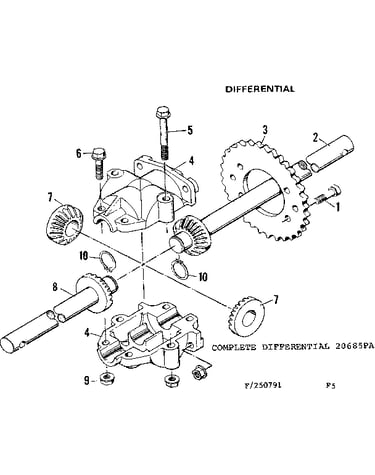

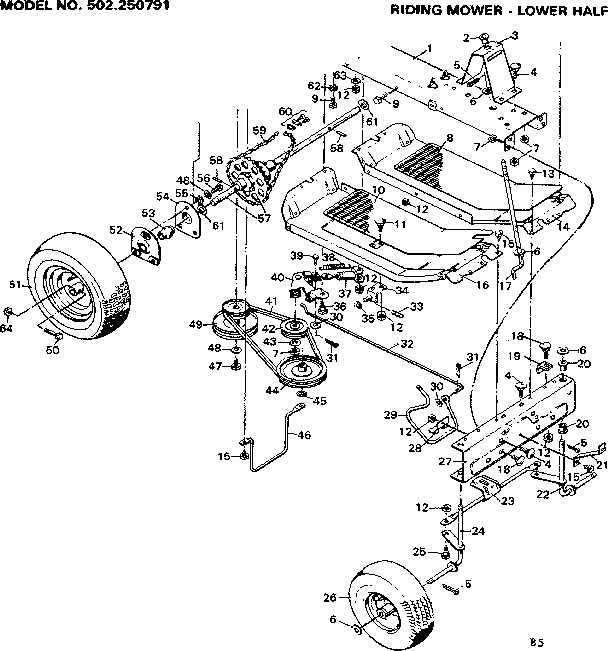

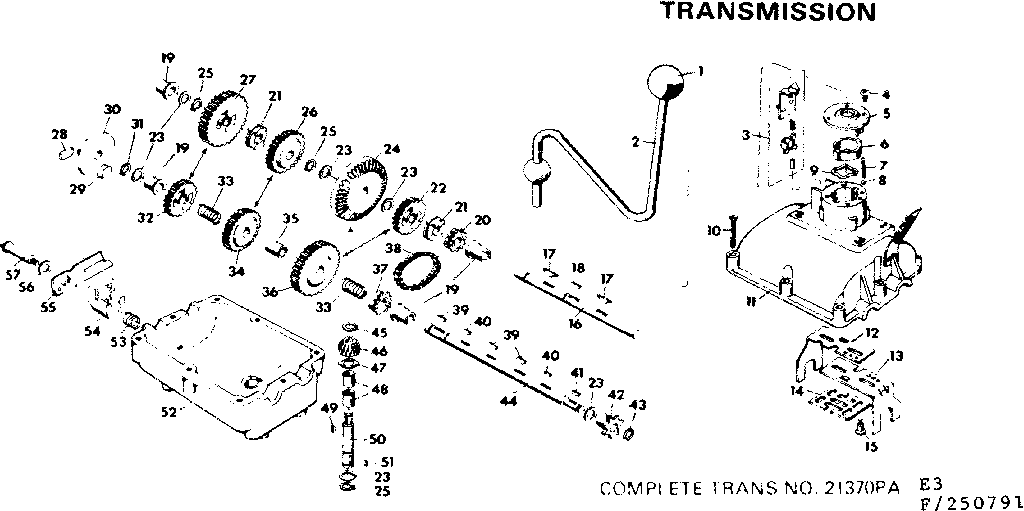

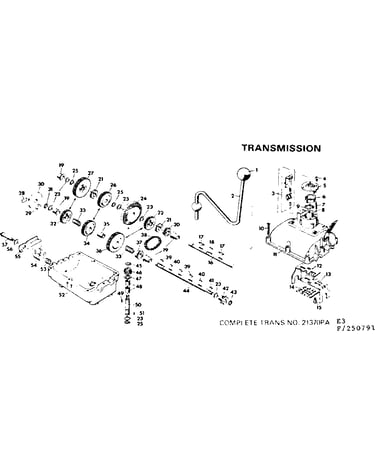

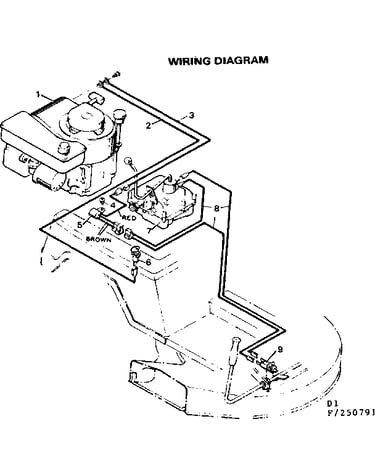

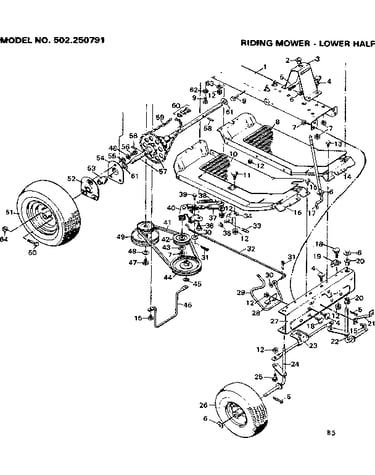

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Flange Nut 15X79
#28

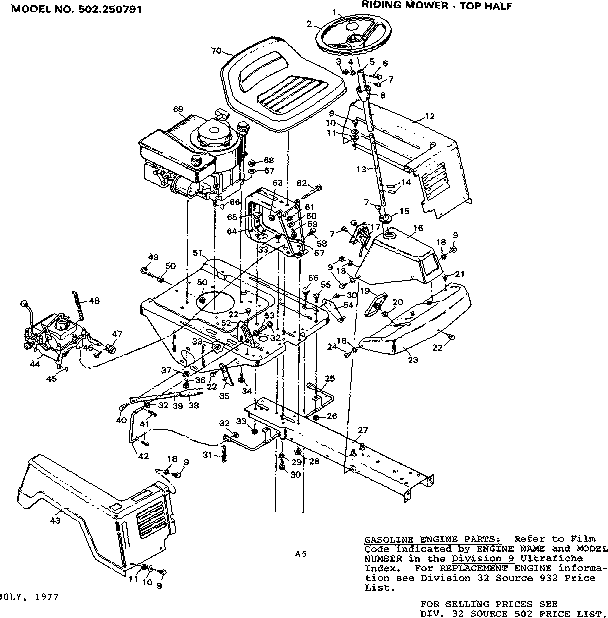

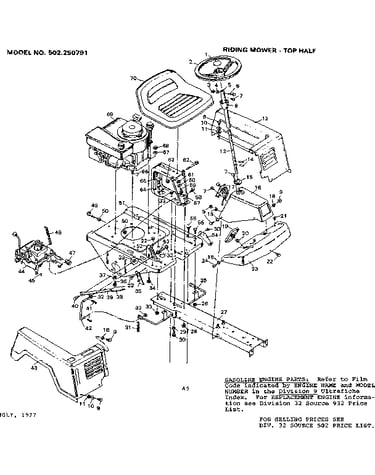

Top half diagram

Flange nut

Part #15X79

Replaced by #703409

?
Manufacturer substitution
This part replaces 15X79. Substitute parts can look different from the original.
$9.27 |
10% OFF Phone Price : $10.27
In Stock
Bolt STD533107
Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Idler Pulley 20613
Idler pulley

Part #20613

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 20613. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Washer 10851Z
Washer

Part #10851Z

Replaced by #10851ZMA

?
Manufacturer substitution
This part replaces 10851Z. Substitute parts can look different from the original.
$9.97
In Stock
Housing 20551
#35

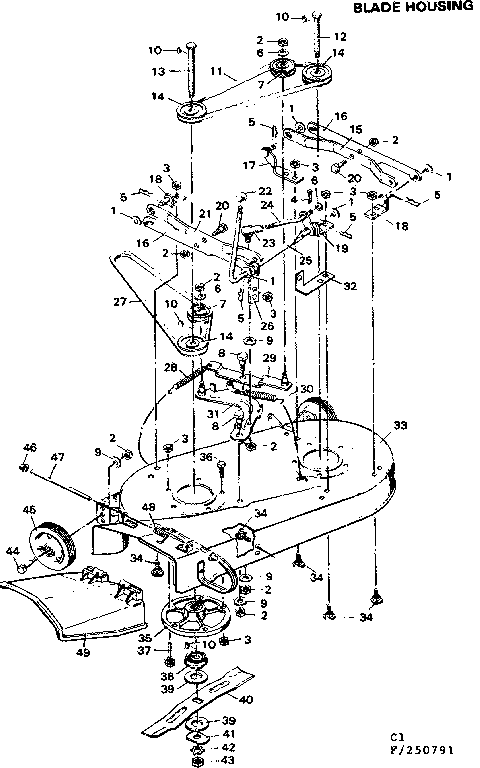

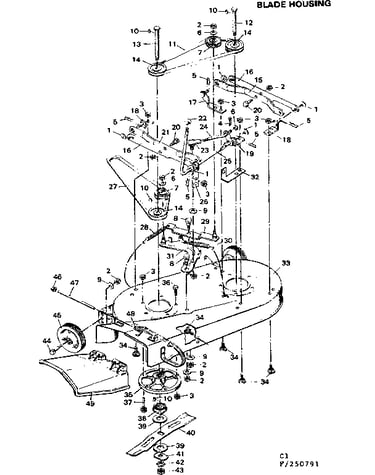

Blade housing diagram

Housing

Part #20551

Replaced by #492574MA

?
Manufacturer substitution
This part replaces 20551. Substitute parts can look different from the original.
$68.99 |
8% OFF Phone Price : $74.99
In Stock
Cotter Pin 30X20
#41

Top half diagram

Cotter pin

Part #30X20

Replaced by #703312

?
Manufacturer substitution
This part replaces 30X20. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Key 20697
#45

Top half diagram

Key

Part #20697

Replaced by #20697MA

?
Manufacturer substitution
This part replaces 20697. Substitute parts can look different from the original.
This item is not returnable
$7.11
In Stock
Torsion Spring 21189
#48

Blade housing diagram

Torsion spring

Part #21189

Replaced by #166X4MA

?
Manufacturer substitution
This part replaces 21189. Substitute parts can look different from the original.
$11.80
In Stock
Washer 17X46Z
#32

Top half diagram

Washer

Part #17X46Z

Replaced by #17X46MA

?
Manufacturer substitution
This part replaces 17X46Z. Substitute parts can look different from the original.
This item is not returnable
$5.74
In Stock
Push-on-cap 28X23
#46

Blade housing diagram

Push-on-cap

Part #28X23

Replaced by #703948

?
Manufacturer substitution
This part replaces 28X23. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
