Model # EIDW6405HT0 Official Electrolux dishwasher

Here are the diagrams and repair parts for Official Electrolux EIDW6405HT0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

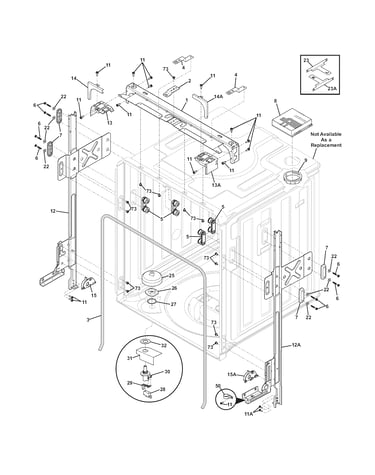

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Pump Motor 7154614002
#70

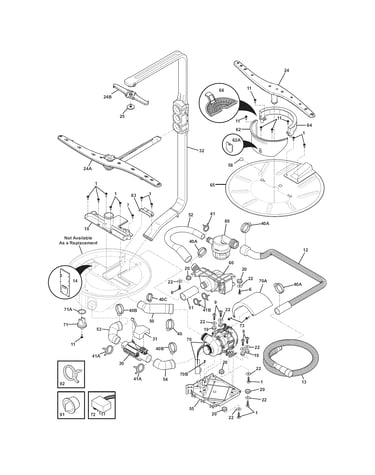

Motor & pump diagram

Pump motor

Part #7154614002

Replaced by #154614002

?
Manufacturer substitution
This part replaces 7154614002. Substitute parts can look different from the original.
$148.51 |
7% OFF Phone Price : $160.51
In Stock
Screw 7154625701
#9

Motor & pump diagram

Screw

Part #7154625701

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 7154625701. Substitute parts can look different from the original.
$21.38
In Stock
Control Assembly 7154750502
#4

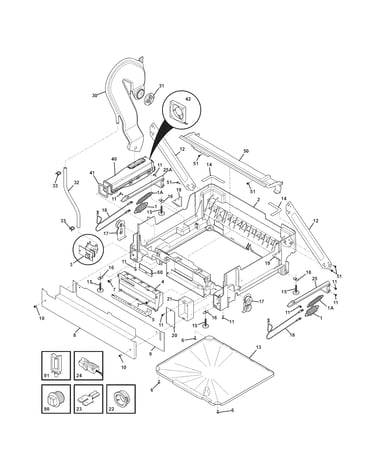

Lower frame diagram

Control assembly

Part #7154750502

Replaced by #154750502

?
Manufacturer substitution
This part replaces 7154750502. Substitute parts can look different from the original.
This item is not returnable
$260.96 |
$12.00 OFF Phone Price : $272.96
In Stock
Sensor 7154473901
#71

Motor & pump diagram

Sensor

Part #7154473901

Replaced by #154473901

?
Manufacturer substitution
This part replaces 7154473901. Substitute parts can look different from the original.
$115.63 |
9% OFF Phone Price : $127.63
In Stock
Bracket 7154428403
#15

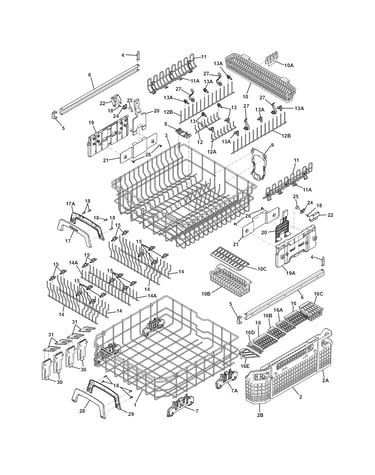

Racks diagram

Bracket

Part #7154428403

Replaced by #154428402

?
Manufacturer substitution
This part replaces 7154428403. Substitute parts can look different from the original.
$13.34
In Stock
Clamp 7154380601
#40A

Motor & pump diagram

Clamp

Part #7154380601

Replaced by #154380601

?
Manufacturer substitution
This part replaces 7154380601. Substitute parts can look different from the original.
$56.60
In Stock
Water Valve 7154622001
#80

Motor & pump diagram

Water valve

Part #7154622001

Replaced by #154622001

?
Manufacturer substitution
This part replaces 7154622001. Substitute parts can look different from the original.
$126.40
In Stock
Hose 7154611101
#41A

Motor & pump diagram

Hose

Part #7154611101

Replaced by #154611101

?
Manufacturer substitution
This part replaces 7154611101. Substitute parts can look different from the original.
$10.34 |
16% OFF Phone Price : $12.34
In Stock
Latch 7154671402
#12

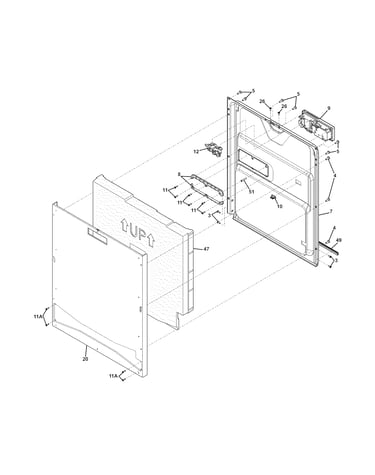

Door diagram

Latch

Part #7154671402

Replaced by #154671402

?
Manufacturer substitution
This part replaces 7154671402. Substitute parts can look different from the original.
$81.69 |
7% OFF Phone Price : $87.69
In Stock
Tubing 7154625001
#32

Lower frame diagram

Tubing

Part #7154625001

Replaced by #154625001

?
Manufacturer substitution
This part replaces 7154625001. Substitute parts can look different from the original.
This item is not returnable
$19.24
In Stock
