Kenmore Elite
Warming Drawer

Model # 79049273700 Official Kenmore Elite warming drawer

Here are the diagrams and repair parts for Official Kenmore Elite 79049273700 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

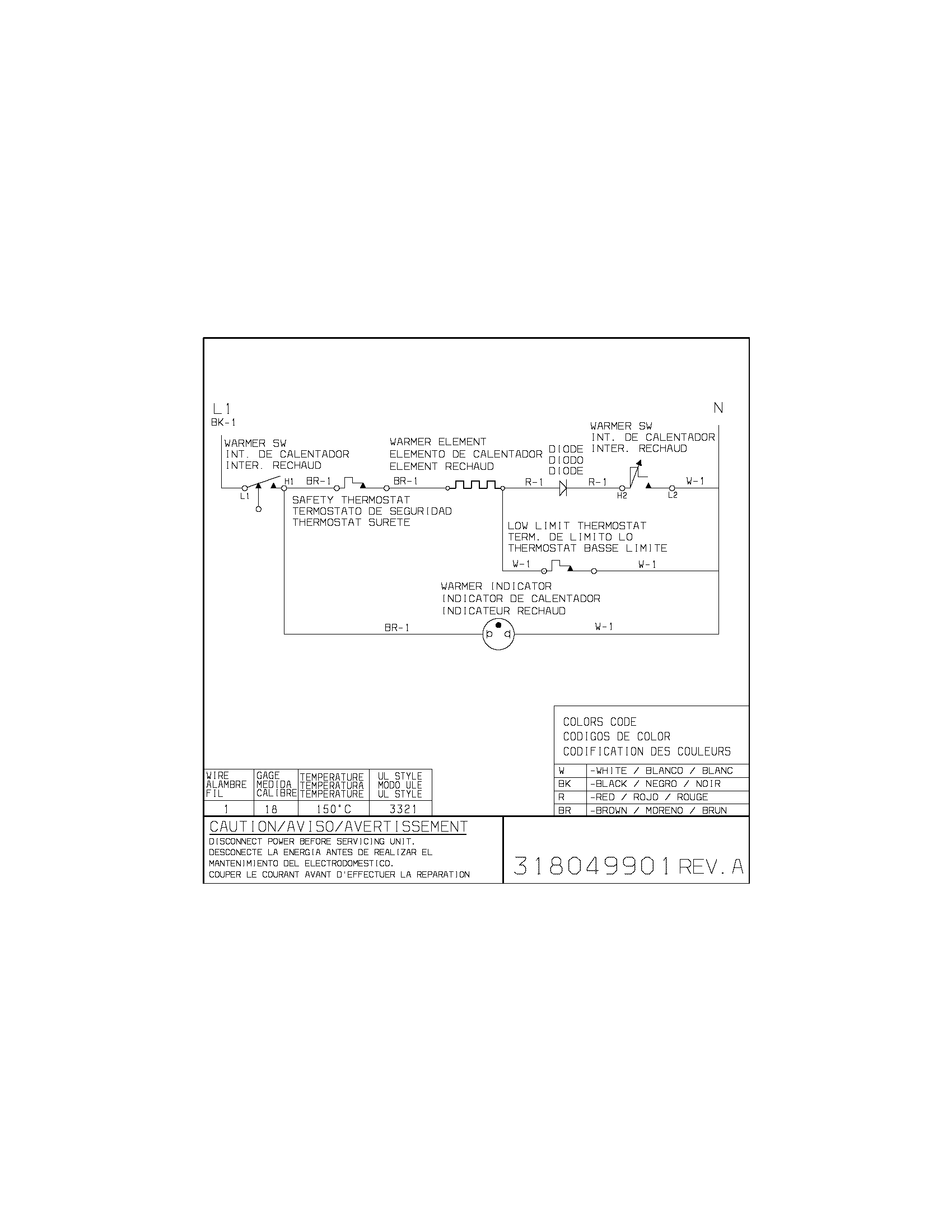

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Warmer Switch 316095500
#13A

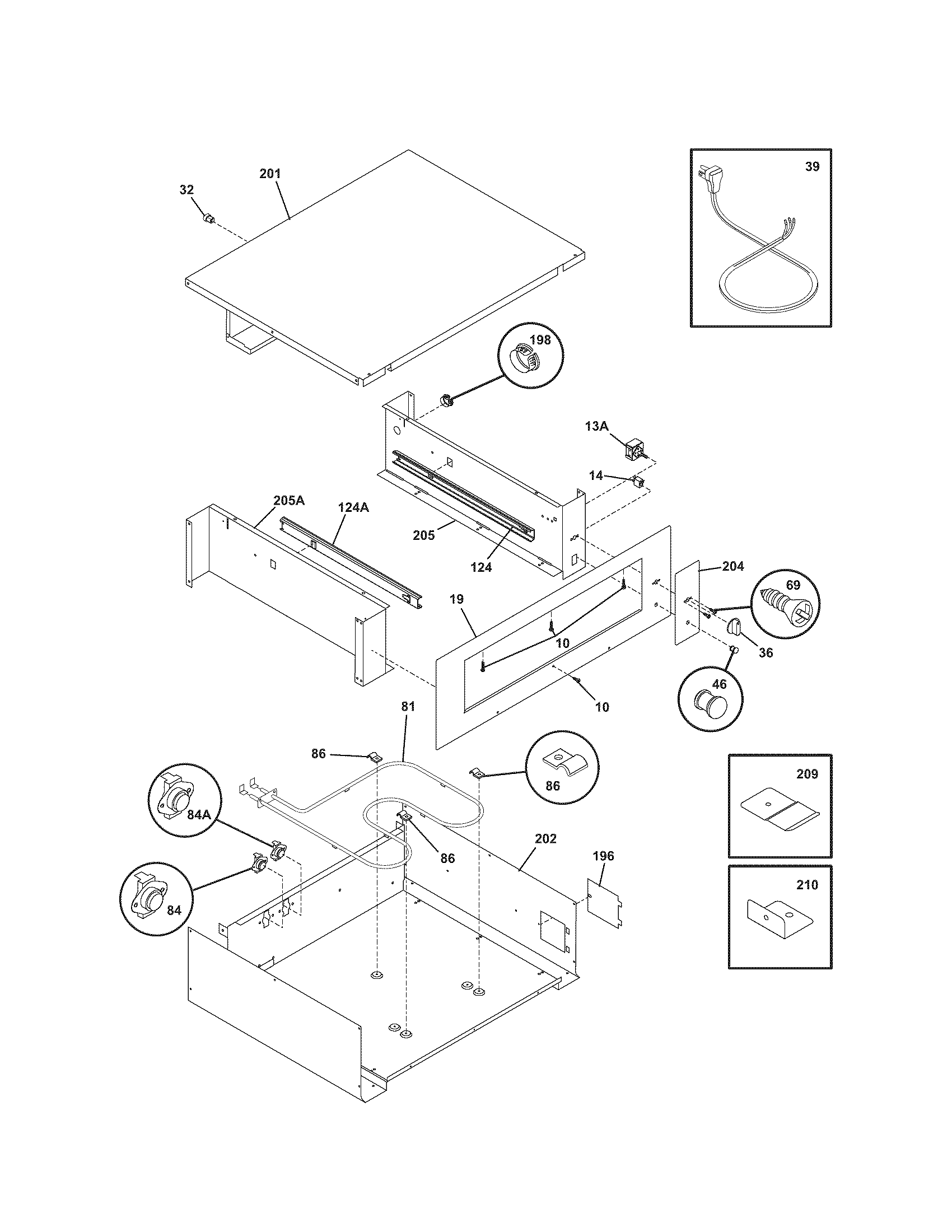

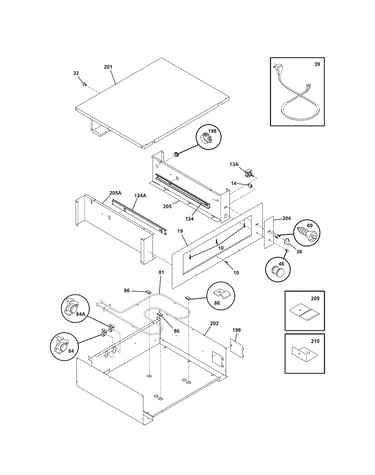

Body diagram

Warmer switch

Part #316095500

Replaced by #5304508926

?
Manufacturer substitution
This part replaces 316095500. Substitute parts can look different from the original.
$75.39
7% OFF Phone Price : $81.39
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

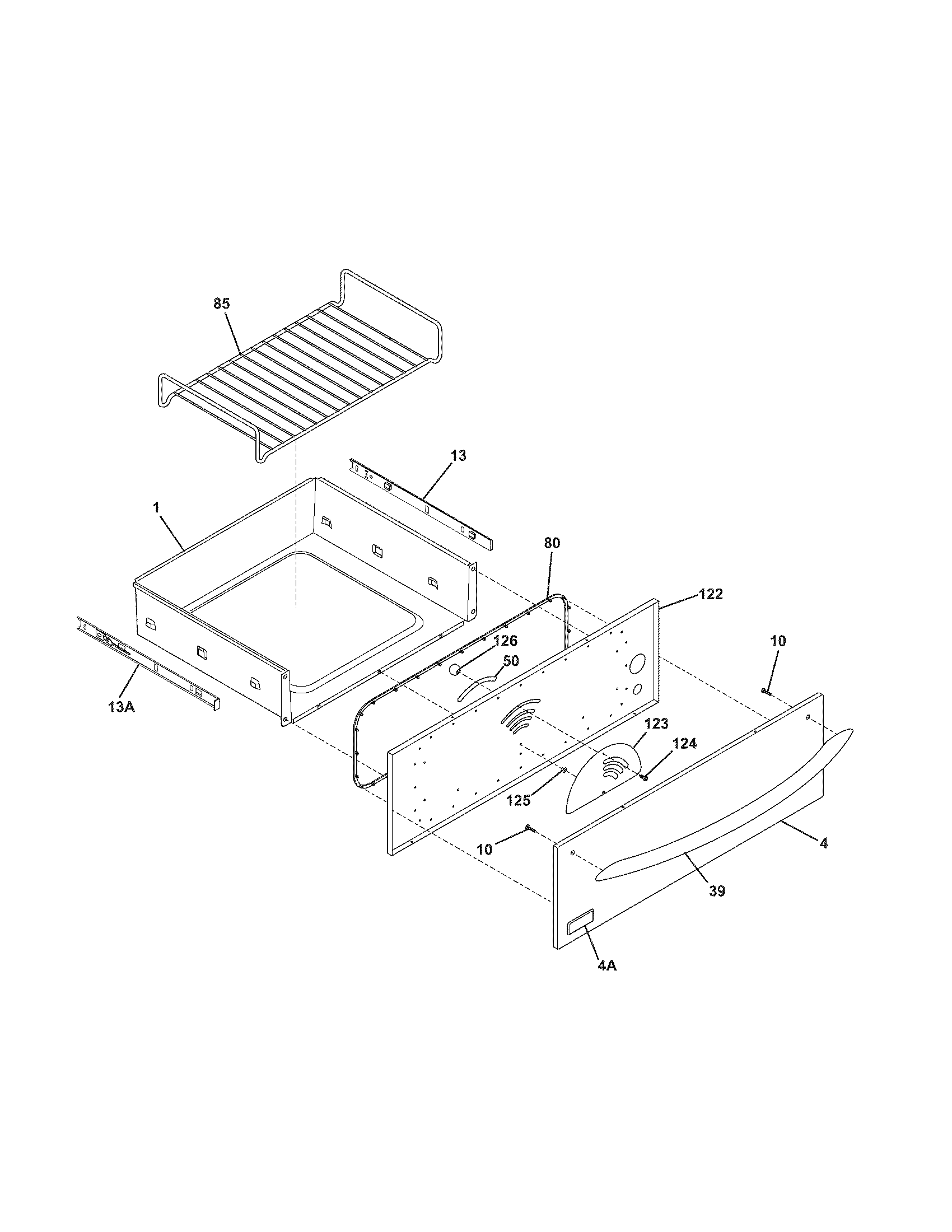

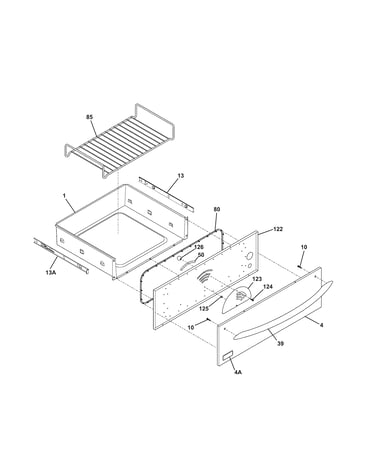

Drawer diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75
21% OFF Phone Price : $28.75
In Stock
Range Screw 5303311174
#10

Drawer diagram

Range screw

Part #5303311174

This item is not returnable
$16.46
11% OFF Phone Price : $18.46
In Stock
Range Screw 5304436875
#10

Body diagram

Range screw

Part #5304436875

This item is not returnable
$13.92
13% OFF Phone Price : $15.92
In Stock
Oven Shelf 318345600
#85

Drawer diagram

Oven shelf

Part #318345600

Replaced by #807328301

?
Manufacturer substitution
This part replaces 318345600. Substitute parts can look different from the original.
$65.52
8% OFF Phone Price : $71.52
In Stock
Kenmore Elite Repair Parts List 5995497855
#NI

Body diagram

Kenmore elite repair parts list

Part #5995497855

This item is not returnable
In Stock
Rivet 5304436030
#125

Drawer diagram

Rivet

Part #5304436030

This item is not returnable
In Stock
Range Warming Drawer Element Bracket 316095800
#86

Body diagram

Range warming drawer element bracket

Part #316095800

This item is not returnable
In Stock
Kenmore Pro Lamp 318369502
#14

Body diagram

Kenmore pro lamp

Part #318369502

In Stock
Bushing 08008009
#198

Body diagram

Bushing

Part #08008009

In Stock
