Electric Range

Model # 3634842592 Official Kenmore electric built-in double oven

Here are the diagrams and repair parts for Official Kenmore 3634842592 electric built-in double oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

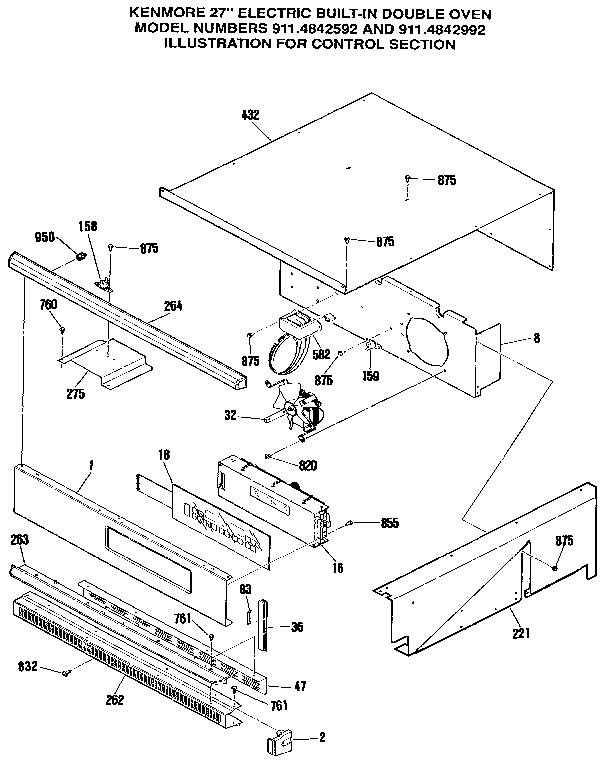

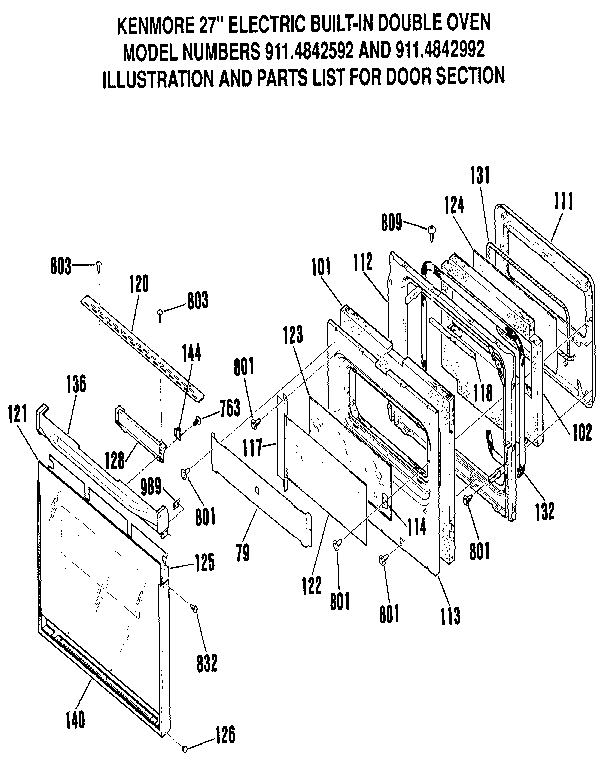

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
3634842592 Ranges
40a15 Bulb STD372401
#257

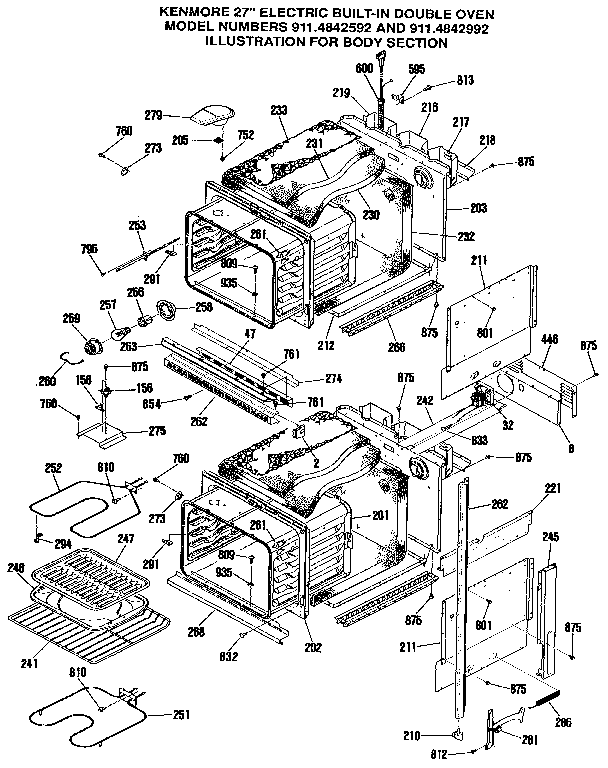

Body section diagram

40a15 bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Sensor WB20X0106
#253

Body section diagram

Sensor

Part #WB20X0106

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB20X0106. Substitute parts can look different from the original.
4.09 (22)
BEST SELLER
$181.30 |
6% OFF Phone Price : $193.30
In Stock
Bake Element WB44K5008
#251

Body section diagram

Bake element

Part #WB44K5008

Replaced by #WB44K5013

?
Manufacturer substitution
This part replaces WB44K5008. Substitute parts can look different from the original.
3.94 (18)
BEST SELLER
$66.83 |
8% OFF Phone Price : $72.83
In Stock
Screw-10-32 WB01X1135
#810

Body section diagram

Screw-10-32

Part #WB01X1135

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1135. Substitute parts can look different from the original.
$9.16 |
10% OFF Phone Price : $10.16
In Stock
Cover WB36X0389
#259

Body section diagram

Cover

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
5 (1)
This item is not returnable
$13.58 |
13% OFF Phone Price : $15.58
In Stock
Screw 10 WB01M0001
Screw 10

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$7.17 |
12% OFF Phone Price : $8.17
In Stock
Oven Rack WB48K5006
#241

Body section diagram

Oven rack

Part #WB48K5006

Replaced by #WB48T10093

?
Manufacturer substitution
This part replaces WB48K5006. Substitute parts can look different from the original.
4 (4)
$72.53 |
8% OFF Phone Price : $78.53
In Stock
Screw WB01K5062
Screw

Part #WB01K5062

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB01K5062. Substitute parts can look different from the original.
This item is not returnable
$9.16 |
10% OFF Phone Price : $10.16
In Stock
Screw WB01K5057
Screw

Part #WB01K5057

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WB01K5057. Substitute parts can look different from the original.
This item is not returnable
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Screw-6-32t WB01X1118
Screw-6-32t

Part #WB01X1118

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces WB01X1118. Substitute parts can look different from the original.
$7.40 |
12% OFF Phone Price : $8.40
In Stock
