GE
Electric Range

Model # JBP28GK-3 Official GE range

Here are the diagrams and repair parts for Official GE JBP28GK-3 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Range Oven Light Bulb WX12X1510
#47

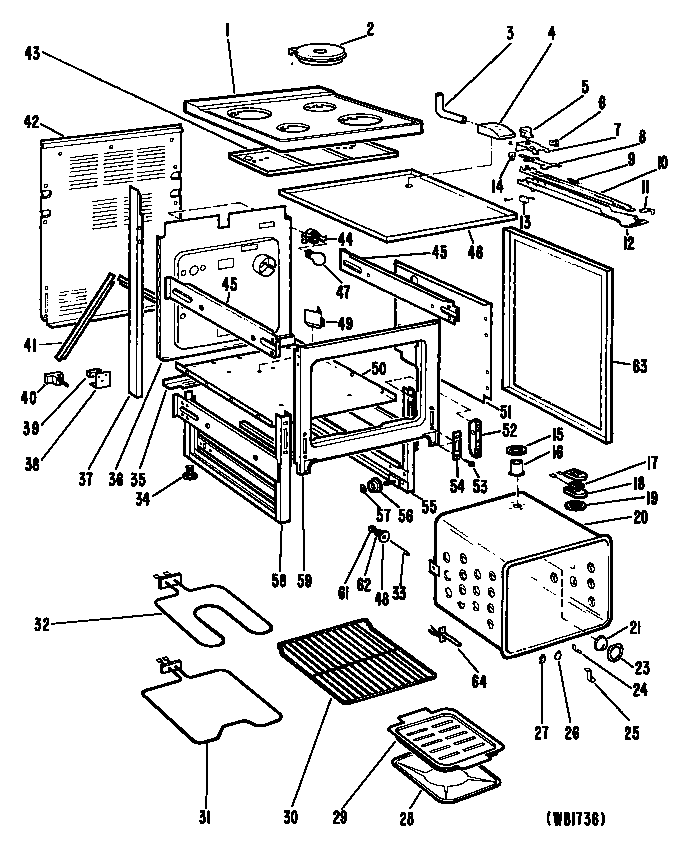

Cabinet diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Main Block WB17X199
#39

Cabinet diagram

Main block

Part #WB17X199

Replaced by #WB17X5095

?
Manufacturer substitution
This part replaces WB17X199. Substitute parts can look different from the original.
$69.94 |
8% OFF Phone Price : $75.94
In Stock
Use And Care Guide 49-4796

#NI

All parts diagram

Use and care guide

Part #49-4796

$17.99
In Stock
Broil Pan Rack WB49X589
#29

Cabinet diagram

Broil pan rack

Part #WB49X589

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X589. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Bracket WB2X7876

#NI

All parts diagram

Bracket

Part #WB2X7876

Replaced by #WB02T10415

?
Manufacturer substitution
This part replaces WB2X7876. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Handle WB15X243
#218

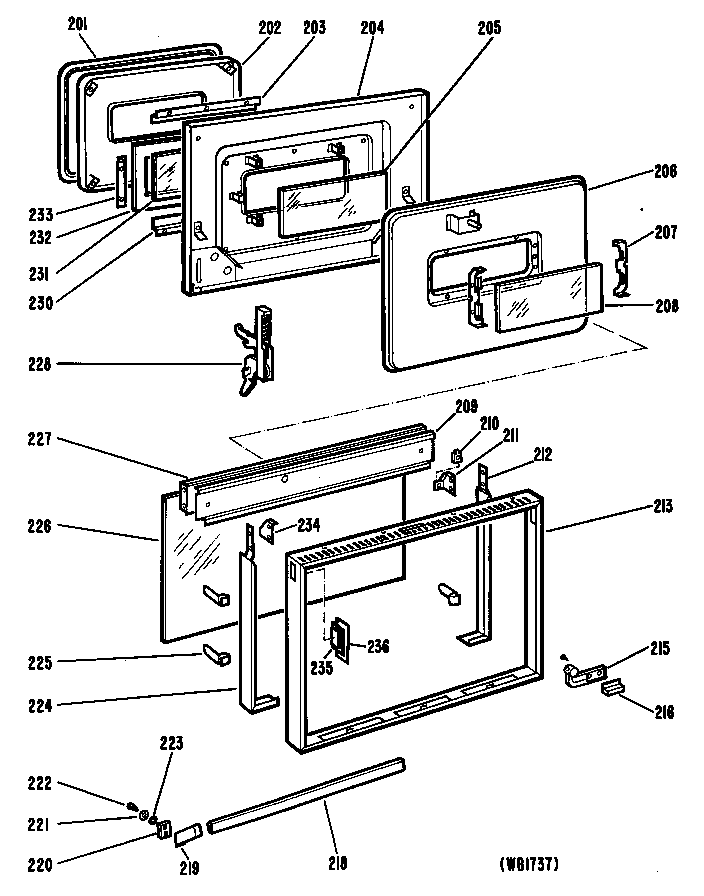

Doors diagram

Handle

Part #WB15X243

The manufacturer no longer makes this part, and there's no substitute part

Guard Wire WB2X4913
#35

Cabinet diagram

Guard wire

Part #WB2X4913

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X5788
#305

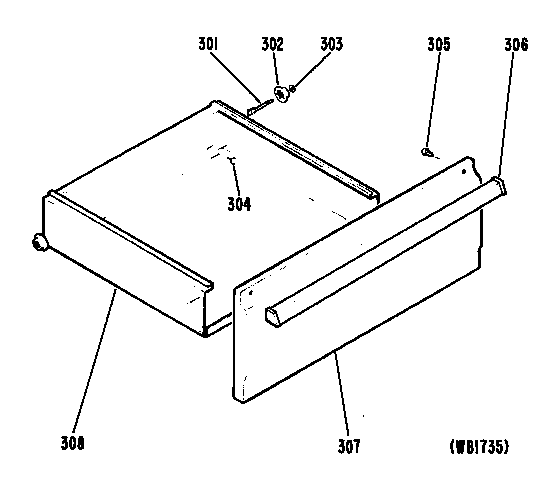

Drawer diagram

Screw

Part #WB1X5788

The manufacturer no longer makes this part, and there's no substitute part

Unknown WB3X75
#112

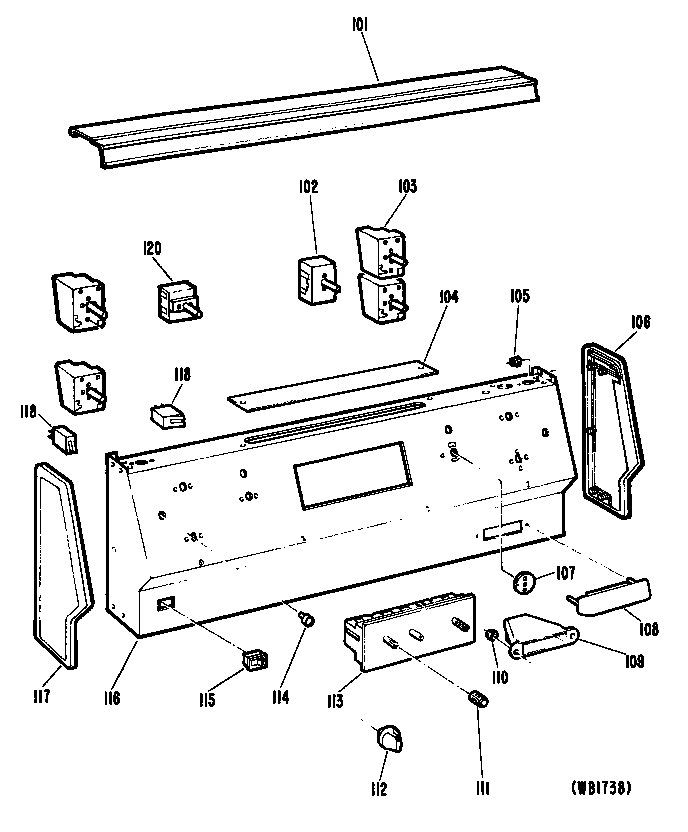

Control panel diagram

Unknown

Part #WB3X75

The manufacturer no longer makes this part, and there's no substitute part

Drive Line Muffler WB55X5344
#202

Doors diagram

Drive line muffler

Part #WB55X5344

The manufacturer no longer makes this part, and there's no substitute part
