Gibson
Upright Freezer

Model # FV16F5WVFA Official Gibson upright freezer - lg30890130

Here are the diagrams and repair parts for Official Gibson FV16F5WVFA upright freezer - lg30890130, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Filter Drier G152474
#36

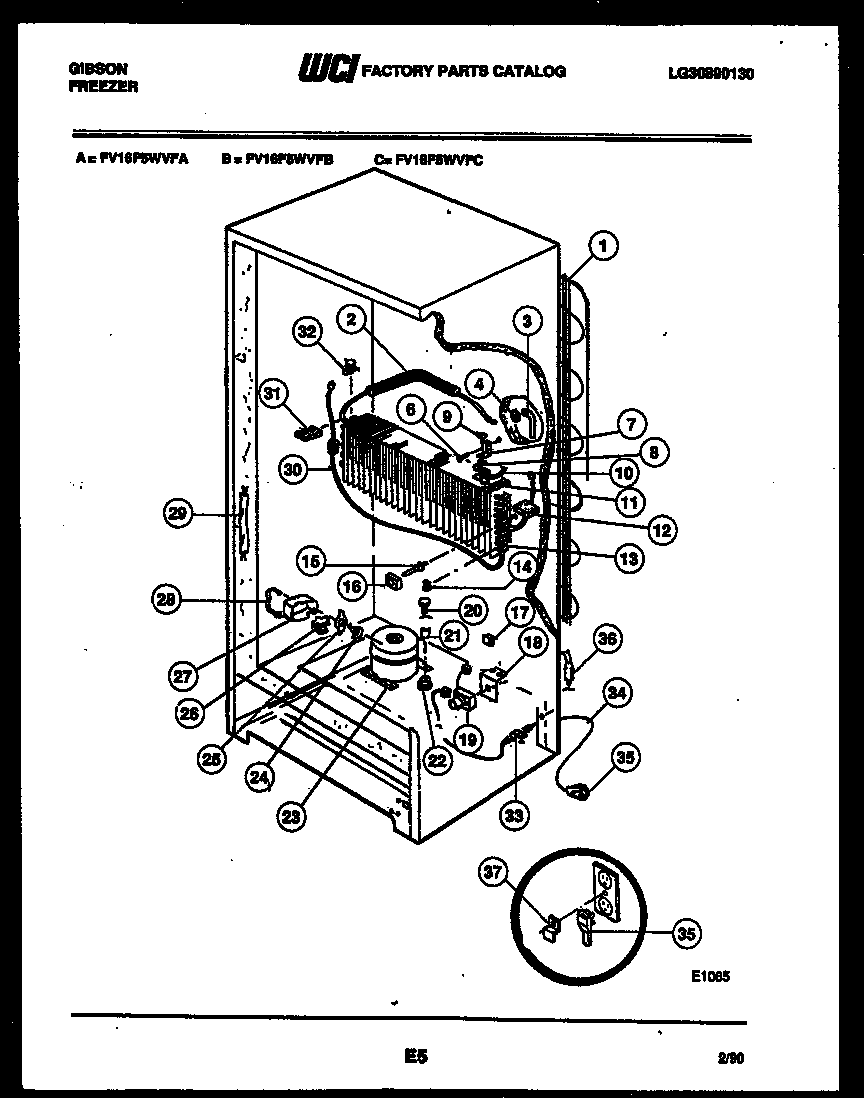

System and electrical parts diagram

Filter drier

Part #G152474

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G152474. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key F115646
#13

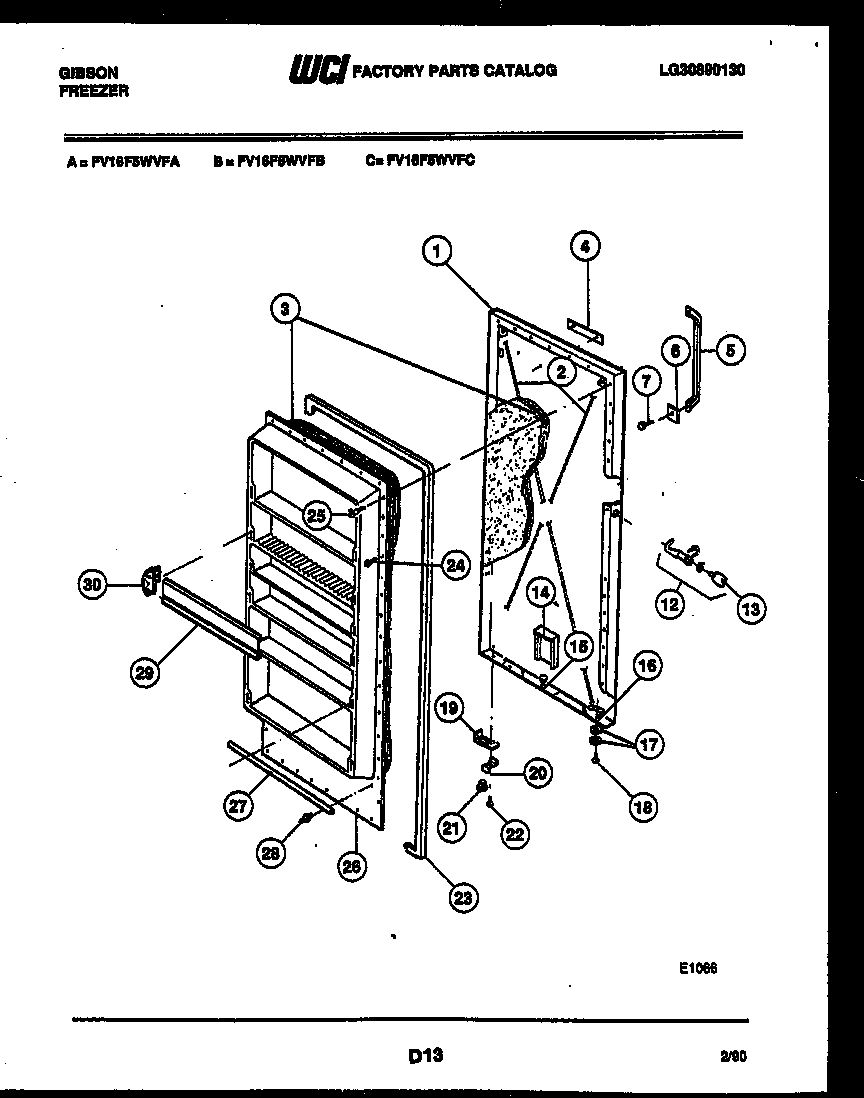

Door parts diagram

Key

Part #F115646

Replaced by #297147700

?
Manufacturer substitution
This part replaces F115646. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Clip F300792
#28

Door parts diagram

Clip

Part #F300792

Replaced by #5304406520

?
Manufacturer substitution
This part replaces F300792. Substitute parts can look different from the original.
BEST SELLER
$34.42 |
15% OFF Phone Price : $40.42
In Stock
Thermostat 3016814
#32

System and electrical parts diagram

Thermostat

Part #3016814

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 3016814. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Freezer Condenser Coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, F000300847, F000900204, F112069, F118630, F83339, F83727, F83897) 5300083897
#1

System and electrical parts diagram

Freezer condenser coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, f000300847, f000900204, f112069, f118630, f83339, f83727, f83897)

Part #5300083897

This item is not returnable
$417.18 |
$12.00 OFF Phone Price : $429.18
In Stock
Fan Motor 3205519
#14

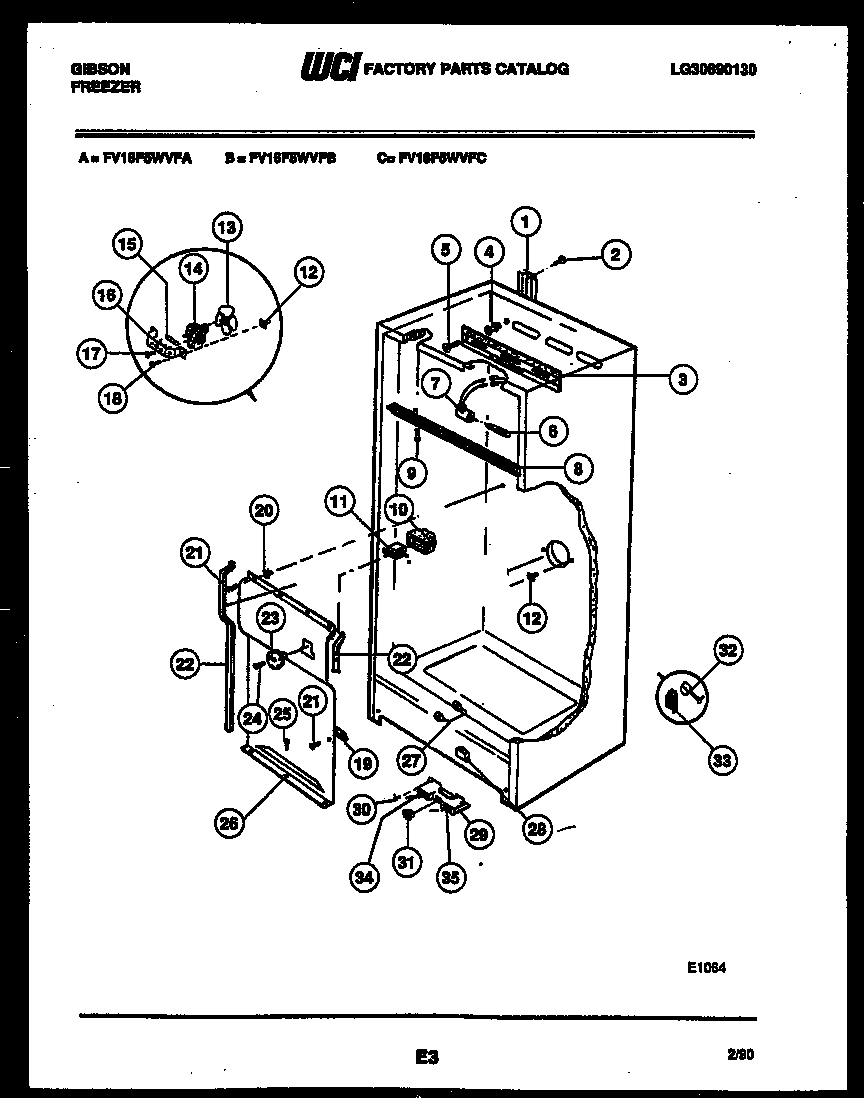

Interior parts diagram

Fan motor

Part #3205519

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 3205519. Substitute parts can look different from the original.
$142.87 |
8% OFF Phone Price : $154.87
In Stock
Drain Hose F129679
#15

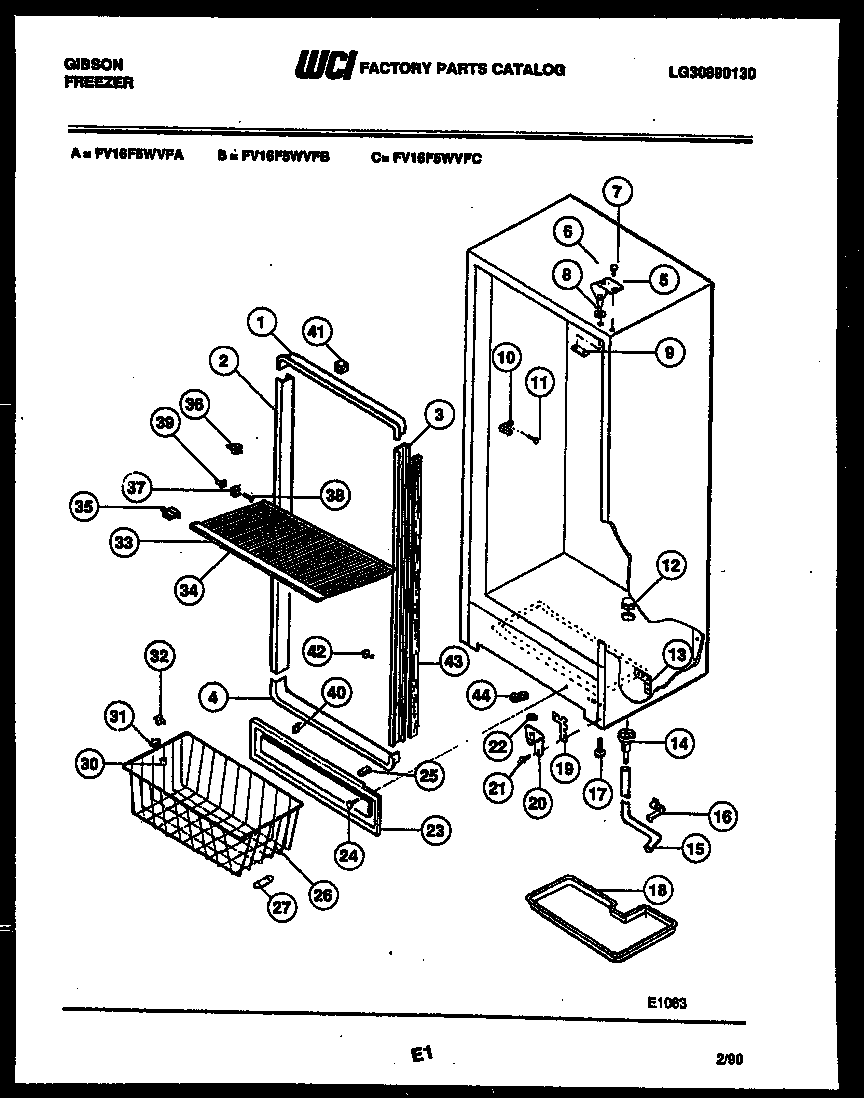

Cabinet parts diagram

Drain hose

Part #F129679

Replaced by #5304512272

?
Manufacturer substitution
This part replaces F129679. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
End Cap Set F126017
#30A

Door parts diagram

End cap set

Part #F126017

Replaced by #5303925377

?
Manufacturer substitution
This part replaces F126017. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
End Cap Set F126016
#30

Door parts diagram

End cap set

Part #F126016

Replaced by #5303925377

?
Manufacturer substitution
This part replaces F126016. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Tube F129727
#10

System and electrical parts diagram

Tube

Part #F129727

Replaced by #5303916855

?
Manufacturer substitution
This part replaces F129727. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
