LG
Side-By-Side Refrigerator

Model # LRSC21934SB Official LG side-by-side refrigerator

Here are the diagrams and repair parts for Official LG LRSC21934SB side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

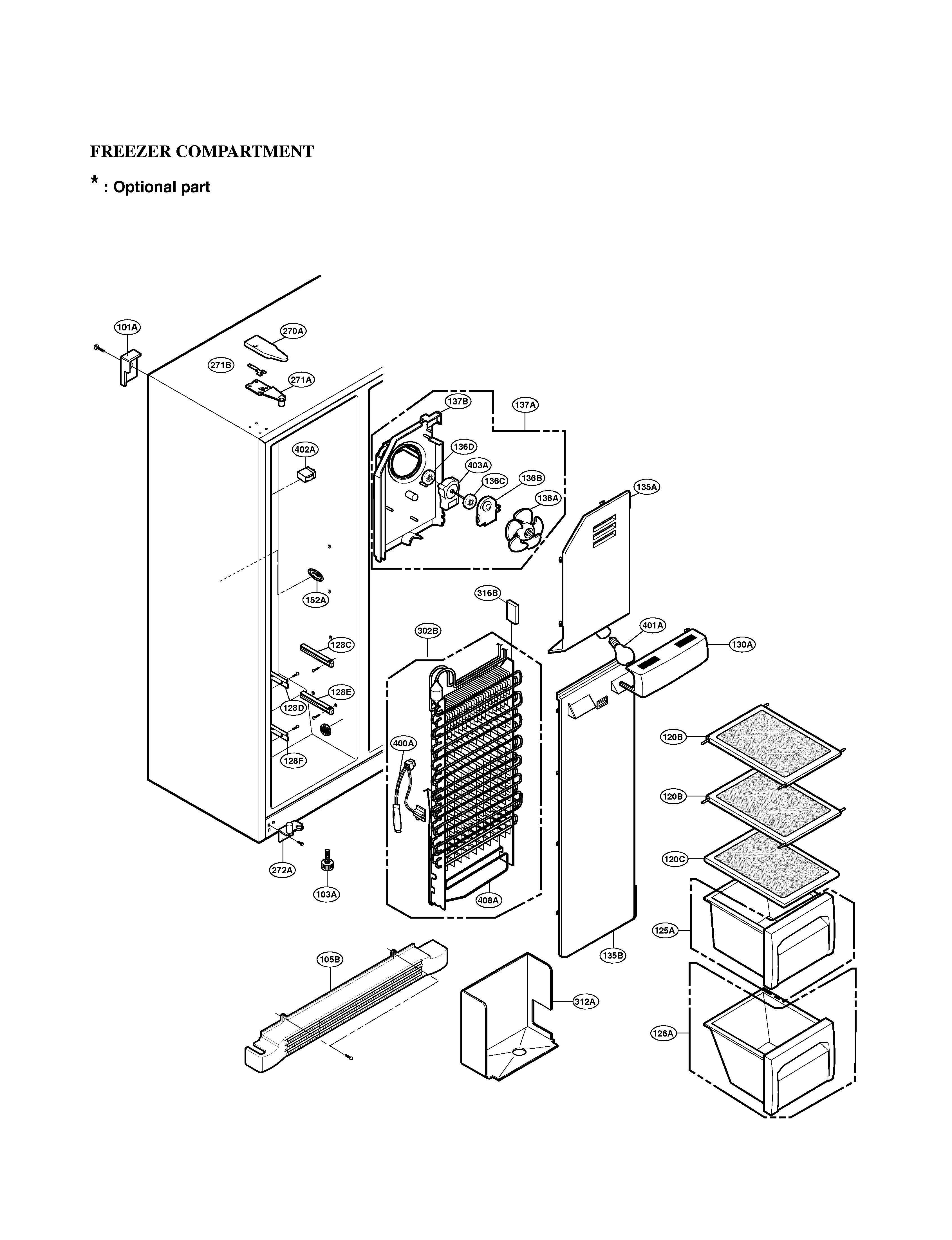

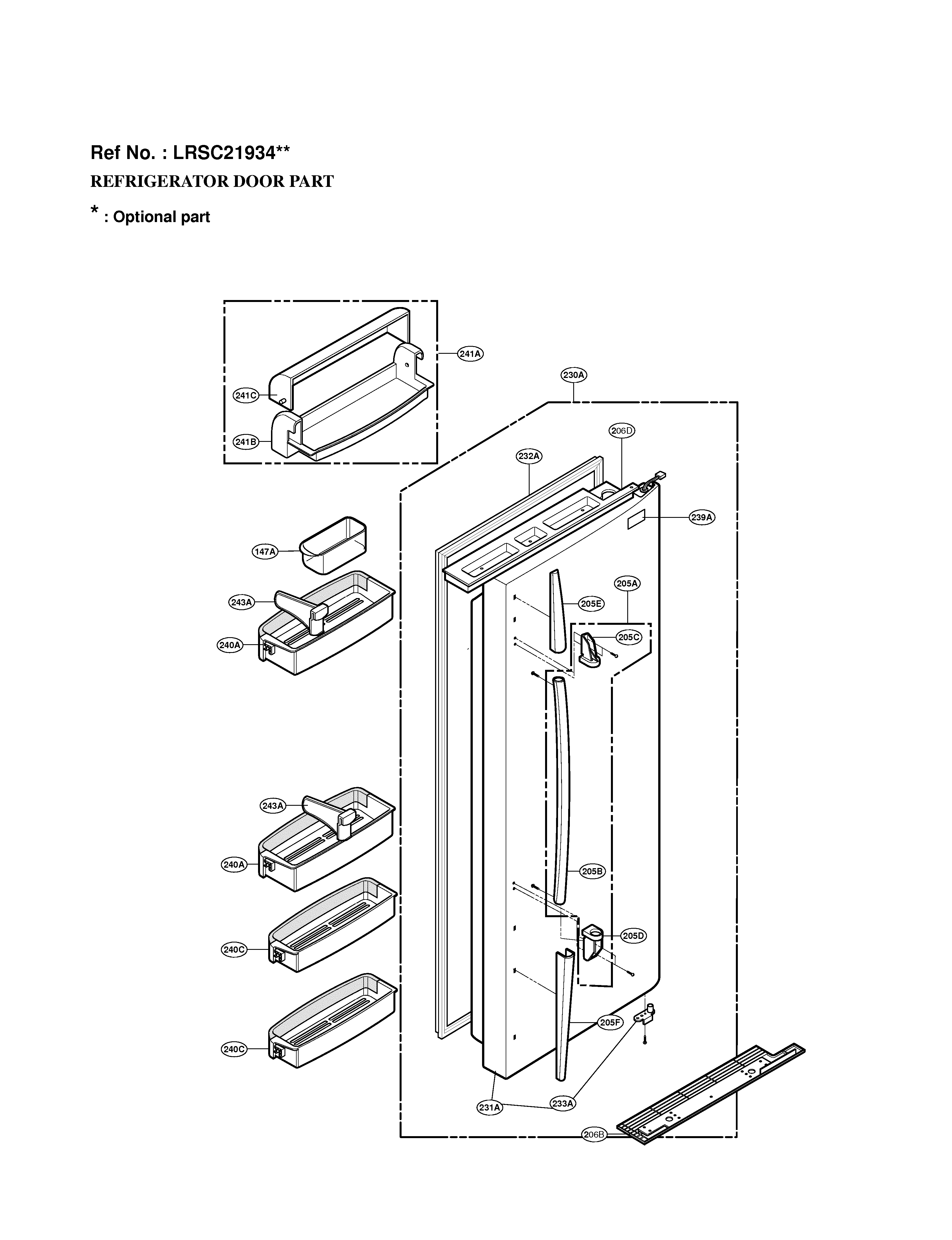

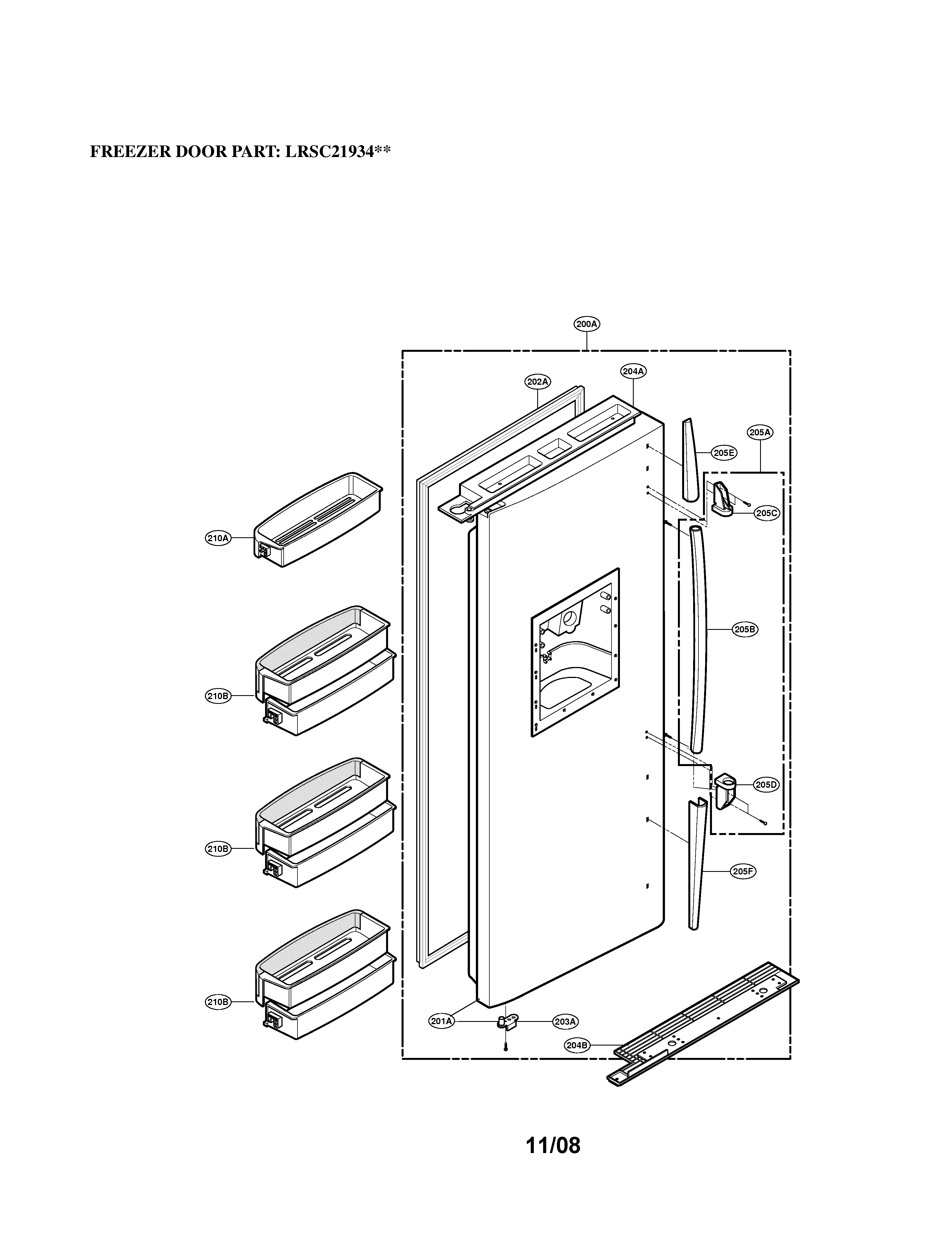

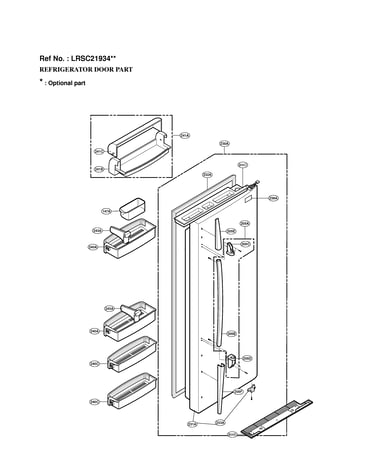

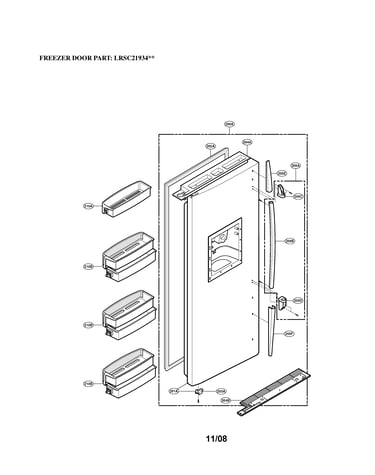

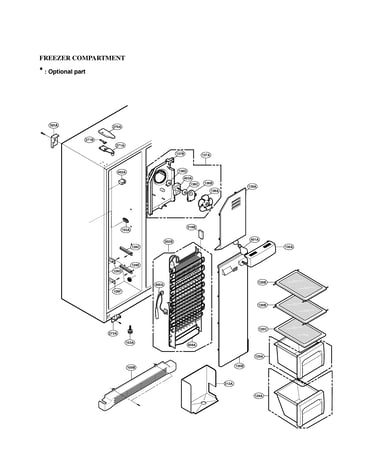

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |

Refrigerator Drier Assembly 5851JA2008T
#317A

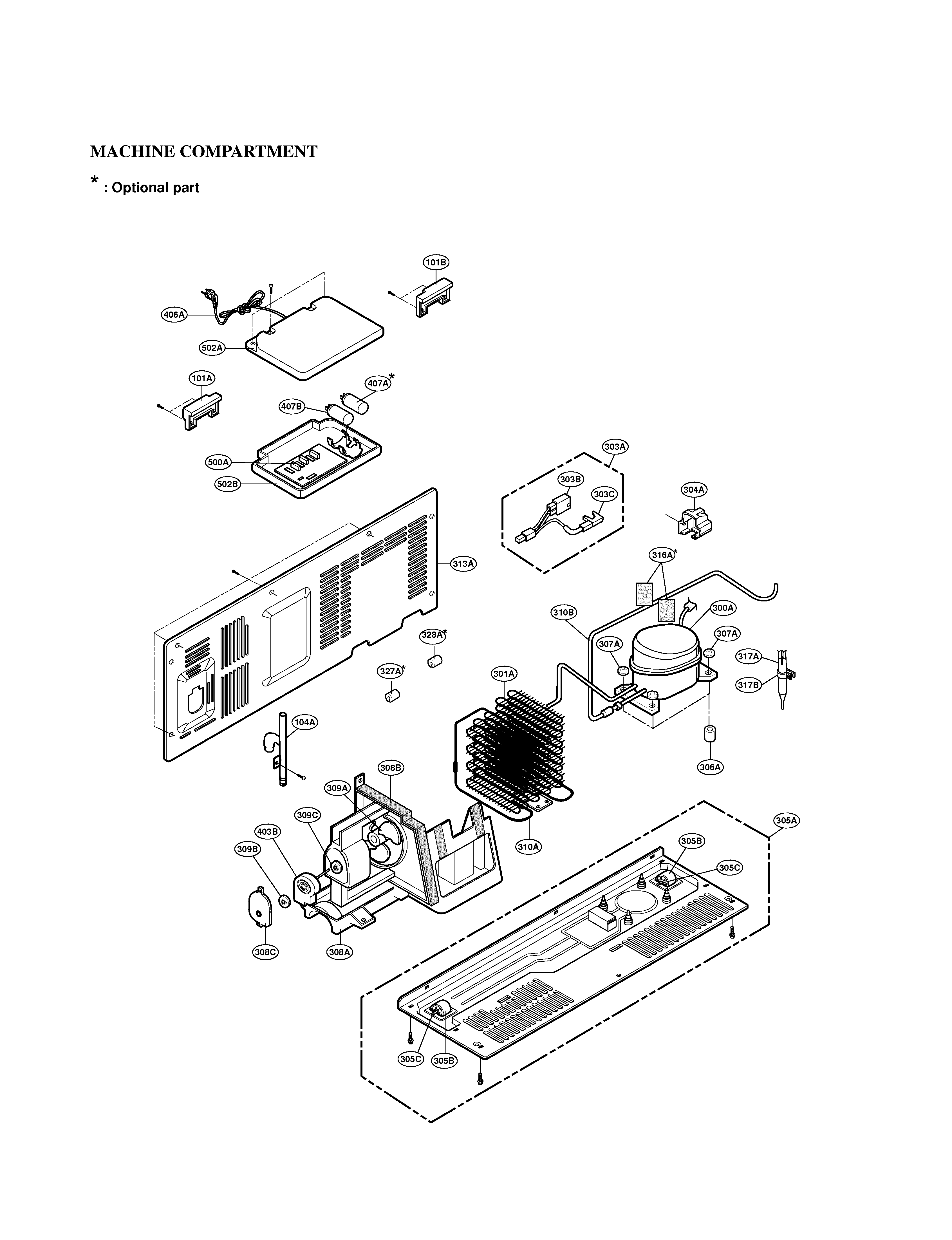

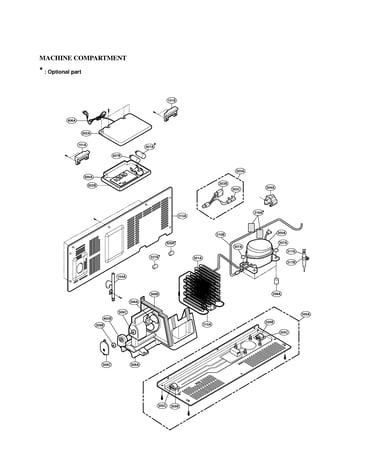

Machine compartment diagram

Refrigerator drier assembly

Part #5851JA2008T

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2008T. Substitute parts can look different from the original.
BEST SELLER
$67.13
8% OFF Phone Price : $73.13
In Stock
Lg Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
Lg refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$22.36
21% OFF Phone Price : $28.36
In Stock
Switch,mic 6600JB3001B
#402C

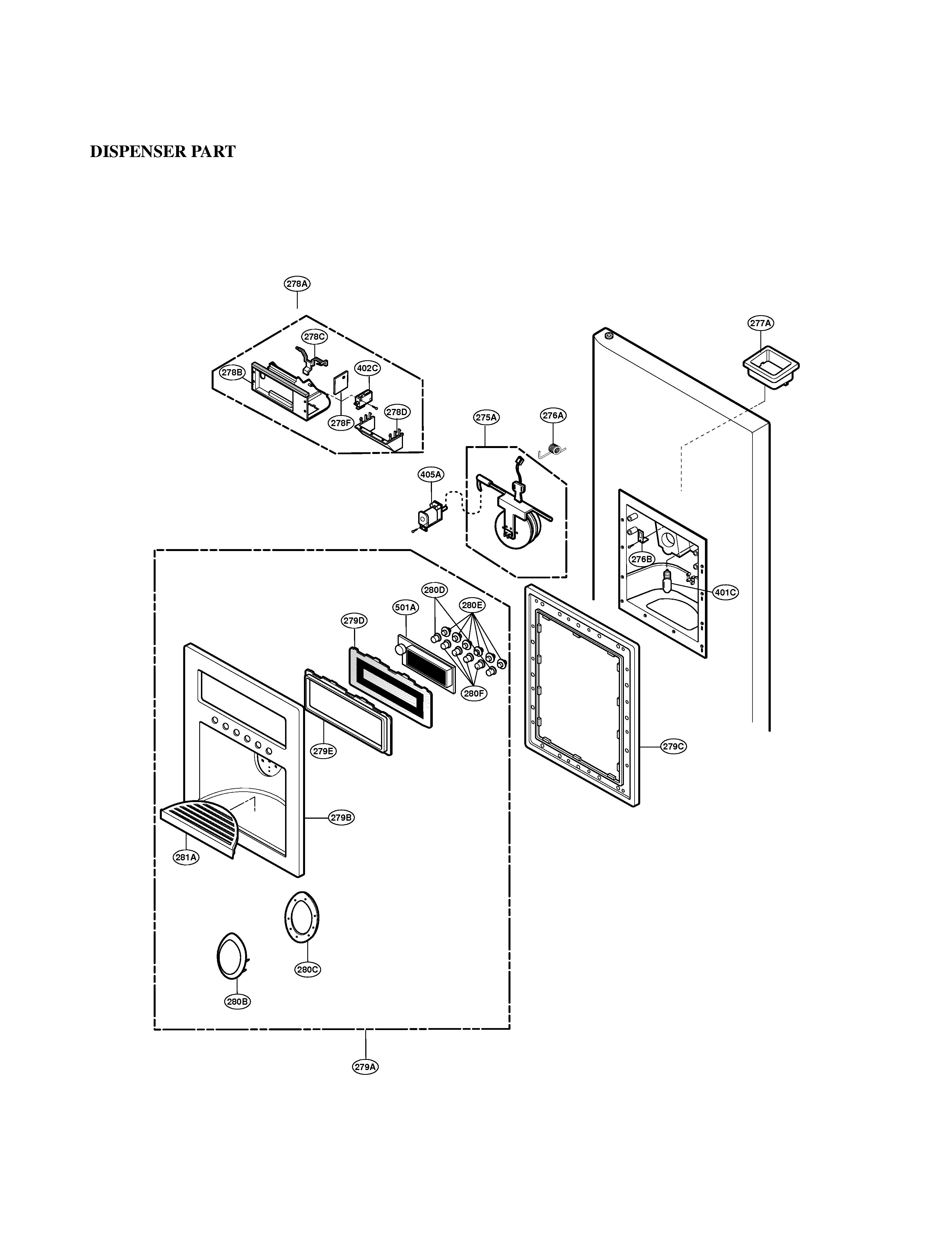

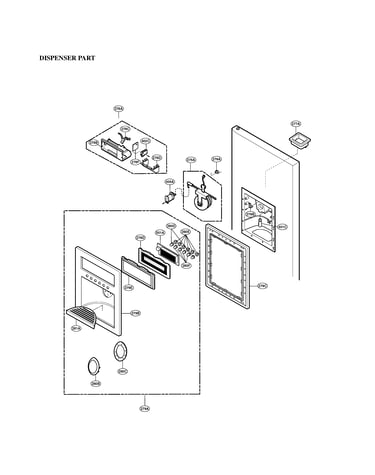

Dispenser diagram

Switch,mic

Part #6600JB3001B

Replaced by #6600JB3001C

?
Manufacturer substitution
This part replaces 6600JB3001B. Substitute parts can look different from the original.
BEST SELLER
$33.22
15% OFF Phone Price : $39.22
In Stock
Refrigerator Ice Maker Assembly (replaces 4810ja1015a) 5989JA1002D
#600A

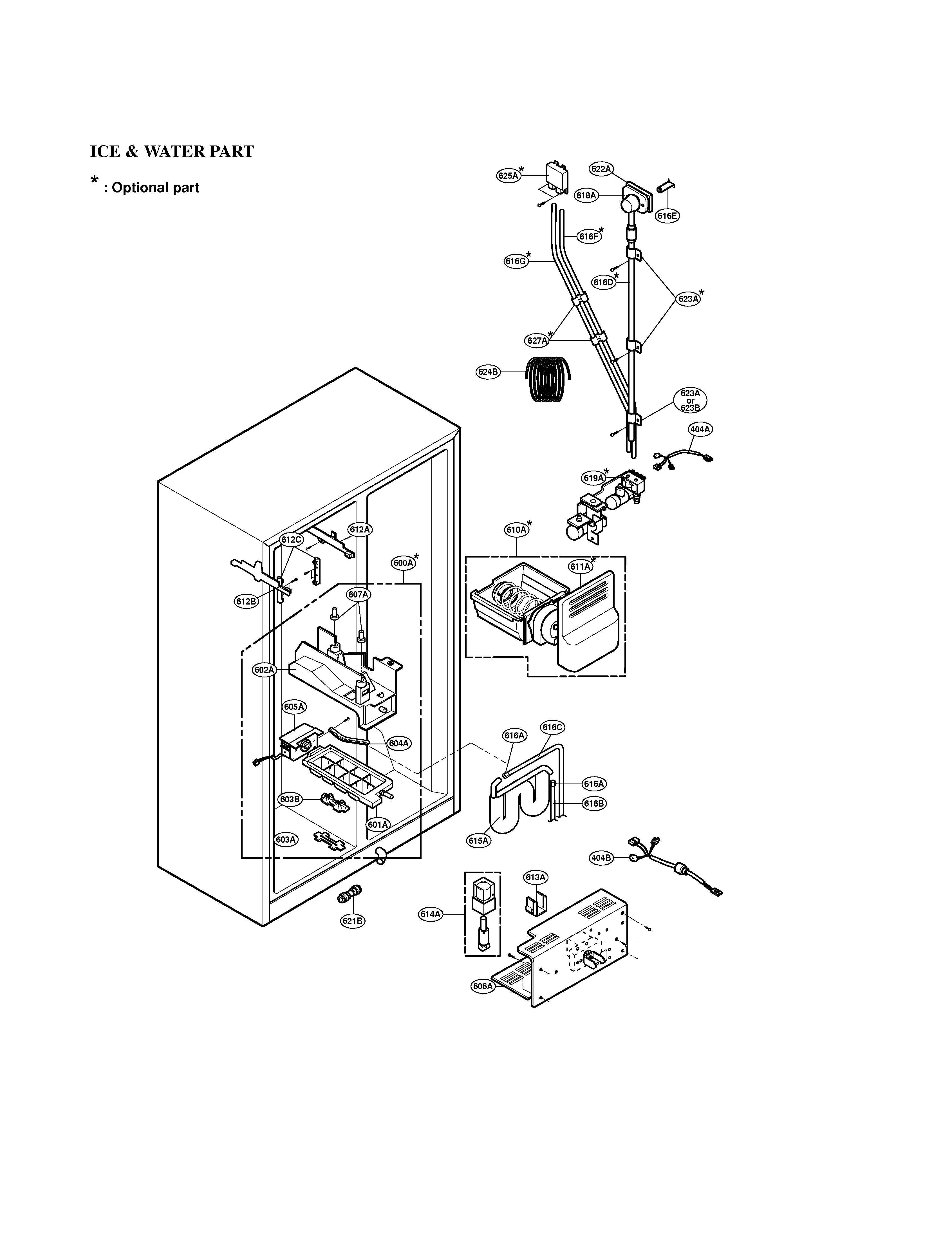

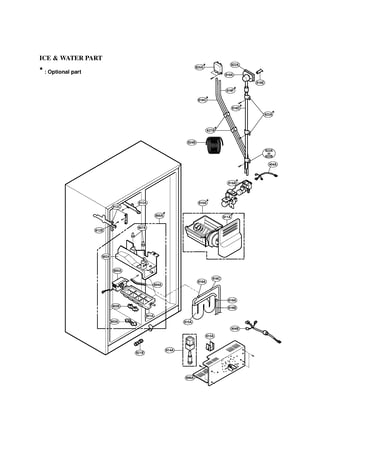

Ice & water diagram

Refrigerator ice maker assembly (replaces 4810ja1015a)

Part #5989JA1002D

BEST SELLER
$85.13
7% OFF Phone Price : $91.13
In Stock
Refrigerator Bracket 4810JA1015A
#602A

Ice & water diagram

Refrigerator bracket

Part #4810JA1015A

Replaced by #5989JA1002D

?
Manufacturer substitution
This part replaces 4810JA1015A. Substitute parts can look different from the original.
BEST SELLER
$85.13
7% OFF Phone Price : $91.13
In Stock
Refrigerator Insulation 5410JA3011A
#603B

Ice & water diagram

Refrigerator insulation

Part #5410JA3011A

Replaced by #5989JA1002D

?
Manufacturer substitution
This part replaces 5410JA3011A. Substitute parts can look different from the original.
BEST SELLER
$85.13
7% OFF Phone Price : $91.13
In Stock
Refrigerator Water Tube Fitting (replaces 4932ja3009h, Mcd62426801) 4932JA3009A
#626B

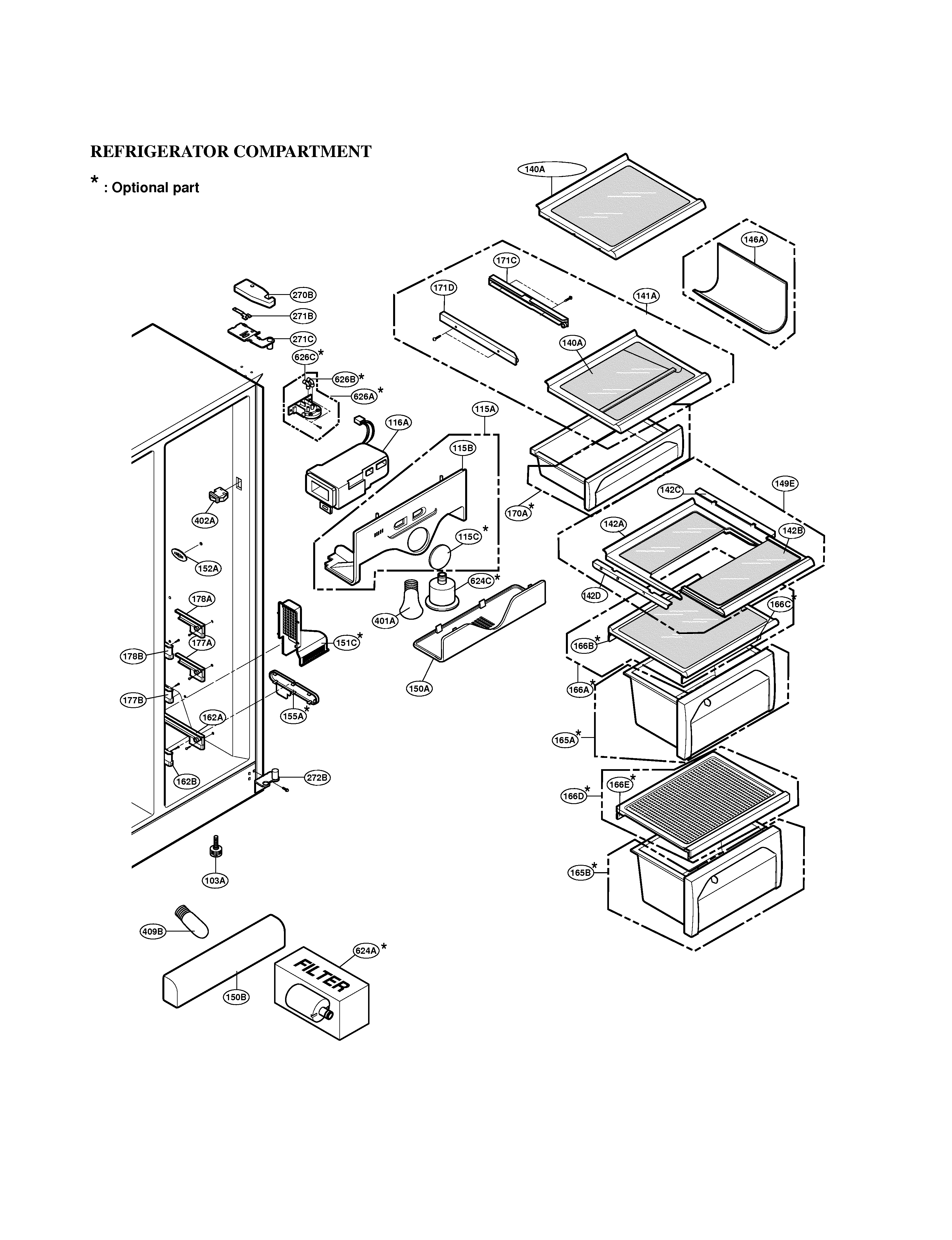

Refrigerator compartment diagram

Refrigerator water tube fitting (replaces 4932ja3009h, mcd62426801)

Part #4932JA3009A

BEST SELLER
$17.14
10% OFF Phone Price : $19.14
In Stock
Refrigerator Compressor 2521C-A7256
#300A

Machine compartment diagram

Refrigerator compressor

Part #2521C-A7256

Replaced by #TCA37091209

?
Manufacturer substitution
This part replaces 2521C-A7256. Substitute parts can look different from the original.
BEST SELLER
$316.23
$12.00 OFF Phone Price : $328.23
In Stock
Refrigerator Water Tubing 5210JA3005Q
#616G

Ice & water diagram

Refrigerator water tubing

Part #5210JA3005Q

Replaced by #5210JA3005E

?
Manufacturer substitution
This part replaces 5210JA3005Q. Substitute parts can look different from the original.
BEST SELLER
$16.42
11% OFF Phone Price : $18.42
In Stock
Refrigerator Refrigerant Line Noise Damper 5072JA3003F
#316A

Machine compartment diagram

Refrigerator refrigerant line noise damper

Part #5072JA3003F

BEST SELLER
This item is not returnable
$7.22
12% OFF Phone Price : $8.22
In Stock
