Countertop Microwave

Model # R-320DQ Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-320DQ microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

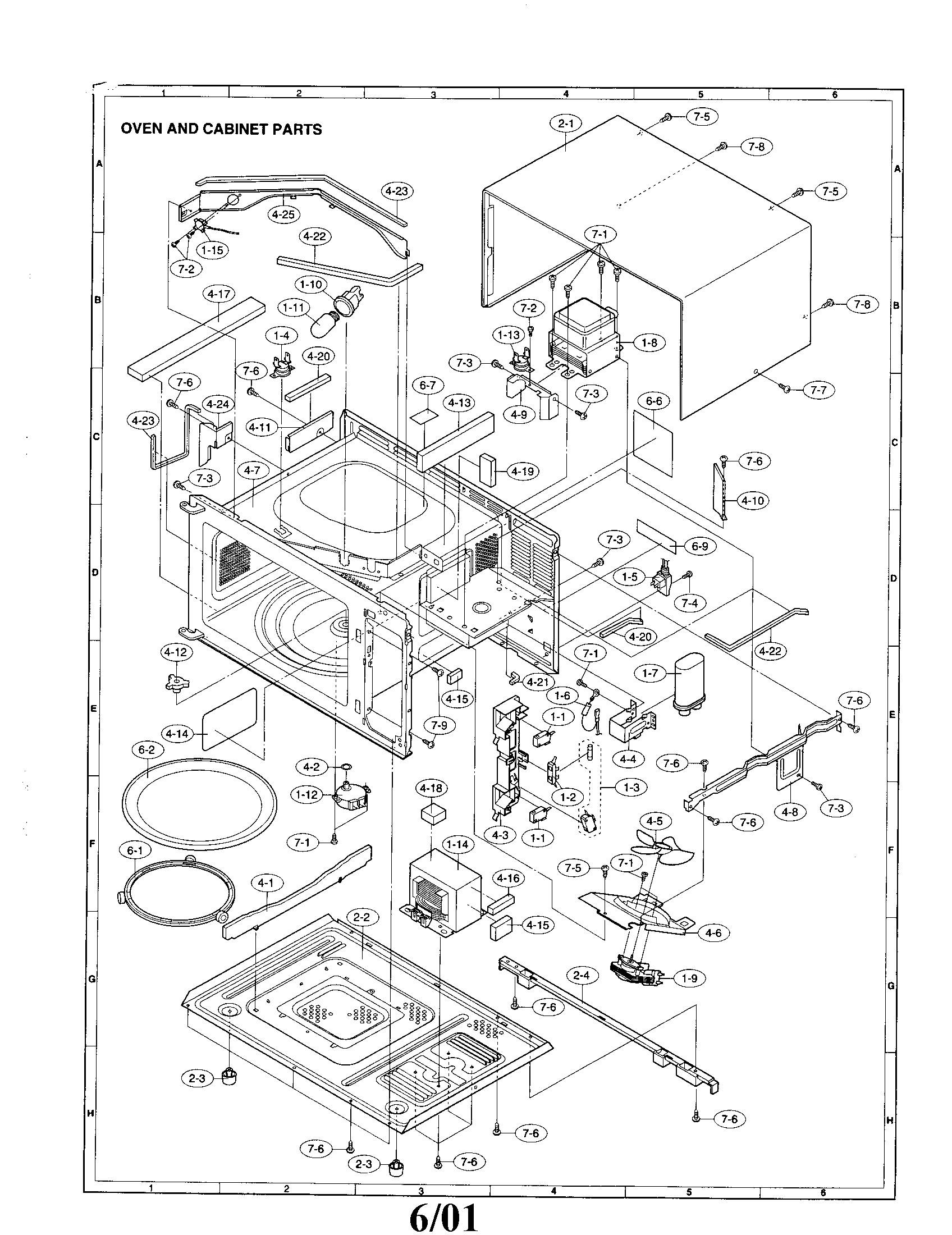

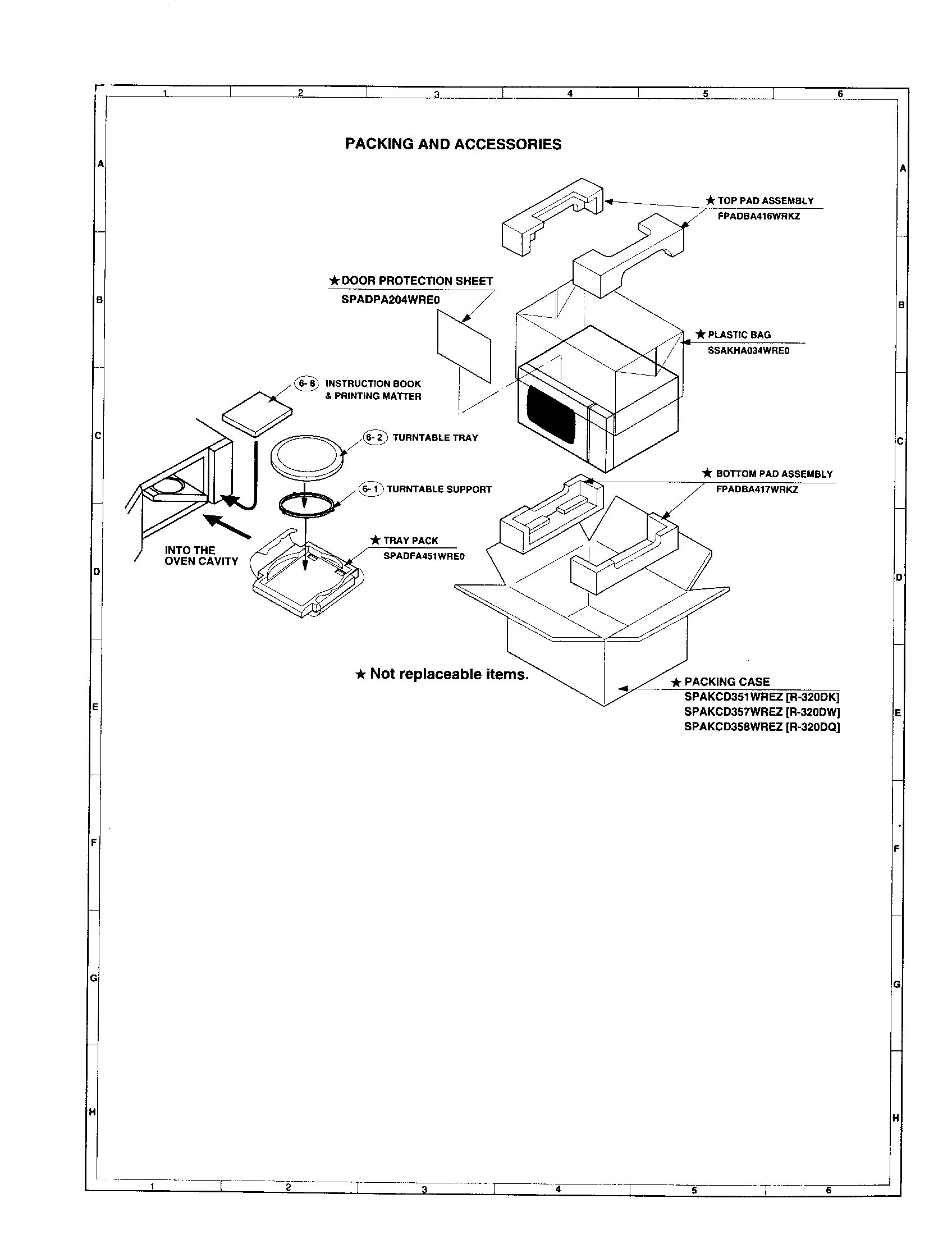

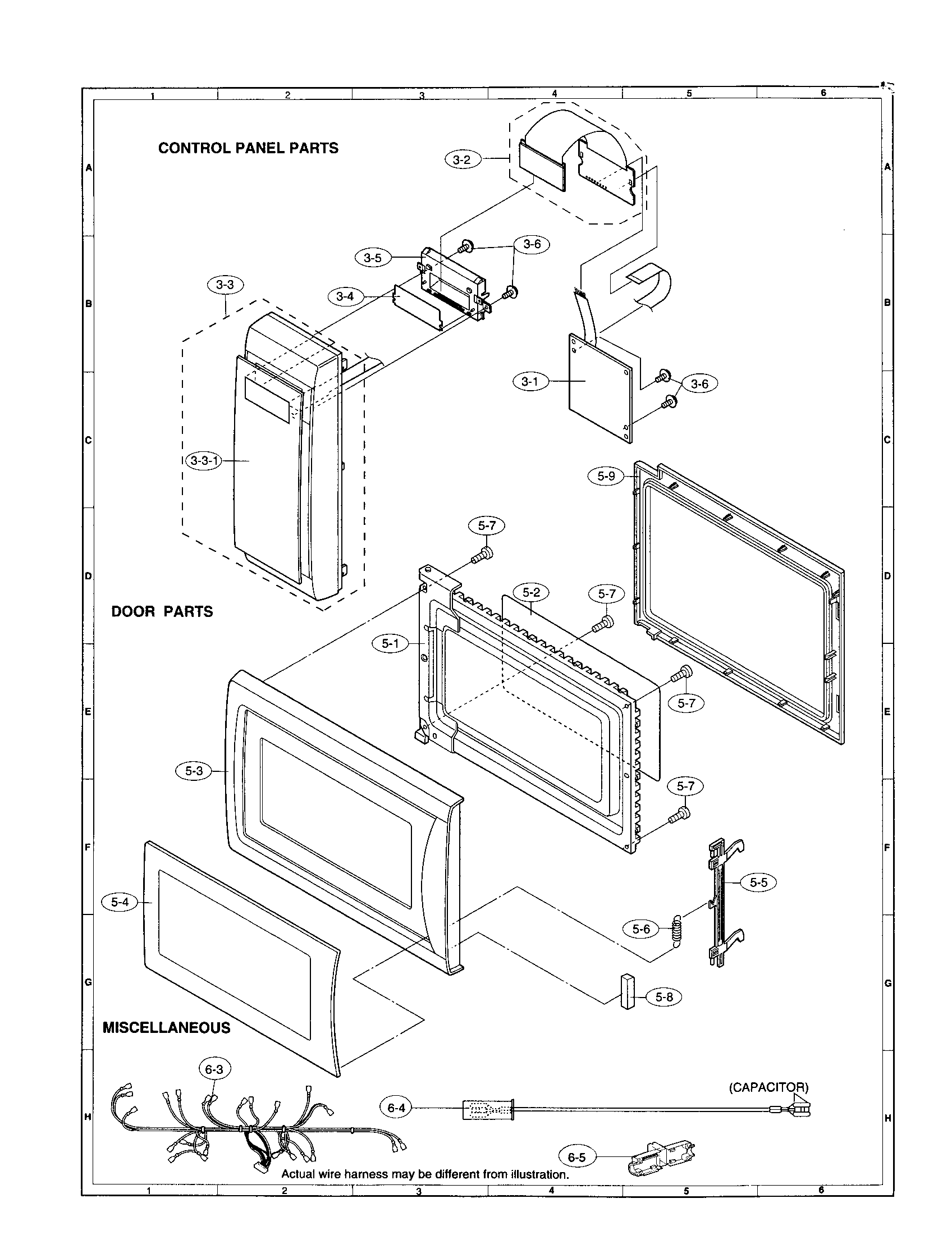

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Power Cord FACCDA083WRE0

#1-05A

All parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Connector QCNCMA446DRE0

#3-01A

All parts diagram

Connector

Part #QCNCMA446DRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Kit FFS-BA021WRK0

#1-03

All parts diagram

Fuse kit

Part #FFS-BA021WRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor RMOTDA211WRE0

#1-12A

All parts diagram

Microwave turntable motor

Part #RMOTDA211WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sensor FDTCTA197WRK0

#1-15

All parts diagram

Sensor

Part #FDTCTA197WRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support FROLPA079WRK0

#6-01

All parts diagram

Microwave turntable support

Part #FROLPA079WRK0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu RTHM-A078WRE0

#1-04

All parts diagram

Thermal cu

Part #RTHM-A078WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cutoff Thermostat RTHM-A080WRE0

#1-13

All parts diagram

Cutoff thermostat

Part #RTHM-A080WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA234WRE0

#1-07

All parts diagram

Capacitor

Part #RC-QZA234WRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw XHPSD40P08K00

#7-01

All parts diagram

Screw

Part #XHPSD40P08K00

The manufacturer no longer makes this part, and there's no substitute part
