Here are the diagrams and repair parts for Official Frigidaire LGHX2636TF8 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

Error Codes

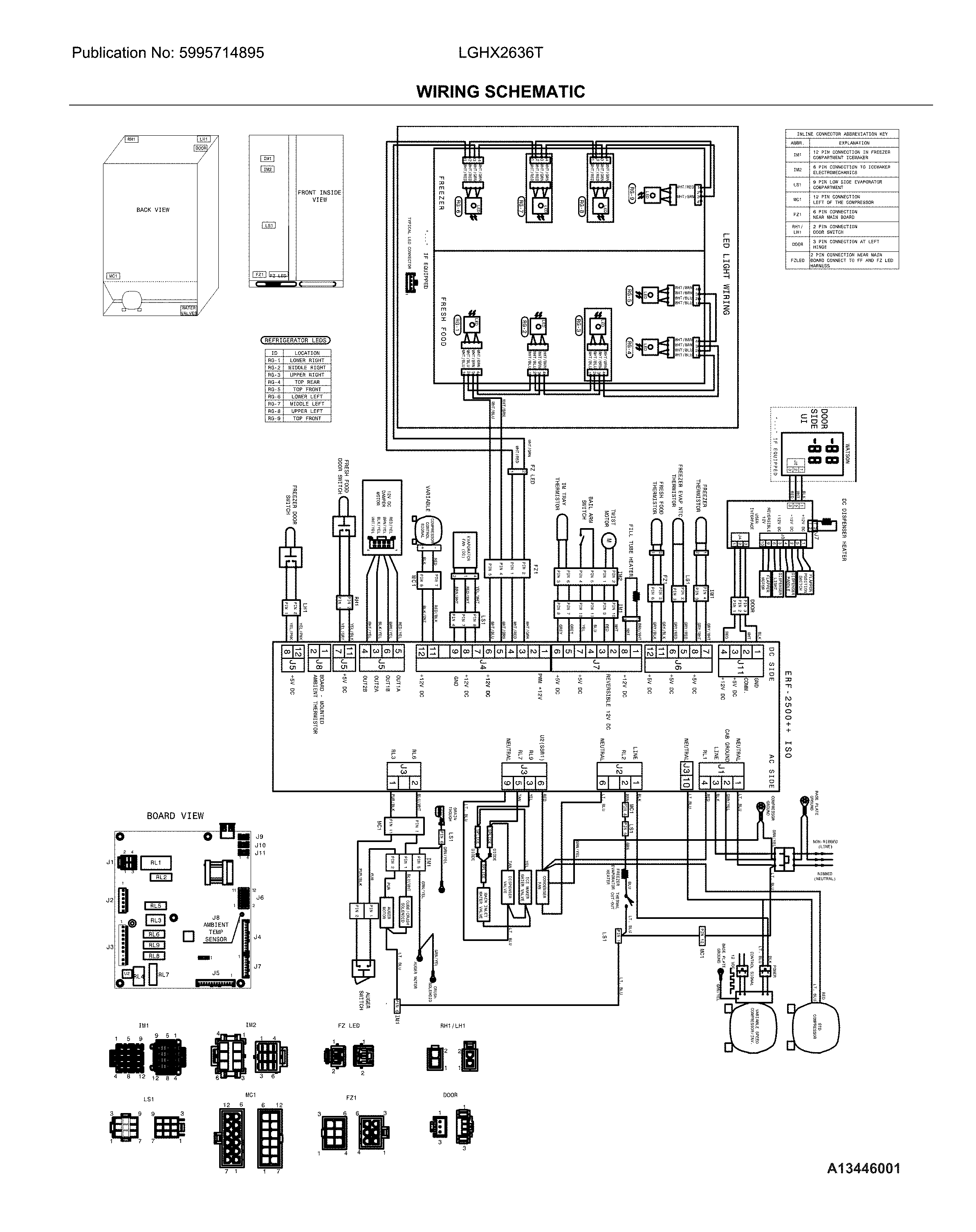

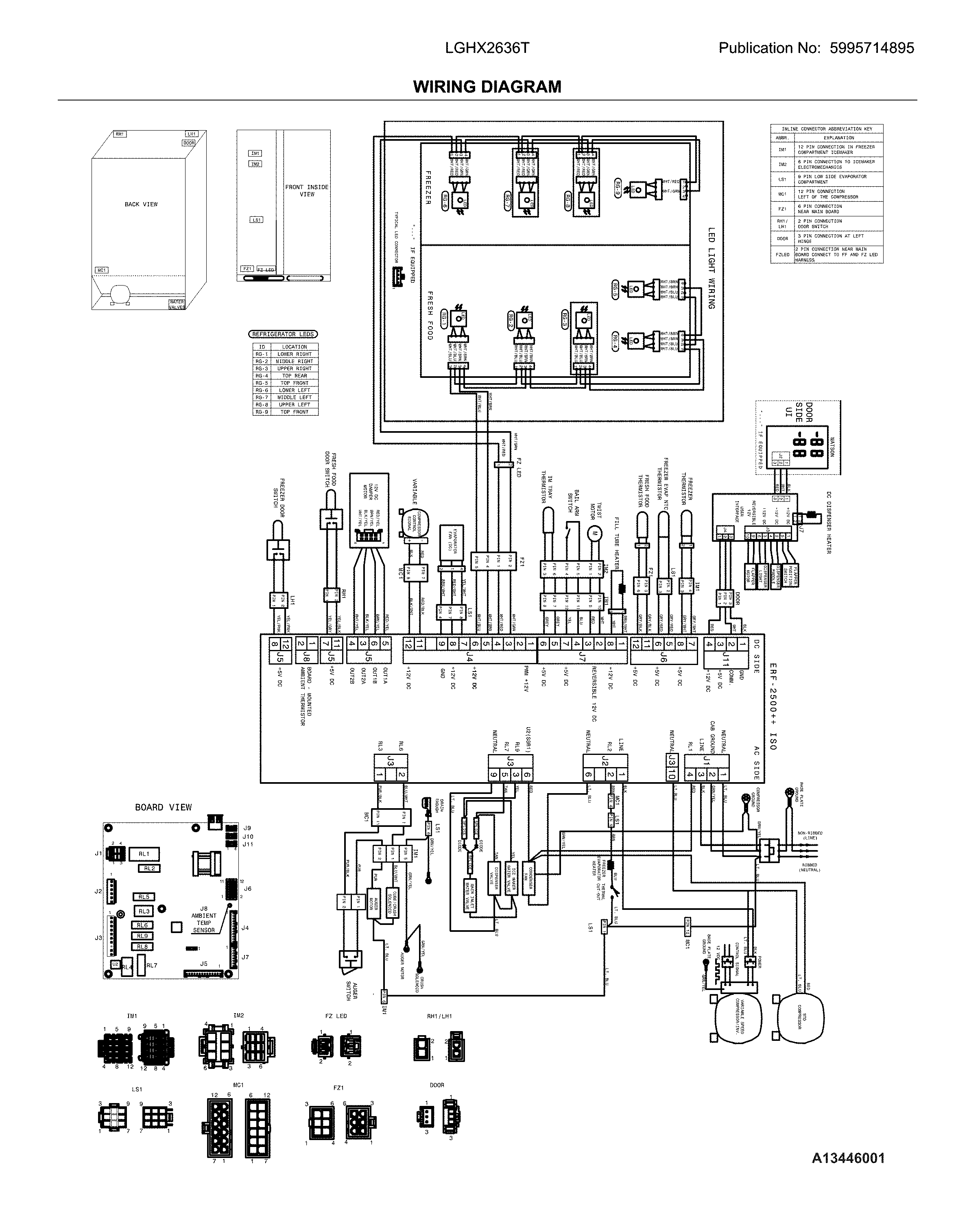

By Schematic

By Part

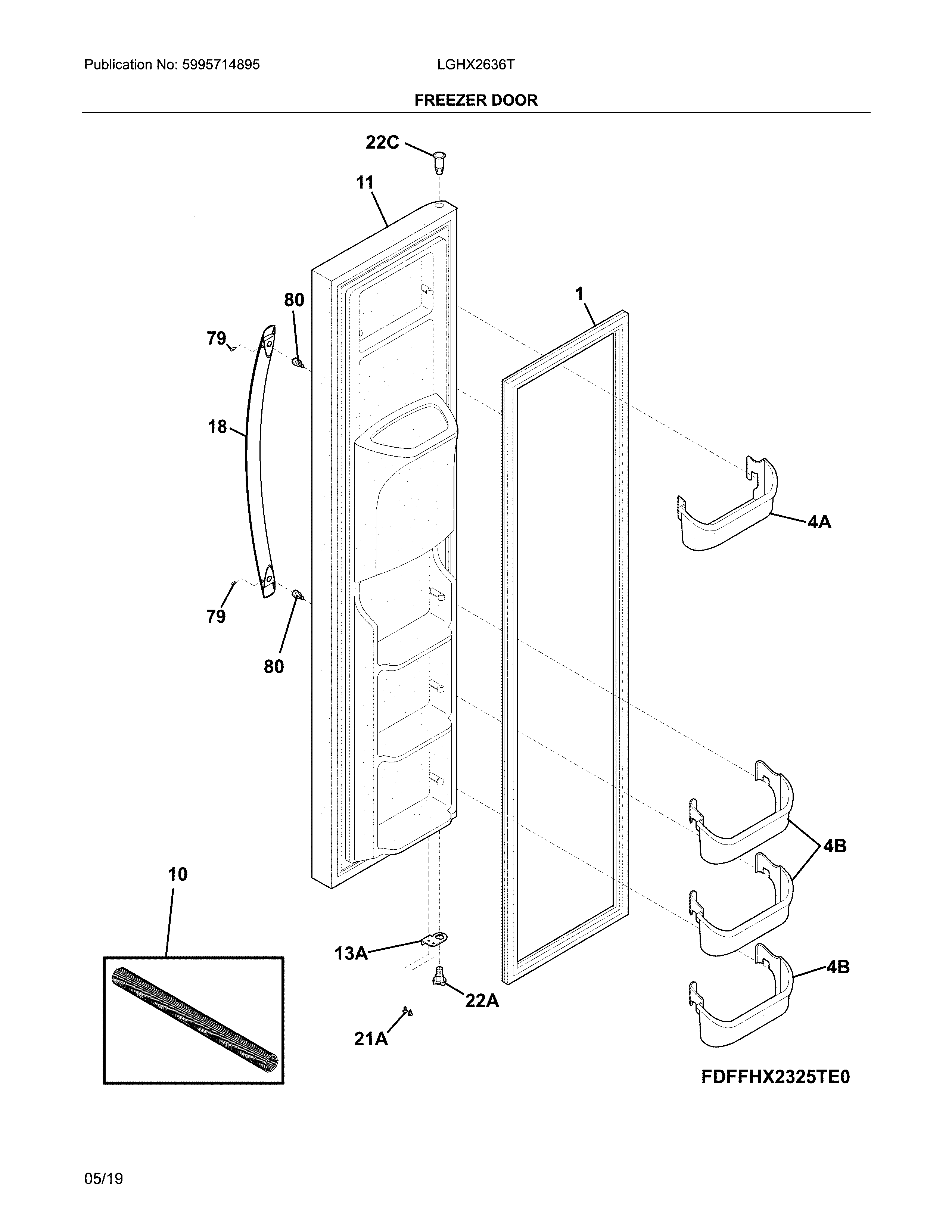

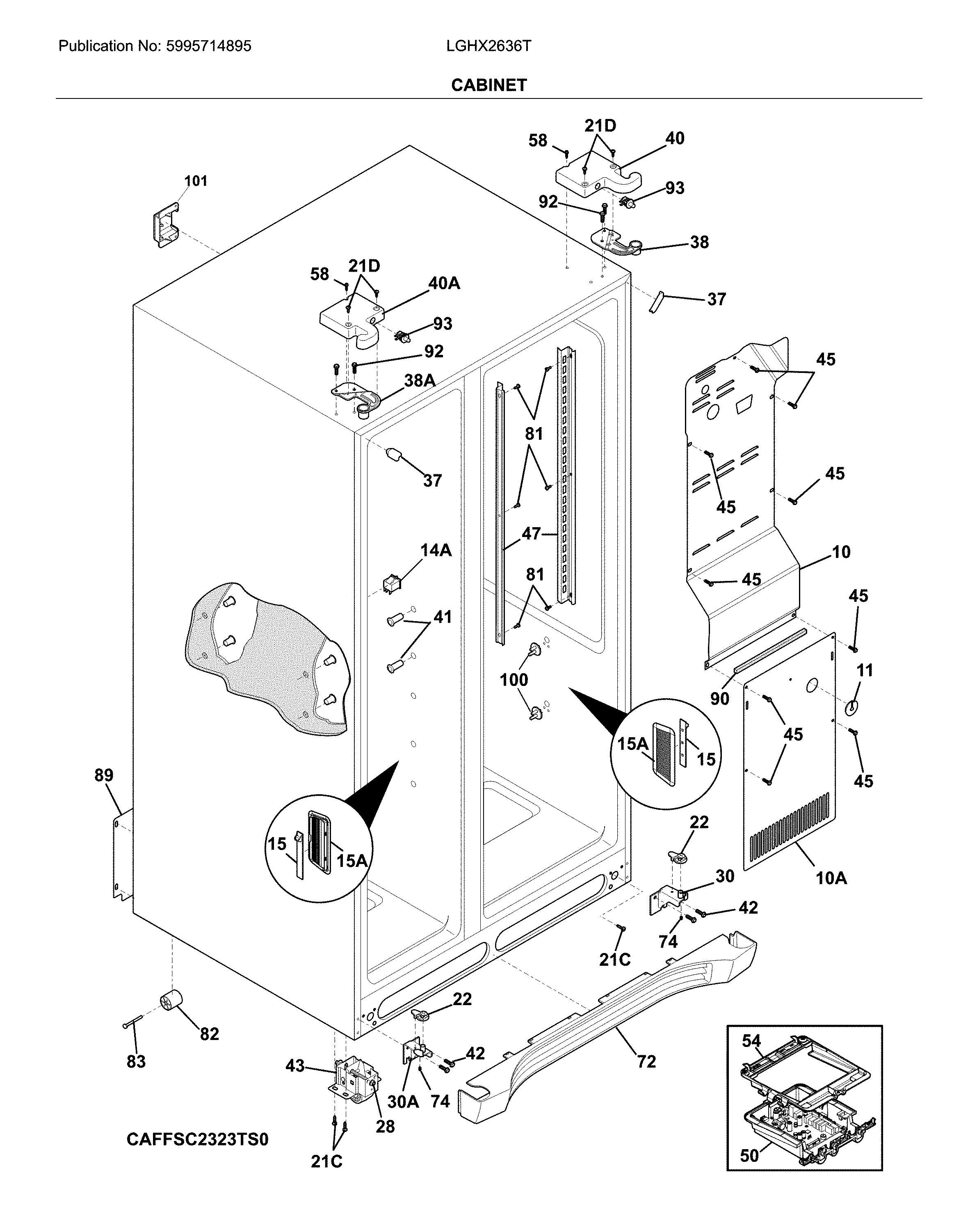

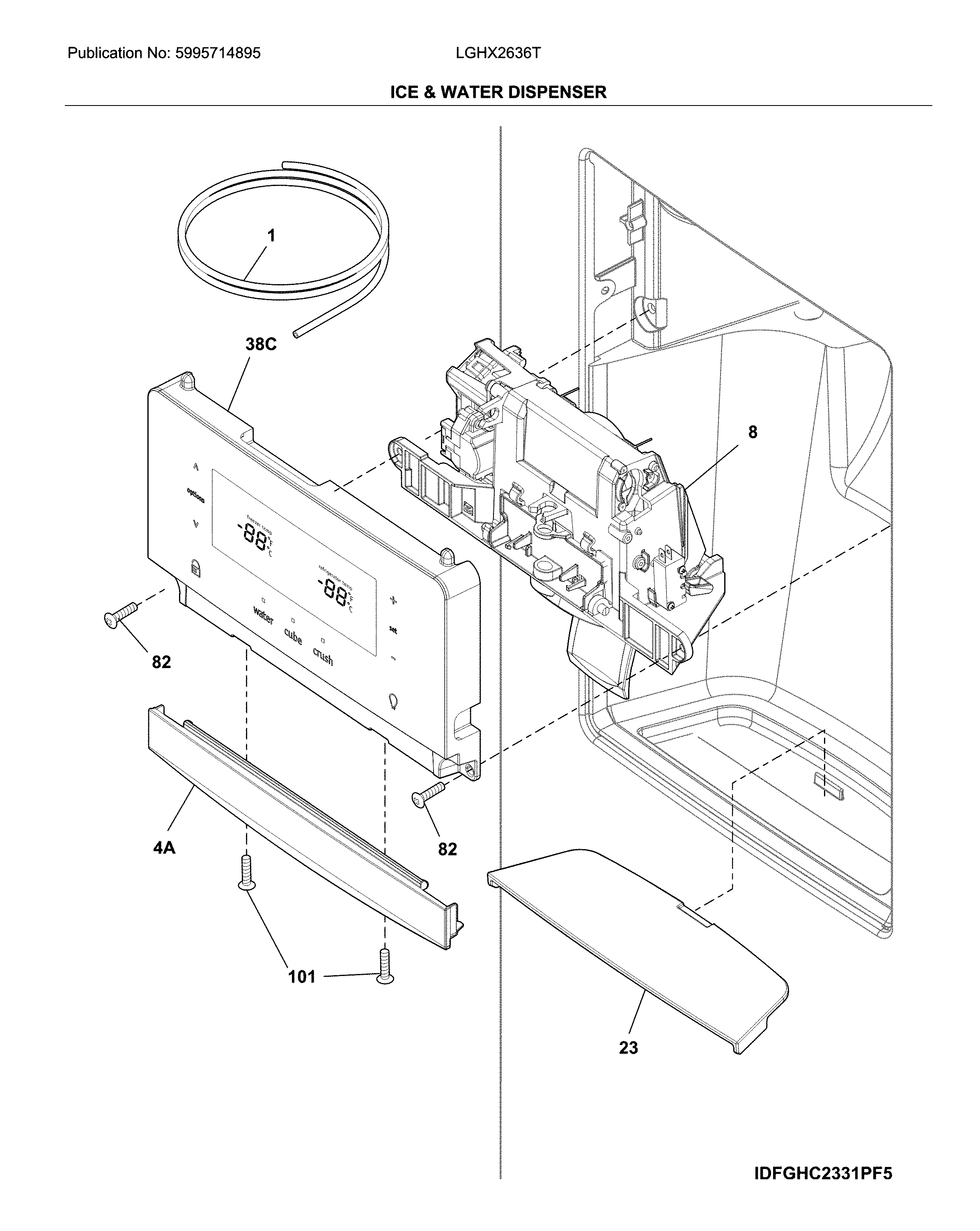

SELECT DIAGRAM

Browse Parts forLGHX2636TF8 Refrigerators

#4

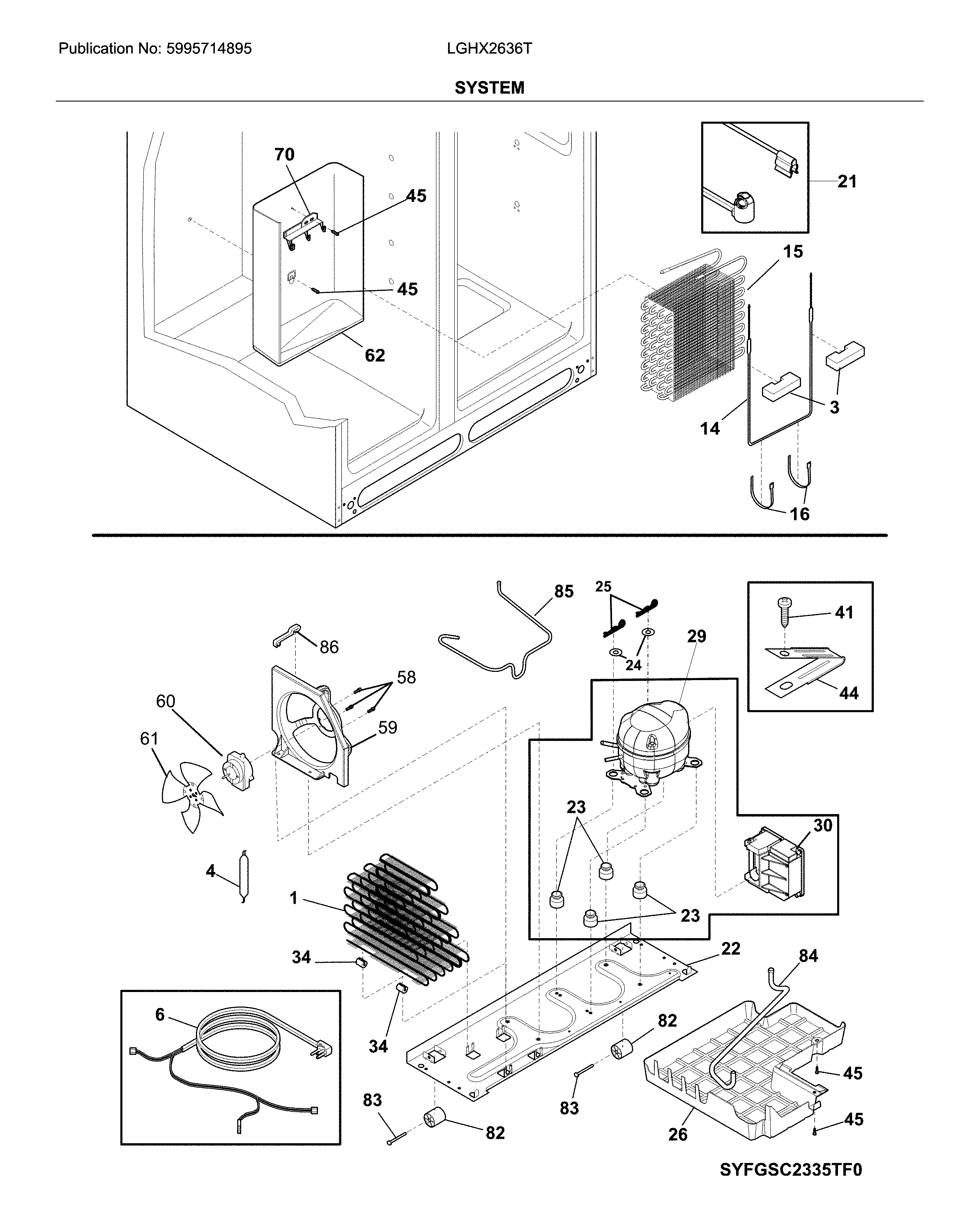

System diagram
Dryer filter
Part #242047604
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 242047604. Substitute parts can look different from the original.
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Qty
#55

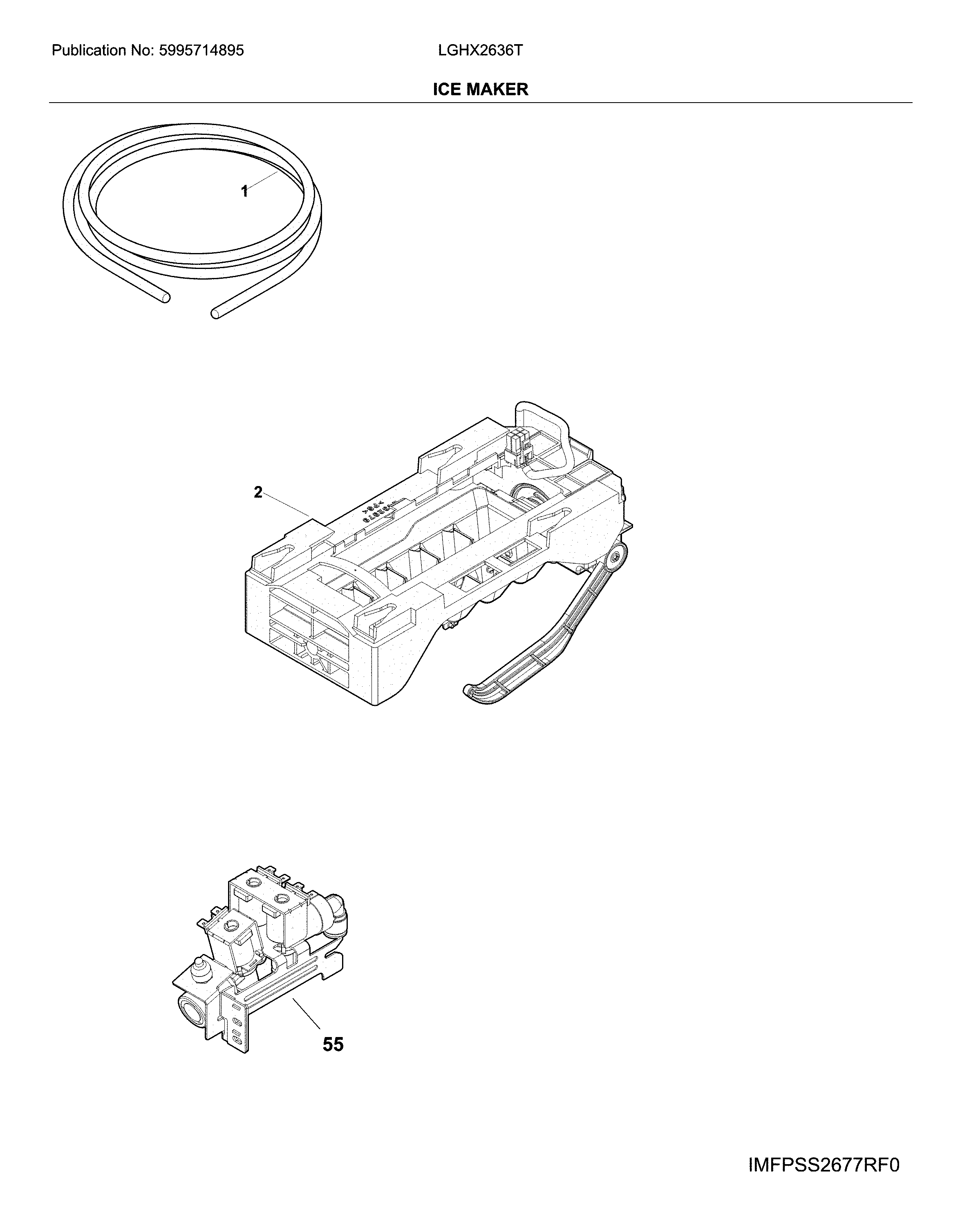

Ice maker diagram
Frigidaire refrigerator water inlet valve assembly
Part #242252702
4.74 (39)
$56.18 |
10% OFF Phone Price : $62.18
In Stock
Qty
#2
Ice maker diagram
Refrigerator ice maker
Part #243297607
Replaced by #243297613
?
Manufacturer substitution
This part replaces 243297607. Substitute parts can look different from the original.
4 (5)
$84.91 |
7% OFF Phone Price : $90.91
In Stock
Qty
#5

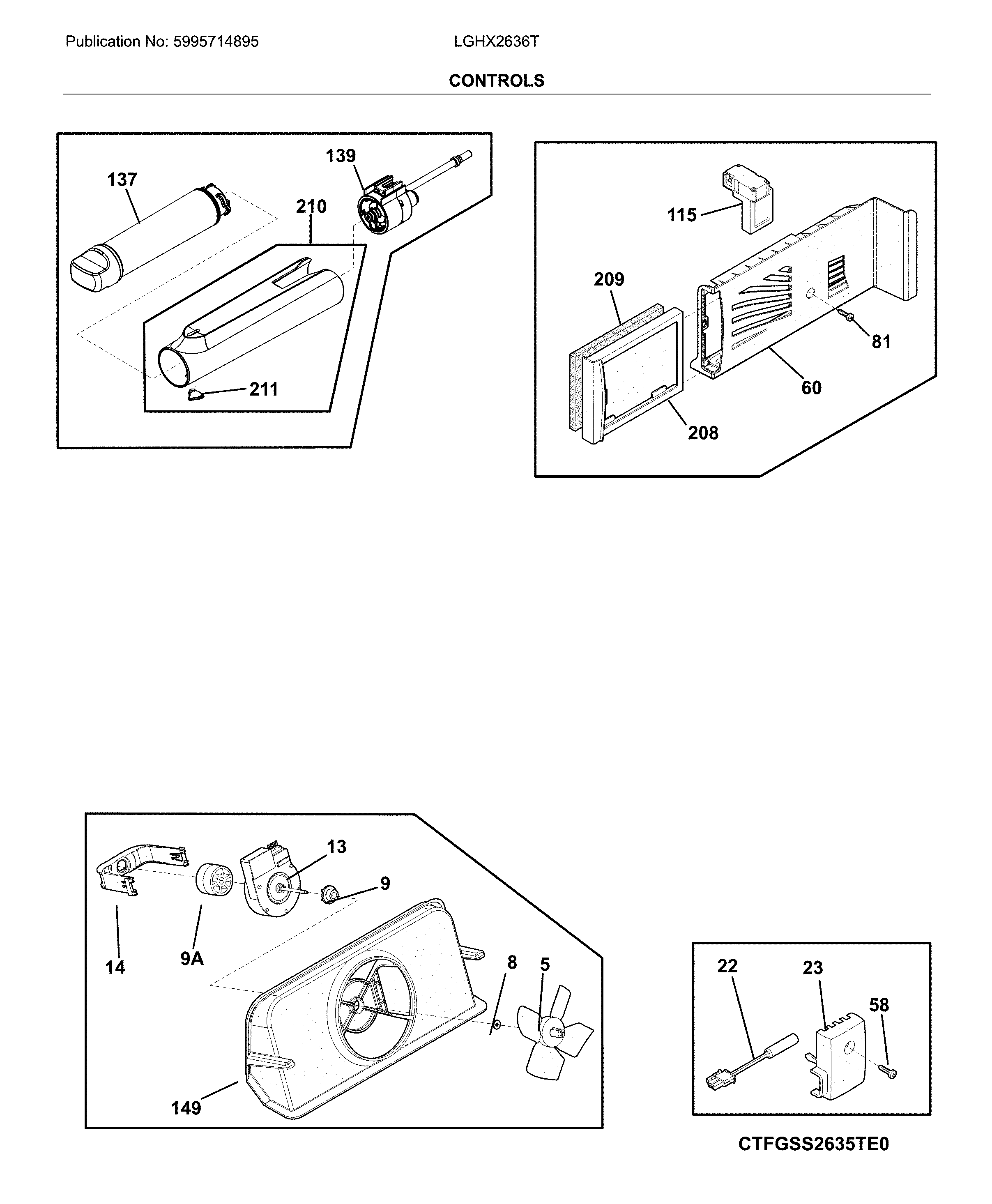

Control diagram
Refrigerator evaporator fan blade
Part #5308000010
4 (4)
$42.00 |
13% OFF Phone Price : $48.00
In Stock
Qty
#15
System diagram
Refrigerator evaporator
Part #5303918284
$323.19 |
$12.00 OFF Phone Price : $335.19
In Stock
Qty
#4

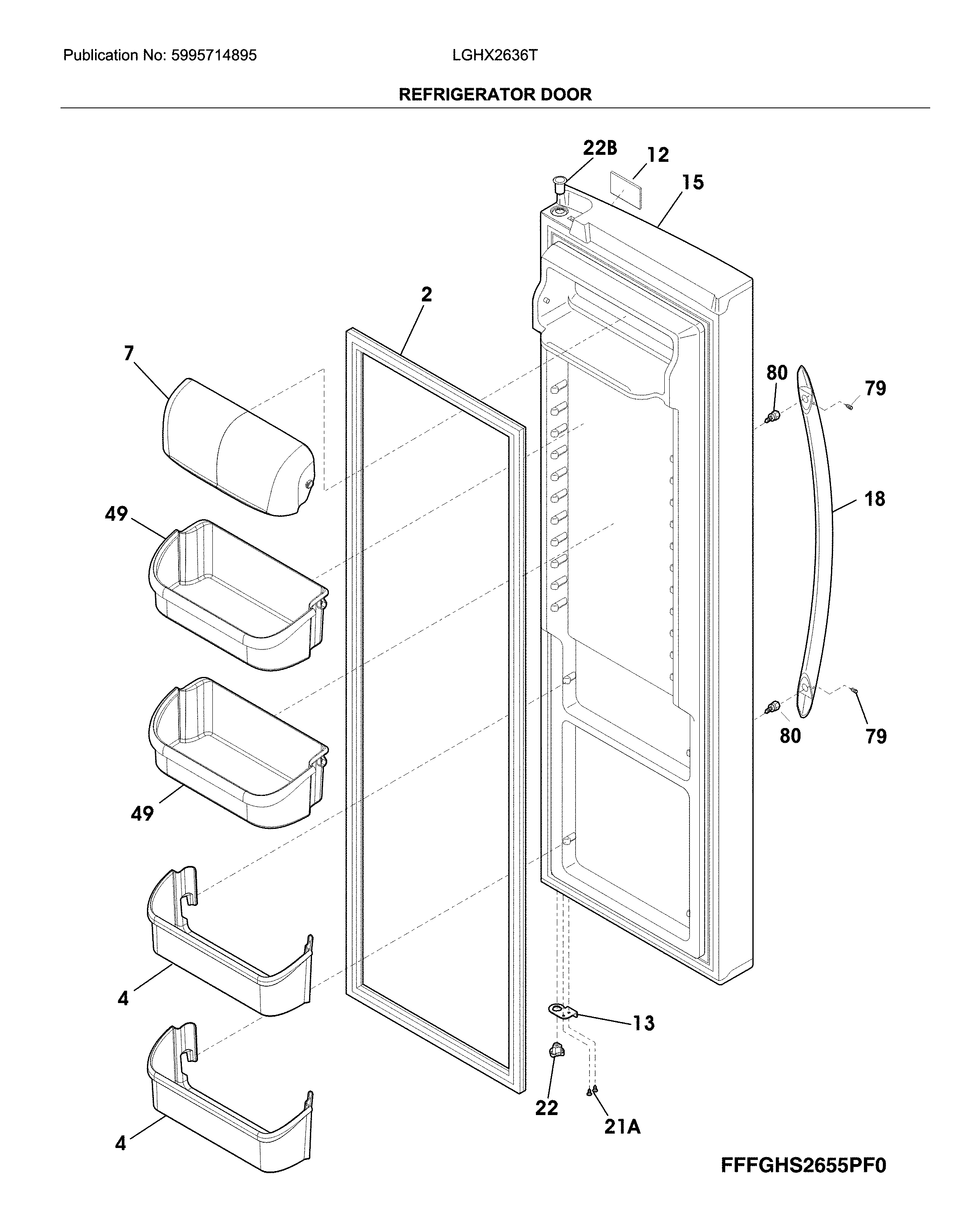

Fresh food door diagram
Frigidaire refrigerator door bin
Part #242126602
3.96 (55)
$43.94 |
12% OFF Phone Price : $49.94
In Stock
Qty
#61
System diagram
Refrigerator condenser fan blade
Part #241639501
Replaced by #241639502
?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
1 (1)
$20.81 |
22% OFF Phone Price : $26.81
In Stock
Qty
#26

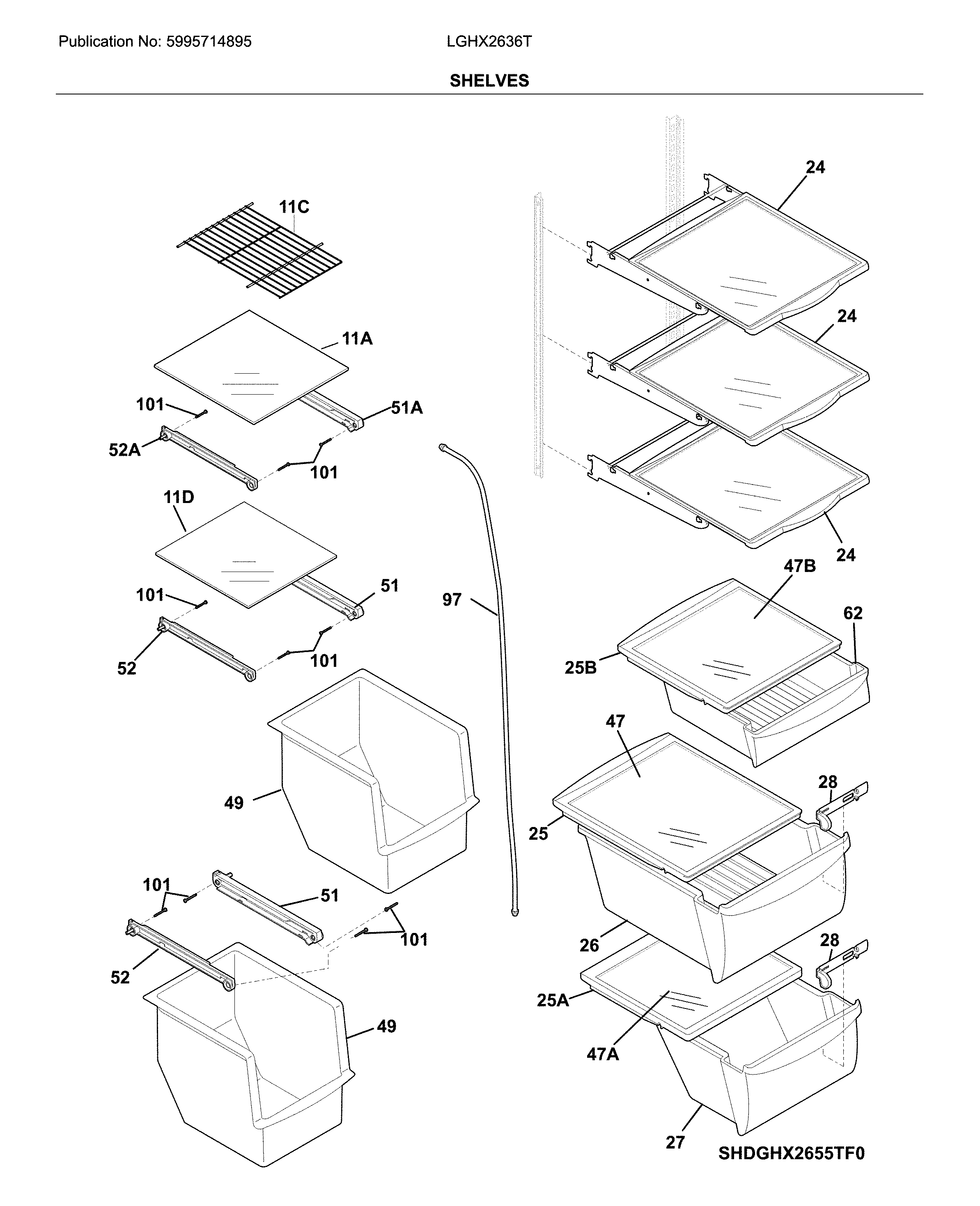

Shelves diagram
Frigidaire refrigerator crisper drawer by frigidaire
Part #240351061
3.69 (29)
$60.11 |
9% OFF Phone Price : $66.11
In Stock
Qty
#49
Fresh food door diagram
Frigidaire refrigerator door bin
Part #240356402
4.17 (35)
$74.44 |
7% OFF Phone Price : $80.44
In Stock
Qty
#45

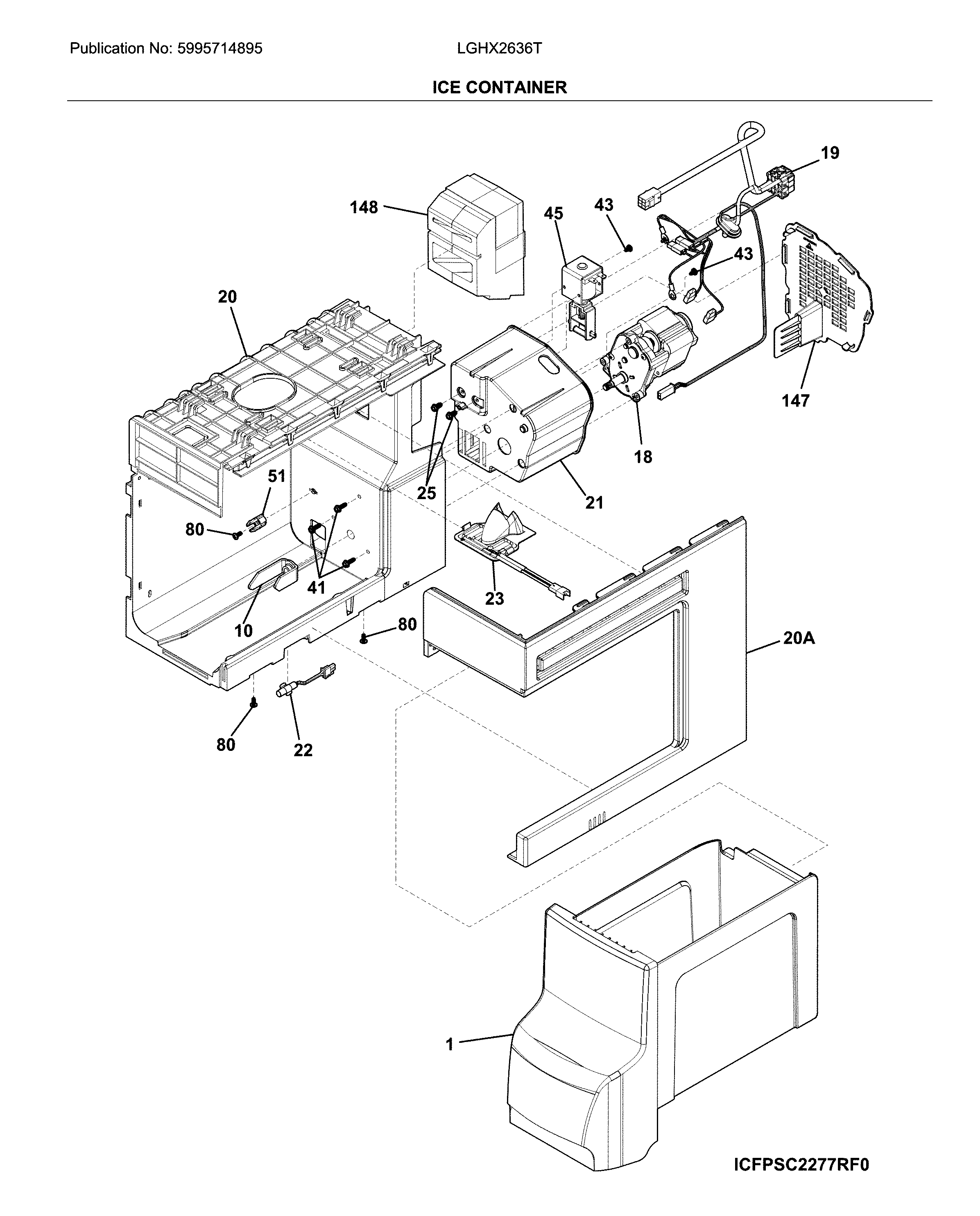

Caontainer diagram
Refrigerator ice dispenser solenoid
Part #241675704
5 (4)
$56.70 |
10% OFF Phone Price : $62.70
In Stock
Qty
