Model # 72123195200 Official Kenmore vacuum

Here are the diagrams and repair parts for Official Kenmore 72123195200 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Vacuum Bag 5231FI2390J
#B014

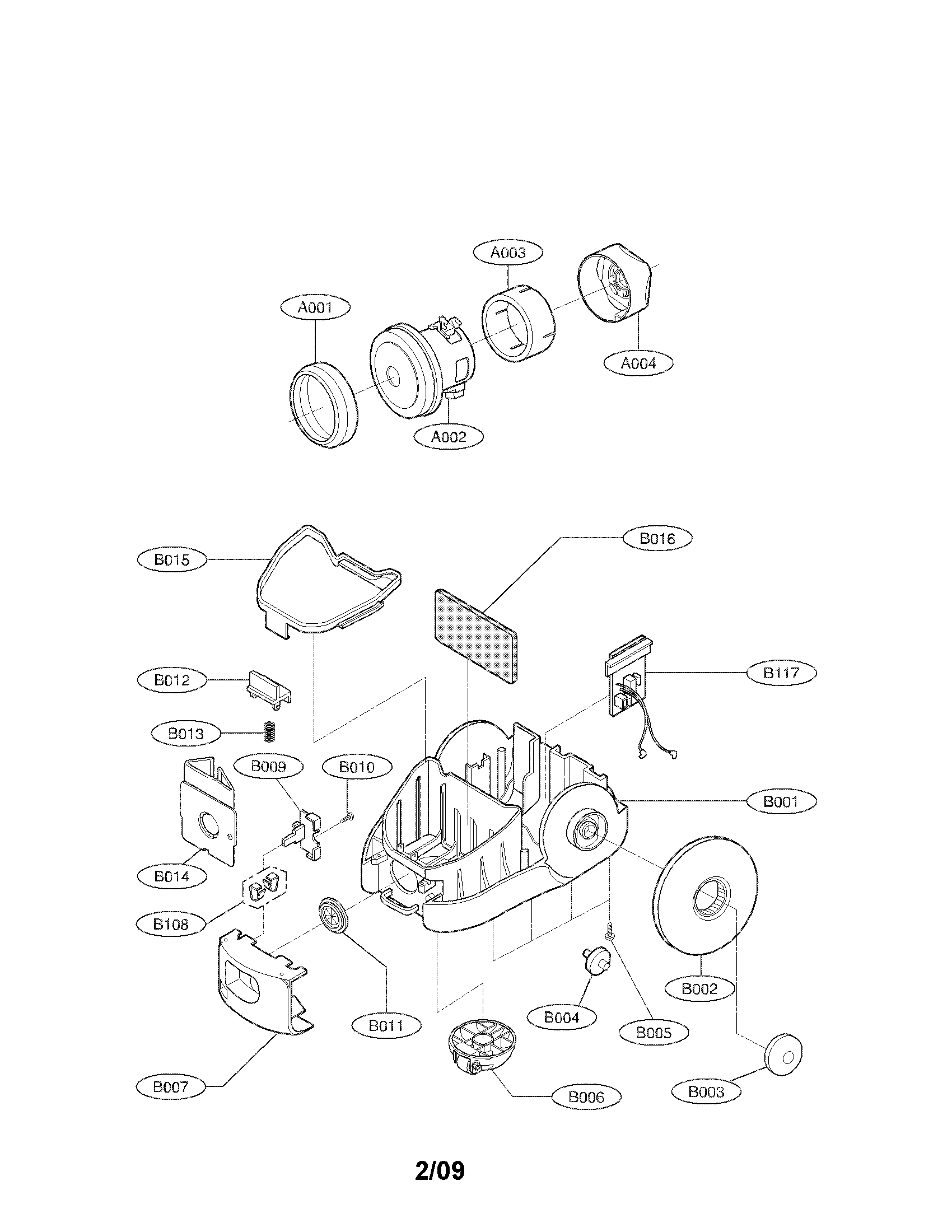

Base assy parts diagram

Vacuum bag

Part #5231FI2390J

Replaced by #5231FI3779A

?
Manufacturer substitution
This part replaces 5231FI2390J. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$9.86 |
9% OFF Phone Price : $10.86
In Stock
Holder 4930FI2231F
#G001

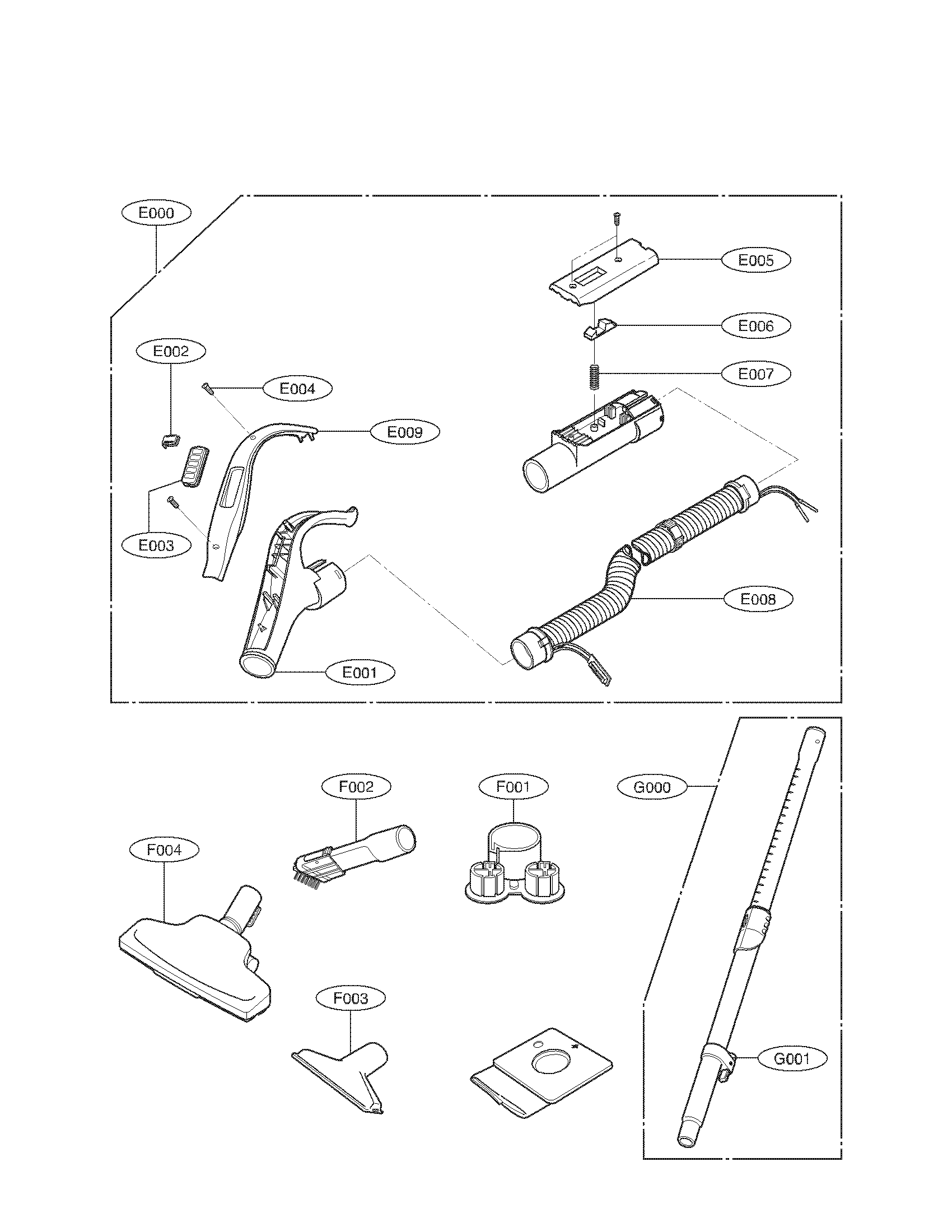

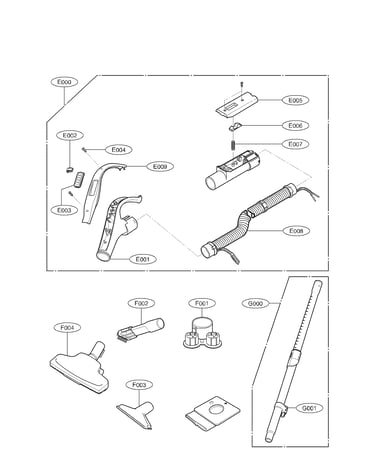

Accessory parts diagram

Holder

Part #4930FI2231F

This item is not returnable
$2.16
In Stock
Us Pressed Steel Screw 1TPL0402818
#B010

Base assy parts diagram

Us pressed steel screw

Part #1TPL0402818

This item is not returnable
$2.27
In Stock
Hook Spring 4I23028A
#E007

Accessory parts diagram

Hook spring

Part #4I23028A

This item is not returnable
$2.16
In Stock
Vacuum Screw 1TPL0302818
#D007

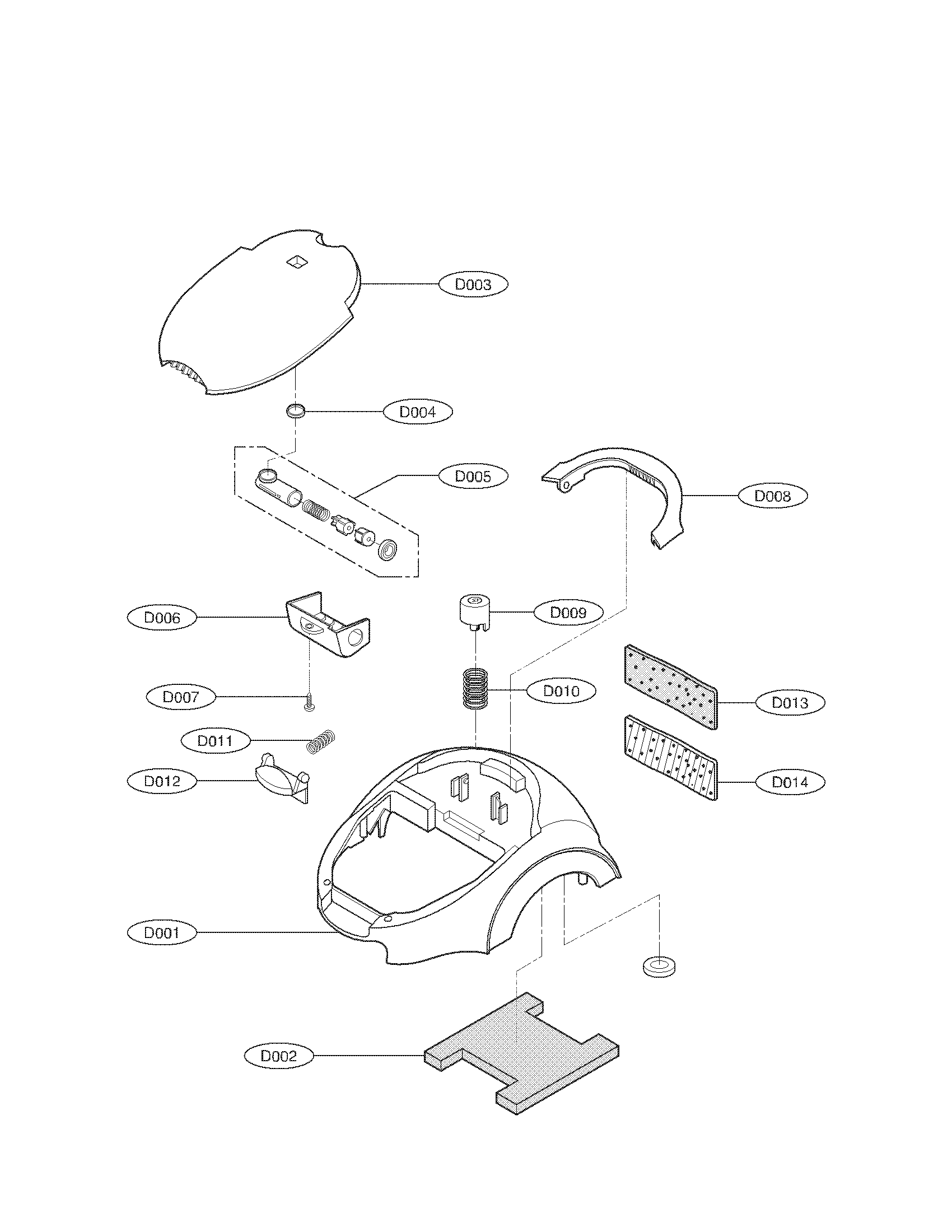

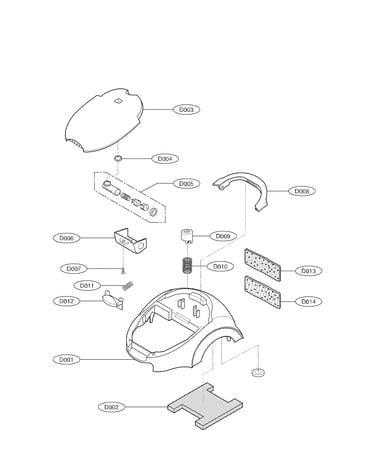

Cover assy parts diagram

Vacuum screw

Part #1TPL0302818

This item is not returnable
$2.16
In Stock
Vacuum Screw 1TPL0302416
#E004

Accessory parts diagram

Vacuum screw

Part #1TPL0302416

Replaced by #1TPL0302418

?
Manufacturer substitution
This part replaces 1TPL0302416. Substitute parts can look different from the original.
$8.29
In Stock
Wheel 4660FI1114D
#B002

Base assy parts diagram

Wheel

Part #4660FI1114D

The manufacturer no longer makes this part, and there's no substitute part

Terminal Plate 3I23038G
#B108

Base assy parts diagram

Terminal plate

Part #3I23038G

The manufacturer no longer makes this part, and there's no substitute part

Fuse 4I60037W
#C003

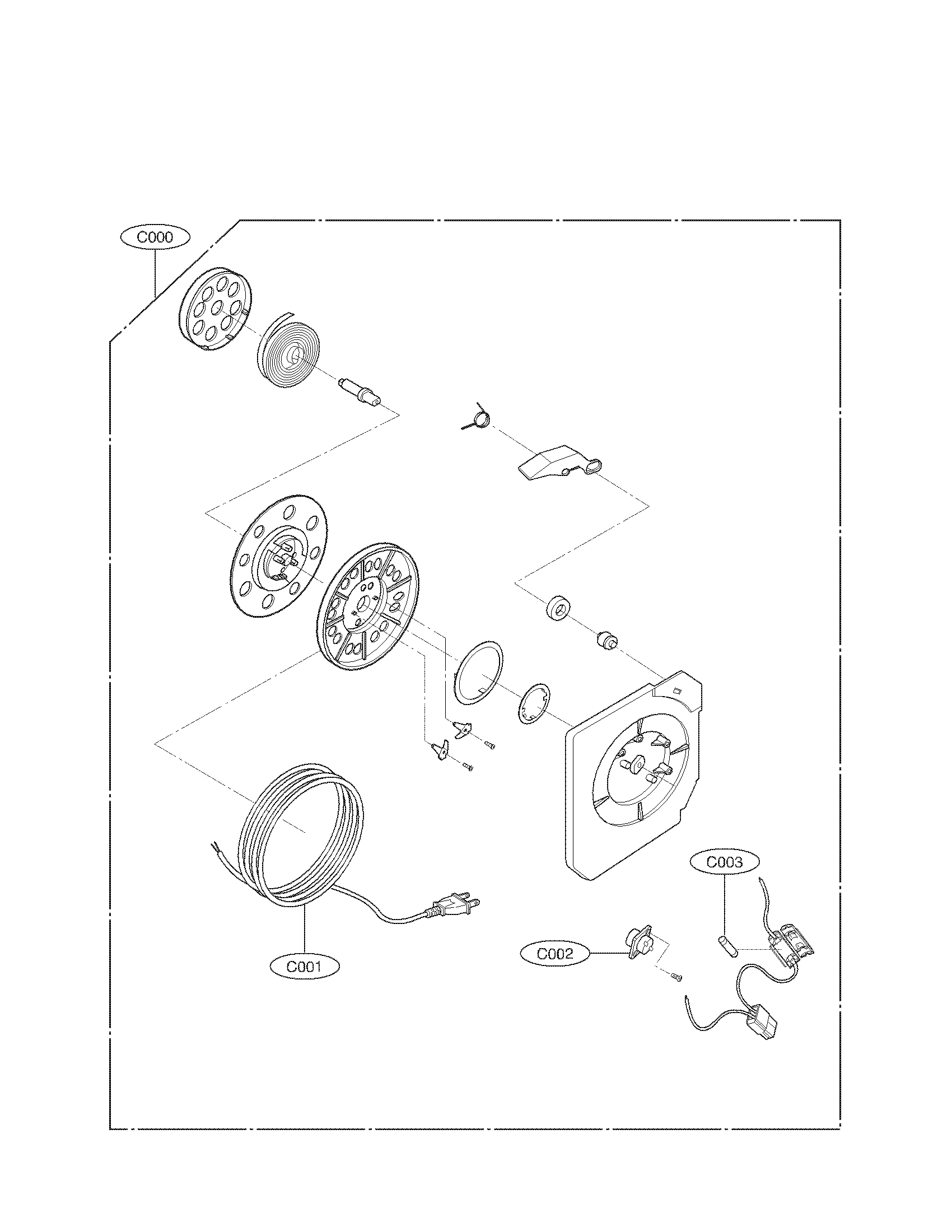

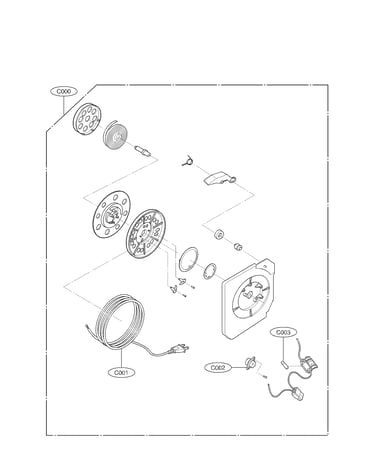

Reel assy parts diagram

Fuse

Part #4I60037W

The manufacturer no longer makes this part, and there's no substitute part

Fan 5901FI2001A
#H009

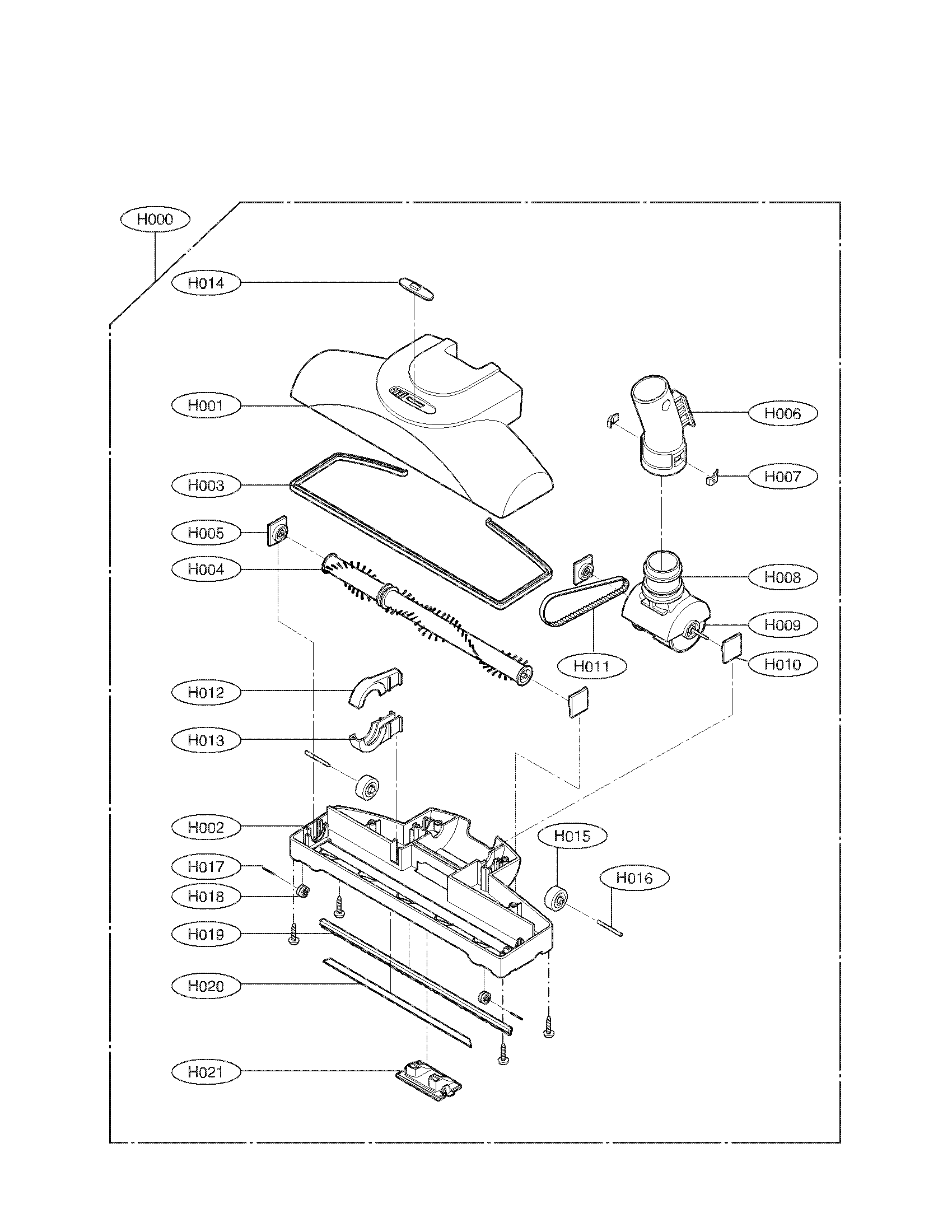

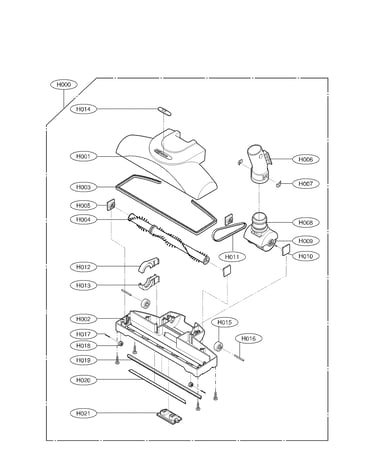

Nozzle assy parts diagram

Fan

Part #5901FI2001A

The manufacturer no longer makes this part, and there's no substitute part
