Toaster Oven

Model # TRO510UC TYPE 2 Official Black & Decker toaster oven

Here are the diagrams and repair parts for Official Black & Decker TRO510UC-TYPE-2 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

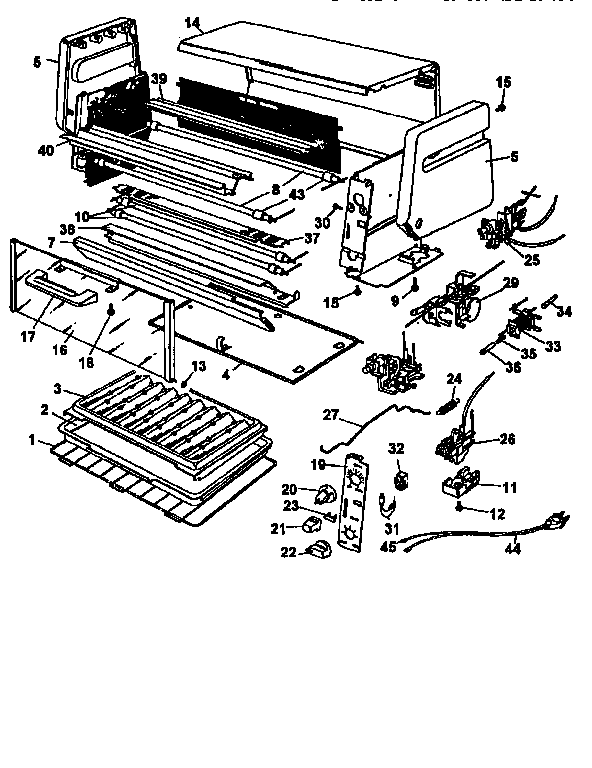

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 46 parts |

Screw 164819-01

Replacement parts diagram

Screw

Part #164819-01

The manufacturer no longer makes this part, and there's no substitute part

Insulator 173078-00

Replacement parts diagram

Insulator

Part #173078-00

The manufacturer no longer makes this part, and there's no substitute part

Heat Frame 182723-00

Replacement parts diagram

Heat frame

Part #182723-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 167284-00

Replacement parts diagram

Screw

Part #167284-00

The manufacturer no longer makes this part, and there's no substitute part

Frt Channl 182678-05

Replacement parts diagram

Frt channl

Part #182678-05

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Frt Reflectr 168608-00

Replacement parts diagram

Kenmore frt reflectr

Part #168608-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 164836-00

Replacement parts diagram

Screw

Part #164836-00

The manufacturer no longer makes this part, and there's no substitute part

Door 182659-00

Replacement parts diagram

Door

Part #182659-00

The manufacturer no longer makes this part, and there's no substitute part

Tray 170915-19

Replacement parts diagram

Tray

Part #170915-19

The manufacturer no longer makes this part, and there's no substitute part

Rh Base End 182735-10

Replacement parts diagram

Rh base end

Part #182735-10

The manufacturer no longer makes this part, and there's no substitute part
