Model # JVM1533BD004 Official GE microwave
Here are the diagrams and repair parts for Official GE JVM1533BD004 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
JVM1533BD004 Microwave
#47

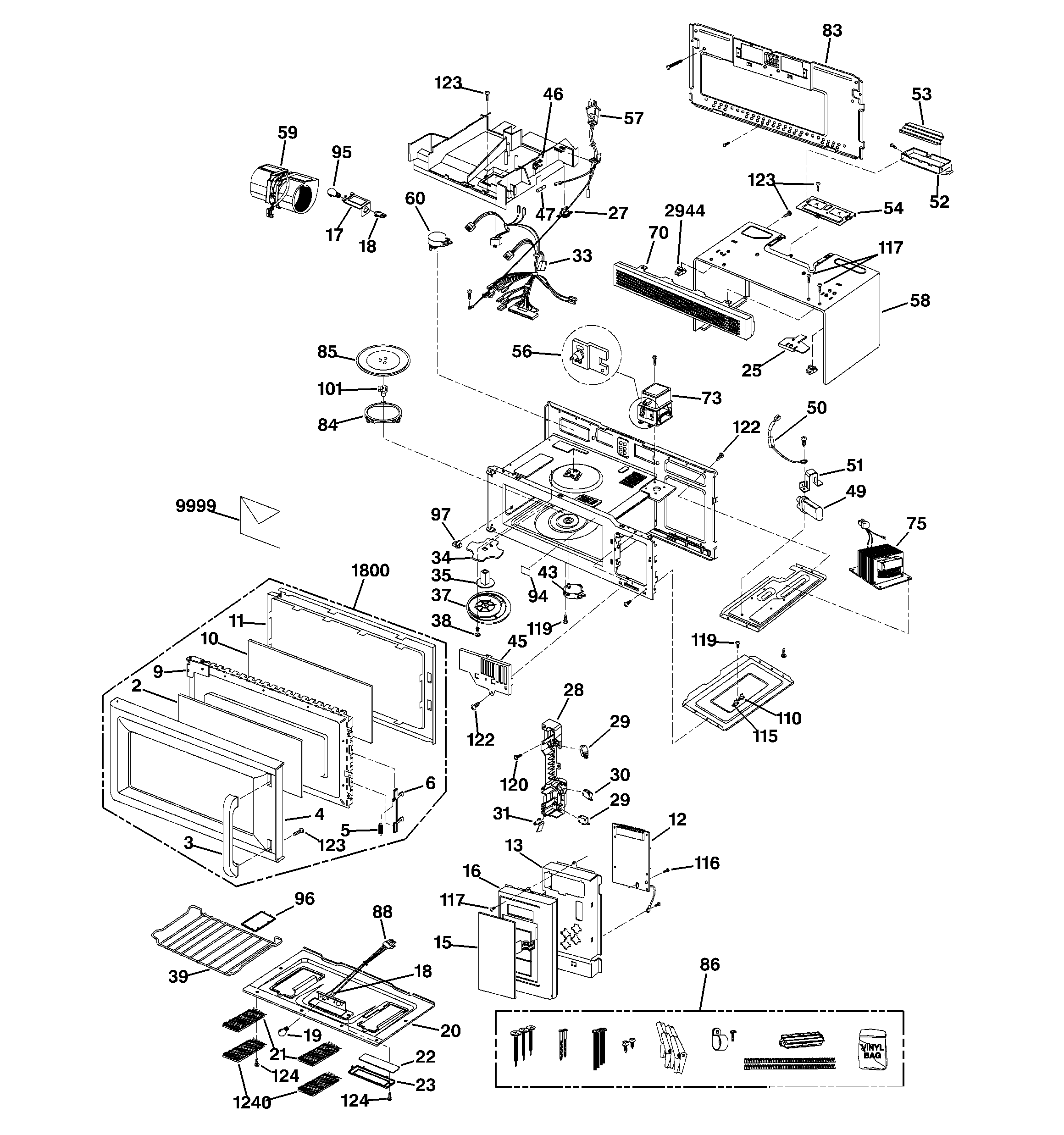

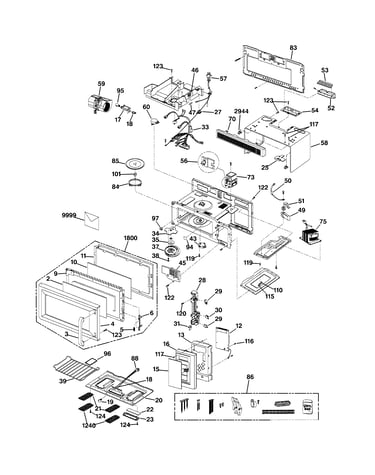

Microwave diagram
Microwave fuse
Part #WB27X10388
Replaced by #WB27X10928
?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
$11.95 |
14% OFF Phone Price : $13.95
In Stock
#29
Microwave diagram
Primary switch
Part #WB24X0815
Replaced by #WB24X10047
?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
$35.32 |
15% OFF Phone Price : $41.32
In Stock
#50
Microwave diagram
Microwave high-voltage diode (replaces wb18x10286, wb27x1033, wb27x10330)
Part #WB27X10037
$28.76 |
17% OFF Phone Price : $34.76
In Stock
#30
Microwave diagram
Monitor switch
Part #WB24X0817
Replaced by #WB24X25397
?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$28.49 |
17% OFF Phone Price : $34.49
In Stock
#110
Microwave diagram
Thermostat
Part #WB20X10020
Replaced by #WB21X10148
?
Manufacturer substitution
This part replaces WB20X10020. Substitute parts can look different from the original.
$24.91 |
19% OFF Phone Price : $30.91
In Stock
#19
Microwave diagram
Lamp
Part #WB36X10132
Replaced by #WB36X10328
?
Manufacturer substitution
This part replaces WB36X10132. Substitute parts can look different from the original.
$22.95 |
21% OFF Phone Price : $28.95
In Stock
#85
Microwave diagram
Glass tray
Part #WB49X10061
Replaced by #WB49X10129
?
Manufacturer substitution
This part replaces WB49X10061. Substitute parts can look different from the original.
$86.60 |
6% OFF Phone Price : $92.60
In Stock
#21
Microwave diagram
Microwave grease filter
Part #WB06X10359
$43.53 |
12% OFF Phone Price : $49.53
In Stock
#38
Microwave diagram
Microwave stirrer fan cover clip
Part #WB01X10055
This item is not returnable
$7.58 |
12% OFF Phone Price : $8.58
In Stock
#2944
Microwave diagram
Microwave nut
Part #WB01X10124
$13.13 |
13% OFF Phone Price : $15.13
In Stock
