Model # 225581503 Official Craftsman 15-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 225581503 15-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

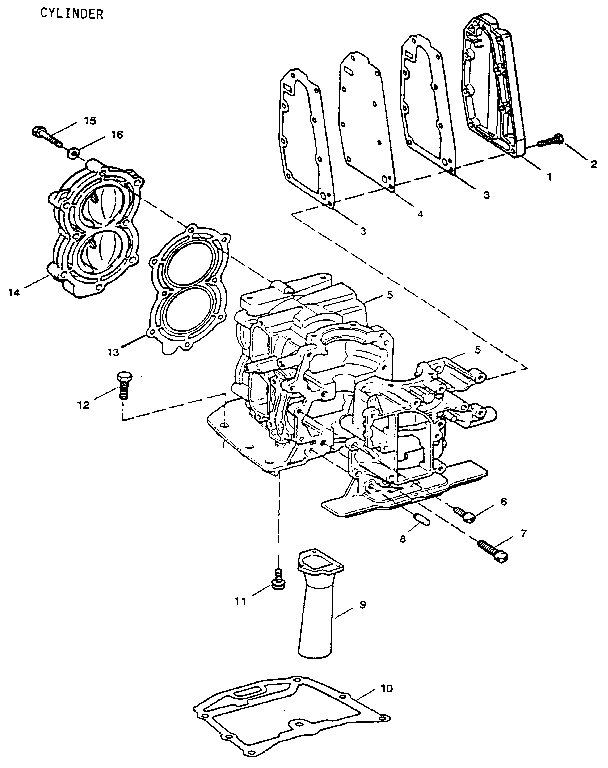

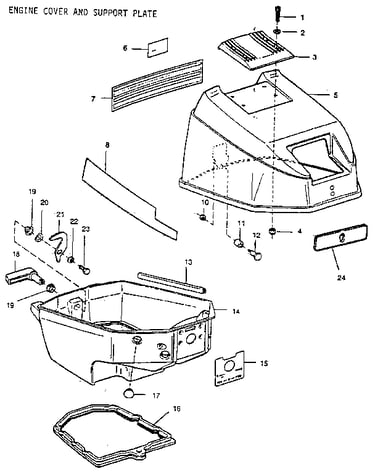

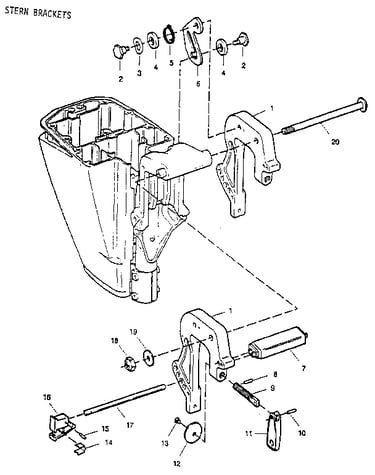

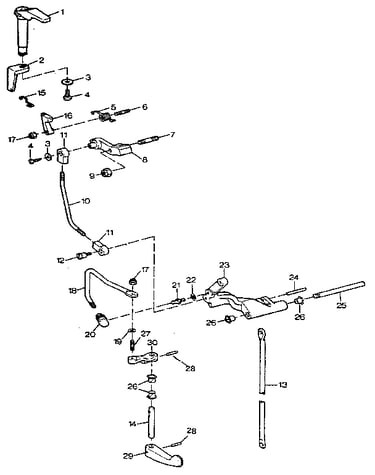

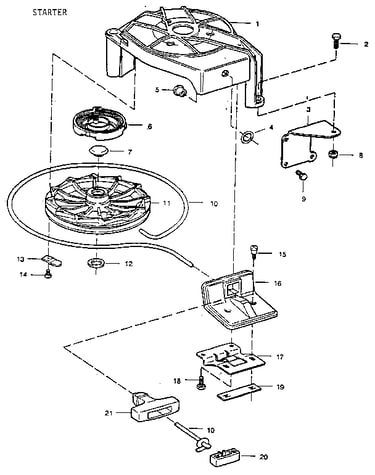

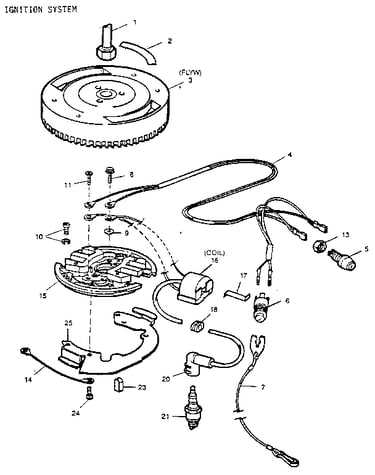

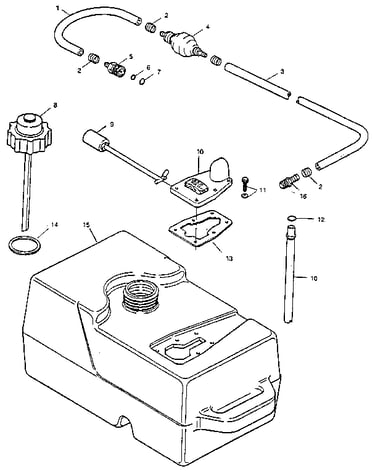

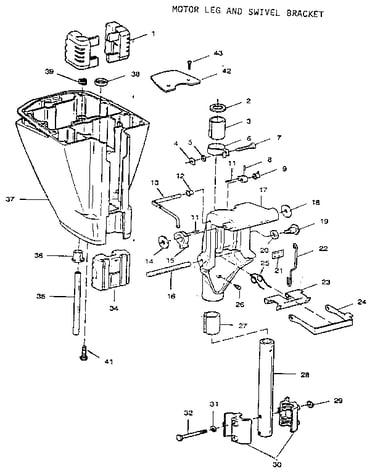

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 353 parts |

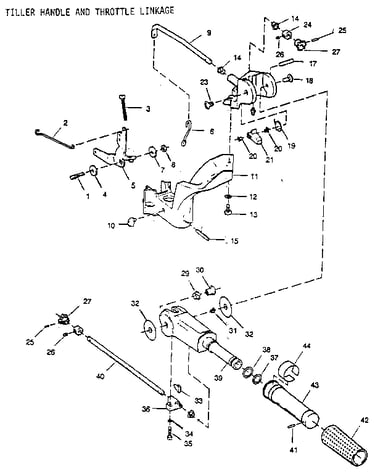

Tiller handel and throttle linkage diagram

Nut

Part #1803

The manufacturer no longer makes this part, and there's no substitute part

Pin (black)

Part #8540

The manufacturer no longer makes this part, and there's no substitute part

Boat motor seal

Part #901307-2

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Carburetor Float Bowl Gasket O15623

#11

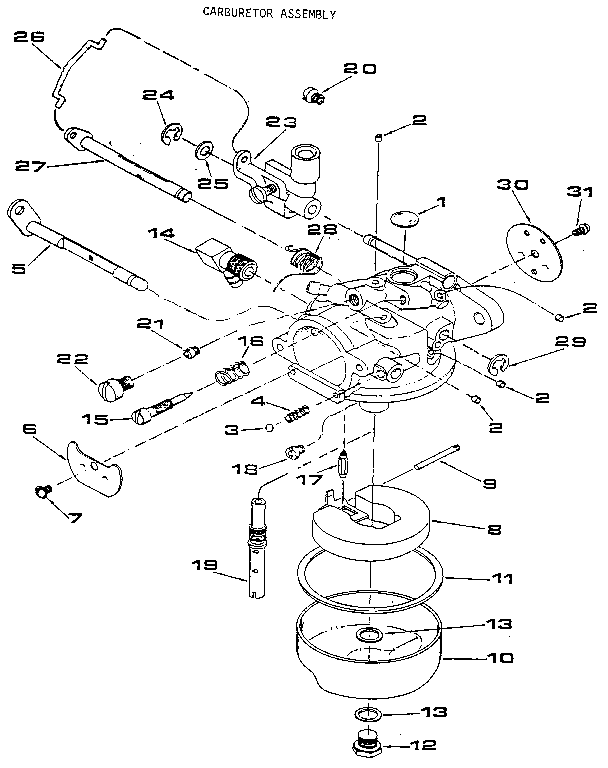

Carburetor assembly diagram

Boat motor carburetor float bowl gasket

Part #O15623

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Fuel Pump Cover Gasket 24748-2

#25

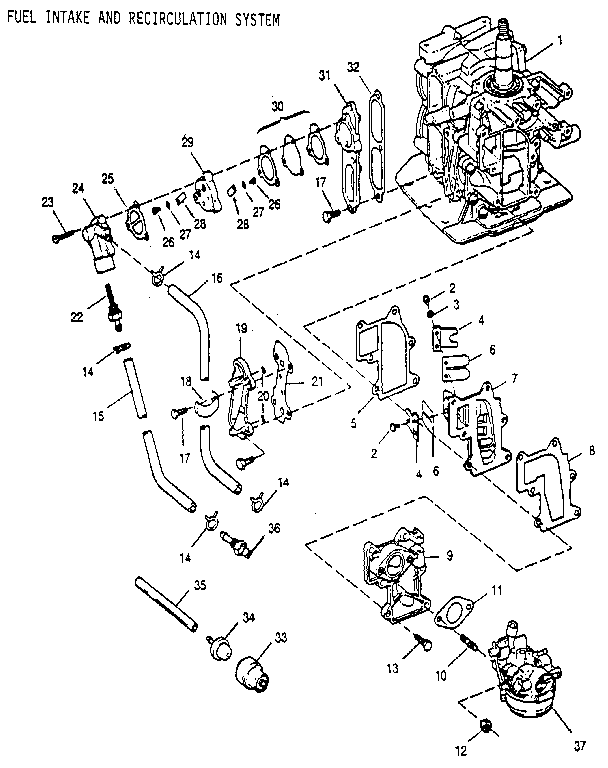

Fuel intake and recirculation system diagram

Boat motor fuel pump cover gasket

Part #24748-2

The manufacturer no longer makes this part, and there's no substitute part

#11

Fuel intake and recirculation system diagram

Carburetor gasket

Part #715906

The manufacturer no longer makes this part, and there's no substitute part

#22

Fuel intake and recirculation system diagram

Boat motor fuel filter

Part #901811

The manufacturer no longer makes this part, and there's no substitute part

#26

Tiller handel and throttle linkage diagram

Exercise equipment screw

Part #1859

The manufacturer no longer makes this part, and there's no substitute part

#40

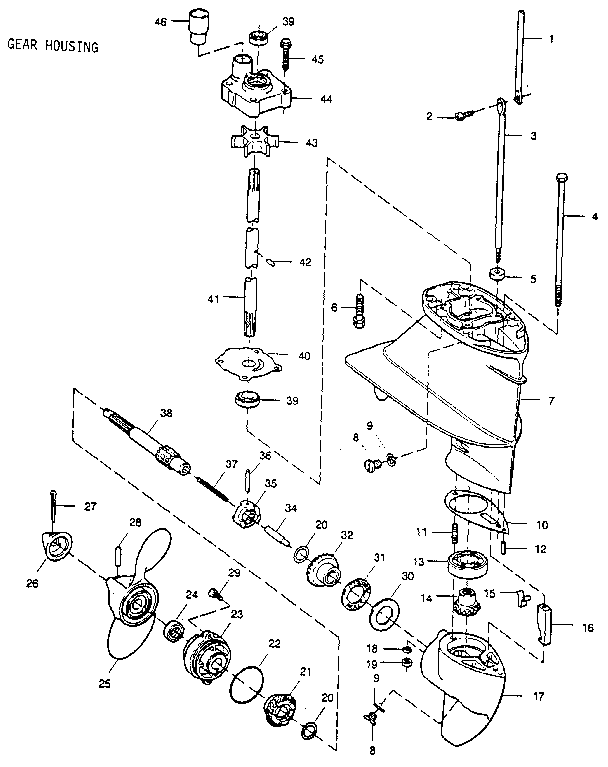

Gear housing diagram

Boat motor water pump back plate

Part #341562

The manufacturer no longer makes this part, and there's no substitute part

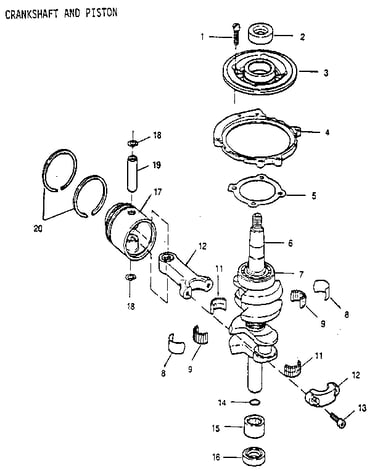

Crankshaft and piston diagram

Bearing

Part #A286155

The manufacturer no longer makes this part, and there's no substitute part
