Model # GFD49ERPK0DG Official GE dryer

Here are the diagrams and repair parts for Official GE GFD49ERPK0DG dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

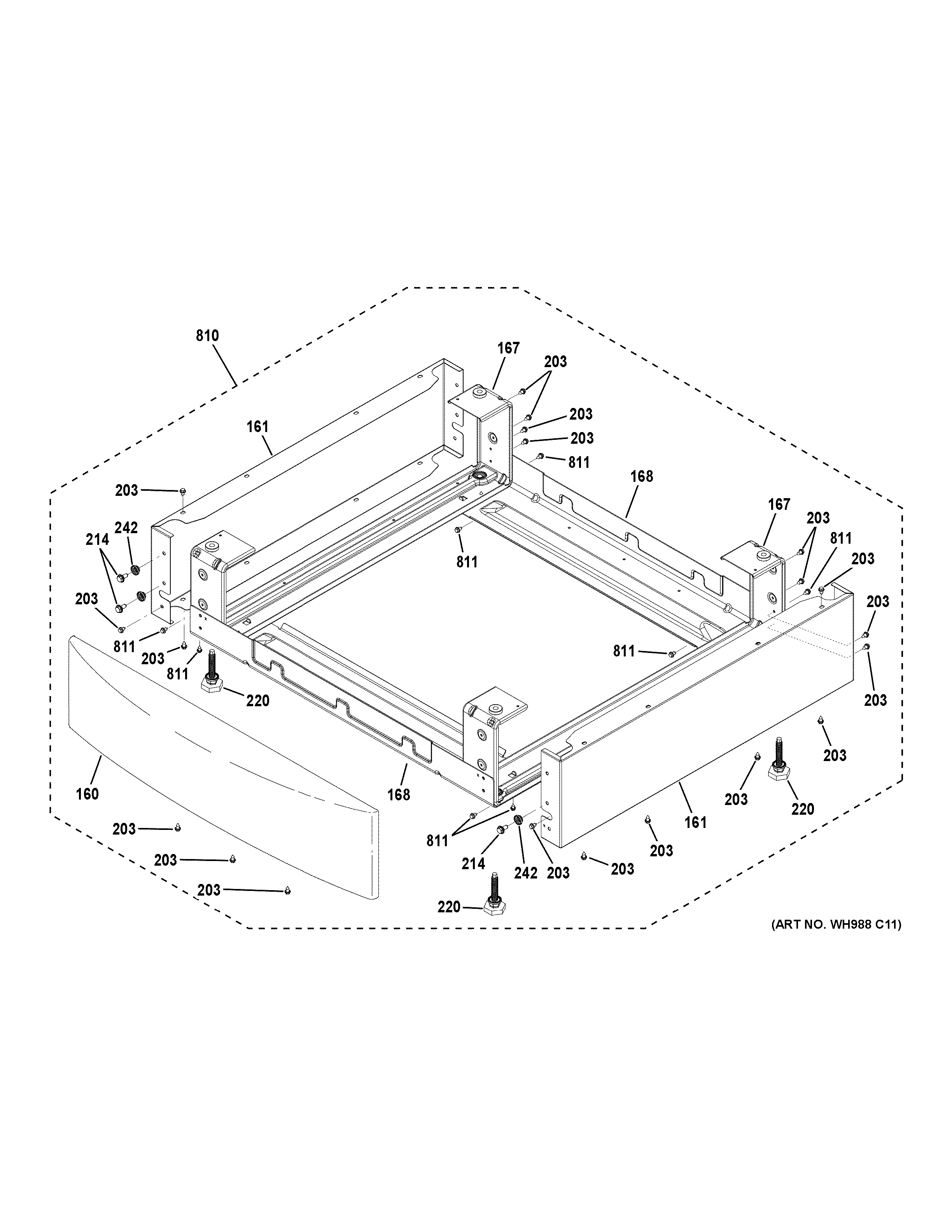

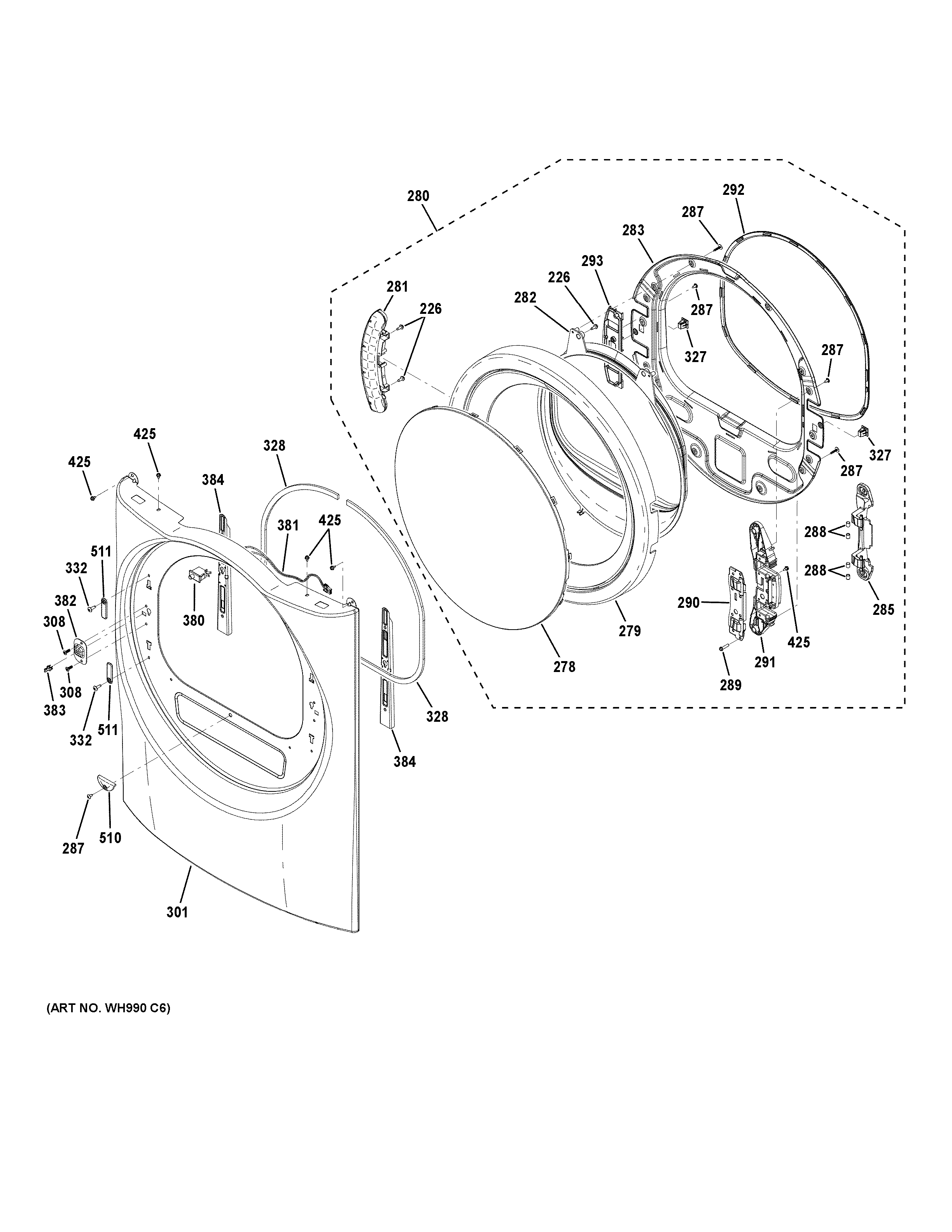

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Dryer Drum Support Roller Assembly (replaces We01x10384, We01x10385, We01x10386, We12m39) WE03X10016
#275

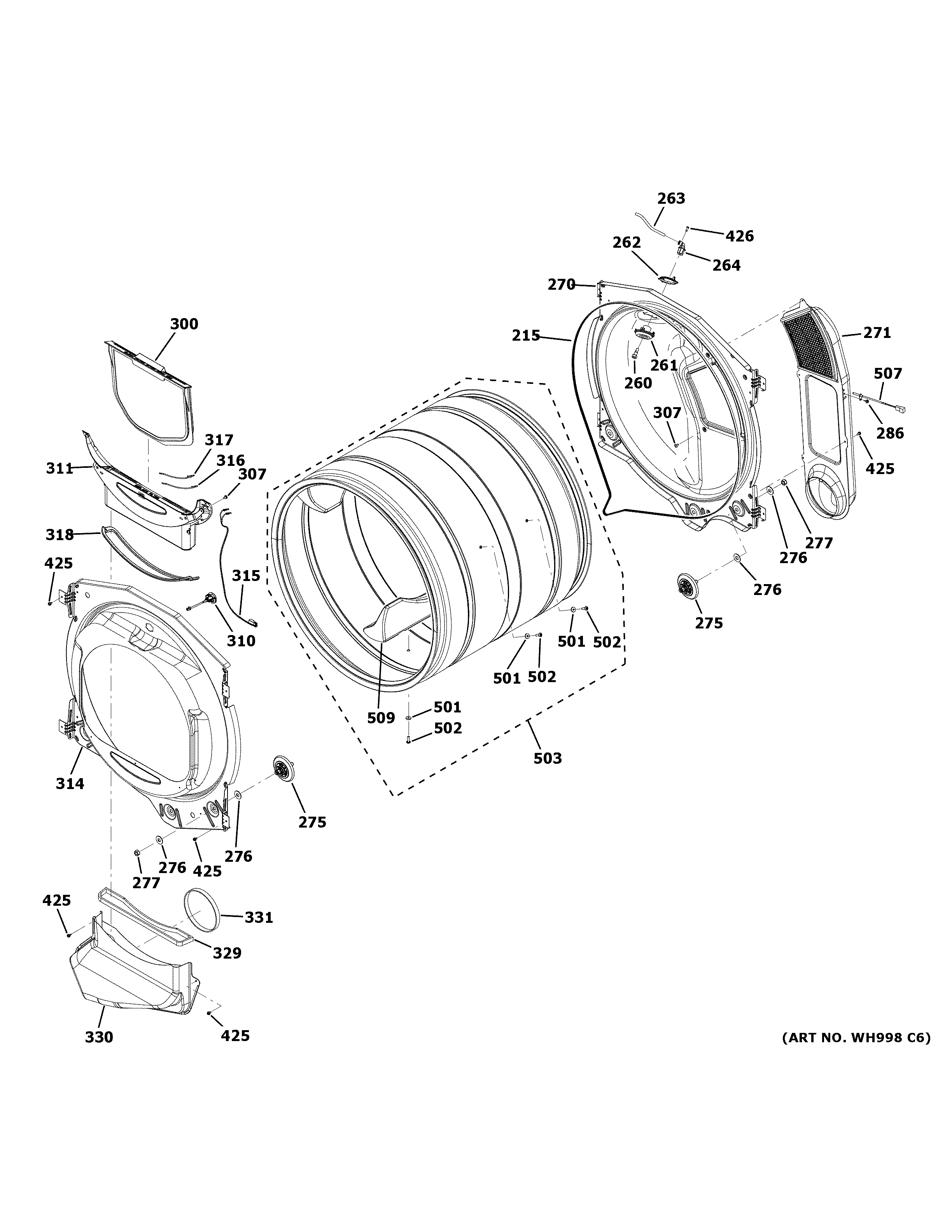

Drum diagram

Dryer drum support roller assembly (replaces we01x10384, we01x10385, we01x10386, we12m39)

Part #WE03X10016

BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Idler Asm (r WE12X10019
#217

Blower & motor diagram

Idler asm (r

Part #WE12X10019

$26.23 |
19% OFF Phone Price : $32.23
In Stock
Dryer Idler Assembly, Left WE12X10018
#216

Blower & motor diagram

Dryer idler assembly, left

Part #WE12X10018

$25.00 |
19% OFF Phone Price : $31.00
In Stock
Dryer Drum Belt WE12X10020
#215

Drum diagram

Dryer drum belt

Part #WE12X10020

$25.51 |
19% OFF Phone Price : $31.51
In Stock
Dryer Drive Motor WE17X25555
#200

Blower & motor diagram

Dryer drive motor

Part #WE17X25555

$226.23 |
5% OFF Phone Price : $238.23
In Stock
Dryer Baffle WE01X20693
#501

Drum diagram

Dryer baffle

Part #WE01X20693

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dryer Steam Nozzle Retainer WE01X10396
#261

Drum diagram

Dryer steam nozzle retainer

Part #WE01X10396

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Dryer Drum Assembly WE21X10026
#503

Drum diagram

Dryer drum assembly

Part #WE21X10026

This item is not returnable
$454.88 |
$12.00 OFF Phone Price : $466.88
In Stock
Dryer Electronic Control Board (replaces We04x24754) WE04X25559
#120

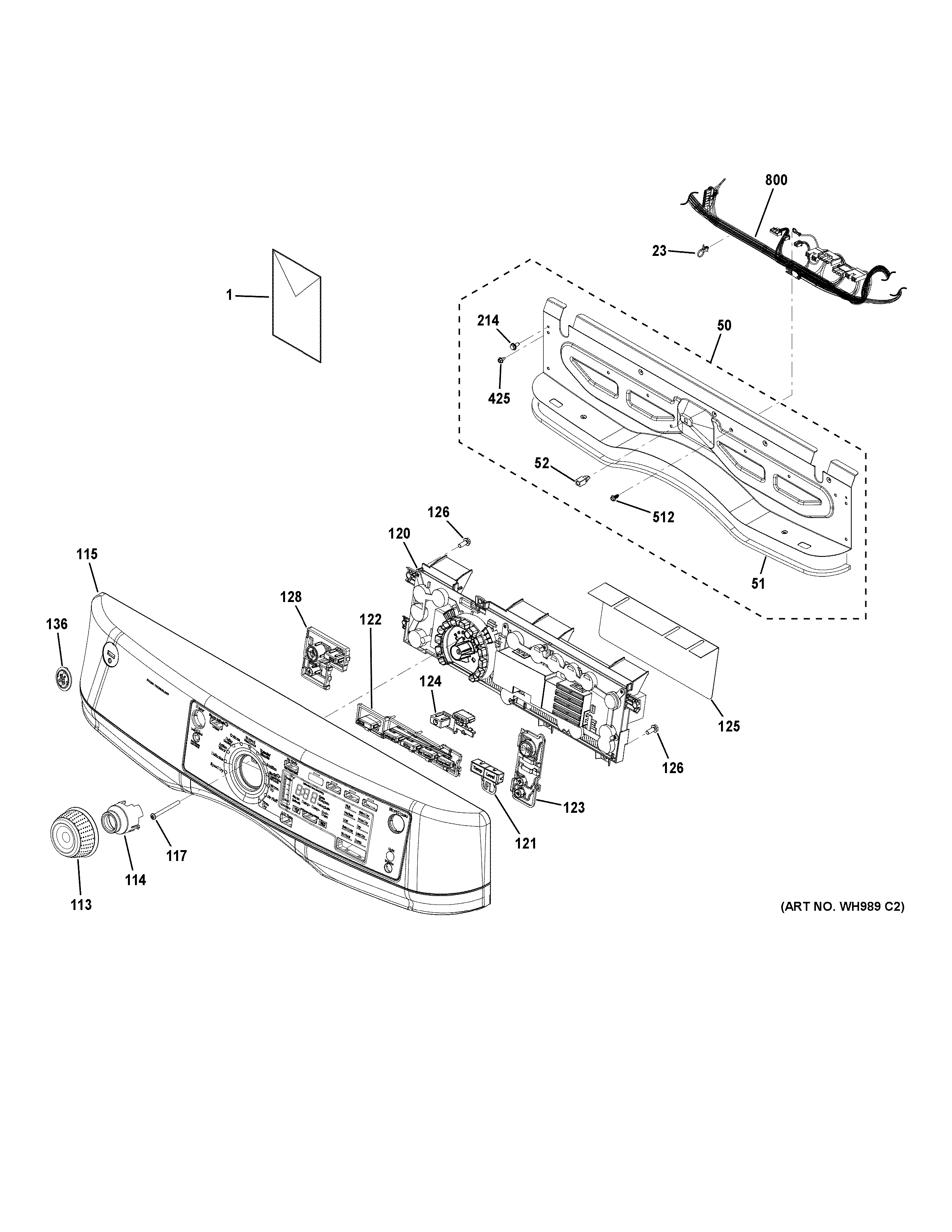

Controls & backsplash diagram

Dryer electronic control board (replaces we04x24754)

Part #WE04X25559

$529.57
In Stock
Dryer Heating Element Assembly WE11X10025
#600

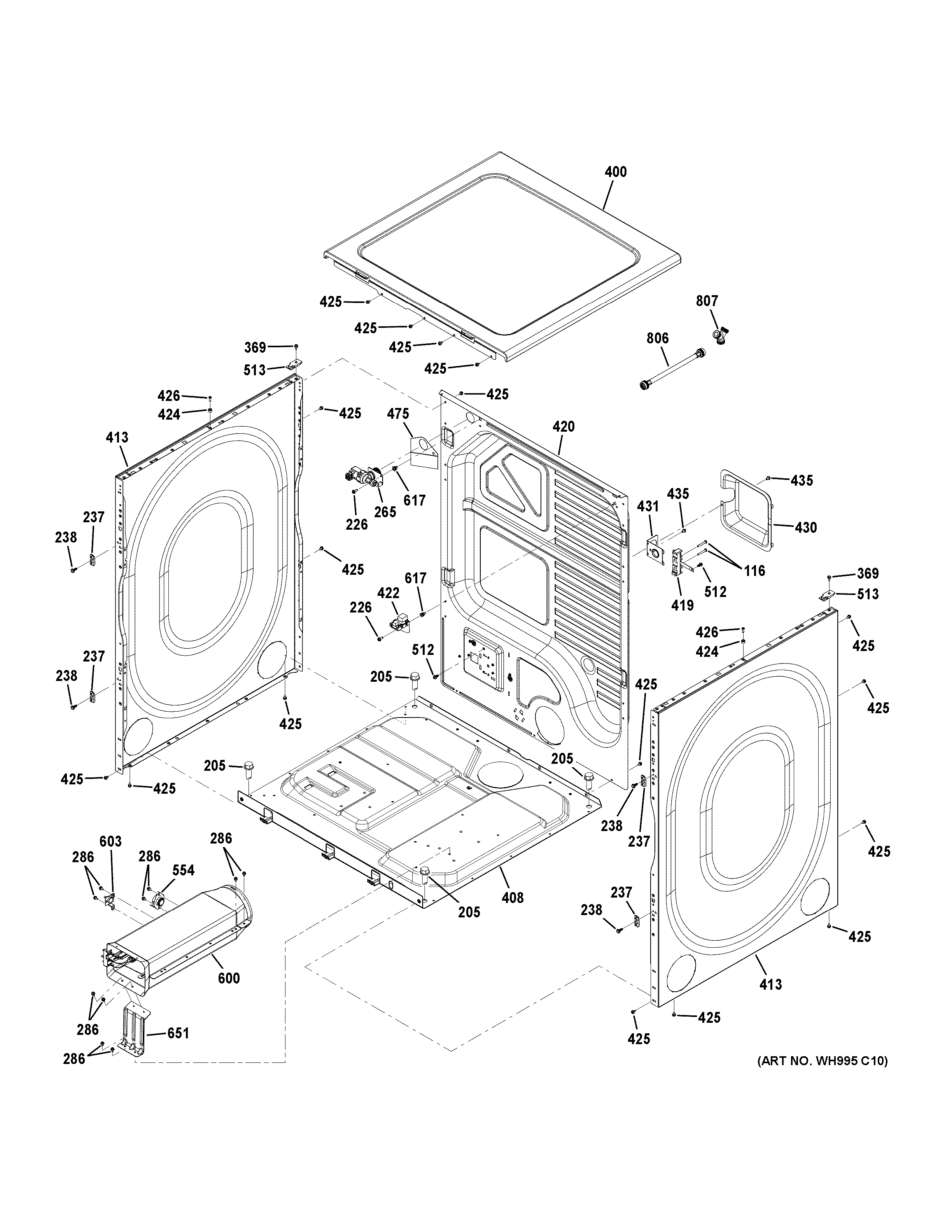

Cabinet & top panel diagram
