Model # GFD49ERPK0DG Official GE dryer

Here are the diagrams and repair parts for Official GE GFD49ERPK0DG dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

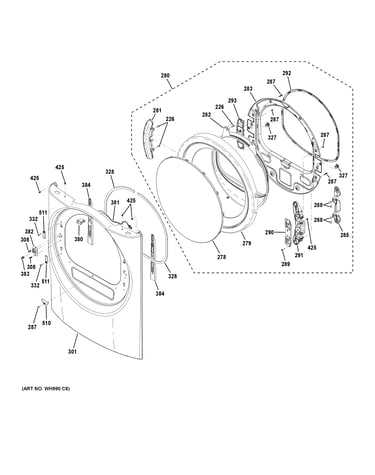

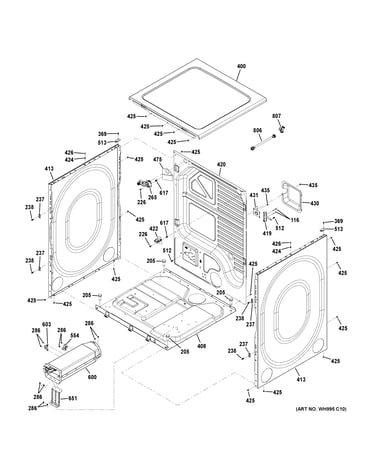

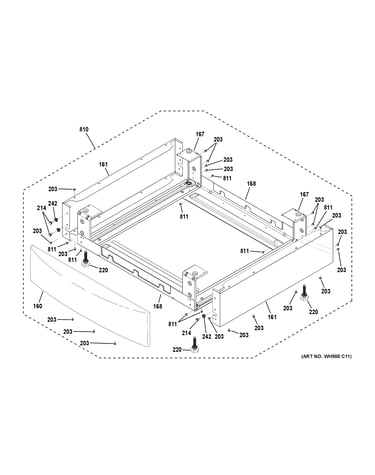

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Dryer Drum Support Roller Assembly (replaces We01x10384, We01x10385, We01x10386, We12m39) WE03X10016
#275

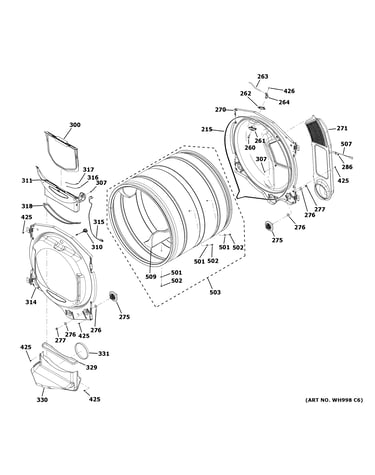

Drum diagram

Dryer drum support roller assembly (replaces we01x10384, we01x10385, we01x10386, we12m39)

Part #WE03X10016

BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Dryer Idler Assembly, Left WE12X10018
#216

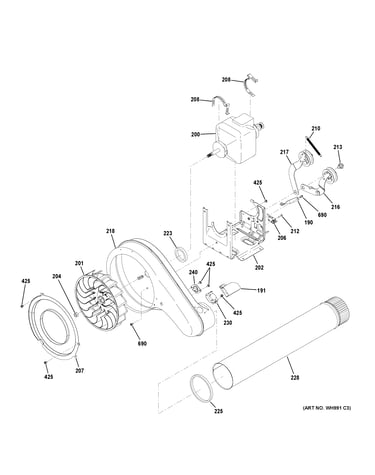

Blower & motor diagram

Dryer idler assembly, left

Part #WE12X10018

$25.00 |
19% OFF Phone Price : $31.00
In Stock
Idler Asm (r WE12X10019
#217

Blower & motor diagram

Idler asm (r

Part #WE12X10019

$26.23 |
19% OFF Phone Price : $32.23
In Stock
Dryer Drum Belt WE12X10020
#215

Drum diagram

Dryer drum belt

Part #WE12X10020

$25.51 |
19% OFF Phone Price : $31.51
In Stock
Dryer Baffle WE01X20693
#501

Drum diagram

Dryer baffle

Part #WE01X20693

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dryer Drive Motor WE17X25555
#200

Blower & motor diagram

Dryer drive motor

Part #WE17X25555

$226.23 |
5% OFF Phone Price : $238.23
In Stock
Dryer Steam Nozzle Retainer WE01X10396
#261

Drum diagram

Dryer steam nozzle retainer

Part #WE01X10396

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Dryer Drum Assembly WE21X10026
#503

Drum diagram

Dryer drum assembly

Part #WE21X10026

This item is not returnable
$454.88 |
$12.00 OFF Phone Price : $466.88
In Stock
Dryer Electronic Control Board (replaces We04x24754) WE04X25559
#120

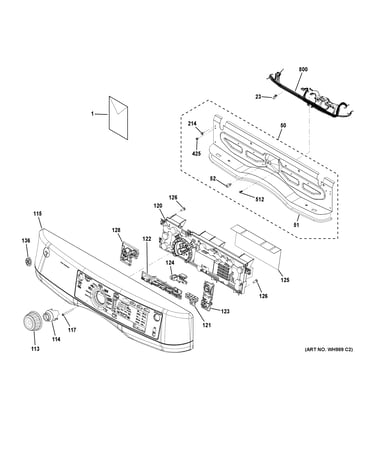

Controls & backsplash diagram

Dryer electronic control board (replaces we04x24754)

Part #WE04X25559

$529.57
In Stock
Dryer Idler Spring WE01X10374
#210

Blower & motor diagram

Dryer idler spring

Part #WE01X10374

$7.88 |
11% OFF Phone Price : $8.88
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your dryers

Choose a symptom to see related dryer repairs.

View all

Why won't my dryer heat?

Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…

Read more

Why is my dryer making a rattling noise?

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …

Read more

Why won't my dryer door stay shut?

Main causes: damaged door strike, worn door catch…

Read more

Why does my dryer start then stop?

Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…

Read more

Why won't my dryer start?

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…

Read more

Why isn't my dryer getting my laundry dry?

Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…

Read more

Why won't my dryer shut off?

Main causes: bad timer or electronic control board, door switch failure…

Read more

Why doesn't my dryer work?

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…
