Model # JV367H1CC Official GE range hood

Here are the diagrams and repair parts for Official GE JV367H1CC range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Range Hood Fan Switch WB24X10129
#23

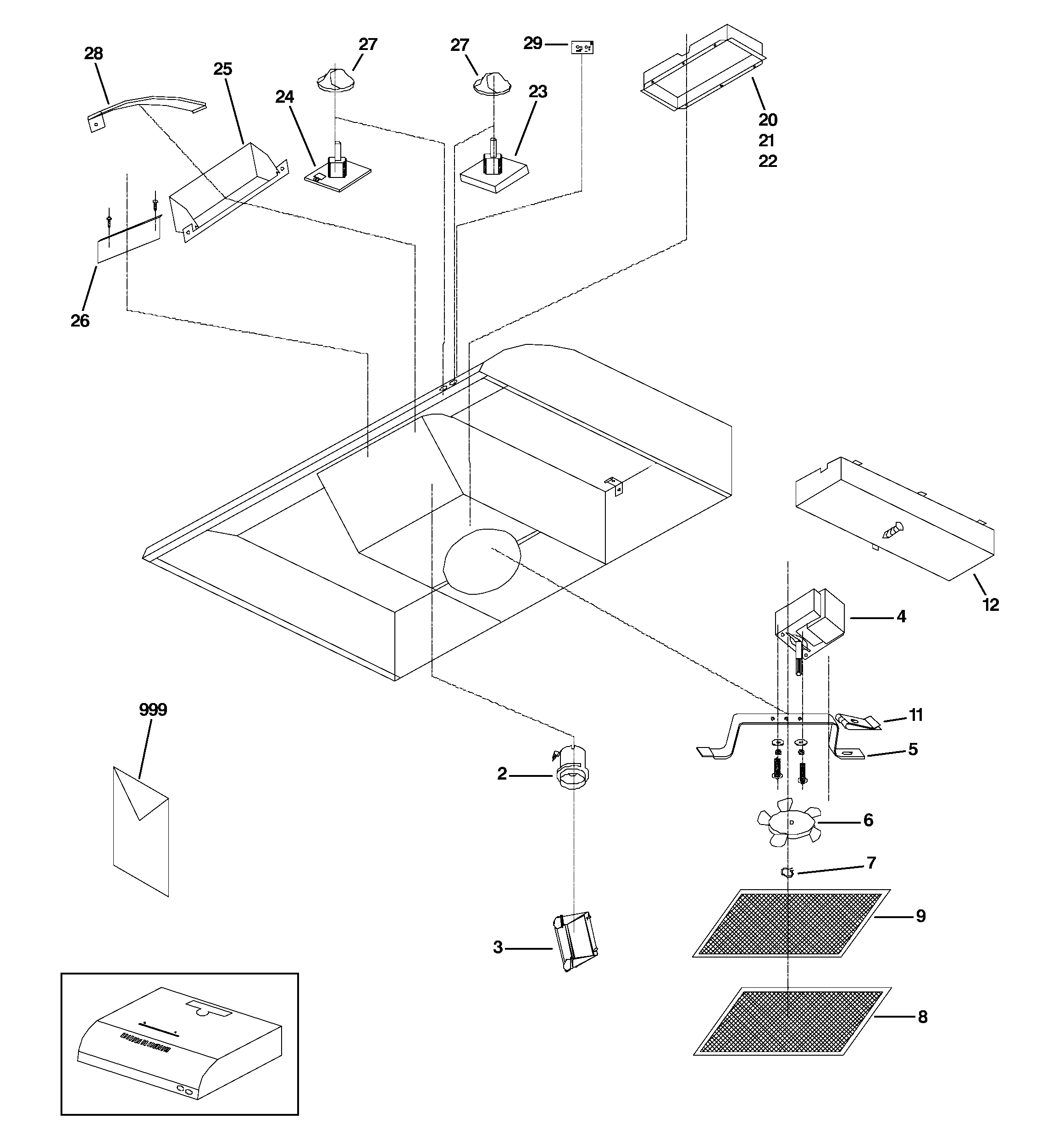

Range hood diagram

Range hood fan switch

Part #WB24X10129

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Hood Light Switch WB24X10130
#24

Range hood diagram

Range hood light switch

Part #WB24X10130

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Control Knob WB03X10208
#27

Range hood diagram

Range control knob

Part #WB03X10208

This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Filtr Grease WB02X8391
#9

Range hood diagram

Filtr grease

Part #WB02X8391

Replaced by #WB2X8391

?
Manufacturer substitution
This part replaces WB02X8391. Substitute parts can look different from the original.
$26.89 |
18% OFF Phone Price : $32.89
In Stock
Damper WB02X11029
#21

Range hood diagram

Damper

Part #WB02X11029

$16.91
In Stock
Hotpoint Retaining Nu WB02X11035
#11

Range hood diagram

Hotpoint retaining nu

Part #WB02X11035

This item is not returnable
$6.35 |
14% OFF Phone Price : $7.35
In Stock
Hotpoint Fan Clip WB02X11026
#7

Range hood diagram

Hotpoint fan clip

Part #WB02X11026

$8.83 |
10% OFF Phone Price : $9.83
In Stock
Switch Box WB02X11031
#25

Range hood diagram

Switch box

Part #WB02X11031

$9.71 |
9% OFF Phone Price : $10.71
In Stock
Switch Panel WB02X11036
#29

Range hood diagram

Switch panel

Part #WB02X11036

$8.94 |
10% OFF Phone Price : $9.94
In Stock
Pivot Frame WB02X11028
#20

Range hood diagram

Pivot frame

Part #WB02X11028

$8.80 |
10% OFF Phone Price : $9.80
In Stock
