Camera

Model # DSC-W330B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W330B digital camera, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DSC-W330B Digital Camera
Sony Cabinet L 417116011
#103

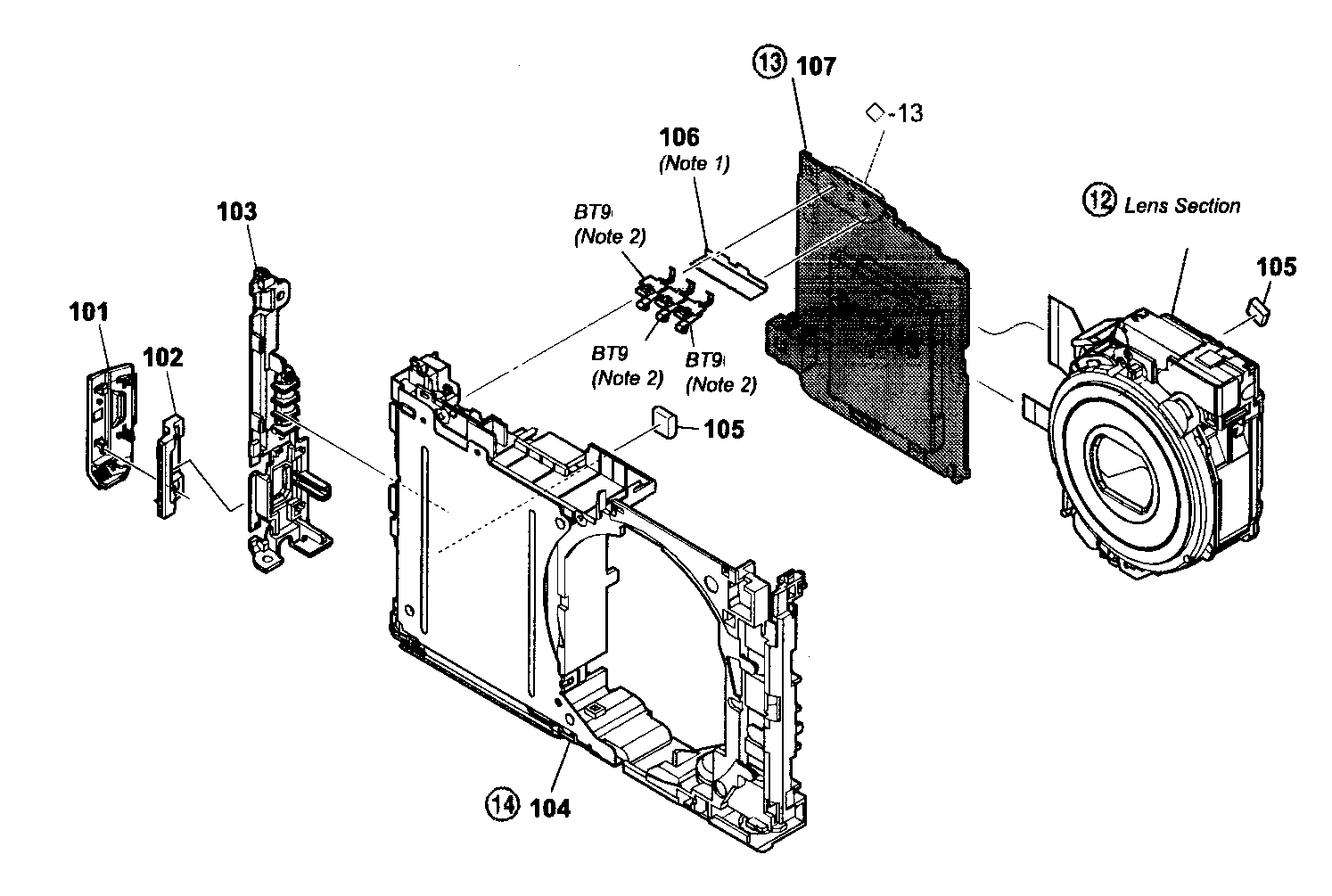

Main assy diagram

Sony cabinet l

Part #417116011

In Stock
Electric Capacitor 111643921
#C901

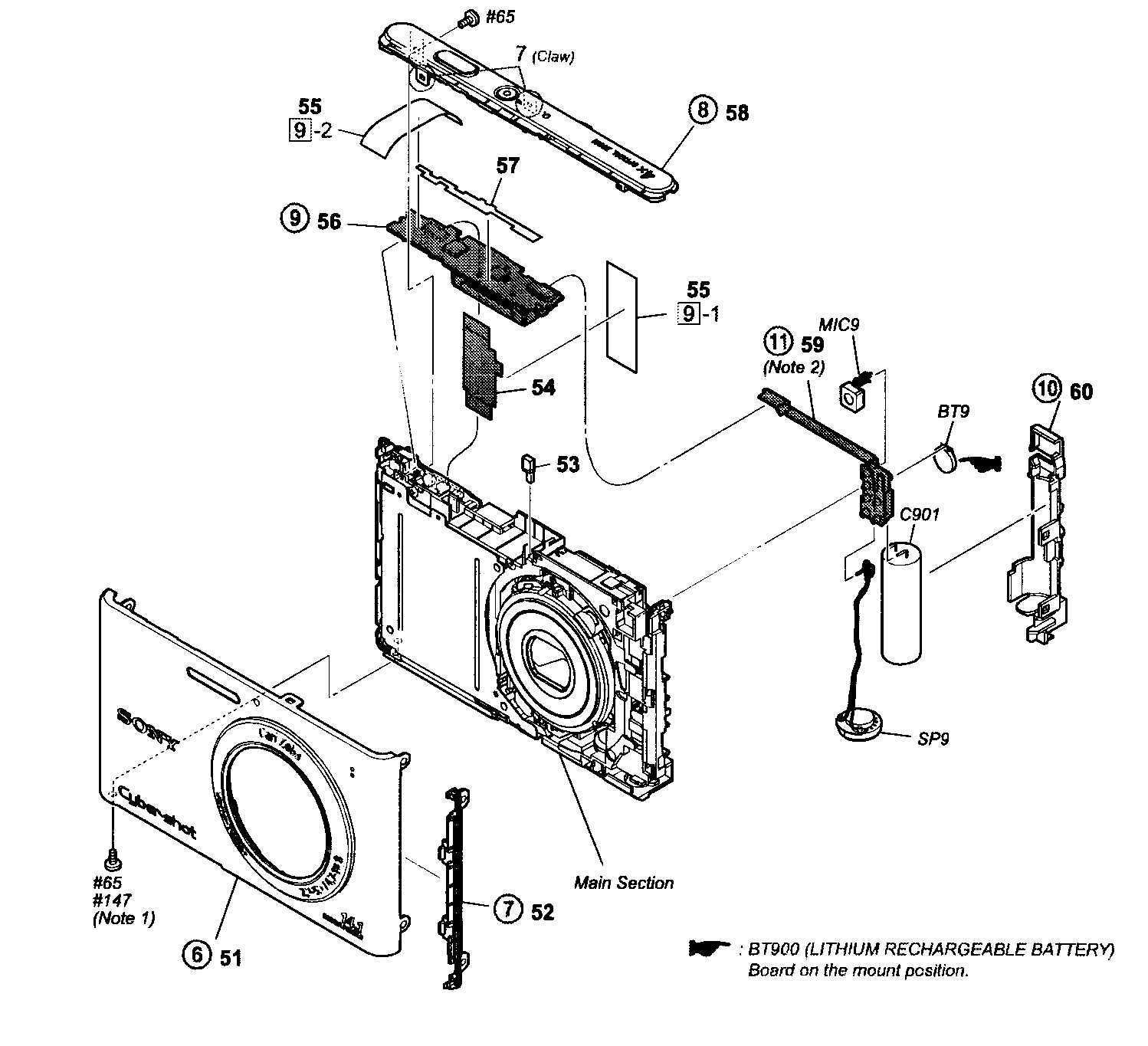

Front assy diagram

Electric capacitor

Part #111643921

In Stock
Wheel A1743731A
#161

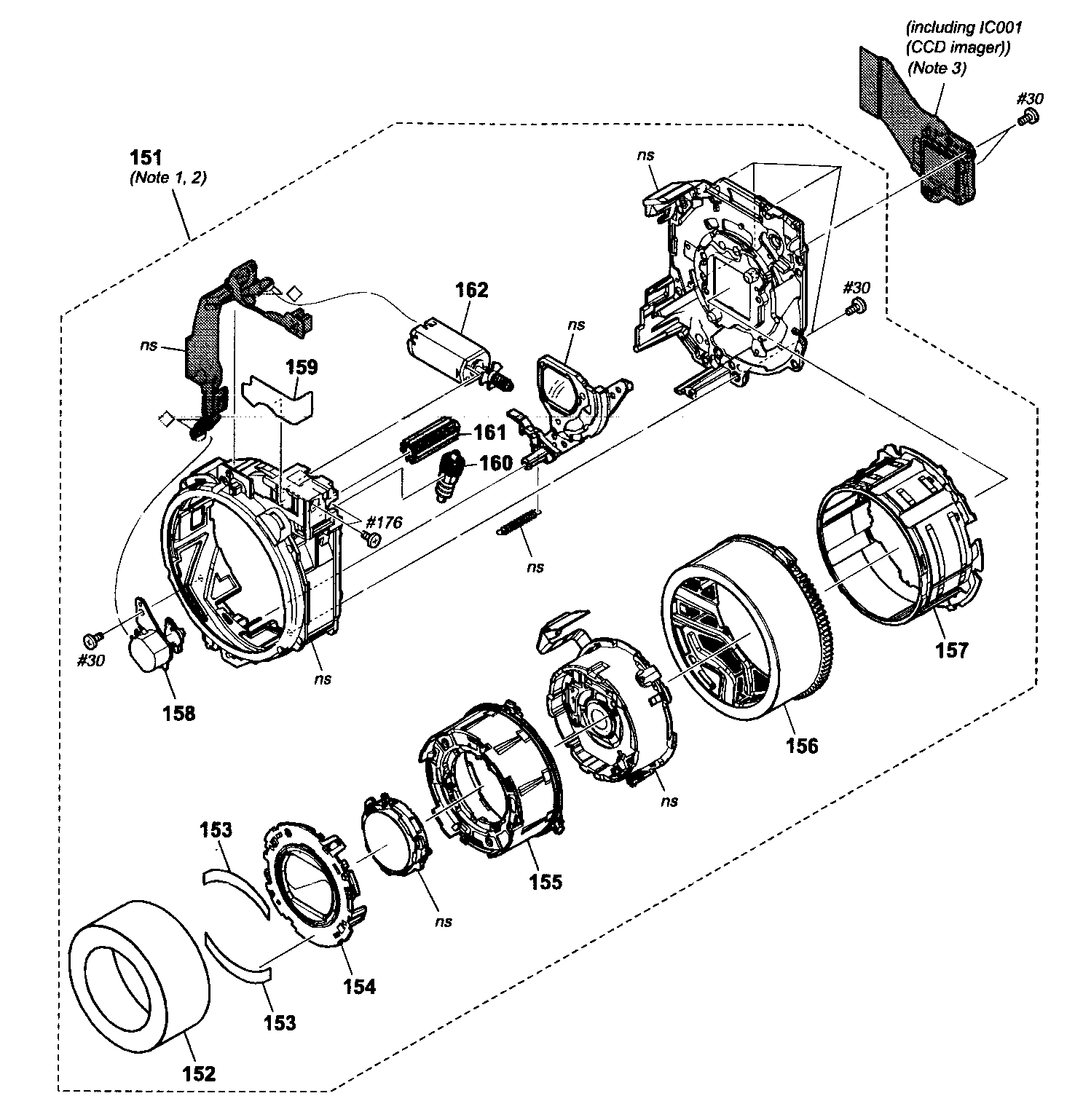

Lens assy diagram

Wheel

Part #A1743731A

This item is not returnable
In Stock
Tape 414710901
#153

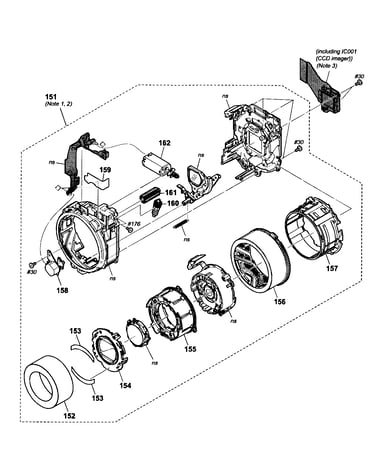

Lens assy diagram

Tape

Part #414710901

In Stock
Insl.sheet 416819801
#106

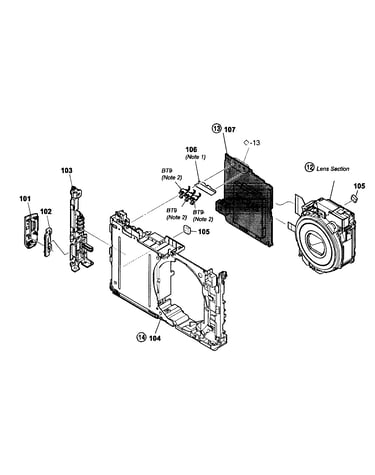

Main assy diagram

Insl.sheet

Part #416819801

In Stock
Pcb,sw-563 A1731540A
#7

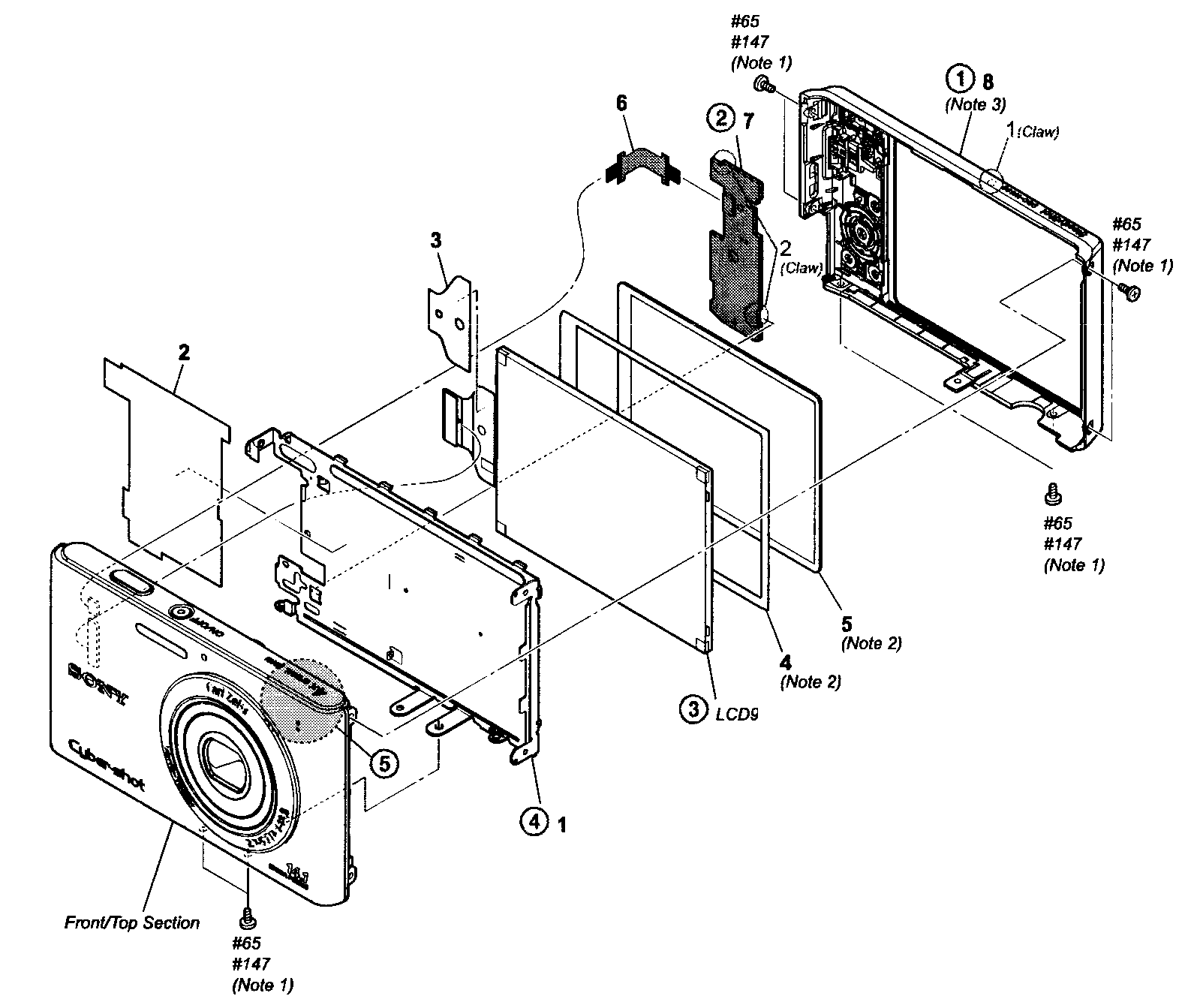

Rear assy diagram

Pcb,sw-563

Part #A1731540A

In Stock
Pcb,ma-465 188058911
#59

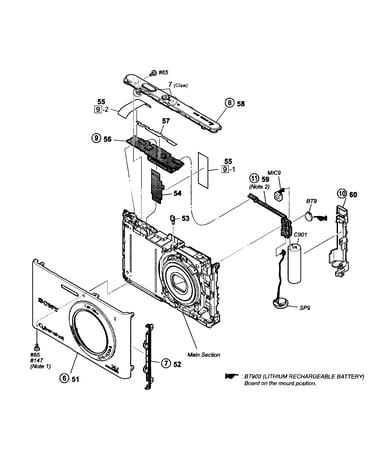

Front assy diagram

Pcb,ma-465

Part #188058911

In Stock
Screw 394750431
#S176

Lens assy diagram

Screw

Part #394750431

In Stock
Sony Rear Cabinet X25460661
#8

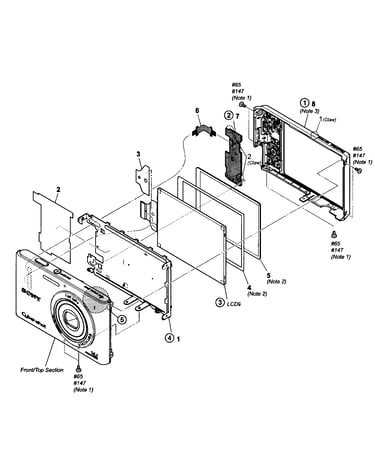

Rear assy diagram

Sony rear cabinet

Part #X25460661

In Stock
Sony Lid 417116411
#101

Main assy diagram

Sony lid

Part #417116411

In Stock
