Model # 315279890 Official Craftsman 5" random orbital sander

Here are the diagrams and repair parts for Official Craftsman 315279890 5" random orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

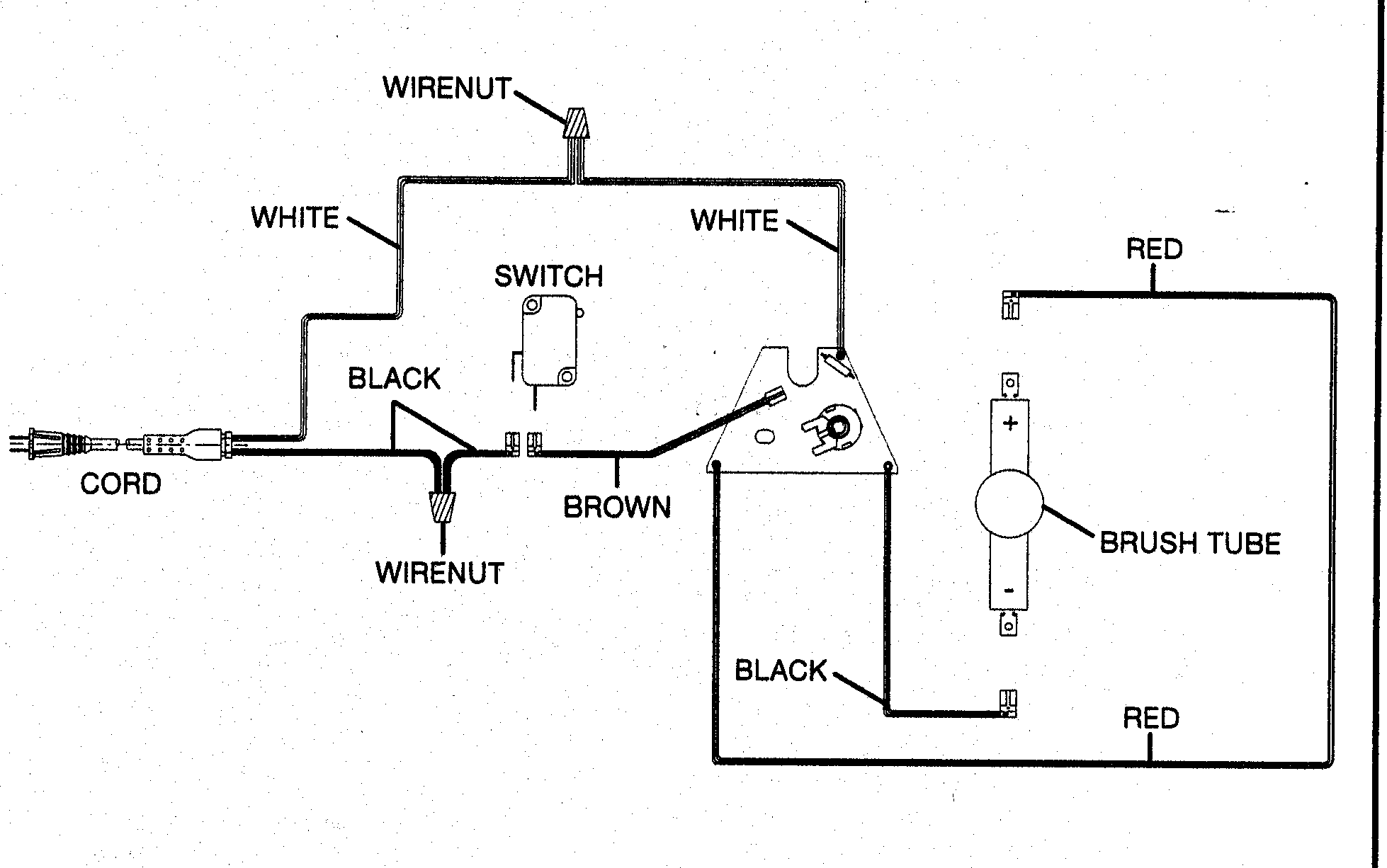

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Blade,retail N/A
#14

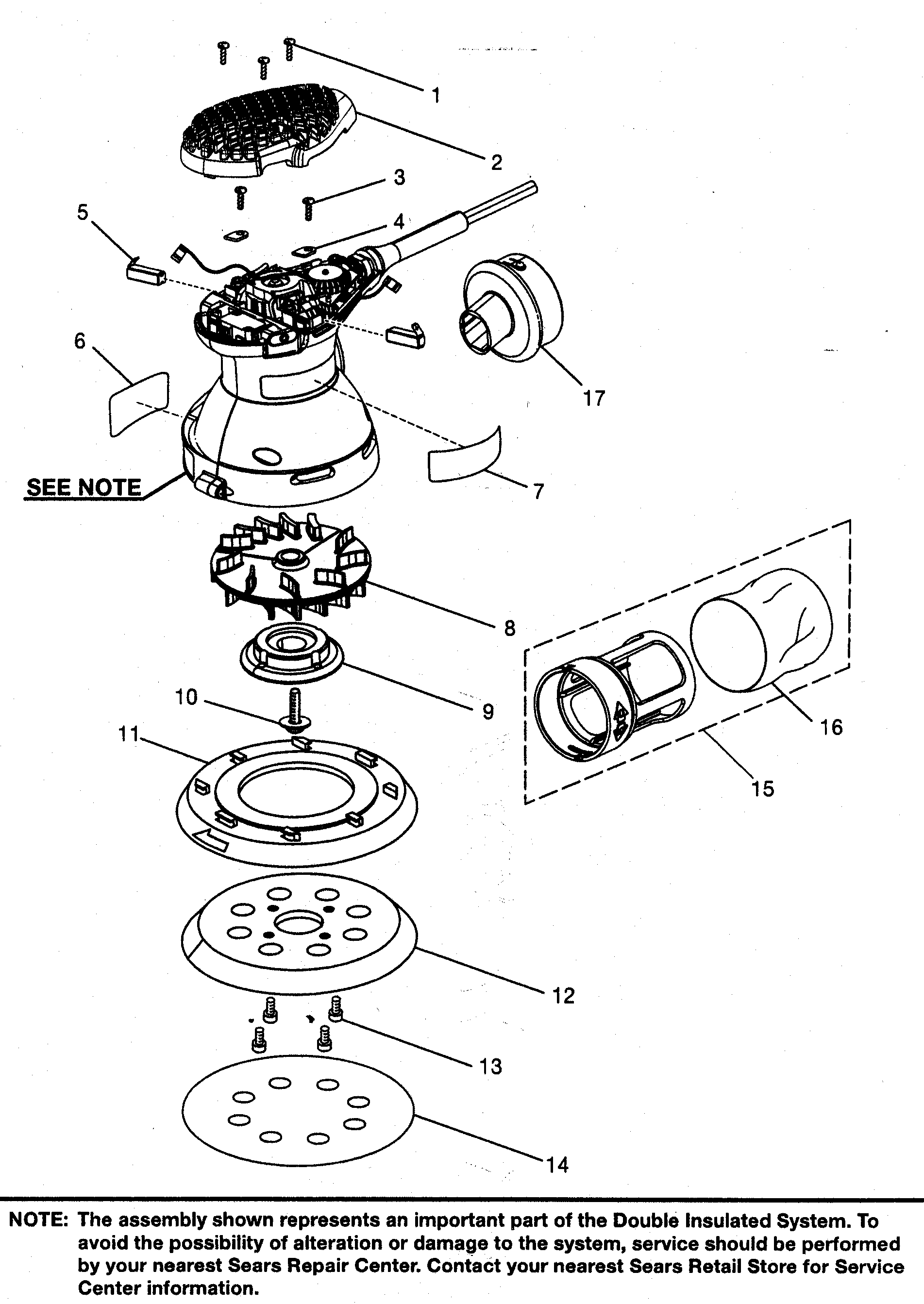

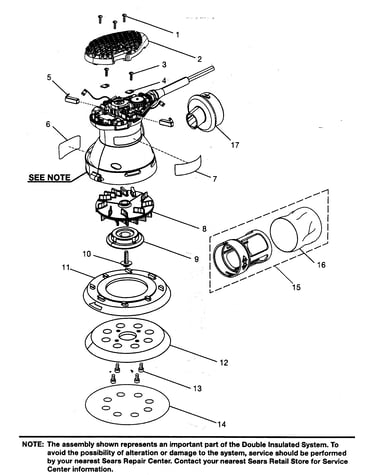

Sander diagram

Blade,retail

Part #N/A

The manufacturer no longer makes this part, and there's no substitute part

Field 740379001
#12

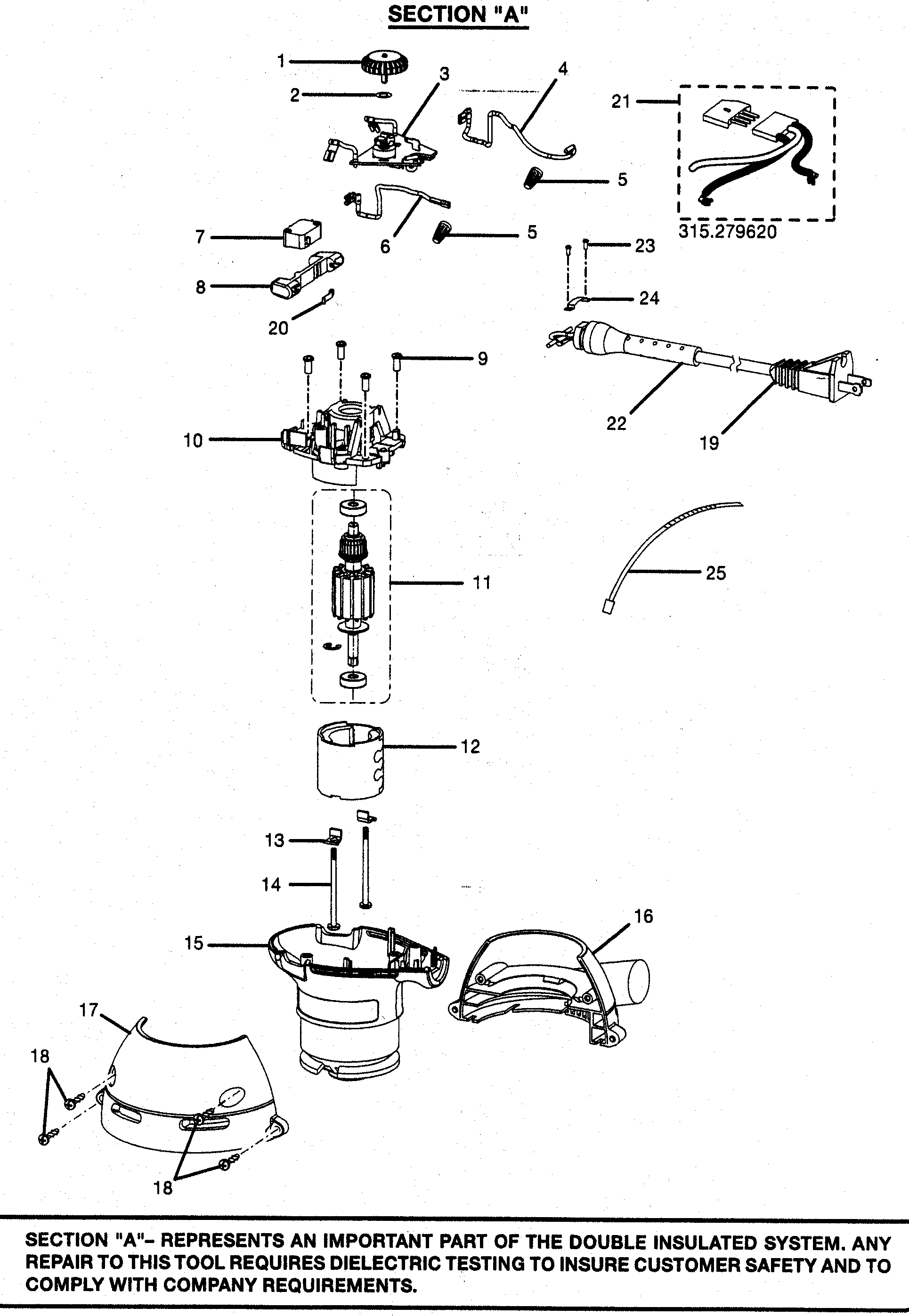

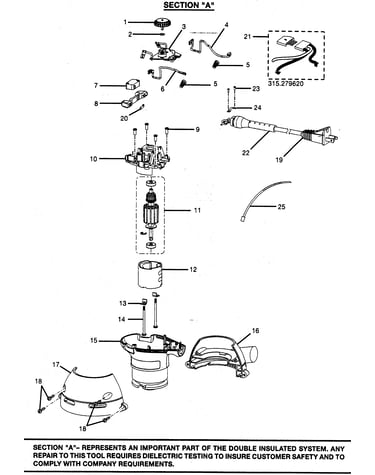

Motor assy diagram

Field

Part #740379001

The manufacturer no longer makes this part, and there's no substitute part

Armature 200216009
#11

Motor assy diagram

Armature

Part #200216009

The manufacturer no longer makes this part, and there's no substitute part

Disc Assembly 300527004
#12

Sander diagram

Disc assembly

Part #300527004

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 290069004
#5

Sander diagram

Brush assembly

Part #290069004

The manufacturer no longer makes this part, and there's no substitute part

Adapter 512356001
#17

Sander diagram

Adapter

Part #512356001

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 290061015
#6

Motor assy diagram

Receptacle

Part #290061015

The manufacturer no longer makes this part, and there's no substitute part

Top Cover 512353001
#2

Sander diagram

Top cover

Part #512353001

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 280013022
#3

Motor assy diagram

Pcb assembly

Part #280013022

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000455R
#NI

Sander diagram

Repair sheet

Part #983000455R

The manufacturer no longer makes this part, and there's no substitute part
