GE
Upright Freezer

Model # FUG17DSFRWH Official GE freezer

Here are the diagrams and repair parts for Official GE FUG17DSFRWH freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Freezer Dryer Filter WR86X10044
#740

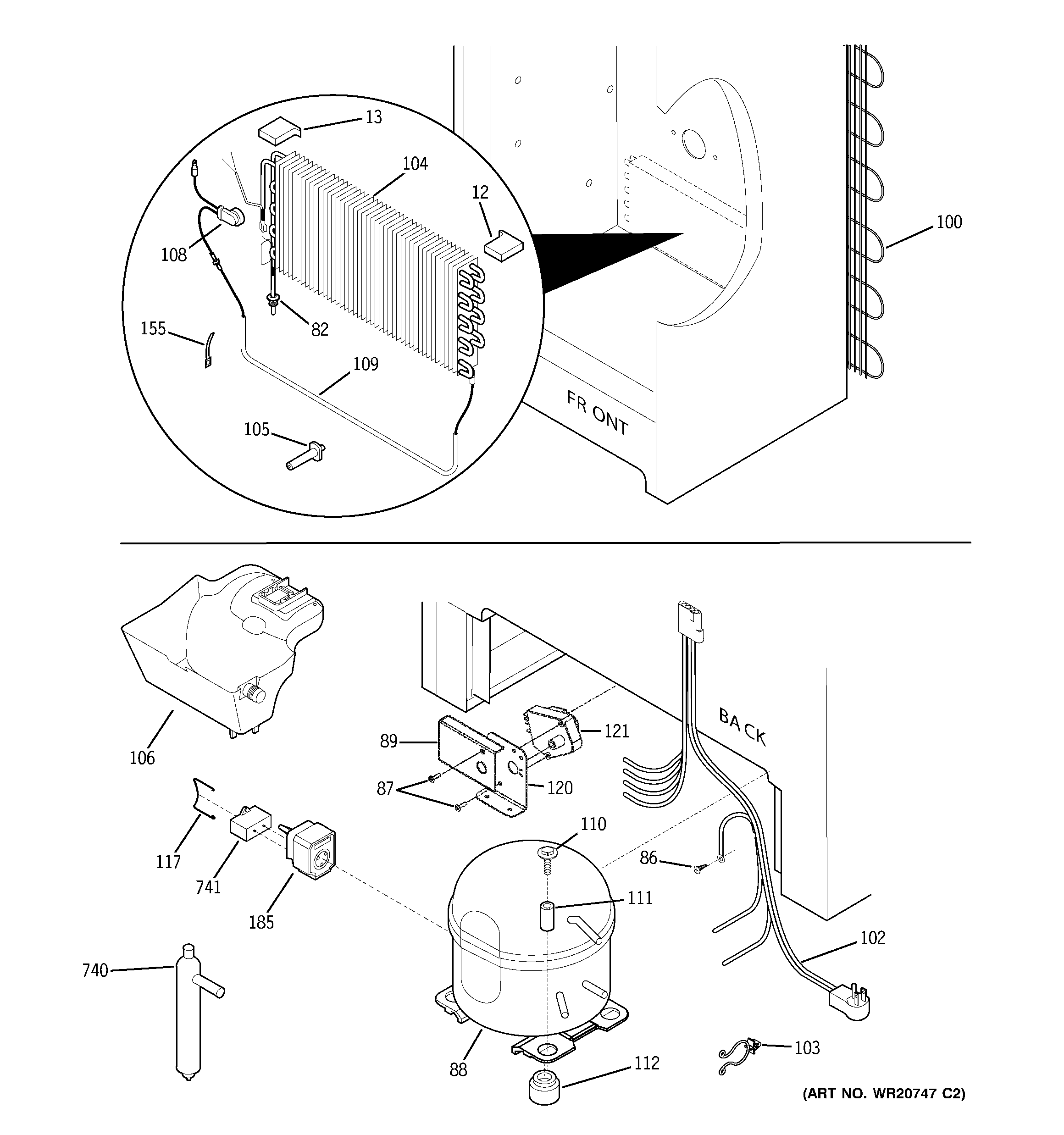

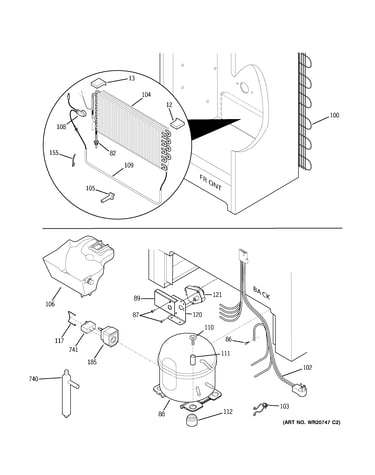

Unit parts diagram

Freezer dryer filter

Part #WR86X10044

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10044. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Temperature Control WR09X10099
#43

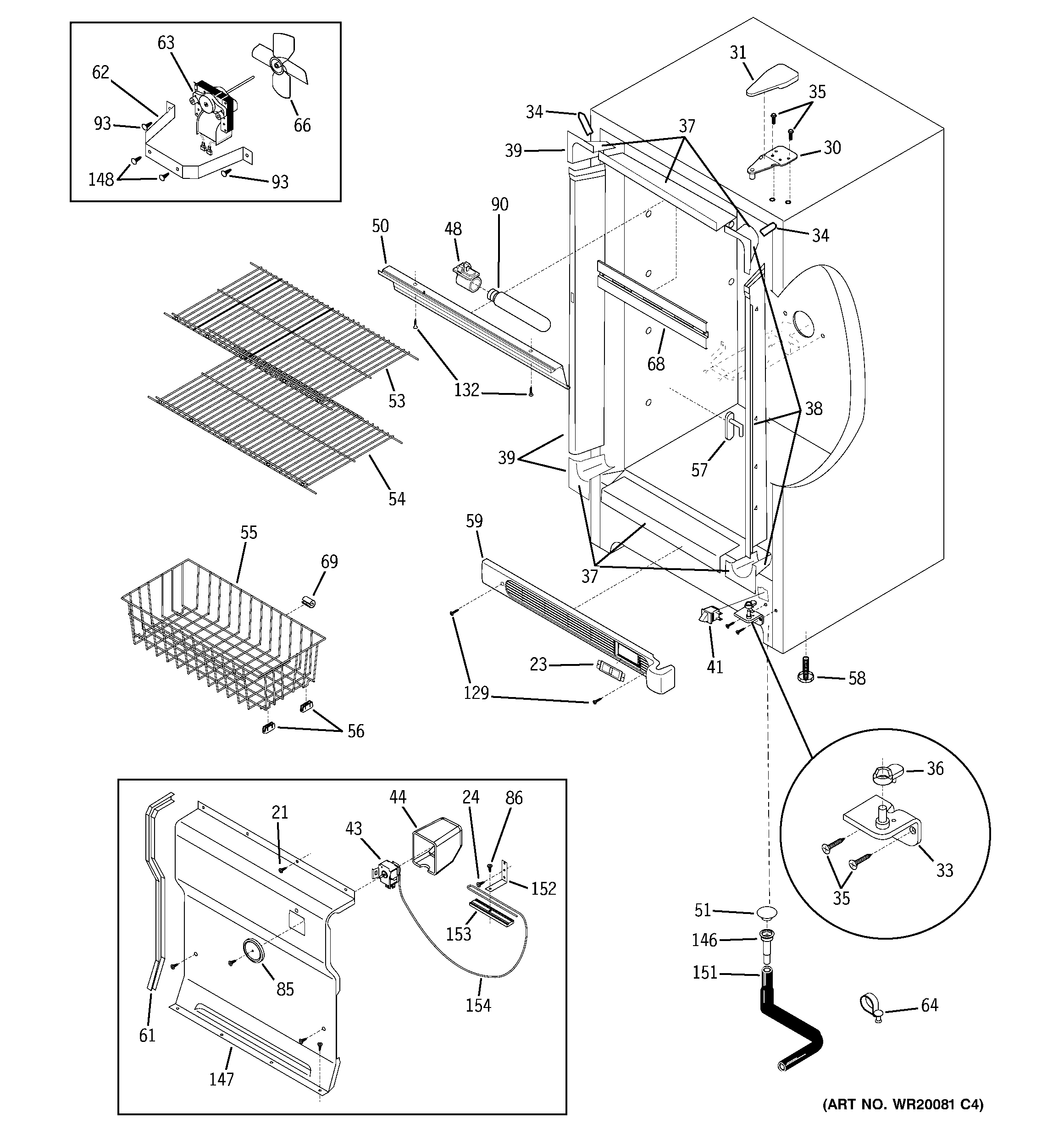

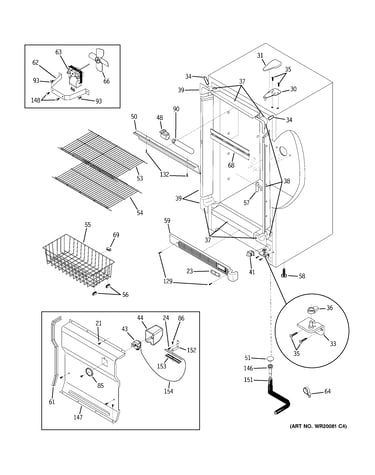

Cabinet diagram

Temperature control

Part #WR09X10099

Replaced by #WR09X29511

?
Manufacturer substitution
This part replaces WR09X10099. Substitute parts can look different from the original.
$118.50 |
9% OFF Phone Price : $130.50
In Stock
Screw,rwhd , WR02X12764
Screw,rwhd ,

Part #WR02X12764

$30.84 |
16% OFF Phone Price : $36.84
In Stock
Spring Clip WR01X10870
#45

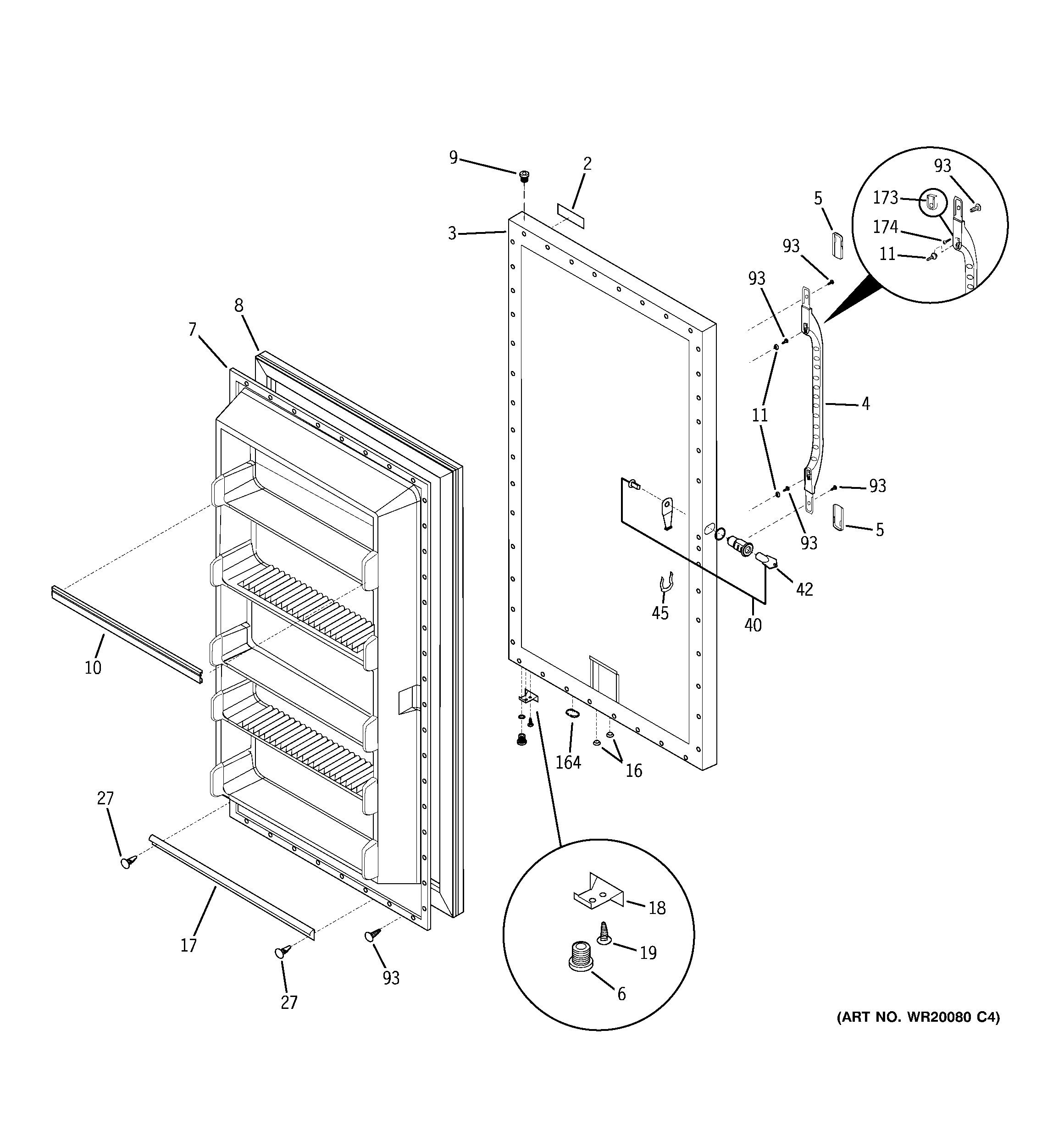

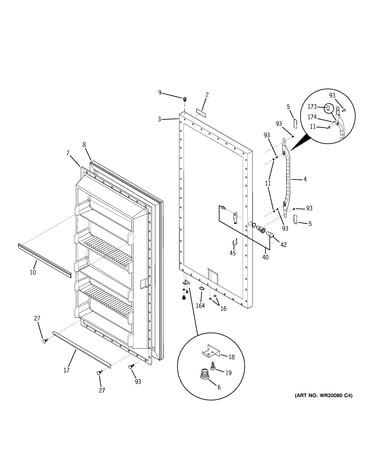

Freezer door diagram

Spring clip

Part #WR01X10870

This item is not returnable
$5.00
In Stock
Hex Washer Head Screw WR01X10823
Hex washer head screw

Part #WR01X10823

$32.07
In Stock
Glide Basket WR02X11444
#56

Cabinet diagram

Glide basket

Part #WR02X11444

$81.57 |
7% OFF Phone Price : $87.57
In Stock
Freezer Heat Exchanger WR86X10052
#82

Unit parts diagram

Freezer heat exchanger

Part #WR86X10052

$92.40
In Stock
Door Screw WR02X12989
#19

Freezer door diagram

Door screw

Part #WR02X12989

This item is not returnable
$8.11
In Stock
Temperature Complete Knob WR02X10860
#85

Cabinet diagram

Temperature complete knob

Part #WR02X10860

$38.89 |
13% OFF Phone Price : $44.89
In Stock
Hinge Cover WR02X12689
#31

Cabinet diagram

Hinge cover

Part #WR02X12689

This item is not returnable
$5.92
In Stock
