Model # 4150-42 Official Footedana transaxle

Here are the diagrams and repair parts for Official Footedana 4150-42 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Tractor Accessories Ring 2267J
#7

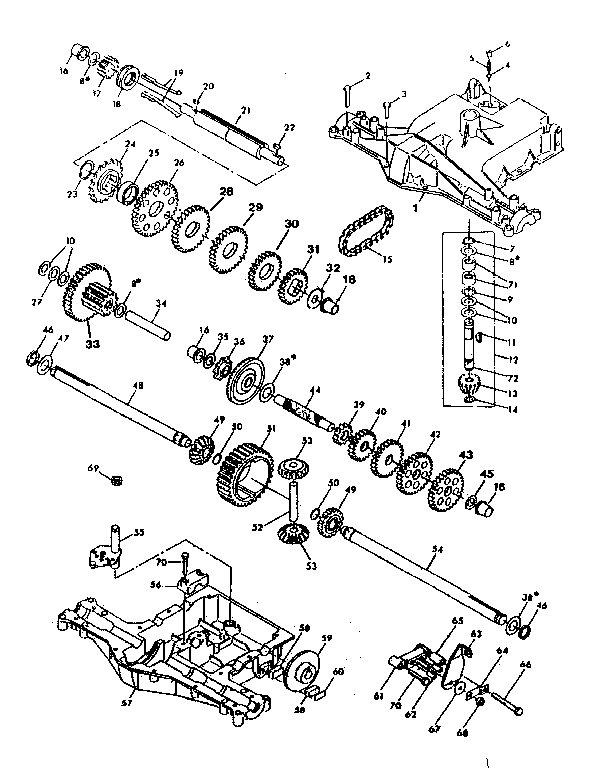

Transaxle diagram

Tractor accessories ring

Part #2267J

Replaced by #812000028

?
Manufacturer substitution
This part replaces 2267J. Substitute parts can look different from the original.
This item is not returnable
$5.00 |
17% OFF Phone Price : $6.00
In Stock
Washer 105925X
#32

Transaxle diagram

Washer

Part #105925X

Replaced by #583647501

?
Manufacturer substitution
This part replaces 105925X. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 108996X
#67

Transaxle diagram

Washer

Part #108996X

Replaced by #583657101

?
Manufacturer substitution
This part replaces 108996X. Substitute parts can look different from the original.
$10.26
In Stock
Gear 12t 105933X
#39

Transaxle diagram

Gear 12t

Part #105933X

Replaced by #583656701

?
Manufacturer substitution
This part replaces 105933X. Substitute parts can look different from the original.
$70.64
In Stock
Bolt 2274J
#3

Transaxle diagram

Bolt

Part #2274J

The manufacturer no longer makes this part, and there's no substitute part

Washer 2226J
Washer

Part #2226J

Replaced by #583728901

?
Manufacturer substitution
This part replaces 2226J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 2264J
Washer

Part #2264J

Replaced by #583729701

?
Manufacturer substitution
This part replaces 2264J. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Tractor Accessories Lawn & Garden Equipment Washer 2263J
#38L

Transaxle diagram

Tractor accessories lawn & garden equipment washer

Part #2263J

Replaced by #583729601

?
Manufacturer substitution
This part replaces 2263J. Substitute parts can look different from the original.
$10.26
In Stock
Washer 105906X
#8H

Transaxle diagram

Washer

Part #105906X

Replaced by #583647201

?
Manufacturer substitution
This part replaces 105906X. Substitute parts can look different from the original.
$10.26
In Stock
Gear, 20t 105934X
#40

Transaxle diagram

Gear, 20t

Part #105934X

Replaced by #582969001

?
Manufacturer substitution
This part replaces 105934X. Substitute parts can look different from the original.
$119.98
In Stock
