Model # 40753550310 Official Kenmore 50-pint rating label

Here are the diagrams and repair parts for Official Kenmore 40753550310 50-pint rating label, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 47 parts |

#33

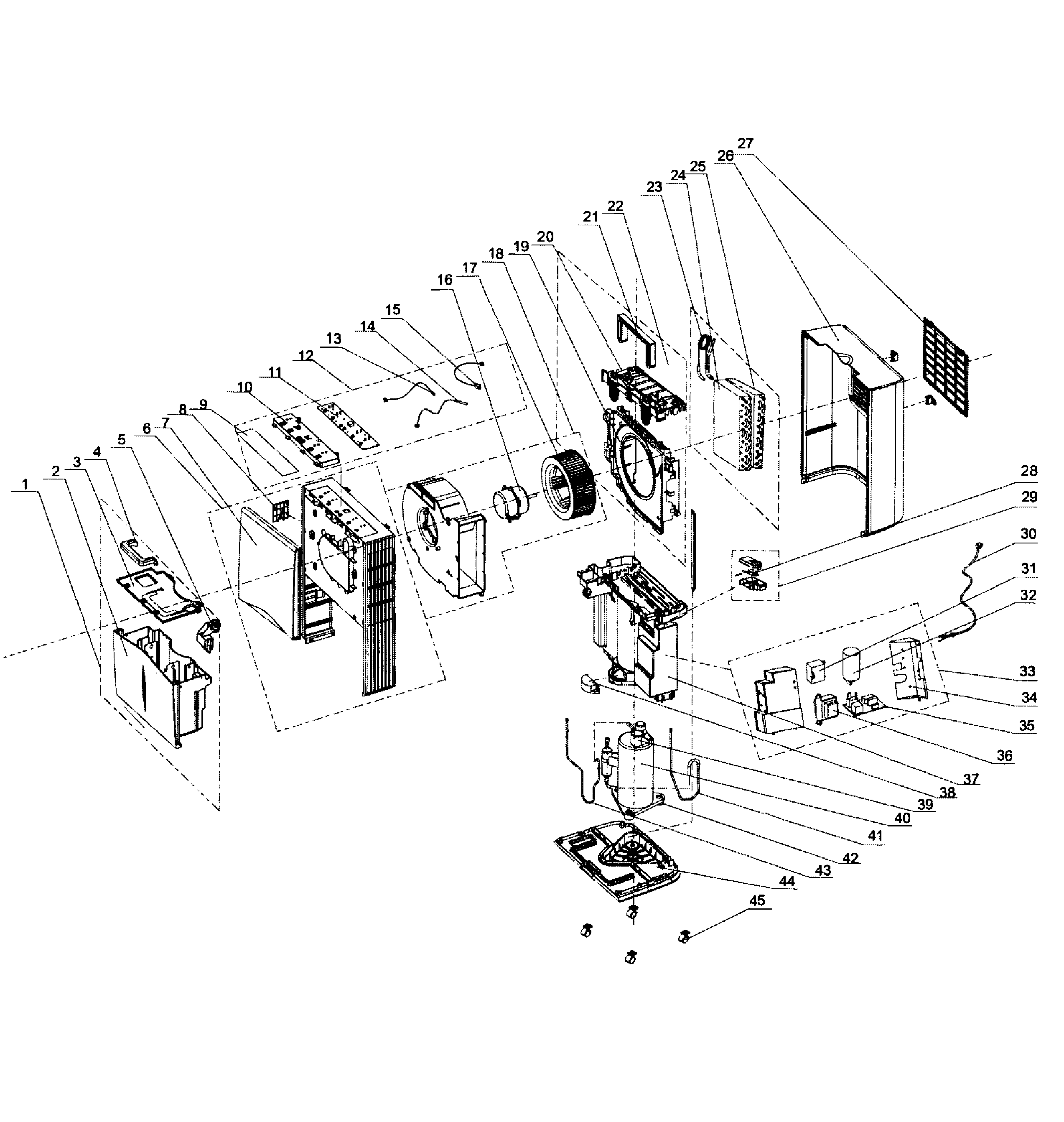

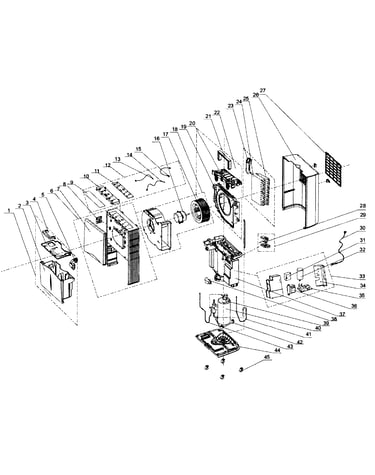

Cabinet parts diagram

Electronic box

Part #01406530

The manufacturer no longer makes this part, and there's no substitute part

#30

Cabinet parts diagram

Power cord

Part #4002039110

The manufacturer no longer makes this part, and there's no substitute part

#10

Cabinet parts diagram

Cover

Part #20126114

The manufacturer no longer makes this part, and there's no substitute part

#18

Cabinet parts diagram

Fan

Part #15006047

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Water-level Switch 45016014

#29

Cabinet parts diagram

Dehumidifier water-level switch

Part #45016014

The manufacturer no longer makes this part, and there's no substitute part

#28

Cabinet parts diagram

Switch

Part #45016506

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Plate

Part #2012611305

The manufacturer no longer makes this part, and there's no substitute part

#26

Cabinet parts diagram

Case

Part #2220652508

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Tank

Part #2018613301

The manufacturer no longer makes this part, and there's no substitute part

#25

Cabinet parts diagram

Dehumidifier evaporator

Part #01036098

The manufacturer no longer makes this part, and there's no substitute part
