Sony
Home Theater System

Model # DAV-IS10 Official Sony home theater

Here are the diagrams and repair parts for Official Sony DAV-IS10 home theater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

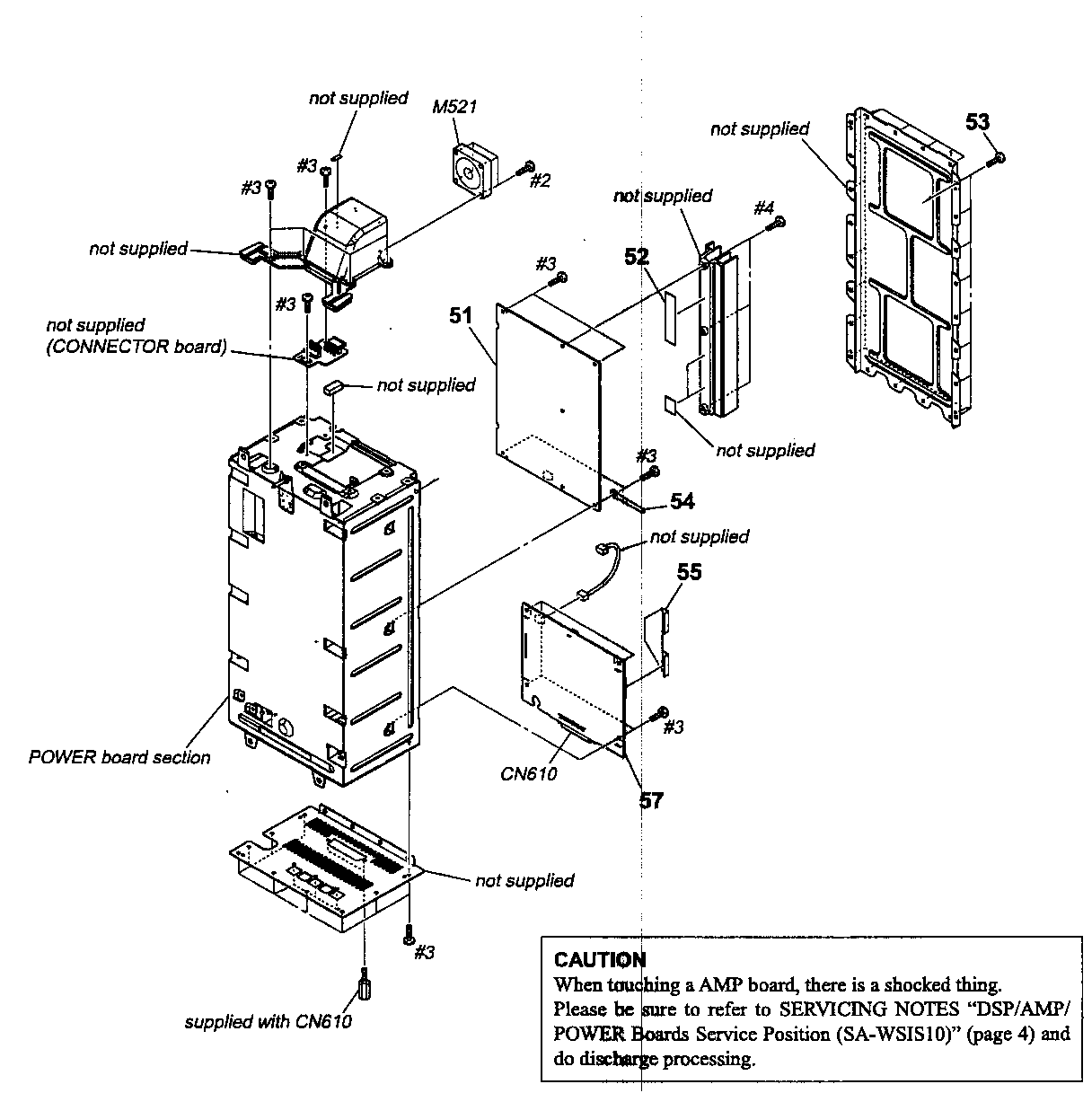

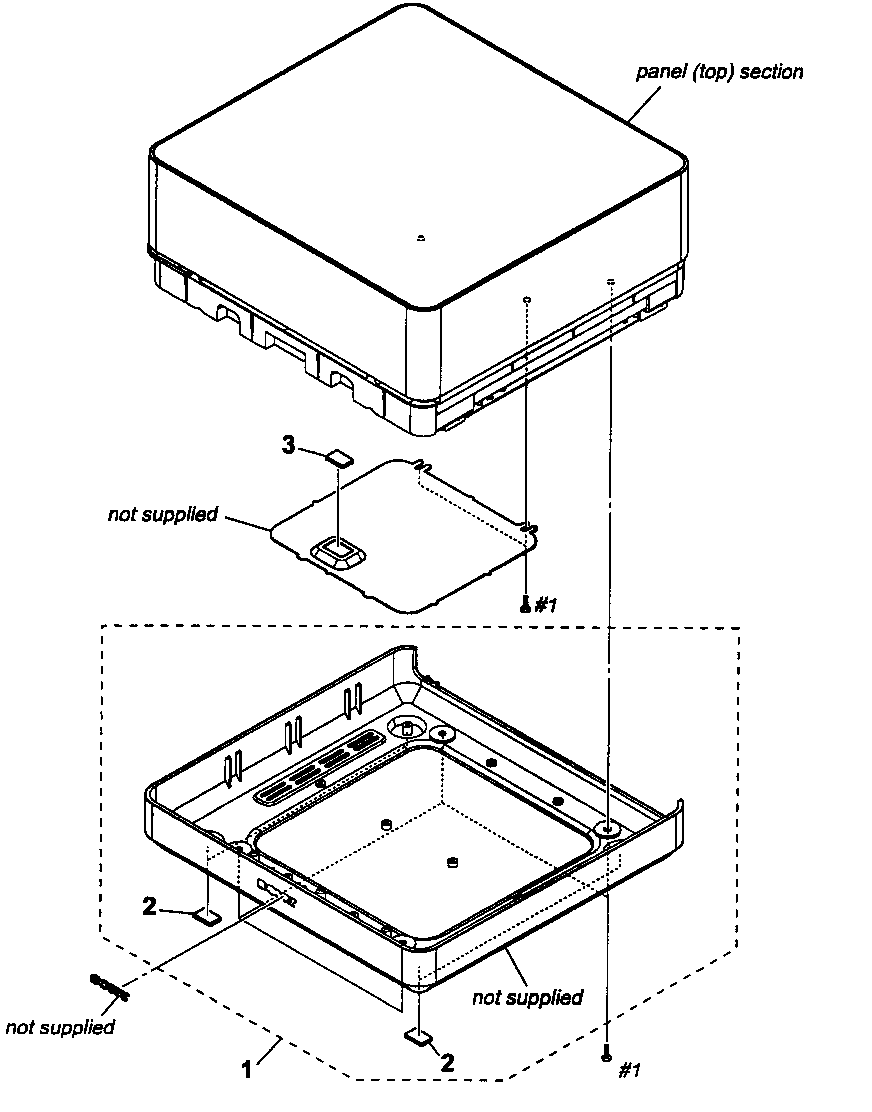

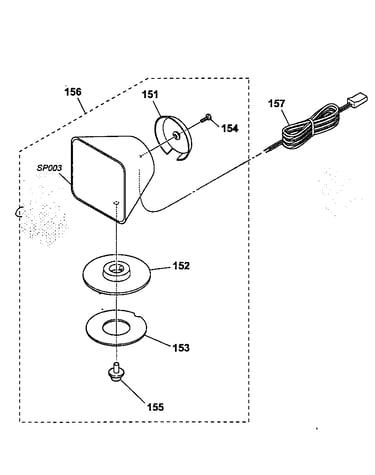

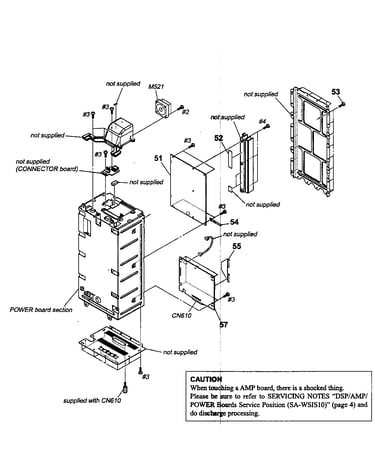

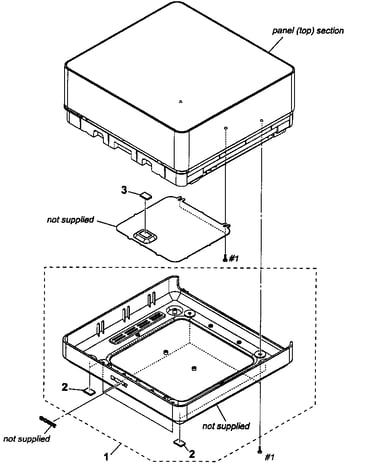

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Integrated Circuit 670649201
#NI

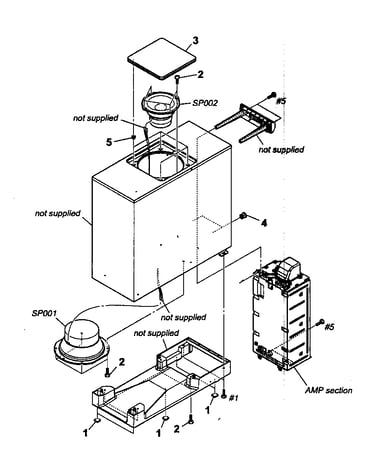

Speaker cabinet assy diagram

Integrated circuit

Part #670649201

The manufacturer no longer makes this part, and there's no substitute part

Wire Flat 182825351
#158

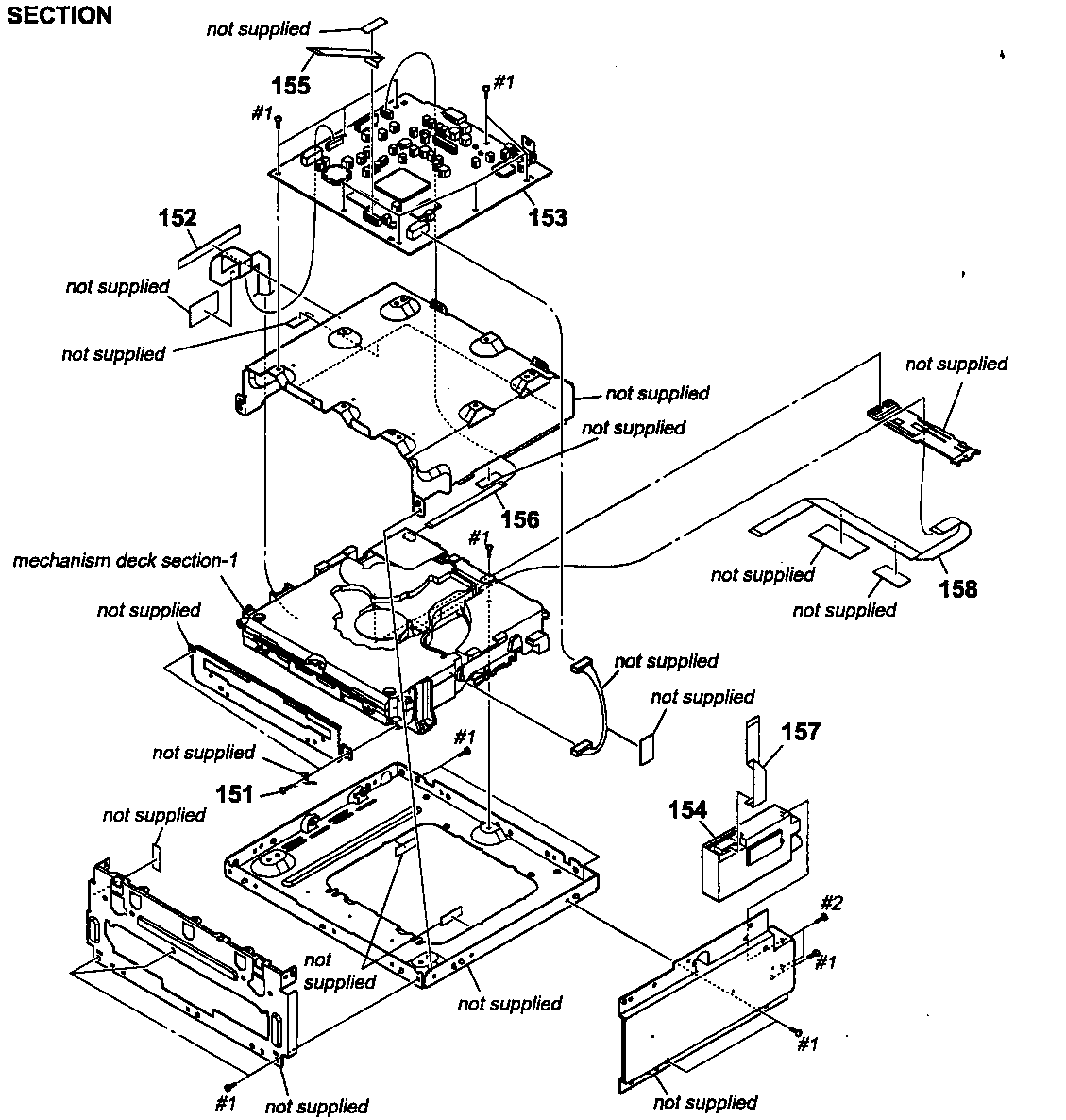

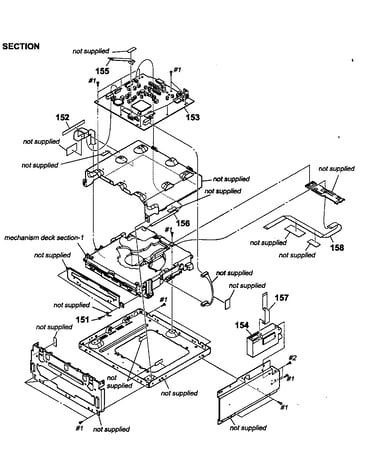

Chassis assy diagram

Wire flat

Part #182825351

The manufacturer no longer makes this part, and there's no substitute part

Power Bd. A1249813A
#102

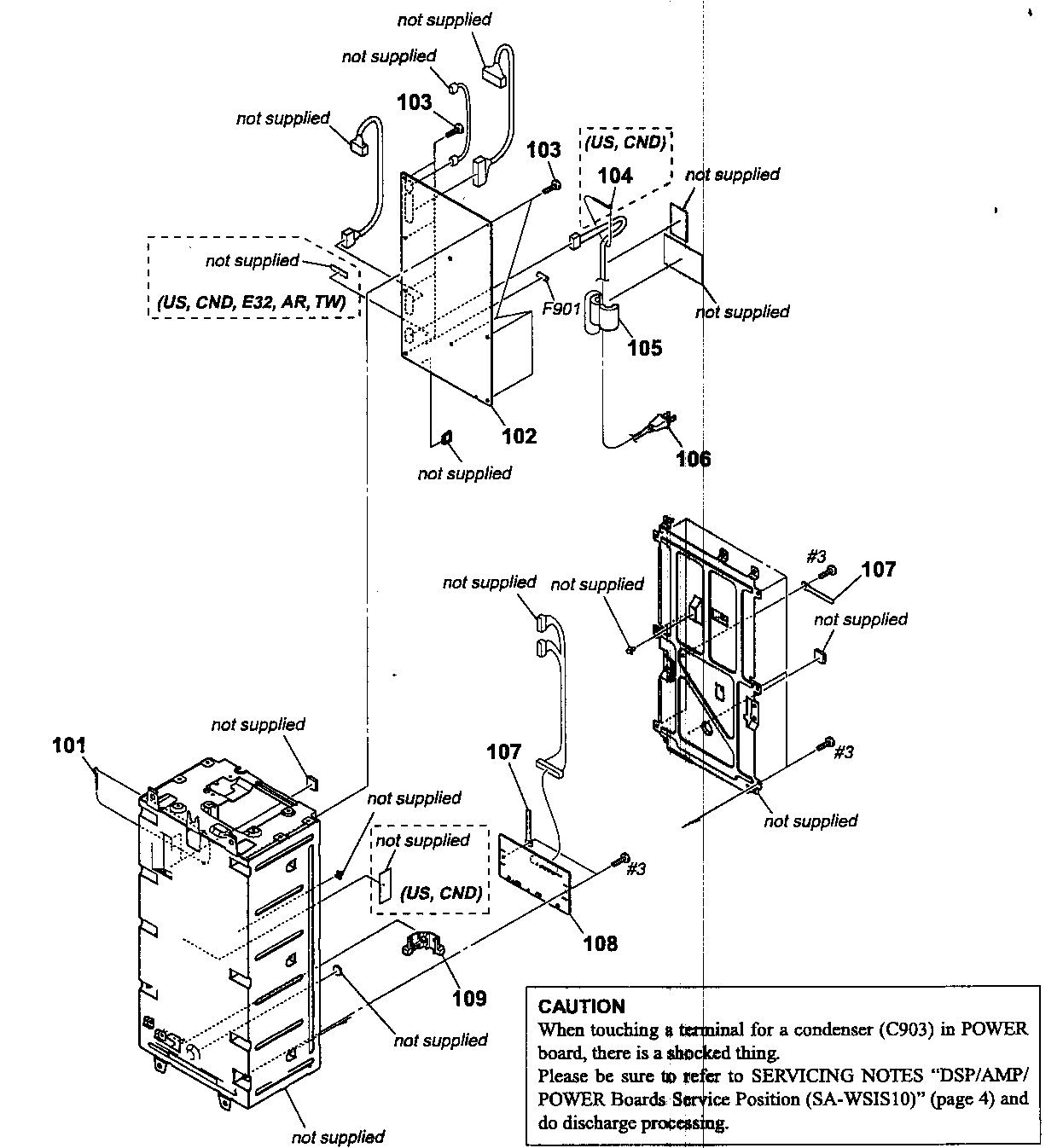

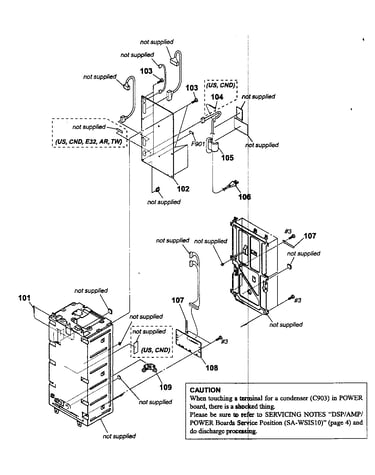

Power board assy diagram

Power bd.

Part #A1249813A

The manufacturer no longer makes this part, and there's no substitute part

Indicator X21793251
#54

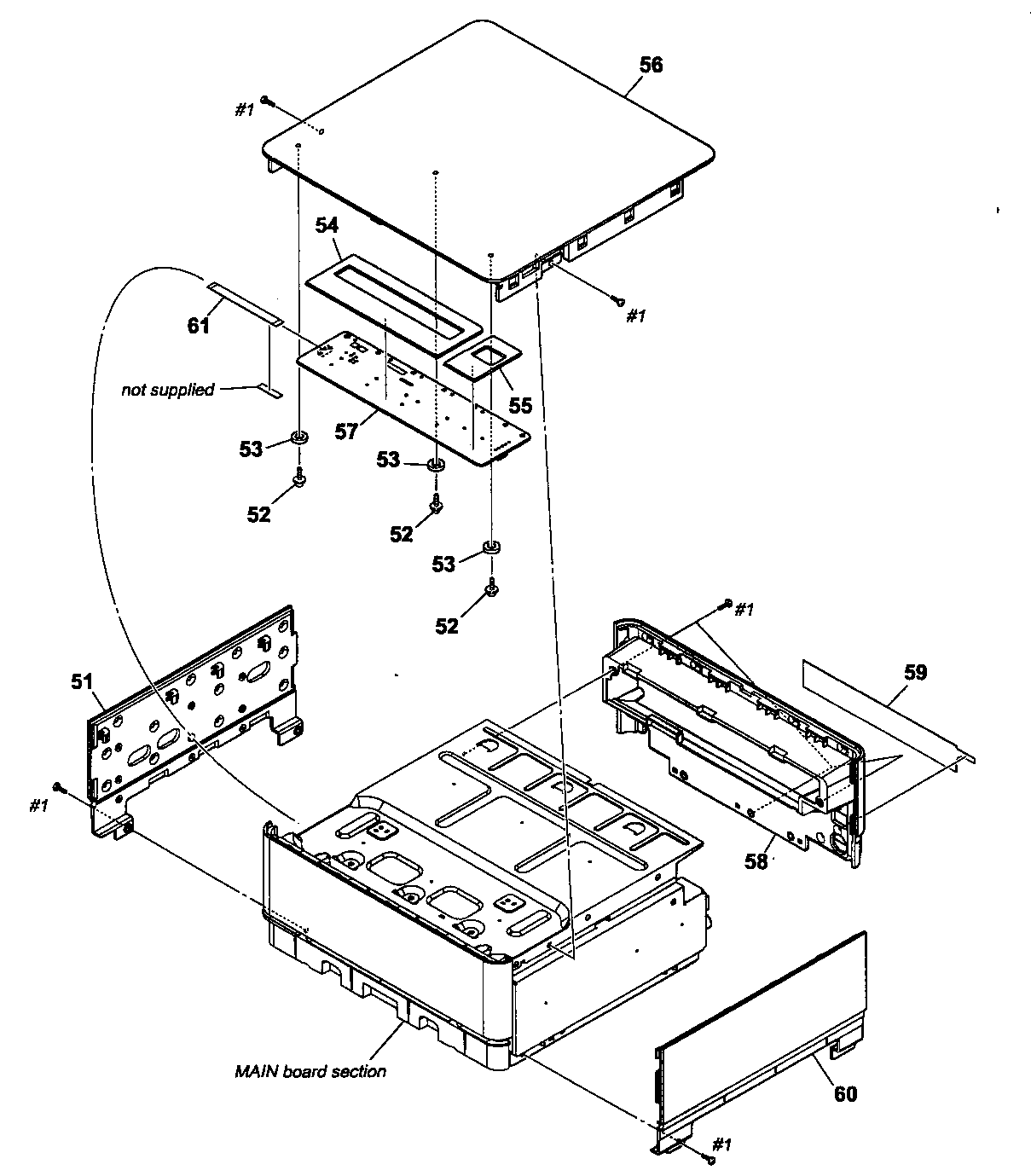

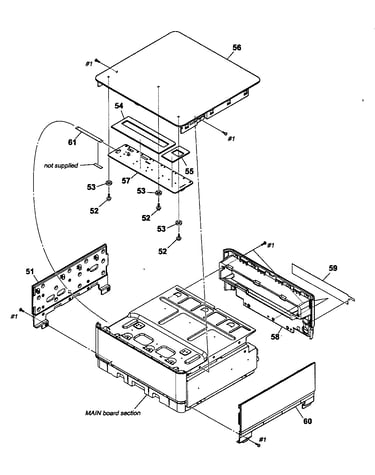

Top panel diagram

Indicator

Part #X21793251

The manufacturer no longer makes this part, and there's no substitute part

Fl Board A1249889A
#102

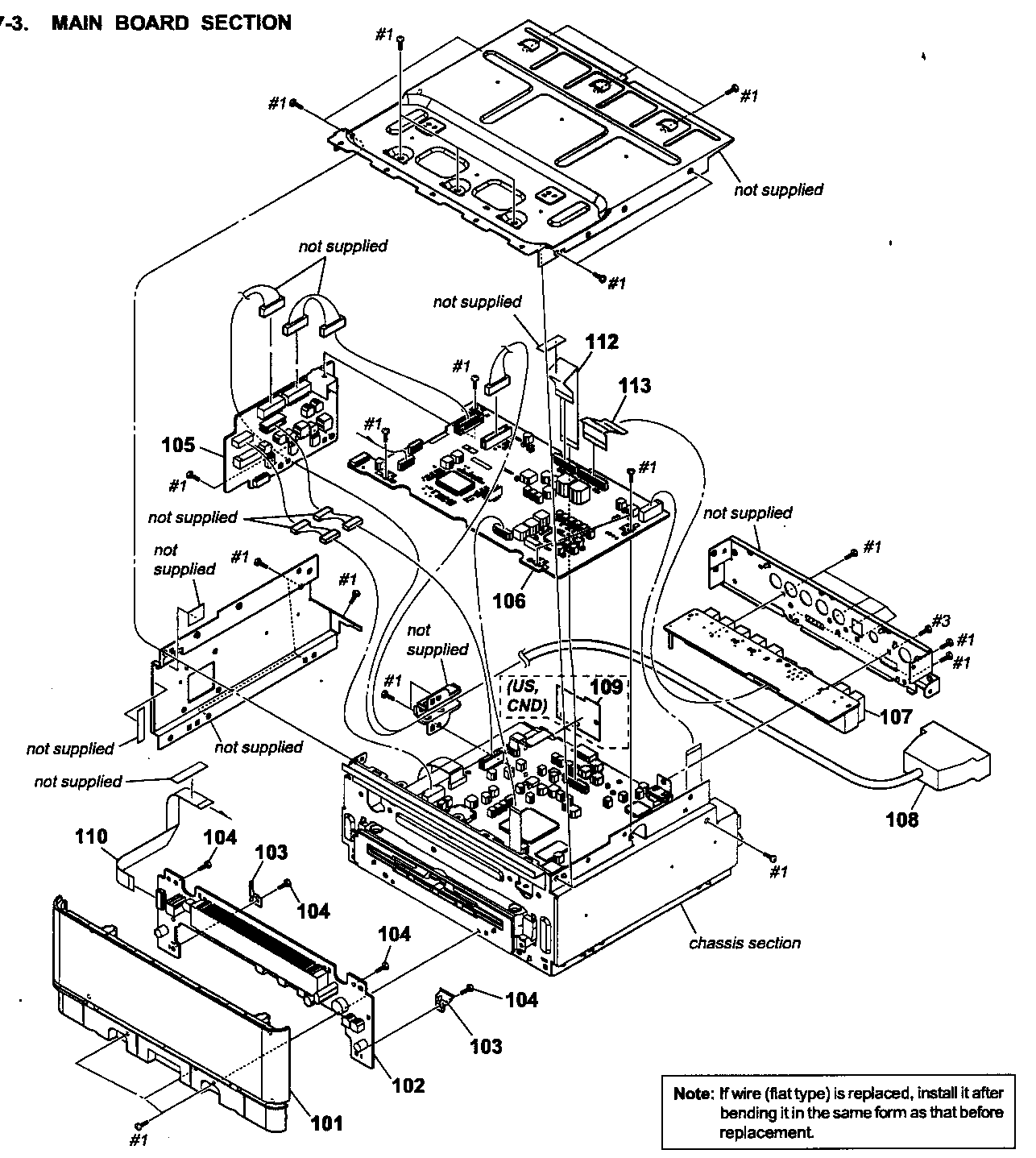

Main board assy diagram

Fl board

Part #A1249889A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670759301
#NI

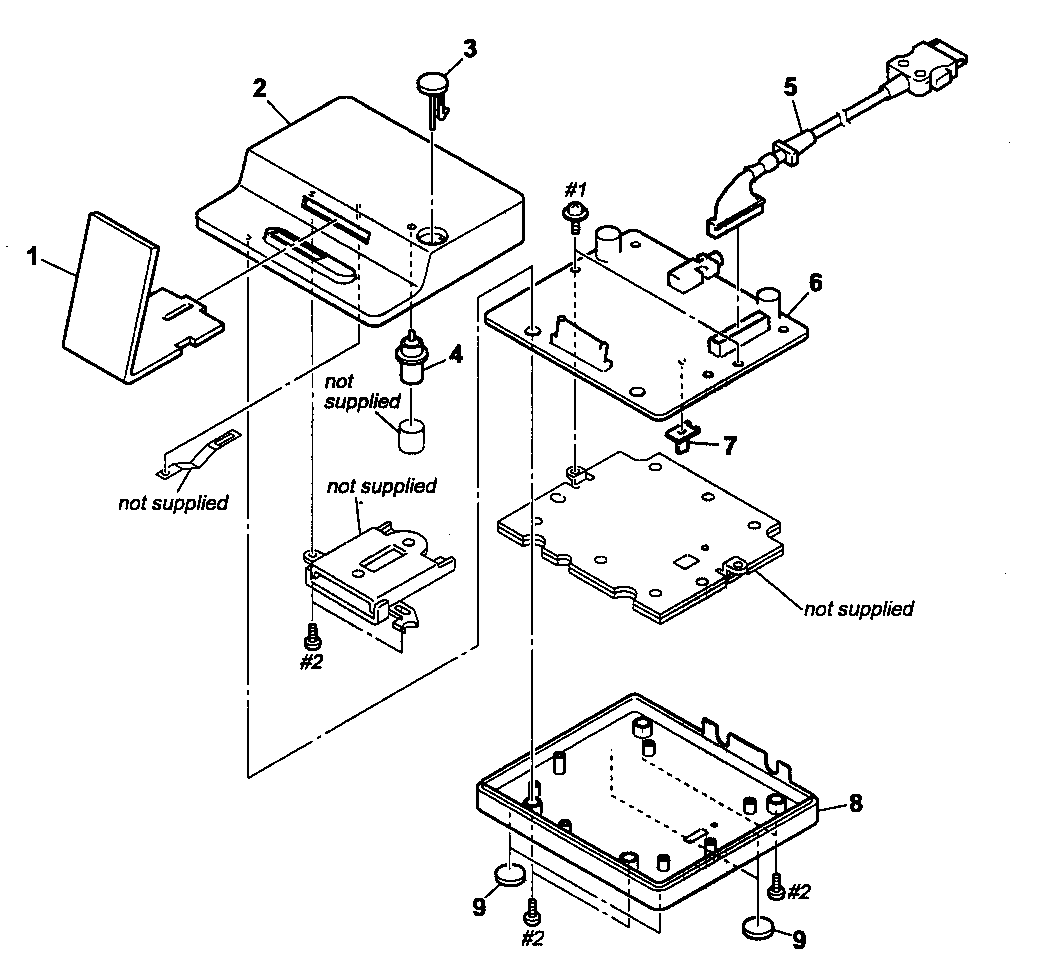

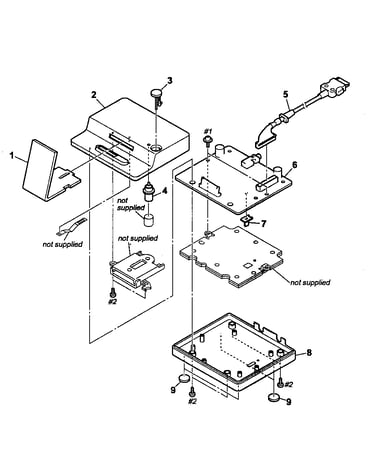

Digital adapter assy diagram

Integrated circuit

Part #670759301

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670988801
#NI

Digital adapter assy diagram

Integrated circuit

Part #670988801

The manufacturer no longer makes this part, and there's no substitute part

Ic, Cxd987 670903501
#NI

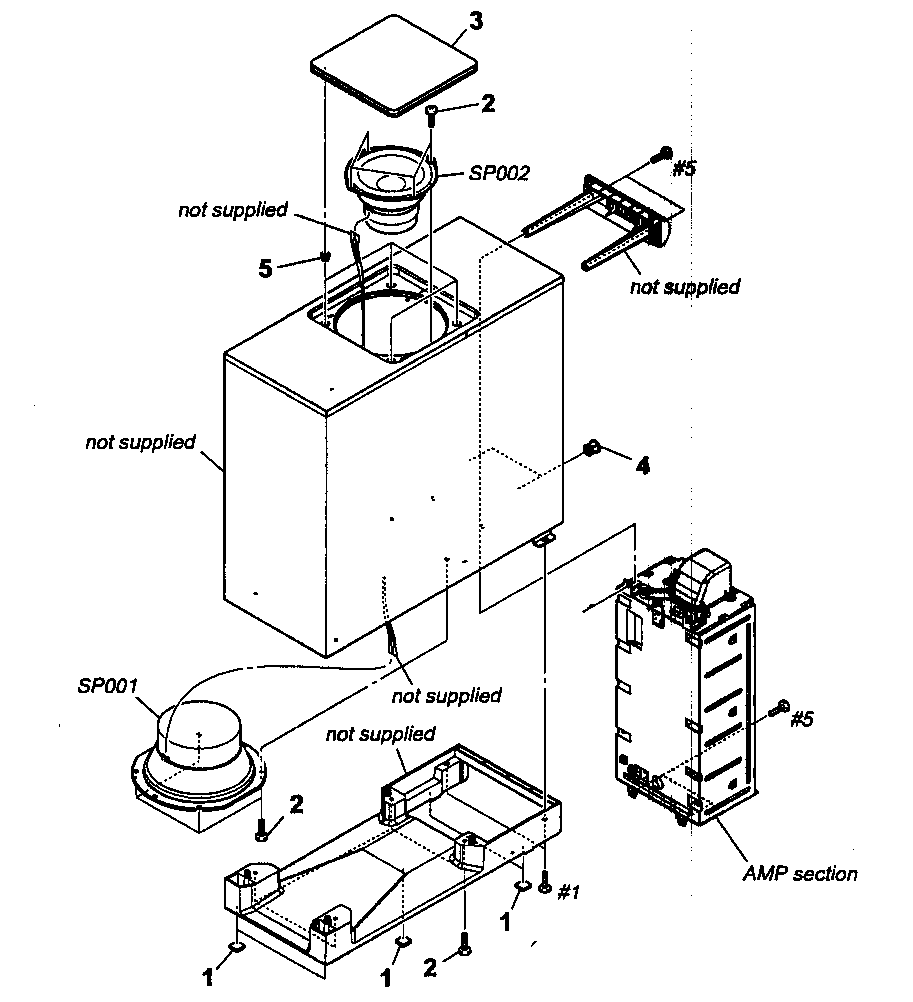

Speaker cabinet assy diagram

Ic, cxd987

Part #670903501

The manufacturer no longer makes this part, and there's no substitute part

Terminal 178031911
#NI

Speaker cabinet assy diagram

Terminal

Part #178031911

The manufacturer no longer makes this part, and there's no substitute part

Main Board A1249884A
#106

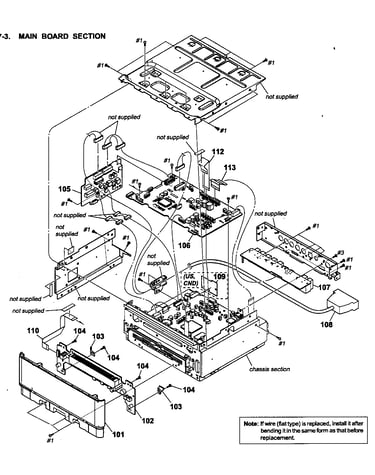

Main board assy diagram

Main board

Part #A1249884A

The manufacturer no longer makes this part, and there's no substitute part
