Model # 90027241 Official Craftsman 2-speed electric orbital sabre saw

Here are the diagrams and repair parts for Official Craftsman 90027241 2-speed electric orbital sabre saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |

Brinley Power Tool 2-prong Power Cord 448557-98
#8

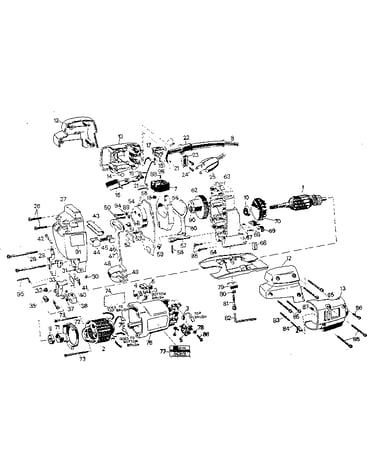

Unit parts diagram

Brinley power tool 2-prong power cord

Part #448557-98

The manufacturer no longer makes this part, and there's no substitute part

Sears Plug 234900-02
#25

Unit parts diagram

Sears plug

Part #234900-02

The manufacturer no longer makes this part, and there's no substitute part

Fork 133799
#60

Unit parts diagram

Fork

Part #133799

The manufacturer no longer makes this part, and there's no substitute part

Spring 49161
#45

Unit parts diagram

Spring

Part #49161

The manufacturer no longer makes this part, and there's no substitute part

Screw 98093-25
#26

Unit parts diagram

Screw

Part #98093-25

The manufacturer no longer makes this part, and there's no substitute part

Gasket 133765
#55

Unit parts diagram

Gasket

Part #133765

The manufacturer no longer makes this part, and there's no substitute part

Clamp 133750
#79

Unit parts diagram

Clamp

Part #133750

The manufacturer no longer makes this part, and there's no substitute part

Lip Seal Plt 400721
#48

Unit parts diagram

Lip seal plt

Part #400721

The manufacturer no longer makes this part, and there's no substitute part

Shaft Seal 133807
#49

Unit parts diagram

Shaft seal

Part #133807

The manufacturer no longer makes this part, and there's no substitute part

Yoke Bar 445387
#47

Unit parts diagram

Yoke bar

Part #445387

The manufacturer no longer makes this part, and there's no substitute part
