Model # GTUP270EM0WW Official GE stacked laundry center

Here are the diagrams and repair parts for Official GE GTUP270EM0WW stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

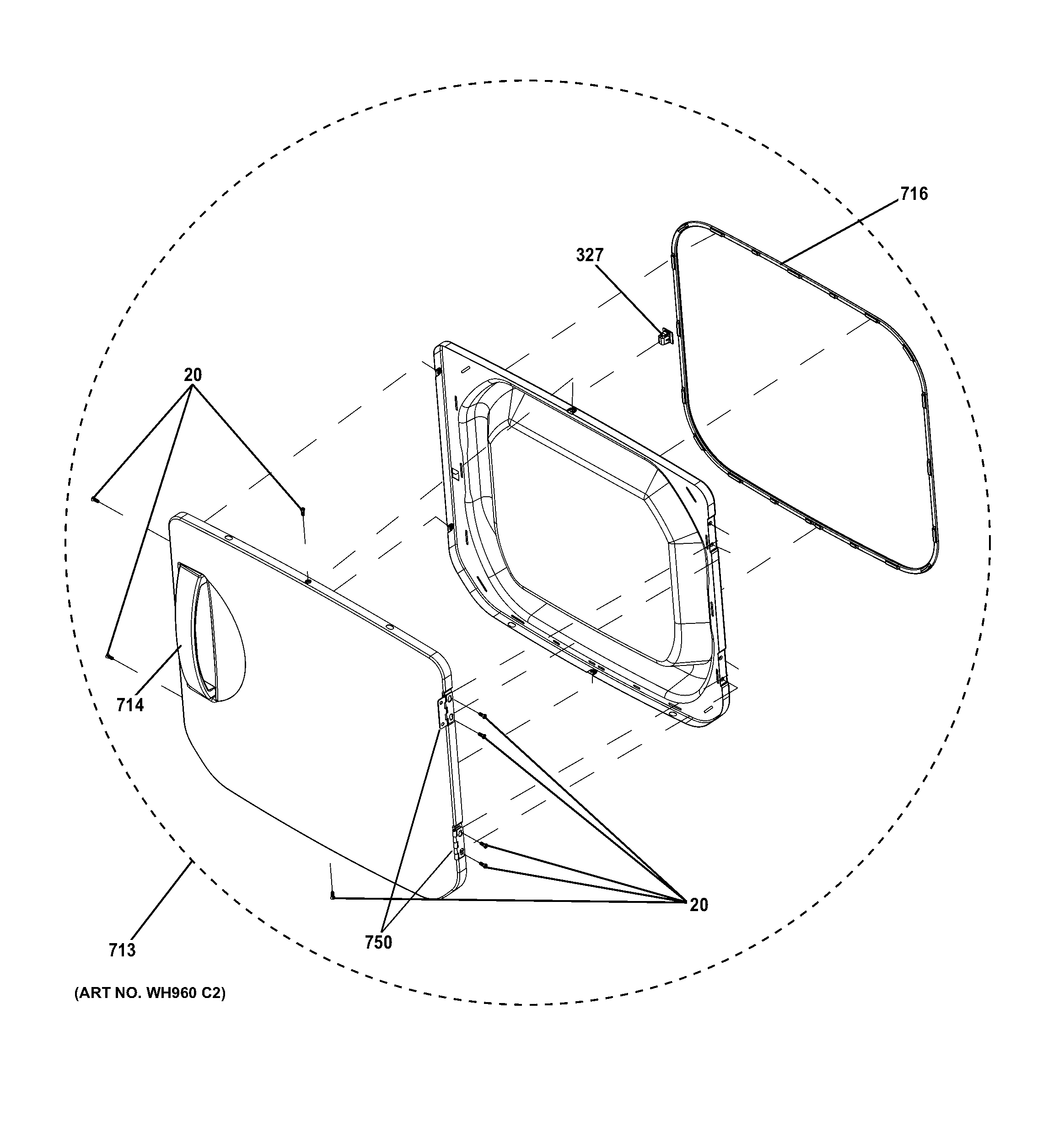

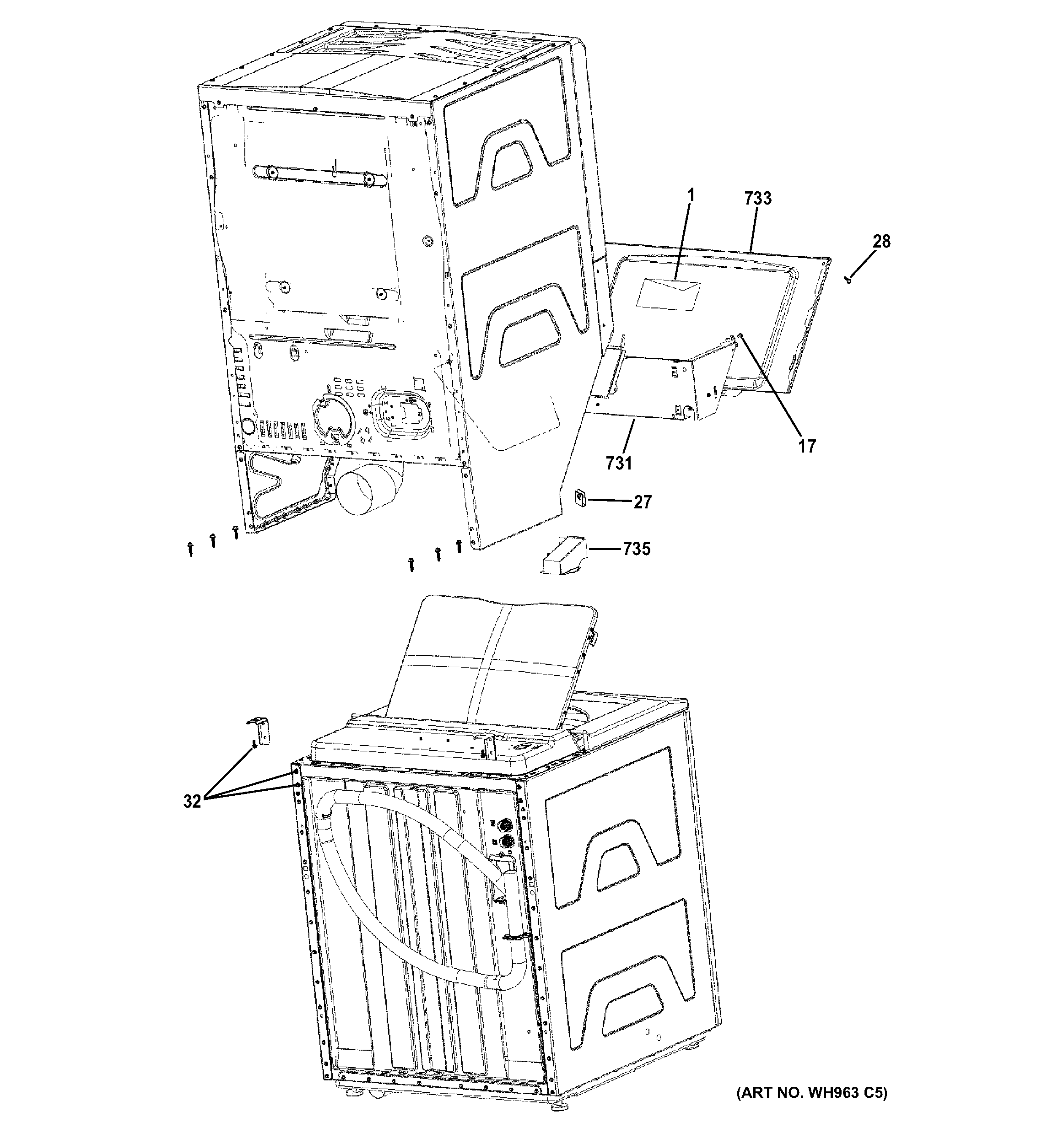

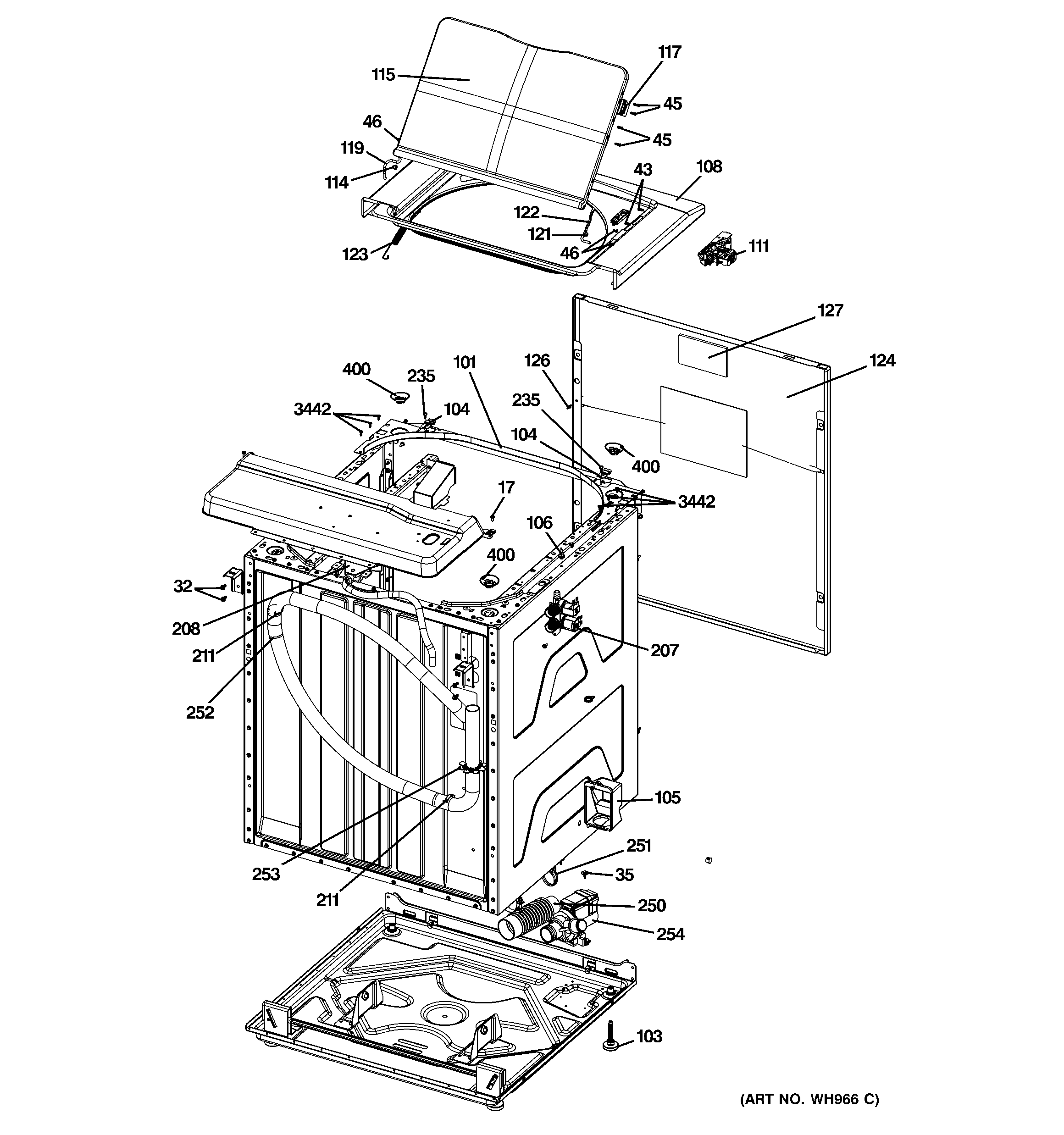

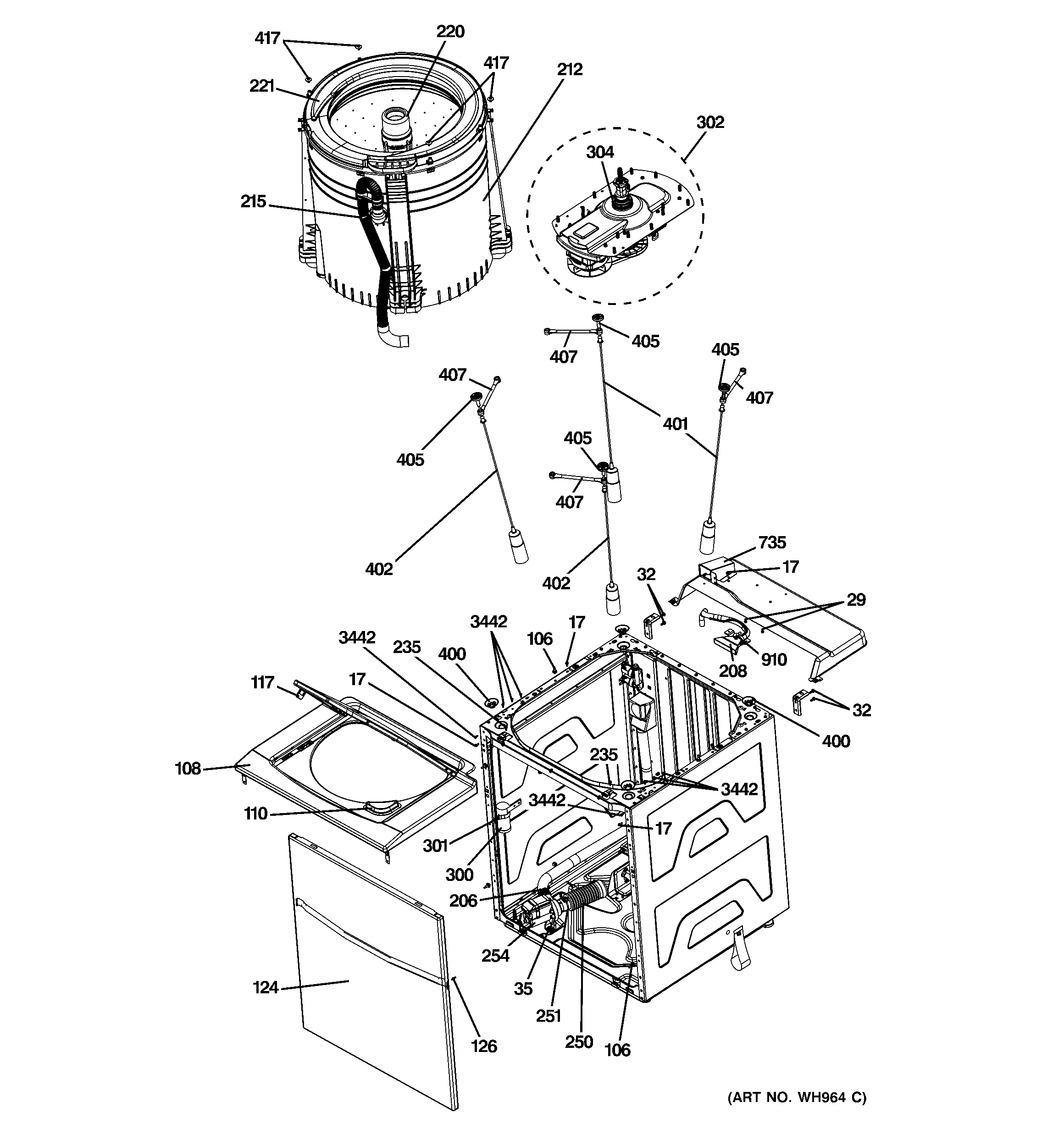

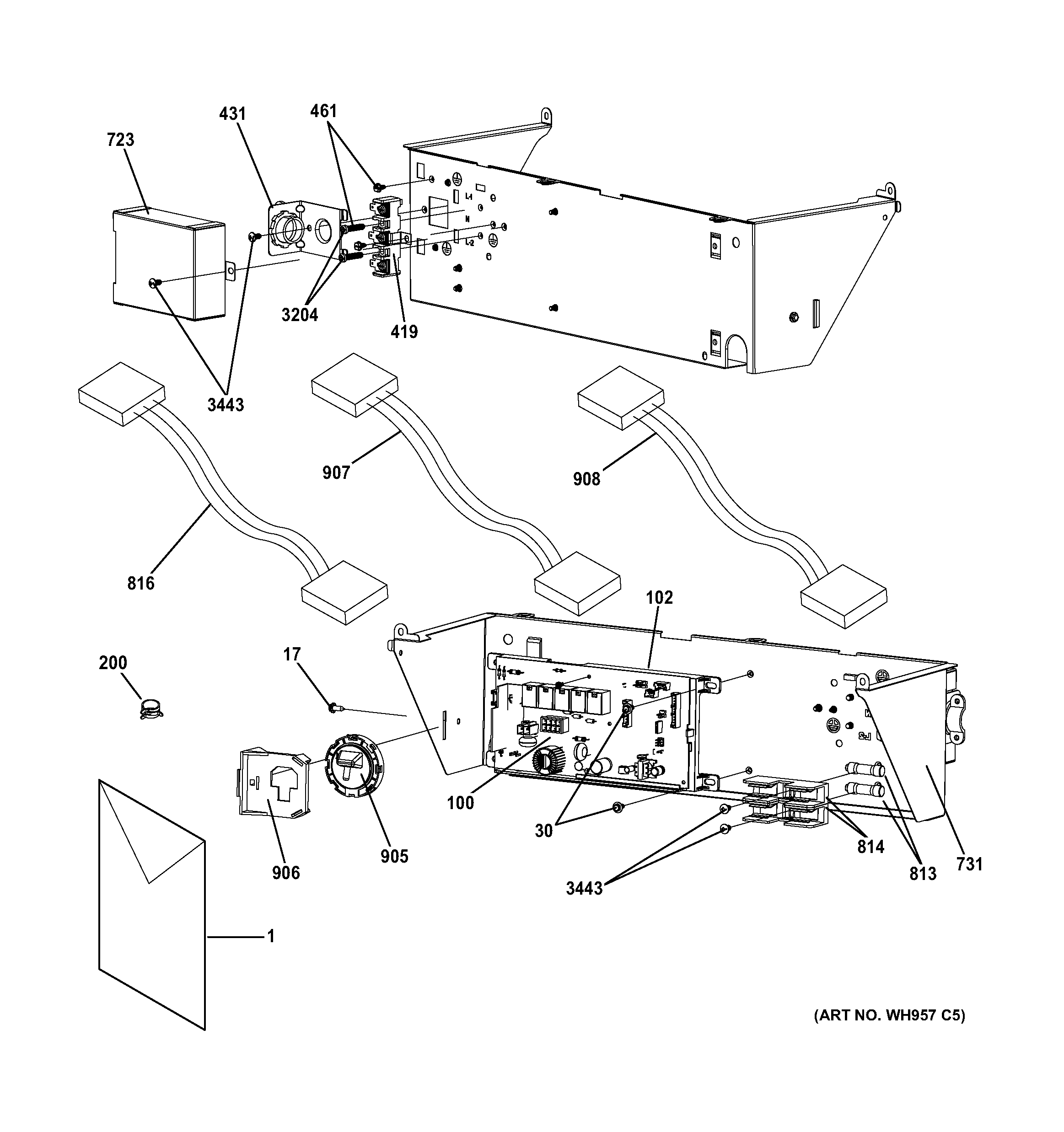

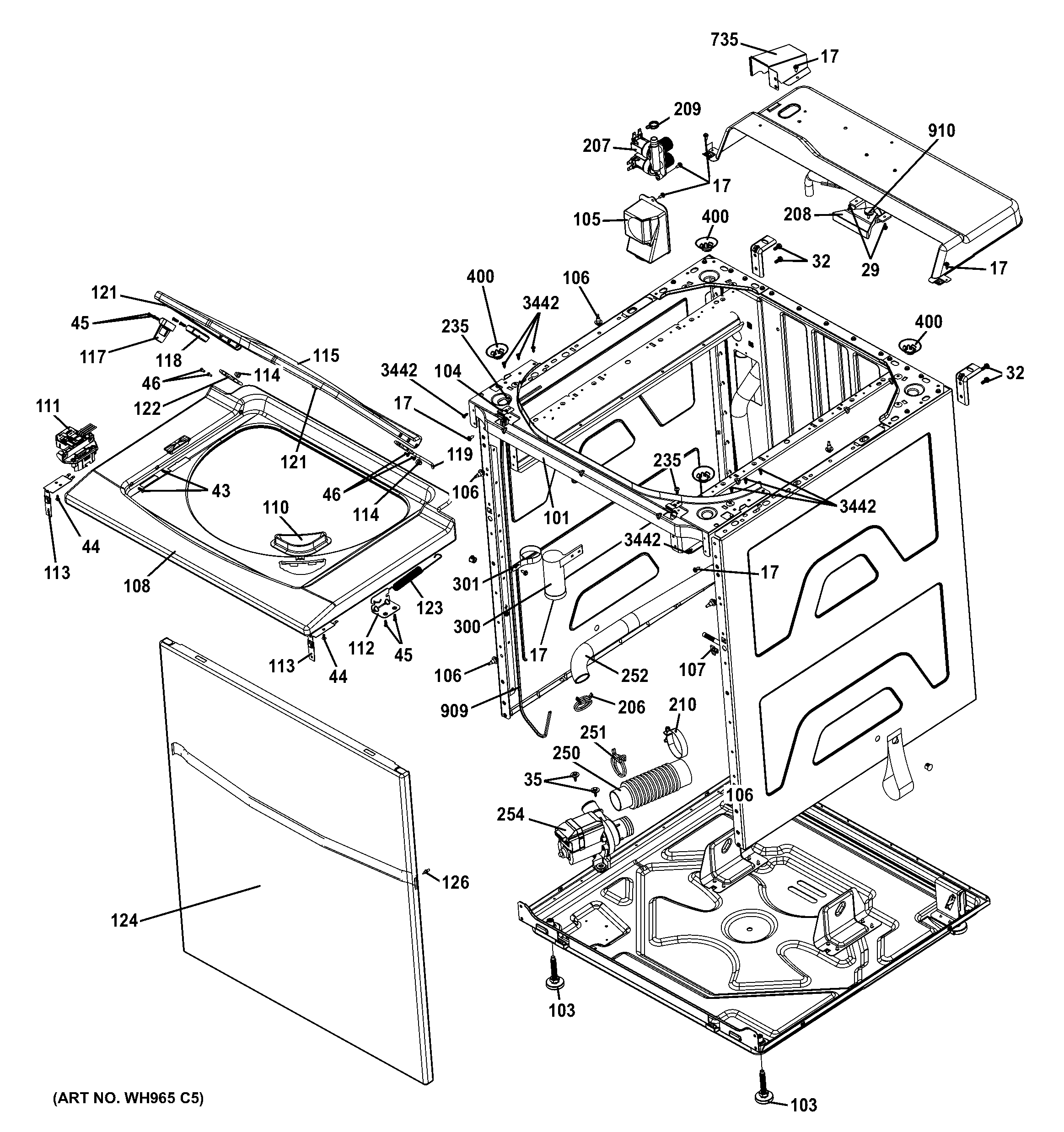

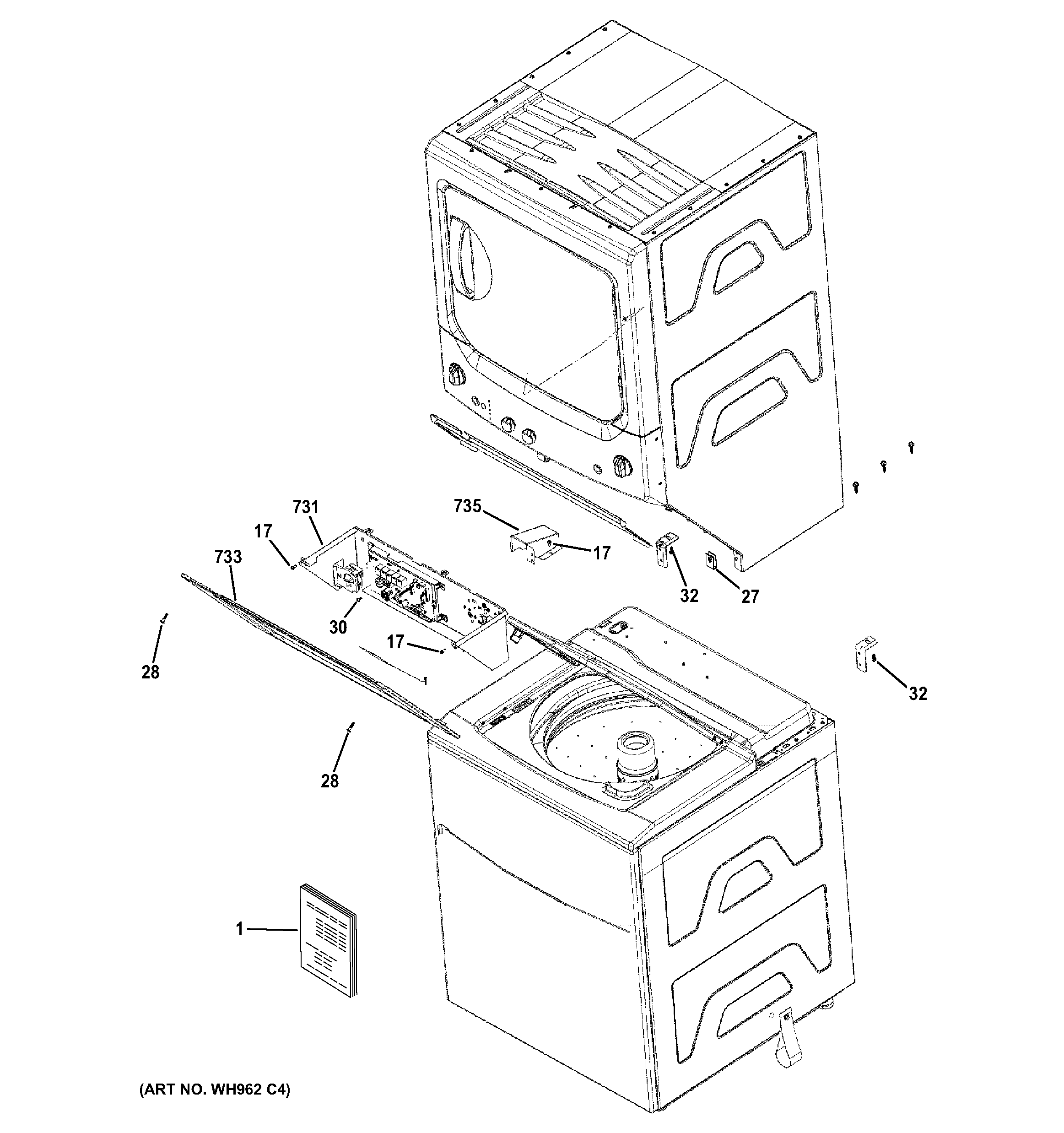

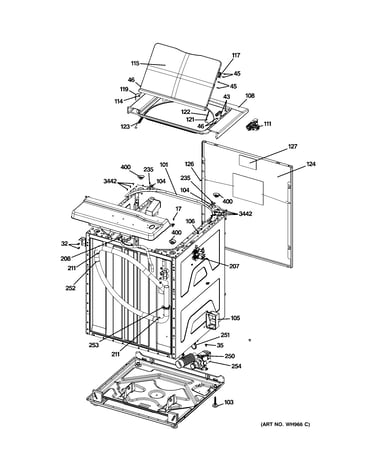

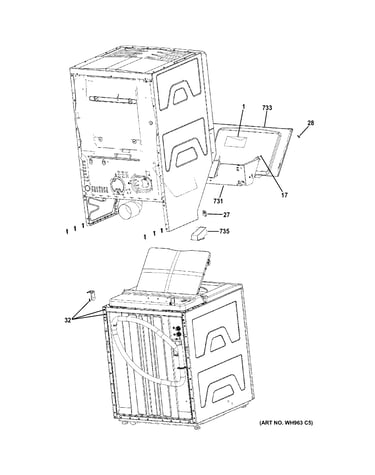

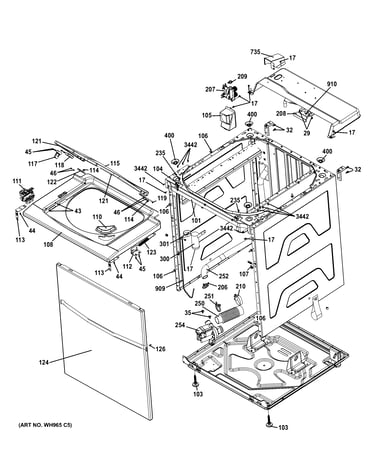

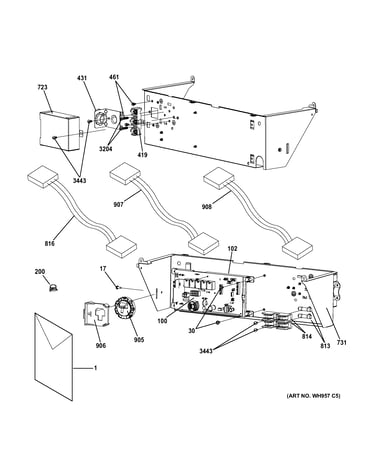

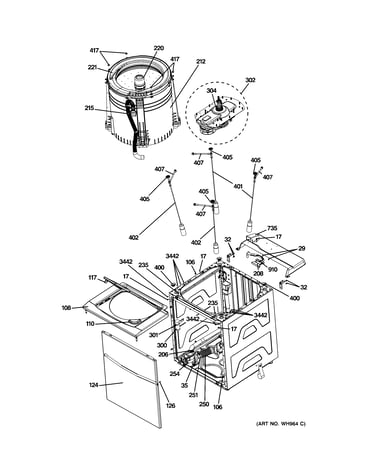

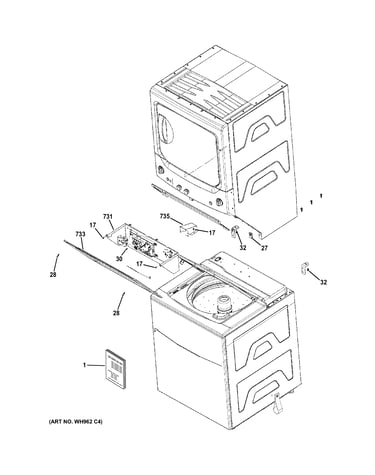

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Washer Lid Lock WH44X10288
Washer lid lock

Part #WH44X10288

BEST SELLER
$74.29 |
8% OFF Was : $80.81
In Stock
Dryer Drum Bearing, Front (replaces We03m0026, We3m20) WE3M26
#512

Front panel diagram

Dryer drum bearing, front (replaces we03m0026, we3m20)

Part #WE3M26

BEST SELLER
$30.11 |
17% OFF Phone Price : $36.11
In Stock
Dryer Push-to-start Switch (replaces We04m0416, We4m367) WE4M416
#808

Front panel diagram

Dryer push-to-start switch (replaces we04m0416, we4m367)

Part #WE4M416

BEST SELLER
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Dryer Blower Wheel WE16M17
#201

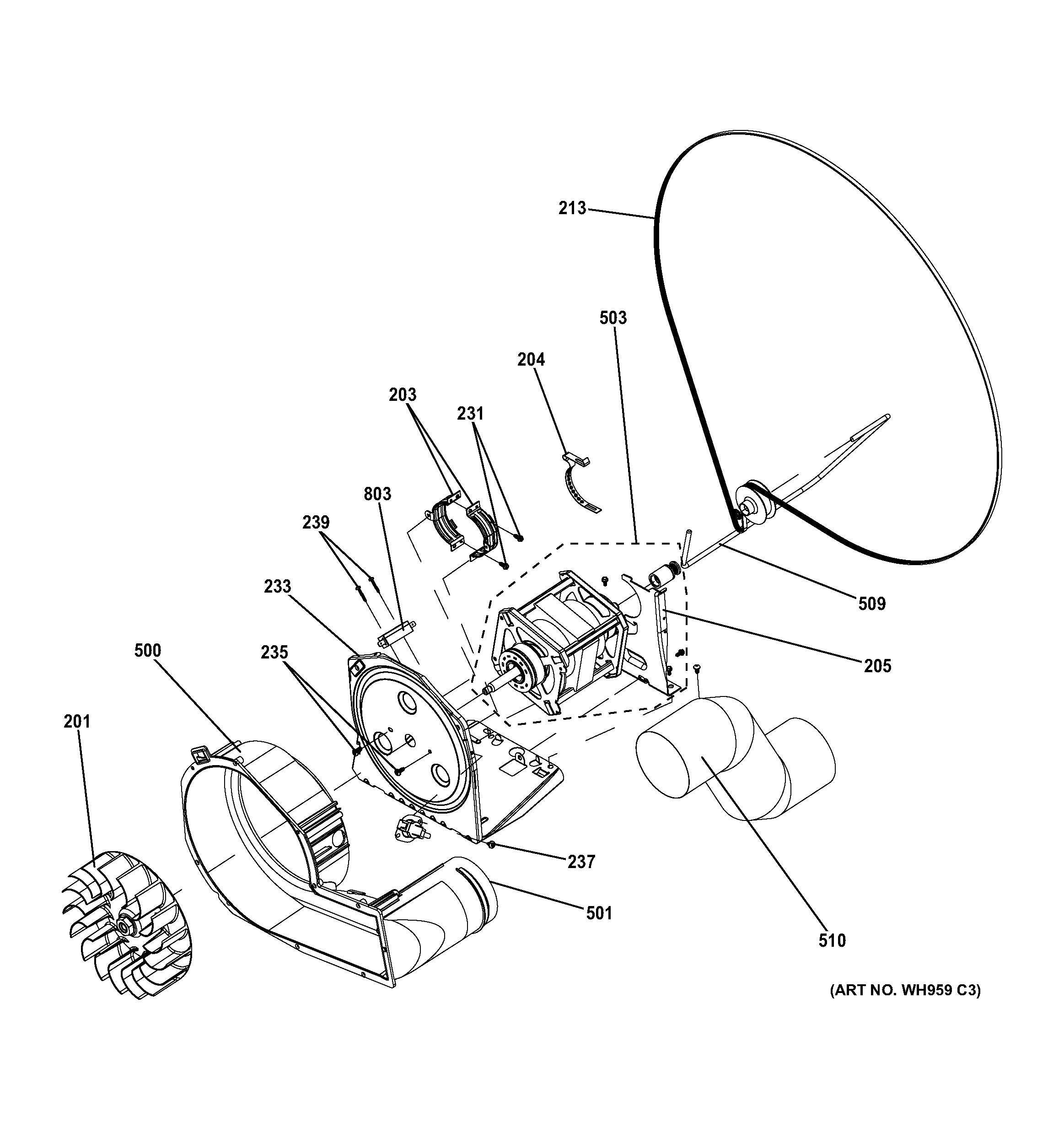

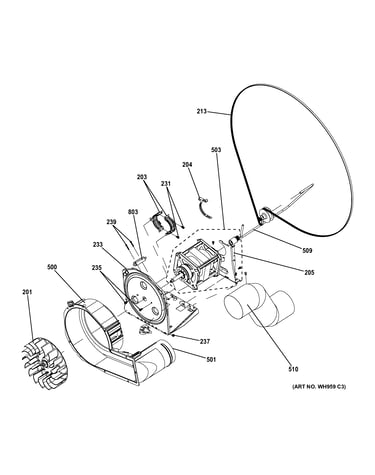

Blower & motor assembly diagram

Dryer blower wheel

Part #WE16M17

Replaced by #WE16X20393

?
Manufacturer substitution
This part replaces WE16M17. Substitute parts can look different from the original.
BEST SELLER
$42.32 |
12% OFF Phone Price : $48.32
In Stock
Dryer Operating Thermostat (replaces We04m0181, We4m0181, We4m245) WE4M181
#505

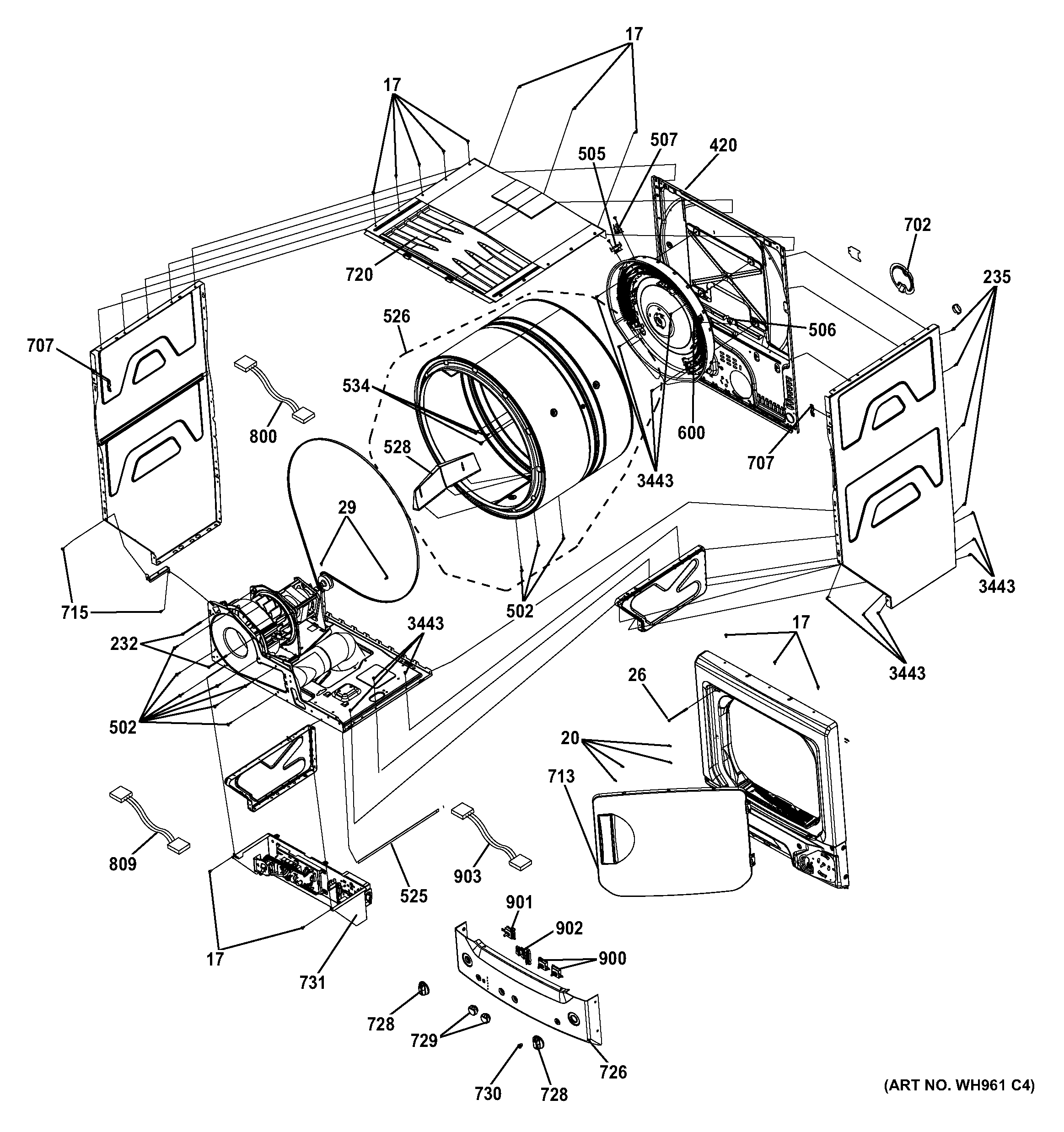

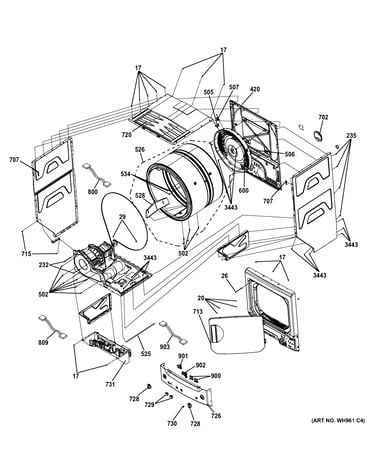

Cabinet (1) diagram

Dryer operating thermostat (replaces we04m0181, we4m0181, we4m245)

Part #WE4M181

BEST SELLER
$31.33
In Stock
Washer Fork Support Assembly WH16X10147
#307

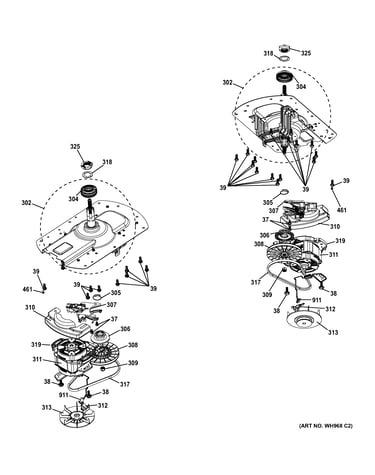

Motor & drive assembly diagram

Washer fork support assembly

Part #WH16X10147

BEST SELLER
$61.88 |
9% OFF Phone Price : $67.88
In Stock
Speed Sensor WH12X10515
#911

Motor & drive assembly diagram

Speed sensor

Part #WH12X10515

Replaced by #WL49X20360

?
Manufacturer substitution
This part replaces WH12X10515. Substitute parts can look different from the original.
BEST SELLER
$28.47 |
17% OFF Phone Price : $34.47
In Stock
Laundry Center Dryer Safety Thermostat (replaces We04m0528) WE4M528
#507

Cabinet (1) diagram

Laundry center dryer safety thermostat (replaces we04m0528)

Part #WE4M528

BEST SELLER
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Laundry Center Washer Drive Motor Pulley WH01X10608
#313

Motor & drive assembly diagram

Laundry center washer drive motor pulley

Part #WH01X10608

BEST SELLER
$60.02 |
9% OFF Phone Price : $66.02
In Stock
Washer Shifter Spring WH01X10606
#305

Motor & drive assembly diagram

Washer shifter spring

Part #WH01X10606

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
