Model # RBS275PDB17 Official Whirlpool electric built-in oven
Here are the diagrams and repair parts for Official Whirlpool RBS275PDB17 electric built-in oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forRBS275PDB17 Wall Ovens
- #22

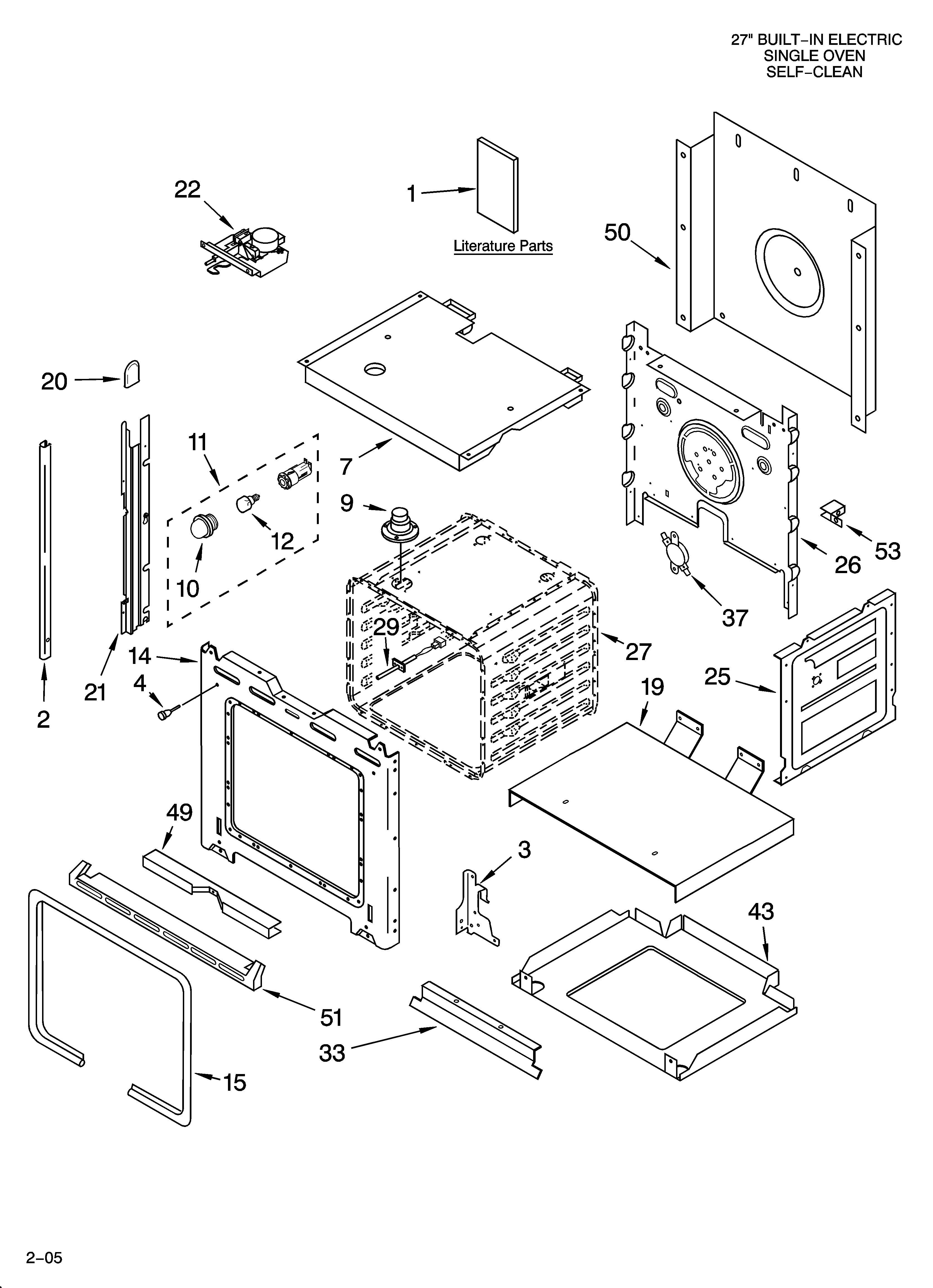

Oven parts diagram
Oven door latchPart #9759481
Replaced by #WPW10195934
?Manufacturer substitutionThis part replaces 9759481. Substitute parts can look different from the original.$136.03 |8% OFF Phone Price : $148.03In Stock - #9A
Oven parts diagram
ScrewPart #3196176
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 3196176. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #3

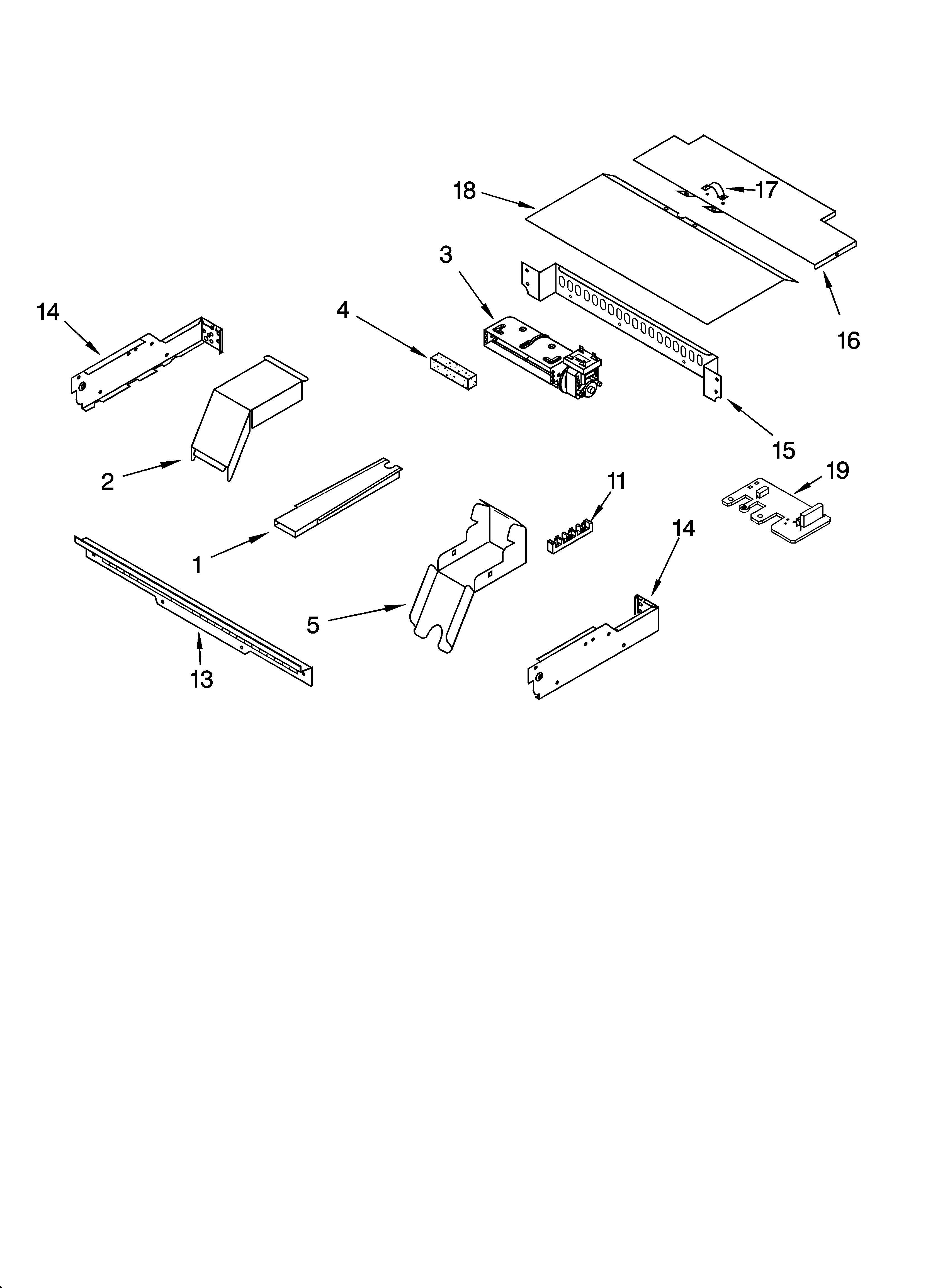

Top venting parts, optional parts diagram
BlowerPart #4457289
Replaced by #WPW10176670
?Manufacturer substitutionThis part replaces 4457289. Substitute parts can look different from the original.$168.89 |7% OFF Phone Price : $180.89In Stock - #1C

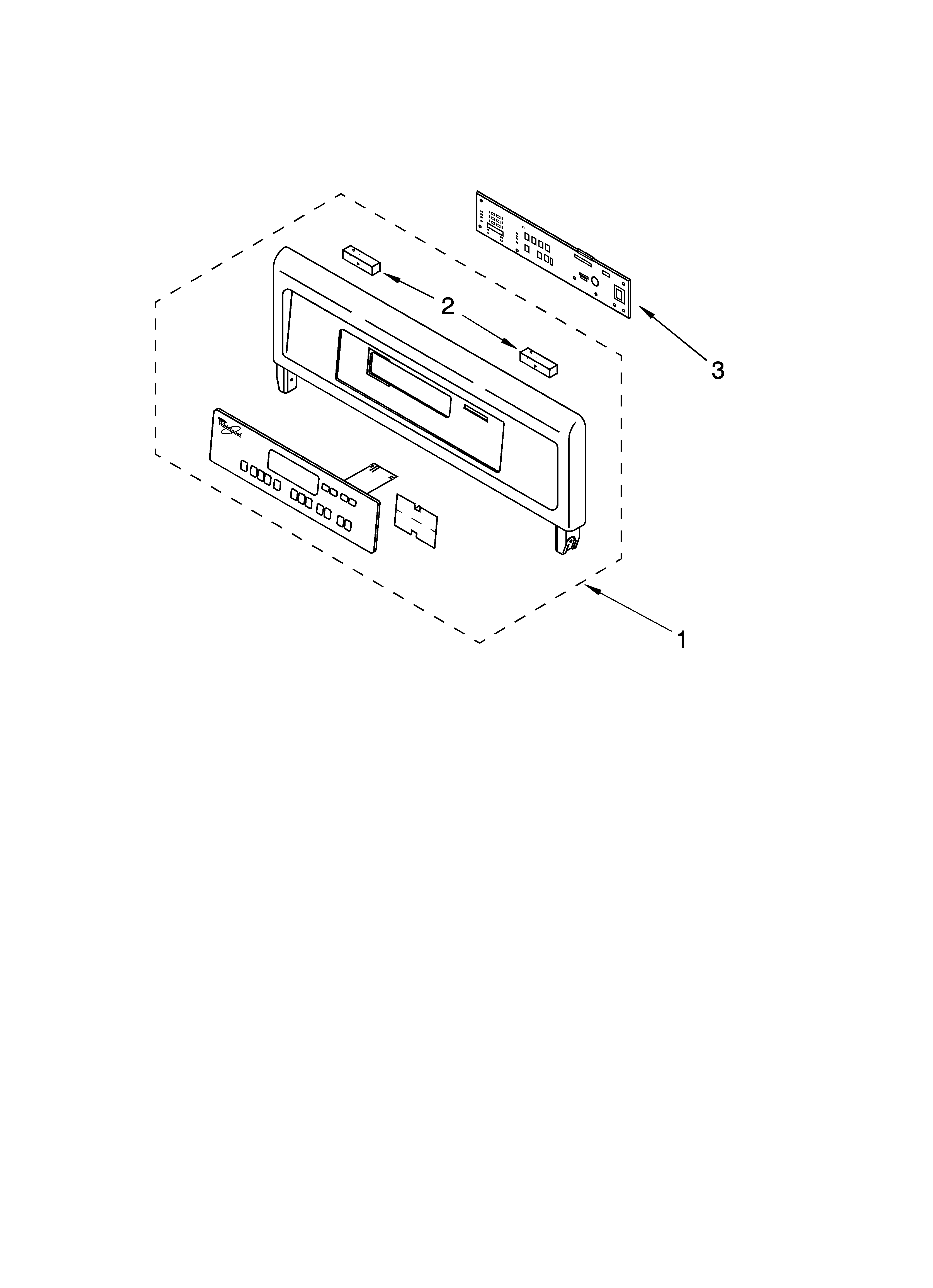

Control panel parts diagram
ScrewPart #8281179
Replaced by #WP3400832
?Manufacturer substitutionThis part replaces 8281179. Substitute parts can look different from the original.This item is not returnable$4.41 |18% OFF Phone Price : $5.41In Stock - Screw
Part #3400832
Replaced by #WP3400832
?Manufacturer substitutionThis part replaces 3400832. Substitute parts can look different from the original.This item is not returnable$4.41 |18% OFF Phone Price : $5.41In Stock - #12

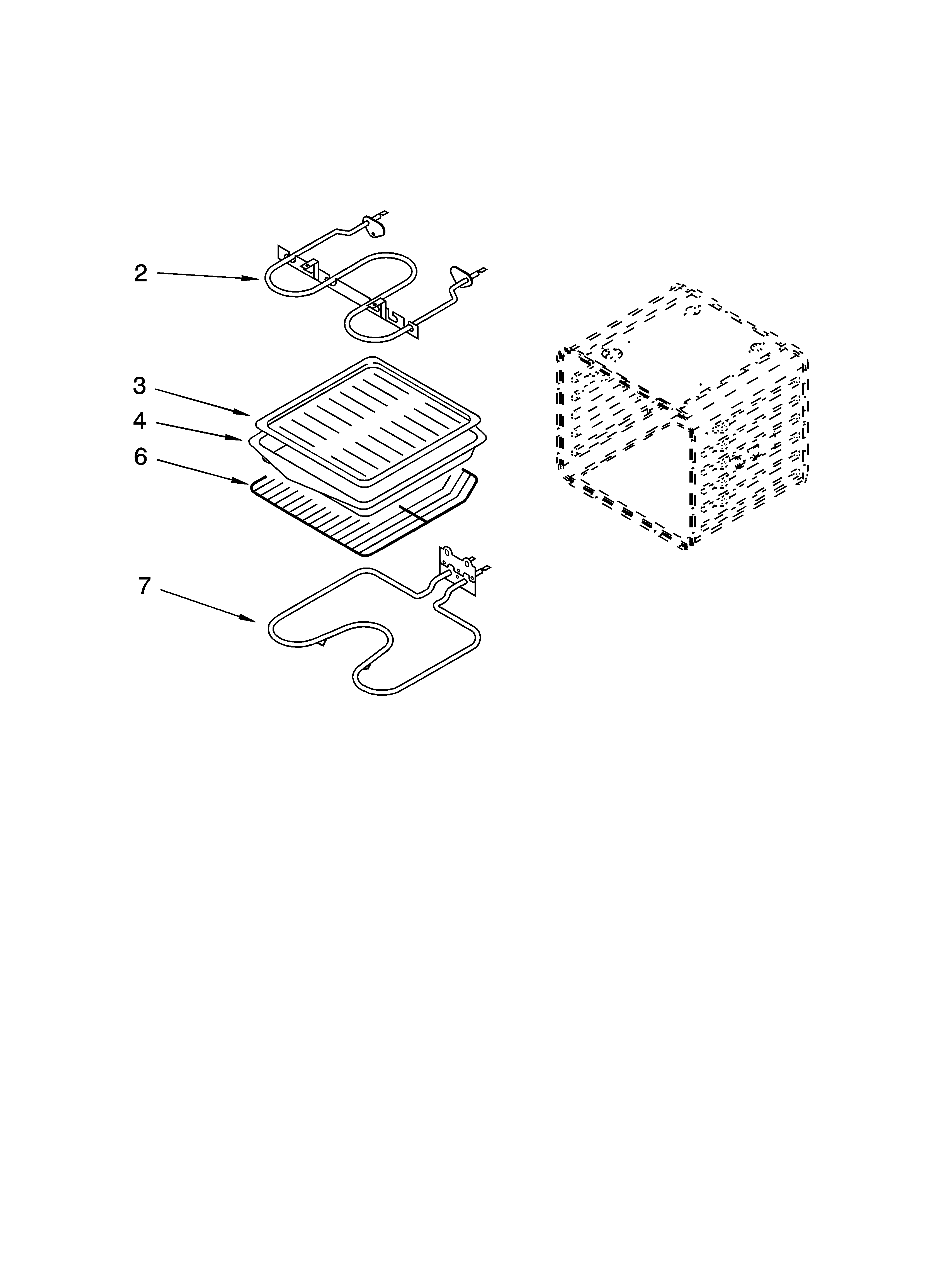

Oven parts diagram
Light bulbPart #4452166
Replaced by #WP4173175
?Manufacturer substitutionThis part replaces 4452166. Substitute parts can look different from the original.This item is not returnable$35.88 |14% OFF Phone Price : $41.88In Stock - #NI
Top venting parts, optional parts diagram
Wire tiePart #4454835
Replaced by #WPW10339879
?Manufacturer substitutionThis part replaces 4454835. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #3
Oven parts diagram
Hinge receiverPart #4455605
Replaced by #WP4455605
?Manufacturer substitutionThis part replaces 4455605. Substitute parts can look different from the original.$59.60 |9% OFF Phone Price : $65.60In Stock - #3A
Oven parts diagram
Hinge receiverPart #4455606
Replaced by #WP4455606
?Manufacturer substitutionThis part replaces 4455606. Substitute parts can look different from the original.$57.72 |9% OFF Phone Price : $63.72In Stock - #24

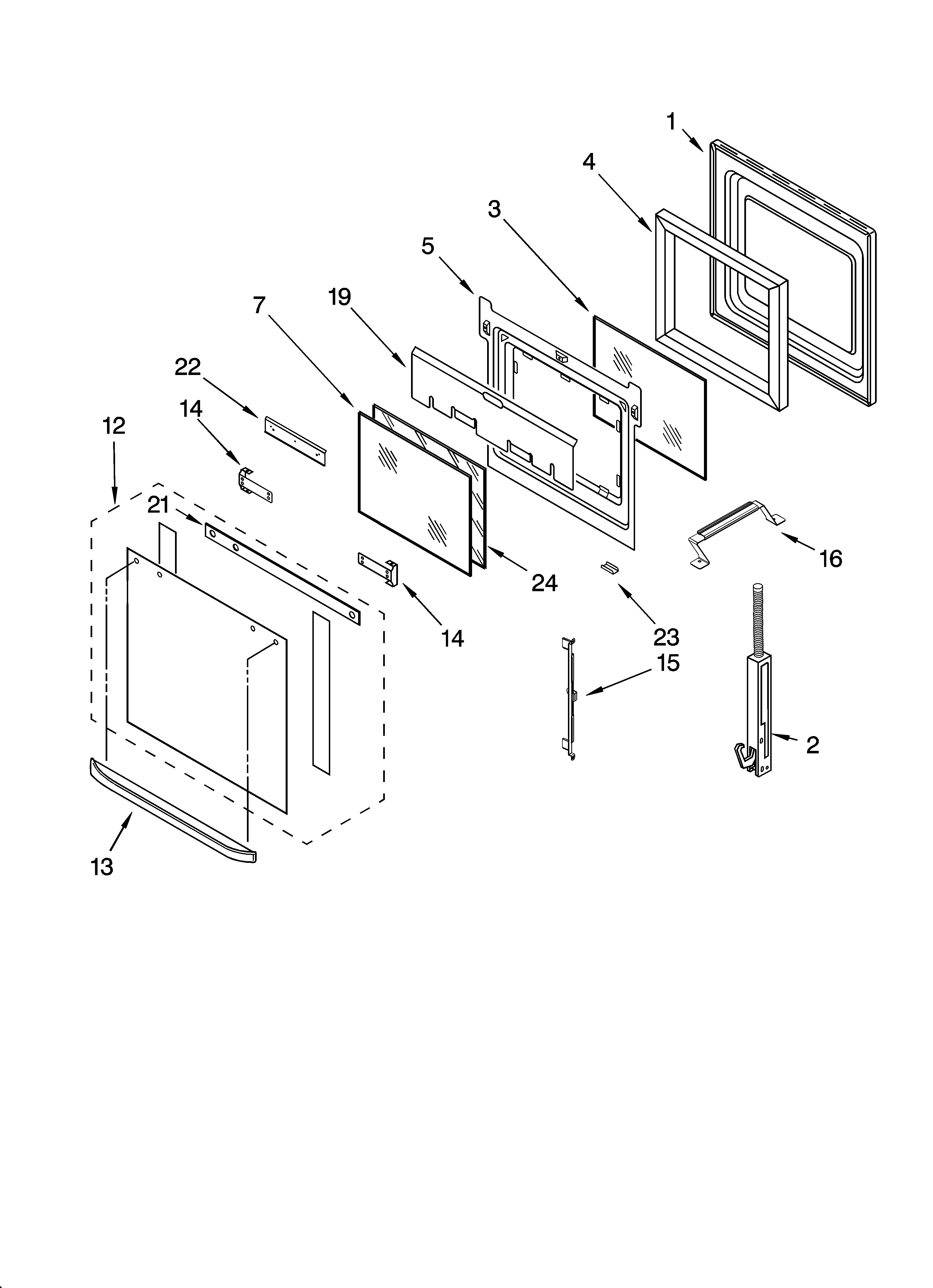

Oven door parts diagram
Oven door glassPart #9759227
Replaced by #WP9759227
?Manufacturer substitutionThis part replaces 9759227. Substitute parts can look different from the original.$90.48 |6% OFF Phone Price : $96.48In Stock
