Kenmore
Trash Compactor

Model # 66513633101 Official Kenmore compactor

Here are the diagrams and repair parts for Official Kenmore 66513633101 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

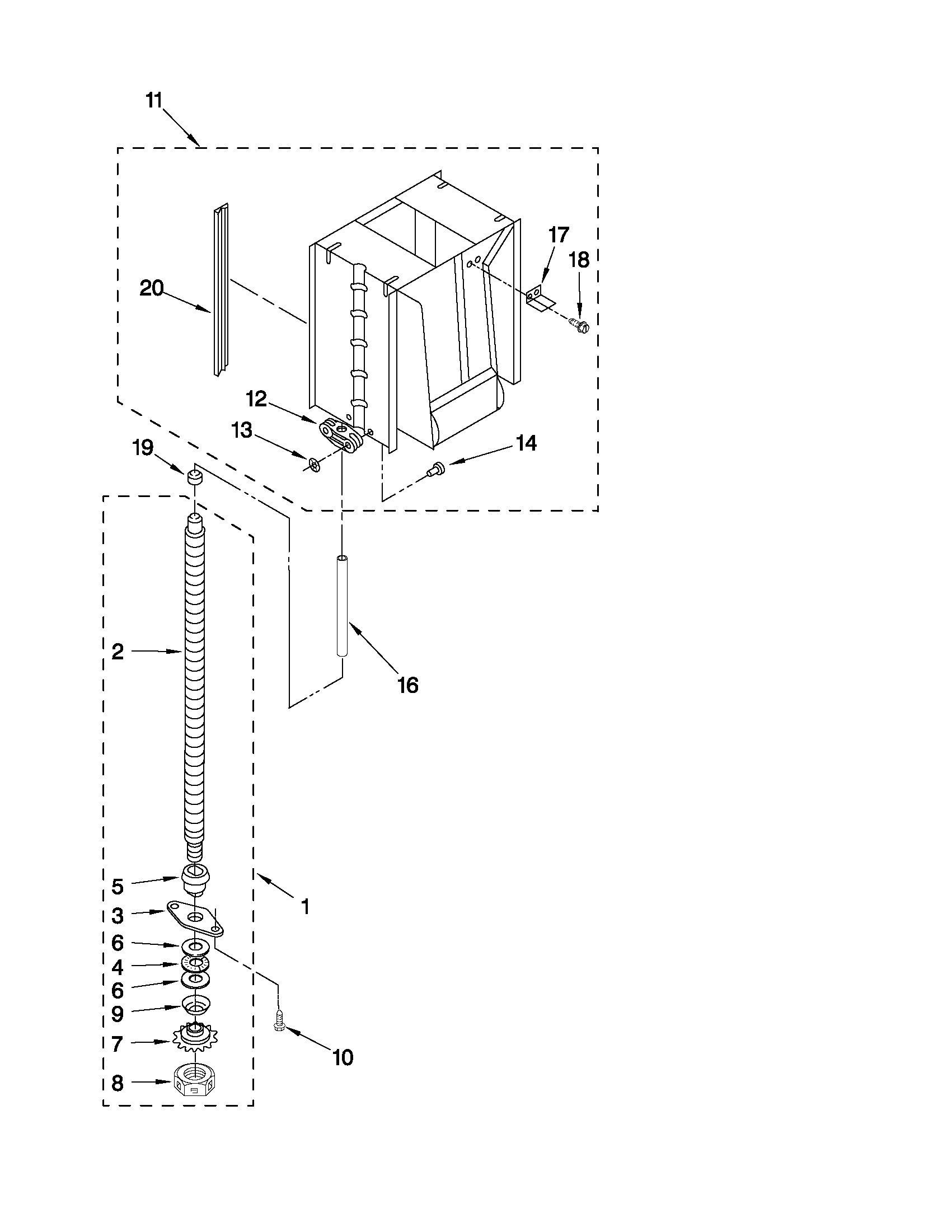

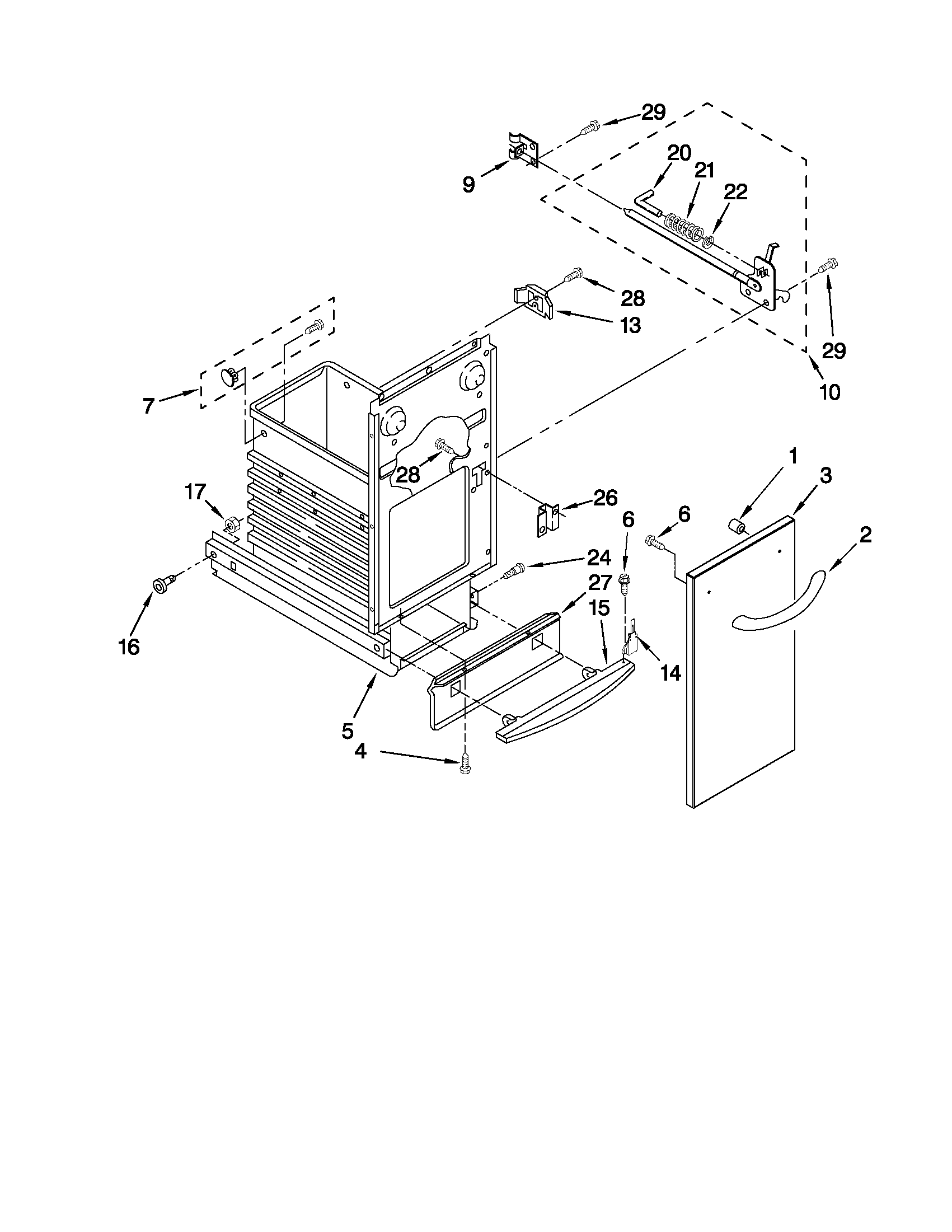

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Gear 777124
#10

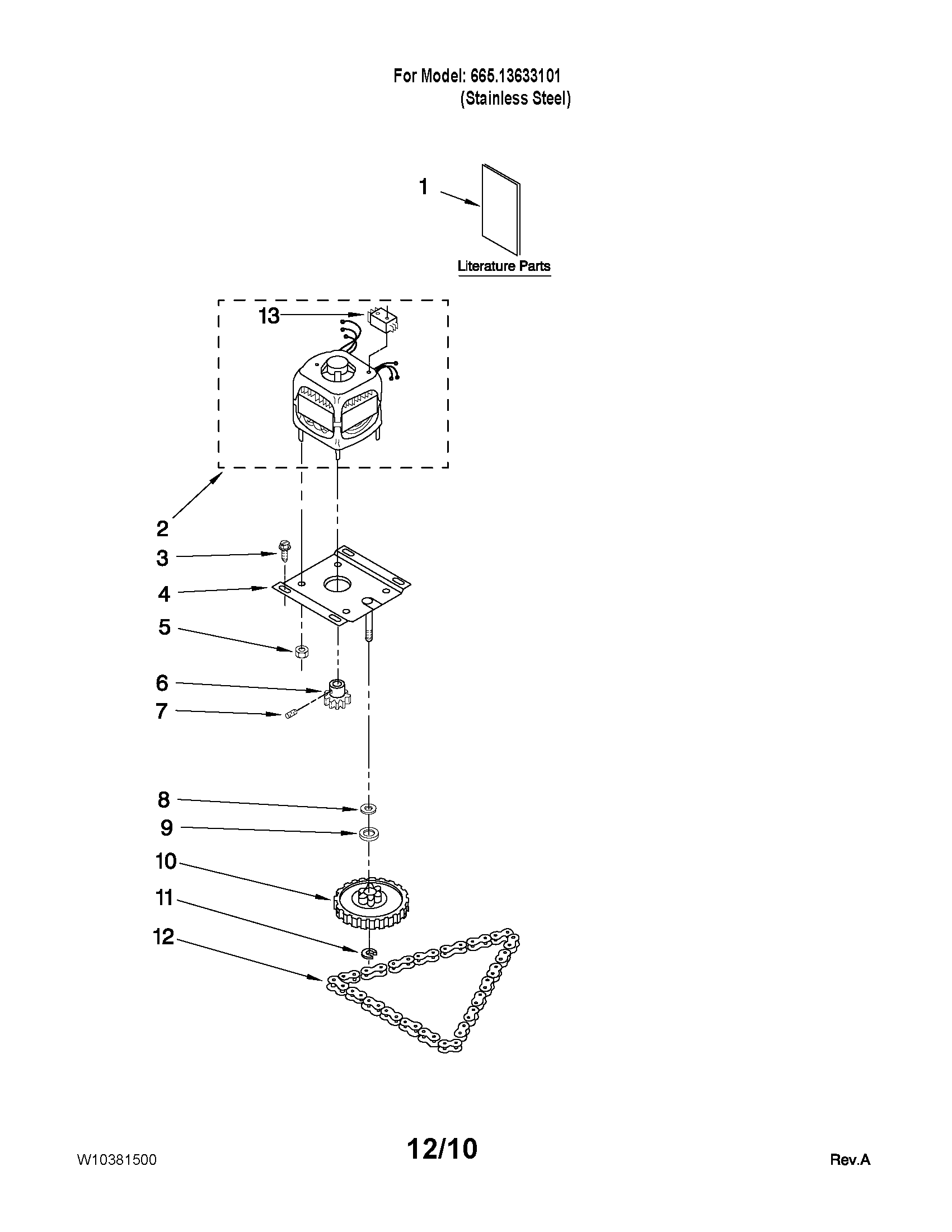

Motor and drive parts diagram

Gear

Part #777124

Replaced by #882699

?
Manufacturer substitution
This part replaces 777124. Substitute parts can look different from the original.
BEST SELLER
$55.66 |
10% OFF Phone Price : $61.66
In Stock
Drive Gear 4149667
#6

Motor and drive parts diagram

Drive gear

Part #4149667

Replaced by #882699

?
Manufacturer substitution
This part replaces 4149667. Substitute parts can look different from the original.
BEST SELLER
$55.66 |
10% OFF Phone Price : $61.66
In Stock
Trash Compactor Top Limit And Directional Switch 777811
#13

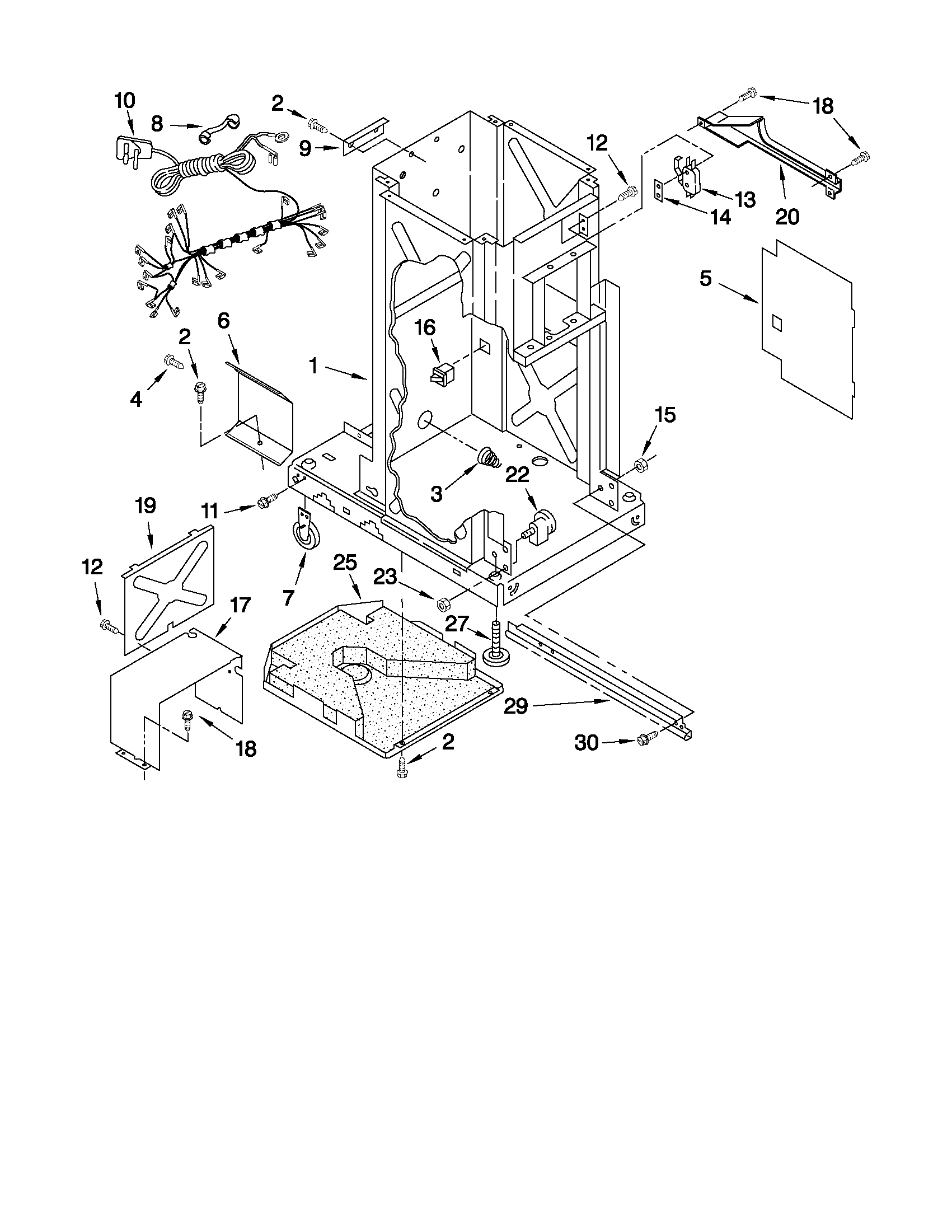

Frame parts diagram

Trash compactor top limit and directional switch

Part #777811

Replaced by #WP777811

?
Manufacturer substitution
This part replaces 777811. Substitute parts can look different from the original.
BEST SELLER
$44.96 |
12% OFF Phone Price : $50.96
In Stock
Drive Motor 9870343
#2

Motor and drive parts diagram

Drive motor

Part #9870343

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 9870343. Substitute parts can look different from the original.
BEST SELLER
$209.51 |
5% OFF Phone Price : $221.51
In Stock
Switch 777971
#13

Motor and drive parts diagram

Switch

Part #777971

Replaced by #W10439651

?
Manufacturer substitution
This part replaces 777971. Substitute parts can look different from the original.
BEST SELLER
$209.51 |
5% OFF Phone Price : $221.51
In Stock
Paint (white) 350930
#11E

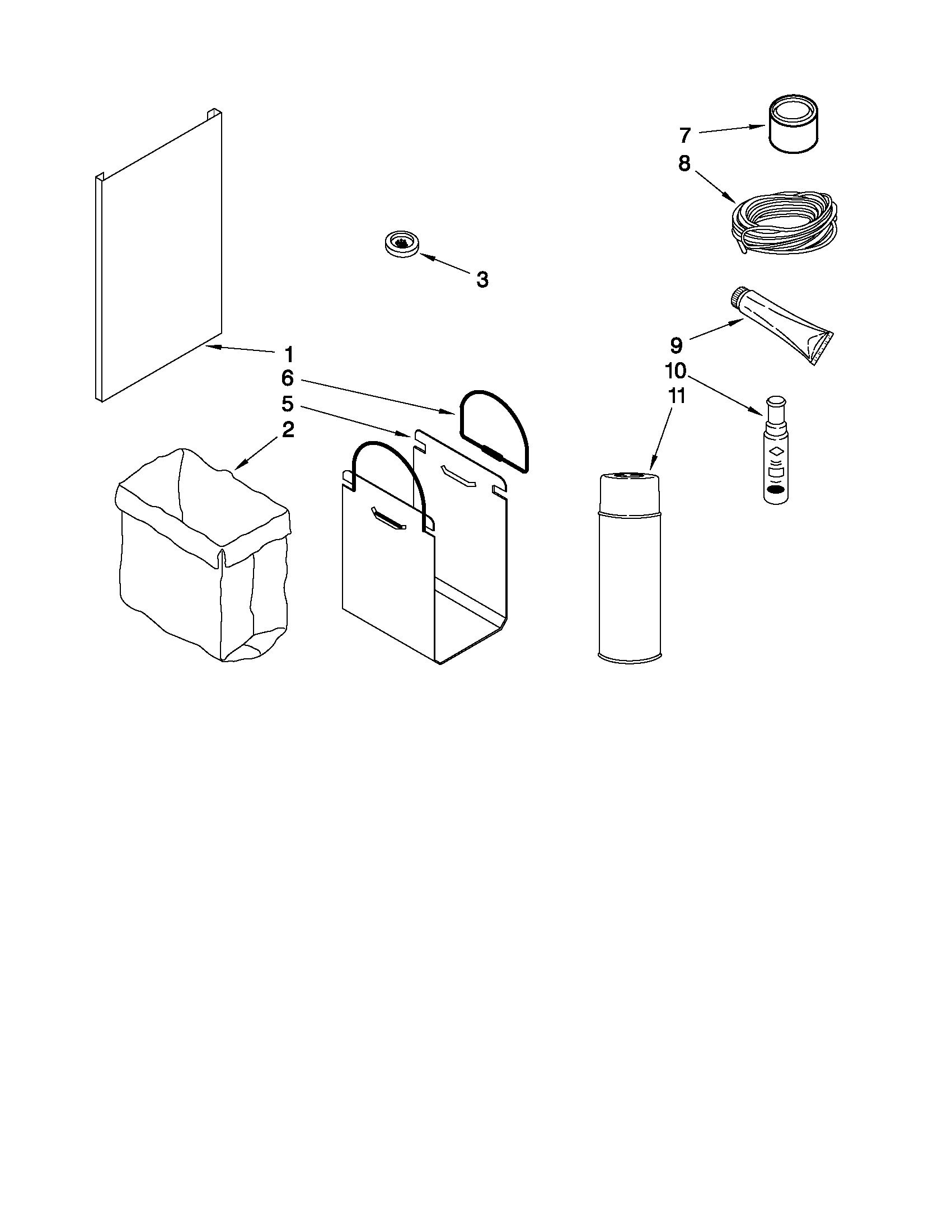

Accessory parts diagram

Paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Trash Compactor Bag, 60-pack 4318922
#2A

Accessory parts diagram

Trash compactor bag, 60-pack

Part #4318922

Replaced by #W10165294RB

?
Manufacturer substitution
This part replaces 4318922. Substitute parts can look different from the original.
BEST SELLER
$53.46 |
10% OFF Phone Price : $59.46
Back Order
Leveler 775526
#27

Frame parts diagram

Leveler

Part #775526

Replaced by #WPW10001130

?
Manufacturer substitution
This part replaces 775526. Substitute parts can look different from the original.
This item is not returnable
$4.23 |
19% OFF Phone Price : $5.23
In Stock
Kenmore Elite Trash Compactor Drawer Tilt Switch (replaces 41001069) 9871829
#13

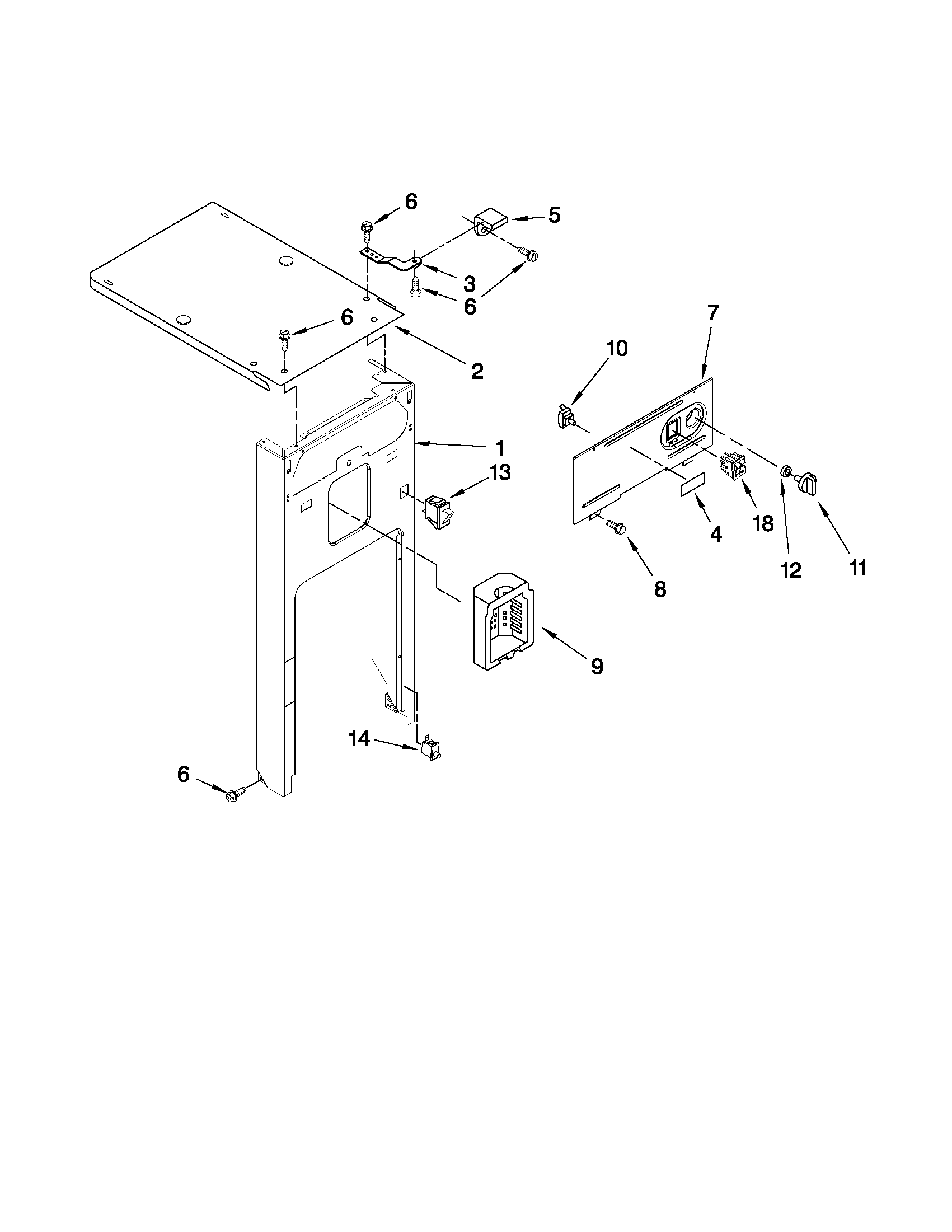

Panel and control parts diagram

Kenmore elite trash compactor drawer tilt switch (replaces 41001069)

Part #9871829

$33.26 |
15% OFF Phone Price : $39.26
In Stock
Switch 4149377
#16

Frame parts diagram

Switch

Part #4149377

Replaced by #W11243179

?
Manufacturer substitution
This part replaces 4149377. Substitute parts can look different from the original.
This item is not returnable
$32.53 |
16% OFF Phone Price : $38.53
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your trash compactors

Choose a symptom to see related trash compactor repairs.

View all

Why is the trash compactor's ram stuck in the down position?

Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…

Read more

Why won't my trash compactor stop running?

Main causes: stuck foot pedal, bad momentary start switch, power switch failure…

Read more

Why does my trash compactor run constantly with its ram in the up position?

Main cause: broken top limit and directional switch…

Read more

Why wont my trash compactor's ram go down?

Main cause: faulty drawer tilt switch …

Read more

Why does the trash compactor ram not move even though the motor runs?

Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…

Read more

Why is it hard to open the trash compactor drawer?

Main causes: bent drawer support rollers, damaged trash container…

Read more

Why won't my trash compactor start?

Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…

Read more

Most common repair guides to help fix your trash compactors

These step-by-step repair guides will help you safely fix what’s broken on your trash compactor.

View all
How to replace a trash compactor motor centrifugal switch

How to replace a trash compactor motor centrifugal switch

If the trash compactor ram won’t return to the top position, replace the motor centrifugal switch by following the instr…

Read more
Repair difficulty
Time required
 45 minutes or less
How to replace a trash compactor momentary start switch

How to replace a trash compactor momentary start switch

The momentary start switch starts the motor when you lift the foot pedal. This repair guide shows how to replace the swi…

Read more
Repair difficulty
Time required
 15 minutes or less
How to replace a trash compactor power switch

How to replace a trash compactor power switch

If the trash compactor won’t power up, use the steps in this repair guide to replace the power switch.…

Read more
Repair difficulty
Time required
 30 minutes or less
