Model # 486254072 Official Craftsman 42" snow blade

Here are the diagrams and repair parts for Official Craftsman 486254072 42" snow blade, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Skid Shoe 23070
#30

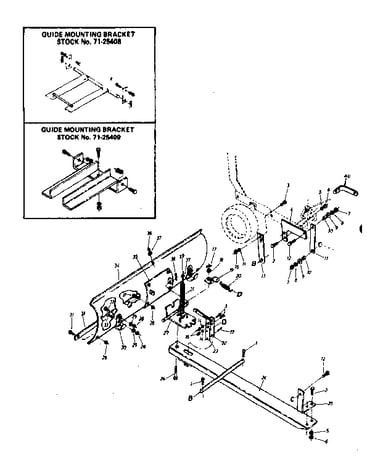

Replacement parts diagram

Skid shoe

Part #23070

Replaced by #24690BL1

?
Manufacturer substitution
This part replaces 23070. Substitute parts can look different from the original.
BEST SELLER
$9.74 |
9% OFF Phone Price : $10.74
In Stock
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#1

Replacement parts diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
In Stock
Lawn Tractor Snow Blade Attachment Angle Lock Spring (replaces 732-0360, Af-43348) 43348
#20

Replacement parts diagram

Lawn tractor snow blade attachment angle lock spring (replaces 732-0360, af-43348)

Part #43348

$8.11 |
11% OFF Phone Price : $9.11
In Stock
Lawn Tractor Snow Blade Attachment Wear Plate 23117
#32

Replacement parts diagram

Lawn tractor snow blade attachment wear plate

Part #23117

Replaced by #23117BL3

?
Manufacturer substitution
This part replaces 23117. Substitute parts can look different from the original.
$30.81 |
16% OFF Phone Price : $36.81
In Stock
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#29

Replacement parts diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Carriage Bolt 43079
#33

Replacement parts diagram

Carriage bolt

Part #43079

Replaced by #44326

?
Manufacturer substitution
This part replaces 43079. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hex Lock Nut, 5/16-in 43064
#28

Replacement parts diagram

Lawn tractor attachment hex lock nut, 5/16-in

Part #43064

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Screw 43087
#12

Replacement parts diagram

Screw

Part #43087

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Carriage Bolt, 5/16-18 X 3/4-in 43080
#31

Replacement parts diagram

Lawn & garden equipment carriage bolt, 5/16-18 x 3/4-in

Part #43080

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Snow Blade Attachment Angle Lock Bar, Short 23151
#22

Replacement parts diagram

Lawn tractor snow blade attachment angle lock bar, short

Part #23151

Replaced by #23151BL1

?
Manufacturer substitution
This part replaces 23151. Substitute parts can look different from the original.
This item is not returnable
$3.80
In Stock
