GE
Electric Wall Oven

Model # JT5500SF2SS Official GE electric wall oven

Here are the diagrams and repair parts for Official GE JT5500SF2SS electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

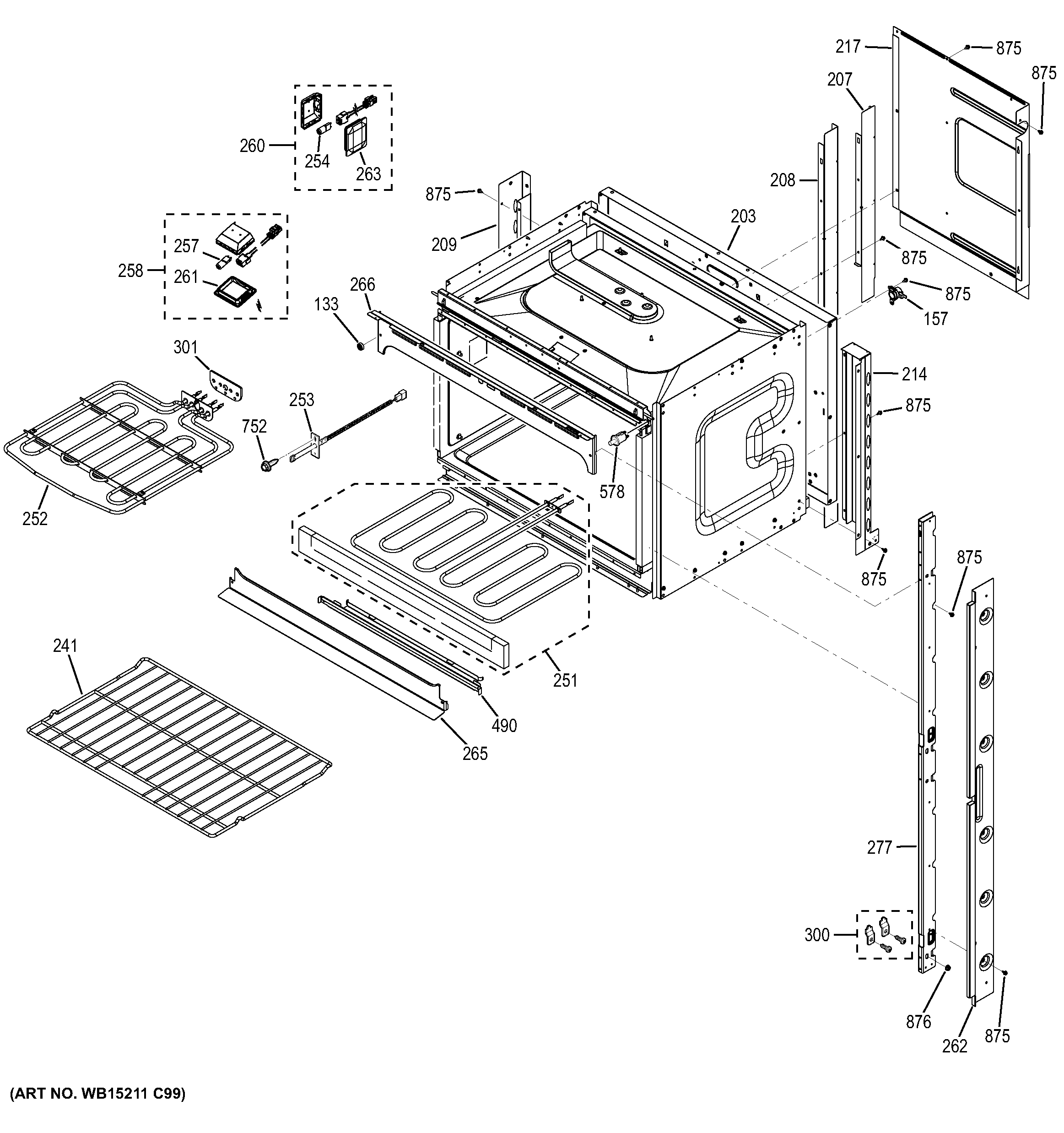

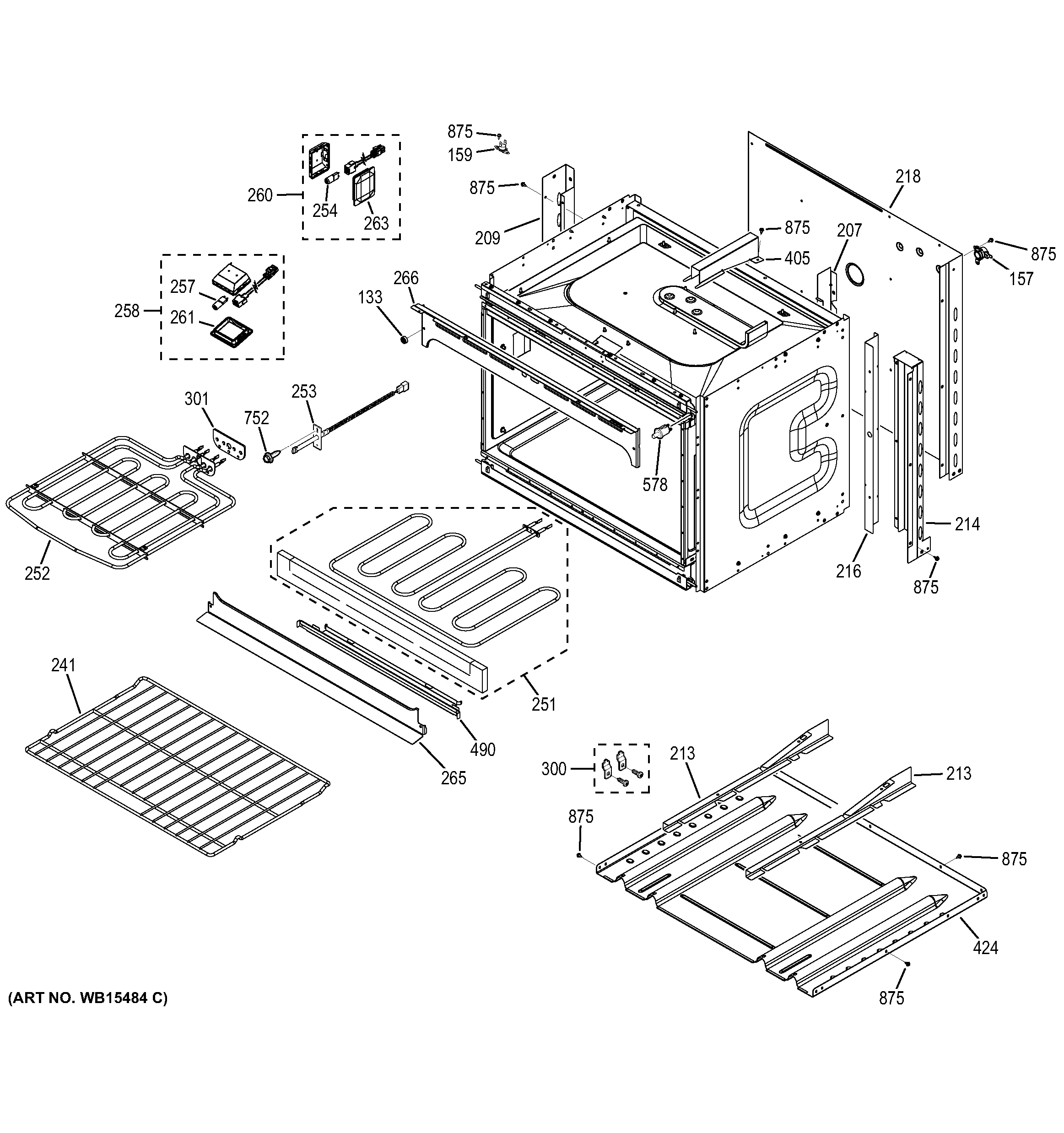

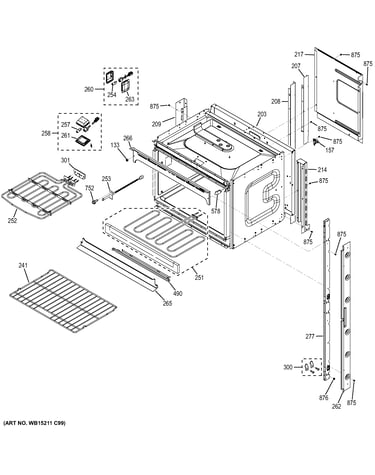

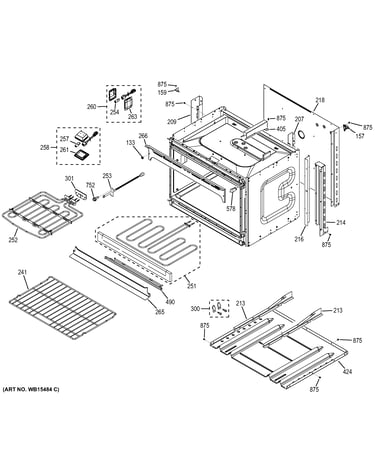

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Wall Oven Cooling Fan Sensor Board WB27T11463
#599

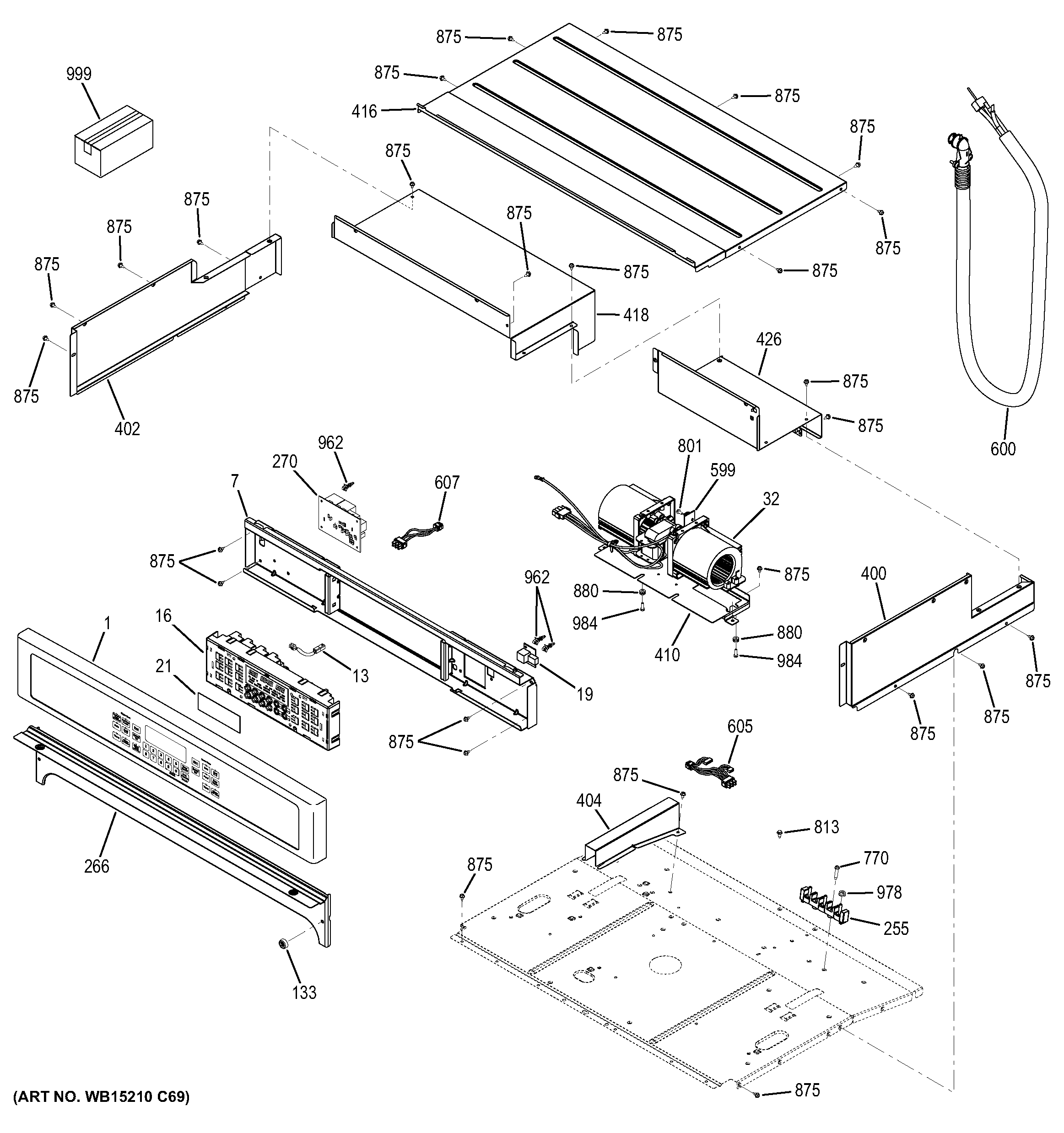

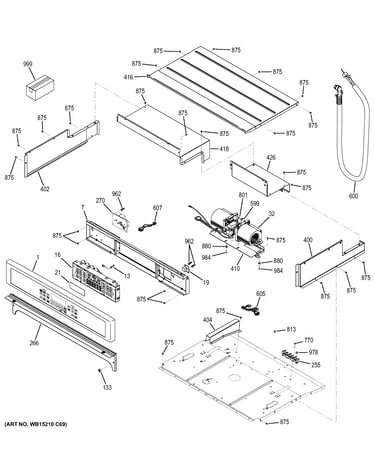

Control panel diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
This item is not returnable
$51.74 |
10% OFF Phone Price : $57.74
In Stock
Board Sensor WB27T11451
#598

Center spacer diagram

Board sensor

Part #WB27T11451

Replaced by #WB27X28659

?
Manufacturer substitution
This part replaces WB27T11451. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Wall Oven Temperature Sensor WB21X10165
Wall oven temperature sensor

Part #WB21X10165

BEST SELLER
$19.80 |
9% OFF Phone Price : $21.80
In Stock
Range High-limit Thermostat WB24T10164
Range high-limit thermostat

Part #WB24T10164

Replaced by #WB24X46906

?
Manufacturer substitution
This part replaces WB24T10164. Substitute parts can look different from the original.
BEST SELLER
$99.57 |
11% OFF Phone Price : $111.57
In Stock
Wall Oven Cooling Fan Assembly WB26T10066
#32

Control panel diagram

Wall oven cooling fan assembly

Part #WB26T10066

$120.23 |
9% OFF Phone Price : $132.23
In Stock
Latch Assembly WB10X21643
#150

Door lock diagram

Latch assembly

Part #WB10X21643

Replaced by #WB10X23814

?
Manufacturer substitution
This part replaces WB10X21643. Substitute parts can look different from the original.
$84.05 |
7% OFF Phone Price : $90.05
In Stock
Wall Oven Light Bulb WB25T10102
Wall oven light bulb

Part #WB25T10102

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
Back Order
Wall Oven Door Seal WB04T10091
Wall oven door seal

Part #WB04T10091

Replaced by #WB35X32825

?
Manufacturer substitution
This part replaces WB04T10091. Substitute parts can look different from the original.
$40.78 |
13% OFF Phone Price : $46.78
In Stock
Wall Oven Broil Element WB44T10128
Wall oven broil element

Part #WB44T10128

$69.91 |
8% OFF Phone Price : $75.91
In Stock
Hex Nut WB02T10608
#977

Convection fan diagram

Hex nut

Part #WB02T10608

$8.11
In Stock
