Top parts for:
Electrolux
Model # EI23BC82SS4
Bottom-Mount Refrigerator

Model # EI23BC82SS4 Official Electrolux bottom-mount refrigerator

Here are the diagrams and repair parts for Official Electrolux EI23BC82SS4 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forEI23BC82SS4 Refrigerators

  • Refrigerator Filter Dryer 242047603
    #4

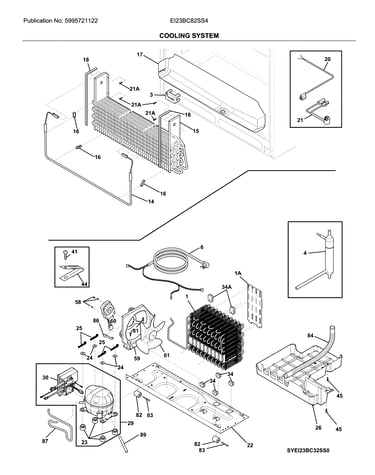

    System diagram

    Refrigerator filter dryer

    Part #242047603

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 242047603. Substitute parts can look different from the original.
    BEST SELLER
    $12.47 |
    14% OFF Phone Price : $14.47
    In Stock
  • Frigidaire Refrigerator Water Inlet Valve Assembly 242252702
    #55

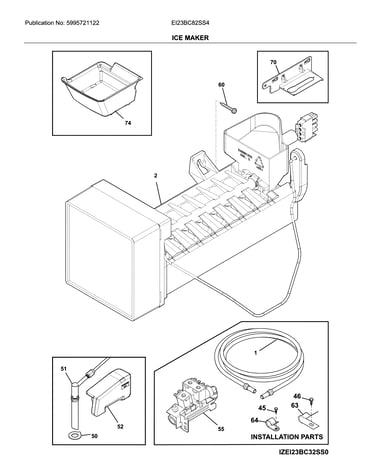

    Ice maker diagram

    Frigidaire refrigerator water inlet valve assembly

    Part #242252702

    4.74 (39)
    BEST SELLER
    $54.54 |
    10% OFF Phone Price : $60.54
    In Stock
  • Refrigerator Temperature Sensor 5303918775
    #94

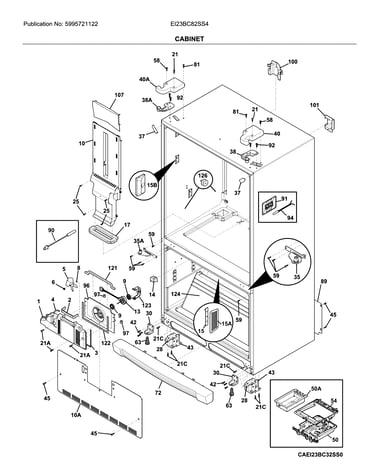

    Cabinet diagram

    Refrigerator temperature sensor

    Part #5303918775

    BEST SELLER
    $19.30 |
    9% OFF Phone Price : $21.30
    In Stock
  • Refrigerator Evaporator Fan Blade 5308000010
    #5

    Cabinet diagram

    Refrigerator evaporator fan blade

    Part #5308000010

    4 (4)
    BEST SELLER
    $40.78 |
    13% OFF Phone Price : $46.78
    In Stock
  • Refrigerator Ice Maker 241798226
    #2

    Ice maker diagram

    Refrigerator ice maker

    Part #241798226

    Replaced by #241798233

    ?
    Manufacturer substitution
    This part replaces 241798226. Substitute parts can look different from the original.
    4.36 (14)
    BEST SELLER
    $127.06 |
    9% OFF Phone Price : $139.06
    In Stock
  • Refrigerator Condenser Fan Blade 241639501
    #61

    System diagram

    Refrigerator condenser fan blade

    Part #241639501

    Replaced by #241639502

    ?
    Manufacturer substitution
    This part replaces 241639501. Substitute parts can look different from the original.
    1 (1)
    BEST SELLER
    $20.81 |
    22% OFF Phone Price : $26.81
    In Stock
  • Refrigerator Defrost Heater 5303918410
    #14

    System diagram

    Refrigerator defrost heater

    Part #5303918410

    BEST SELLER
    $80.32 |
    7% OFF Phone Price : $86.32
    In Stock
  • Universal/multiflex (frigidaire) Refrigerator Door Hinge 241779401
    #82

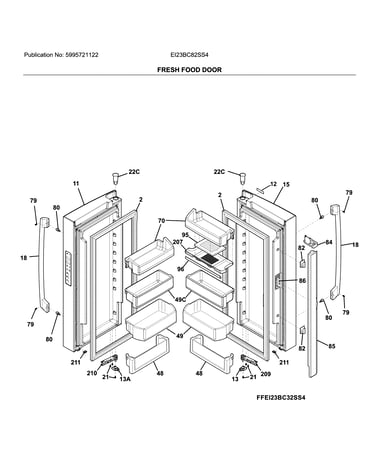

    Fresh food doors diagram

    Universal/multiflex (frigidaire) refrigerator door hinge

    Part #241779401

    2.67 (6)
    BEST SELLER
    $18.28 |
    10% OFF Phone Price : $20.28
    In Stock
  • Refrigerator Freezer Temperature Sensor Kit 5303918776
    #20

    System diagram

    Refrigerator freezer temperature sensor kit

    Part #5303918776

    BEST SELLER
    $22.72 |
    21% OFF Phone Price : $28.72
    In Stock
  • Frigidaire Refrigerator Evaporator Fan Motor 809069201
    #13

    Cabinet diagram

    Frigidaire refrigerator evaporator fan motor

    Part #809069201

    Replaced by #809069206

    ?
    Manufacturer substitution
    This part replaces 809069201. Substitute parts can look different from the original.
    BEST SELLER
    $105.72 |
    10% OFF Phone Price : $117.72
    In Stock
