Model # NEX-C3K/B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony NEX-C3K-B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

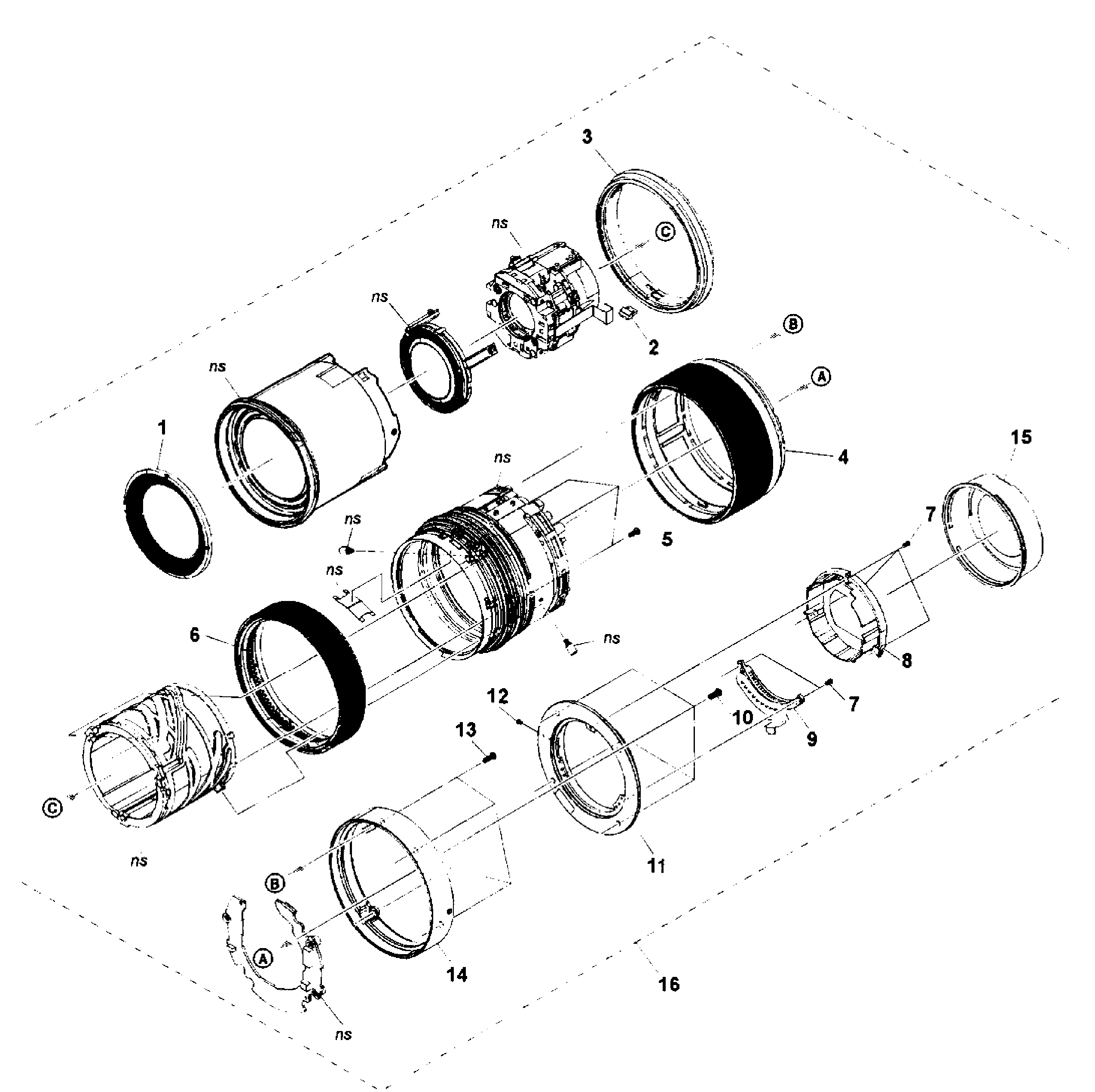

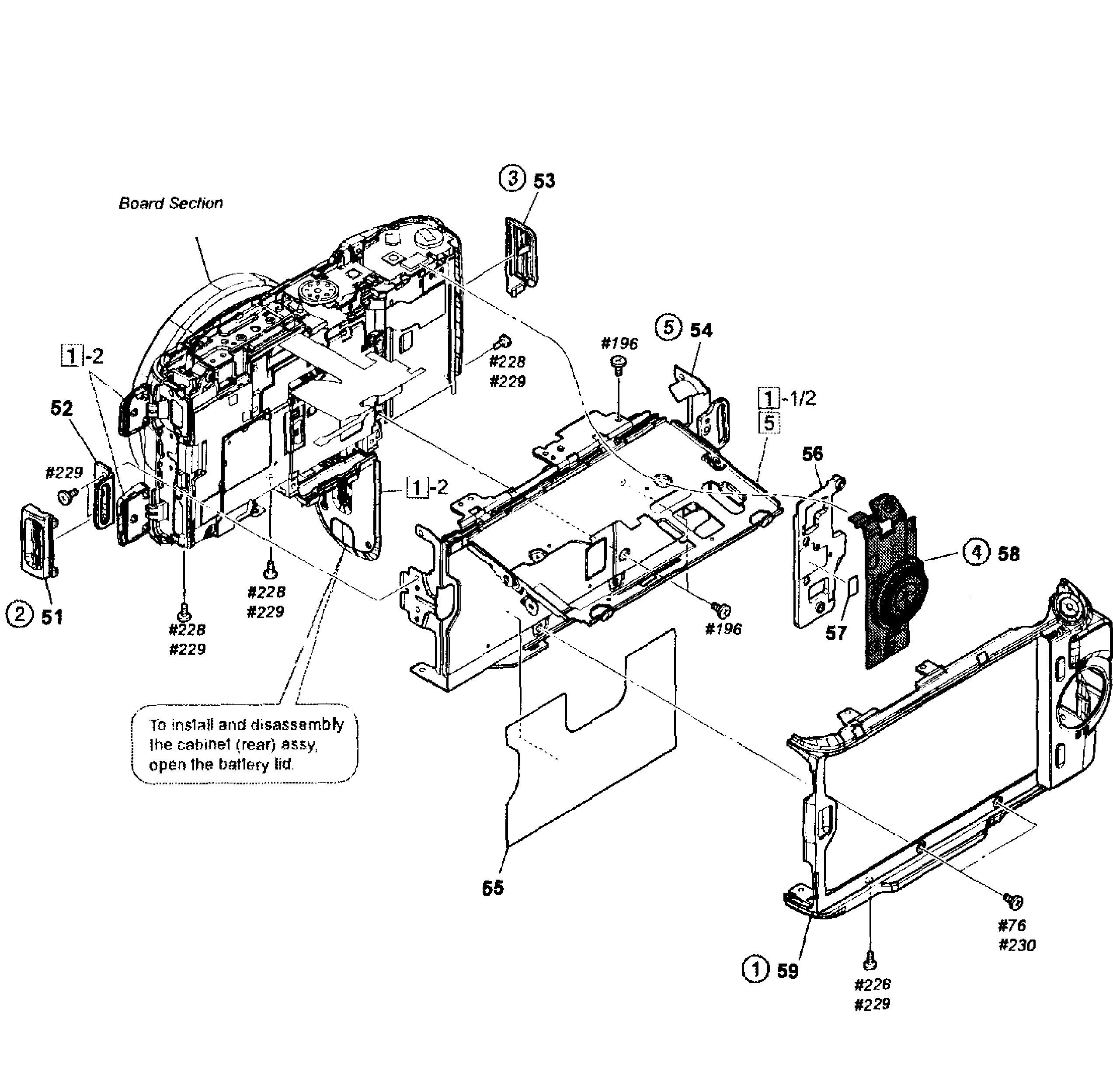

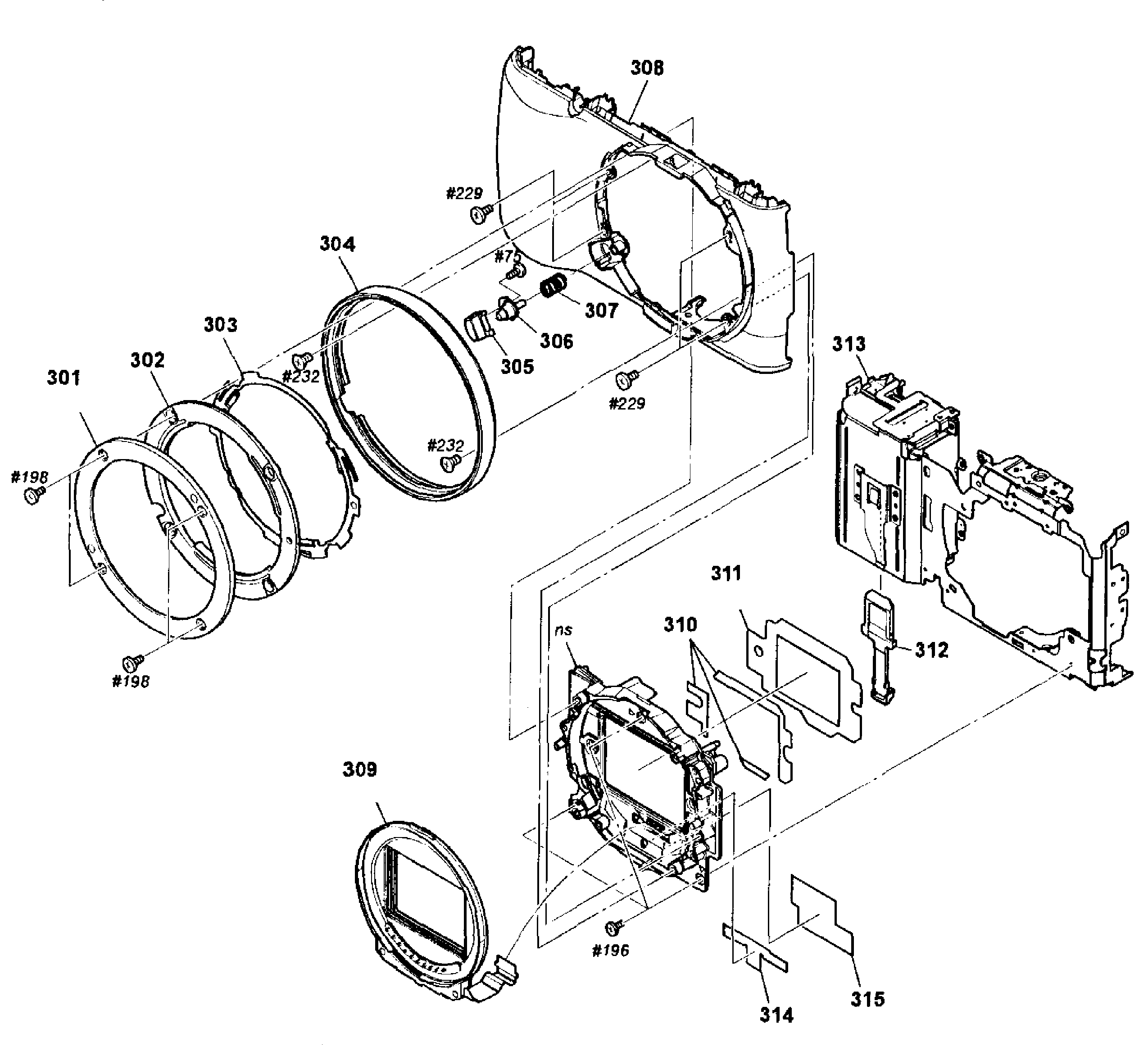

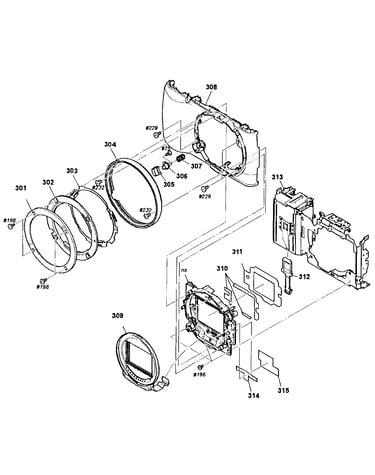

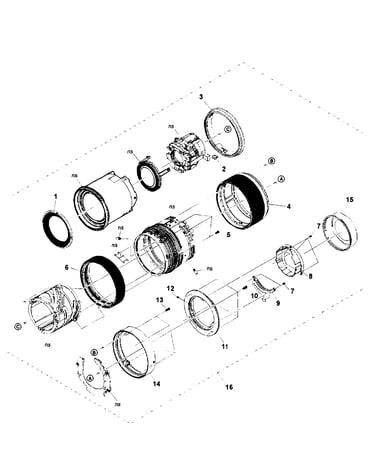

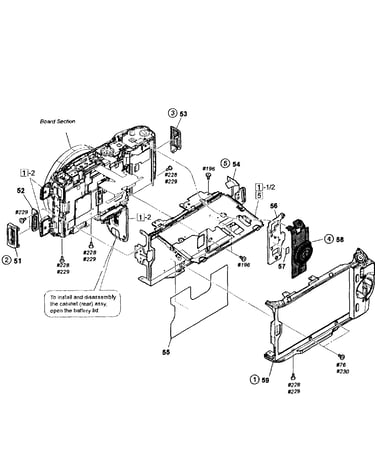

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Cushion 428124401
#103

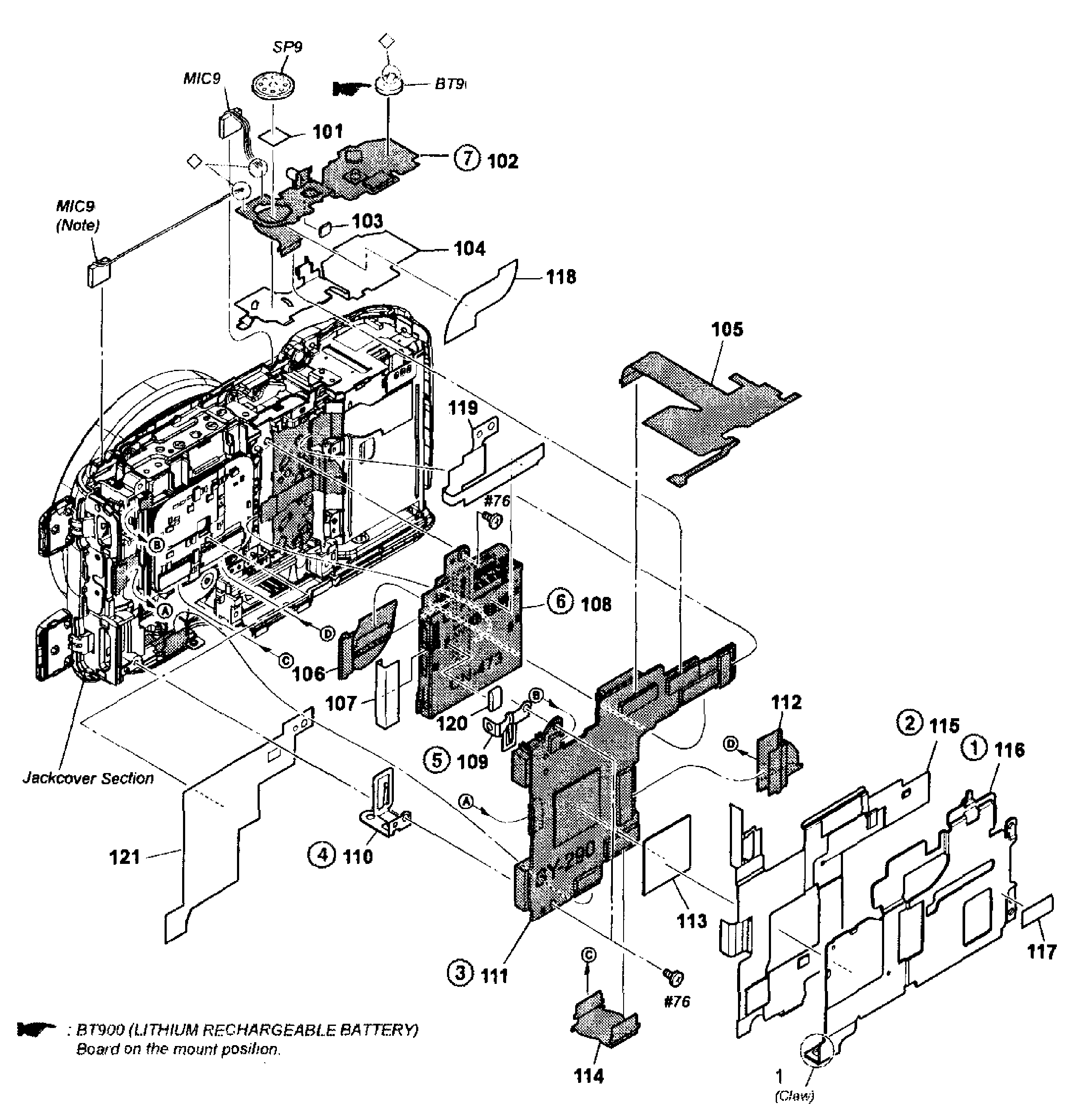

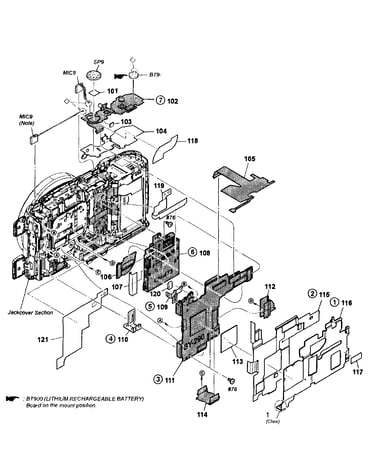

Pcb's assy diagram

Cushion

Part #428124401

This item is not returnable
$2.25
In Stock
Clean Jig J6082663A
#NI

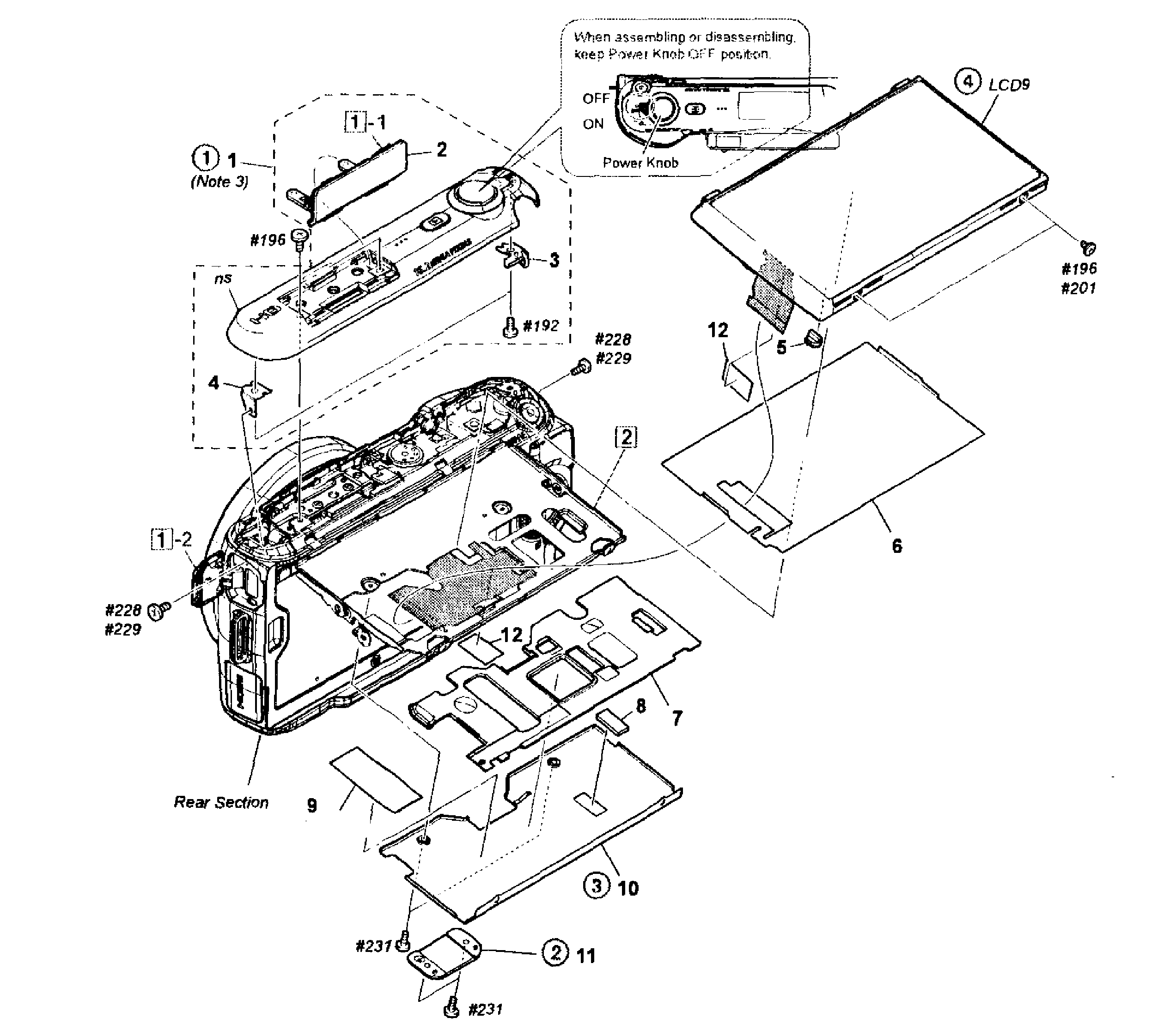

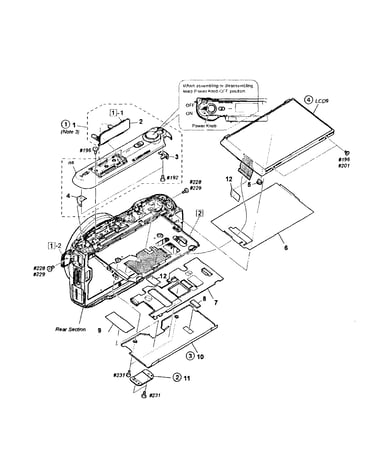

Top/lcd assy diagram

Clean jig

Part #J6082663A

$115.04
In Stock
Frame Assembly X25813161
#104

Pcb's assy diagram

Frame assembly

Part #X25813161

$7.74
In Stock
Sheet 428138301
#6

Top/lcd assy diagram

Sheet

Part #428138301

This item is not returnable
$5.80
In Stock
Sony Cabinet Block X25813221
#1

Top/lcd assy diagram

Sony cabinet block

Part #X25813221

$124.50
In Stock
Mb Charge A1817626A
#205

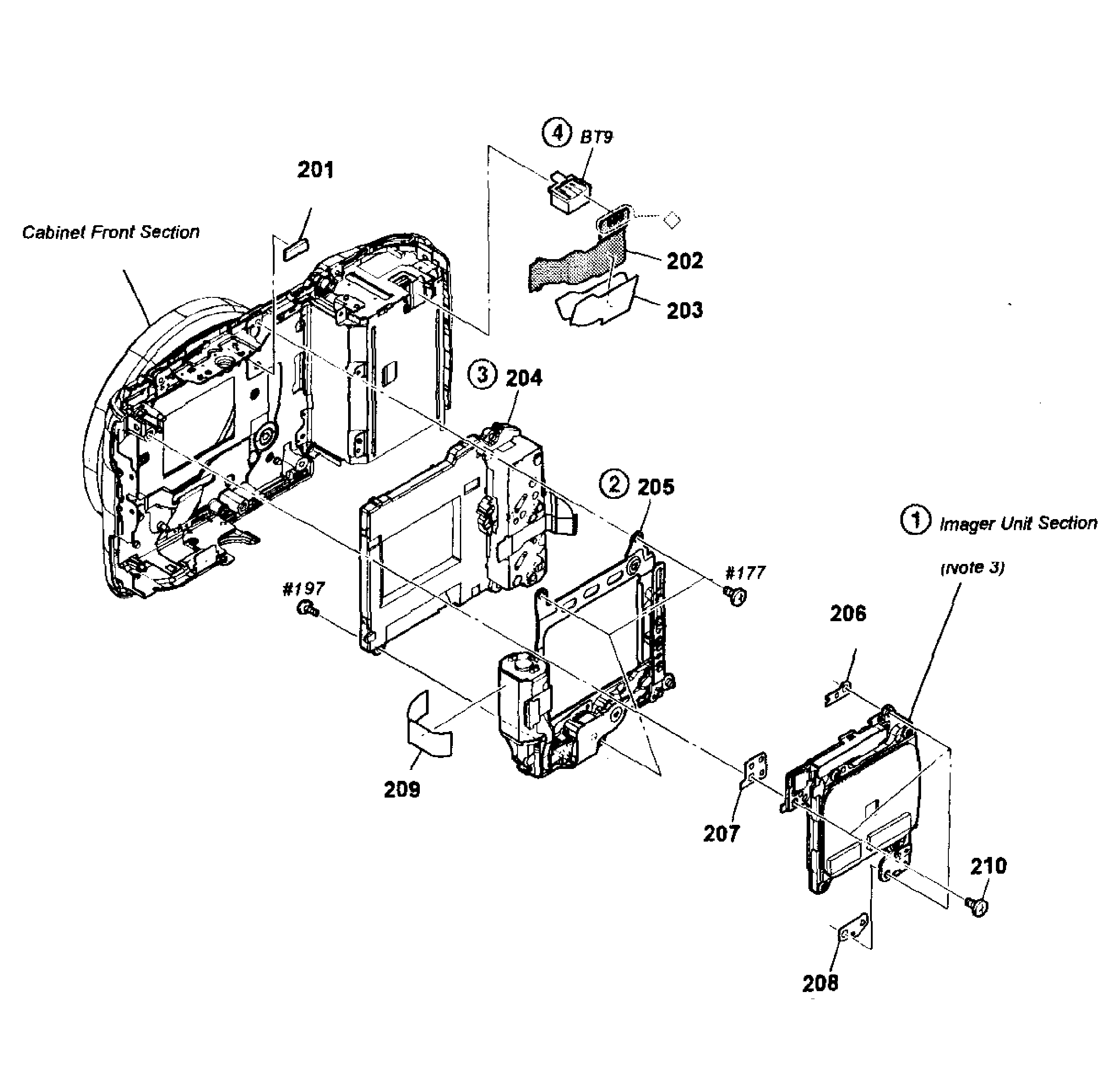

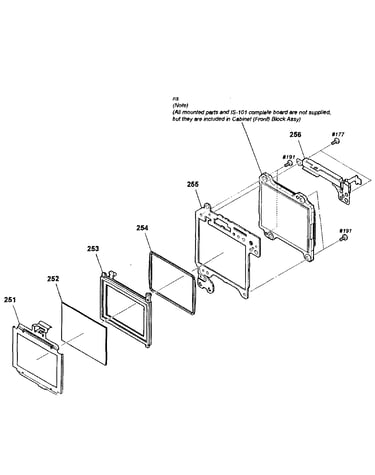

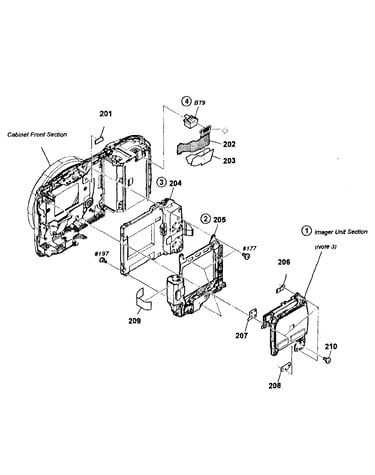

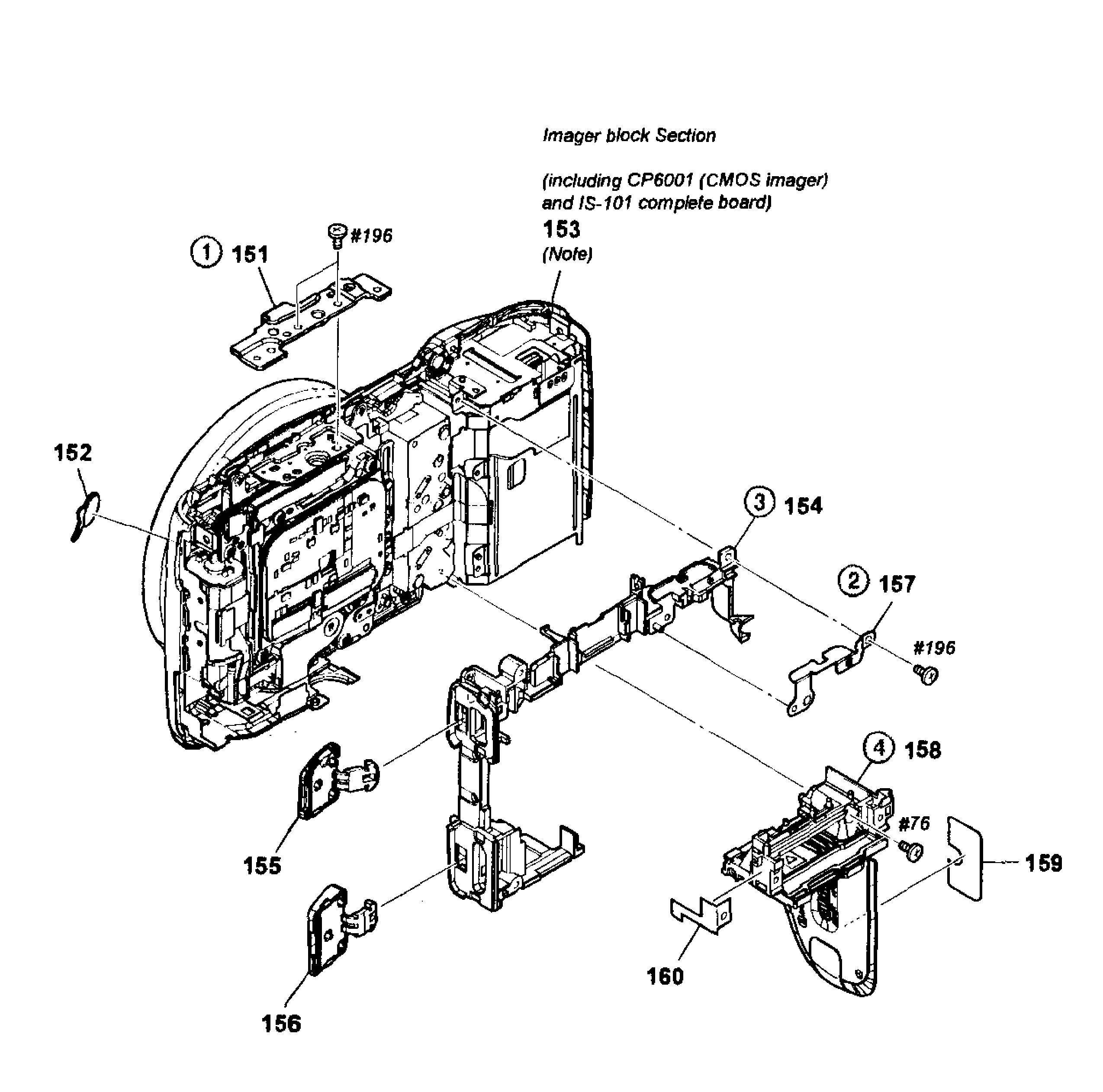

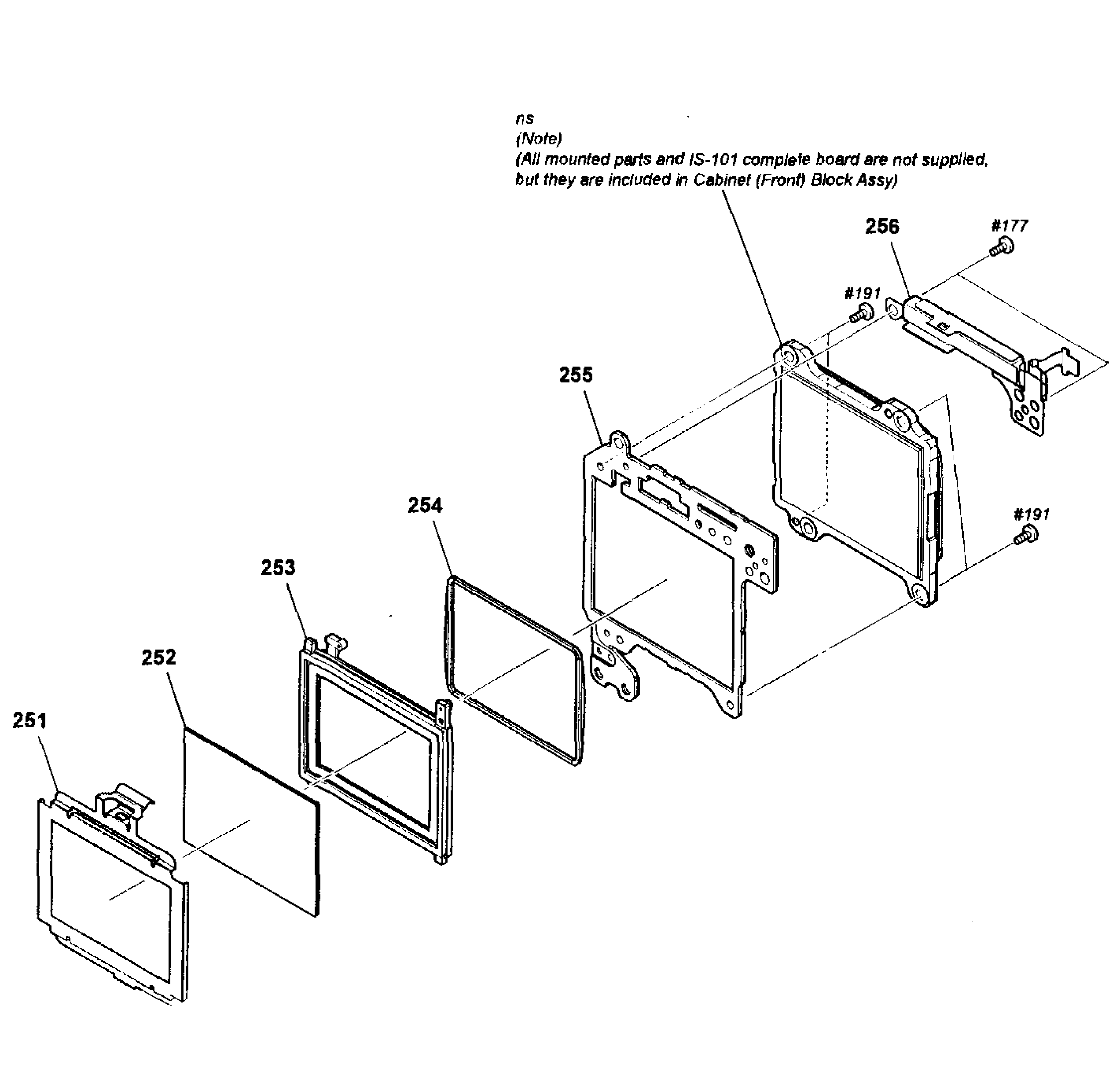

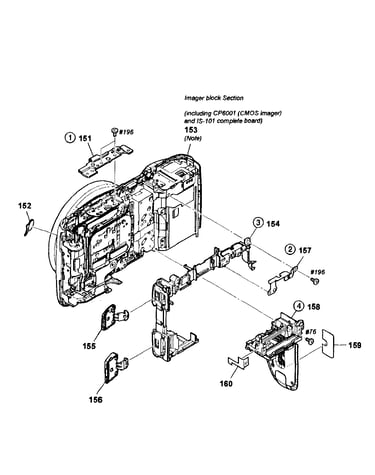

Imager block diagram

Mb charge

Part #A1817626A

$43.91
In Stock
Pcb Fp1423 A1818775A
#105

Pcb's assy diagram

Pcb fp1423

Part #A1818775A

$24.44
In Stock
Flash A1774691A
#NI

Top/lcd assy diagram

Flash

Part #A1774691A

$100.07
In Stock
Hood Lens 415970302
#NI

Top/lcd assy diagram

Hood lens

Part #415970302

$37.66
In Stock
Flash Case 418678701
#NI

Top/lcd assy diagram

Flash case

Part #418678701

This item is not returnable
$3.54
In Stock
