Broan
Range Hood

Model # E60E48SS Official Broan range hood

Here are the diagrams and repair parts for Official Broan E60E48SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

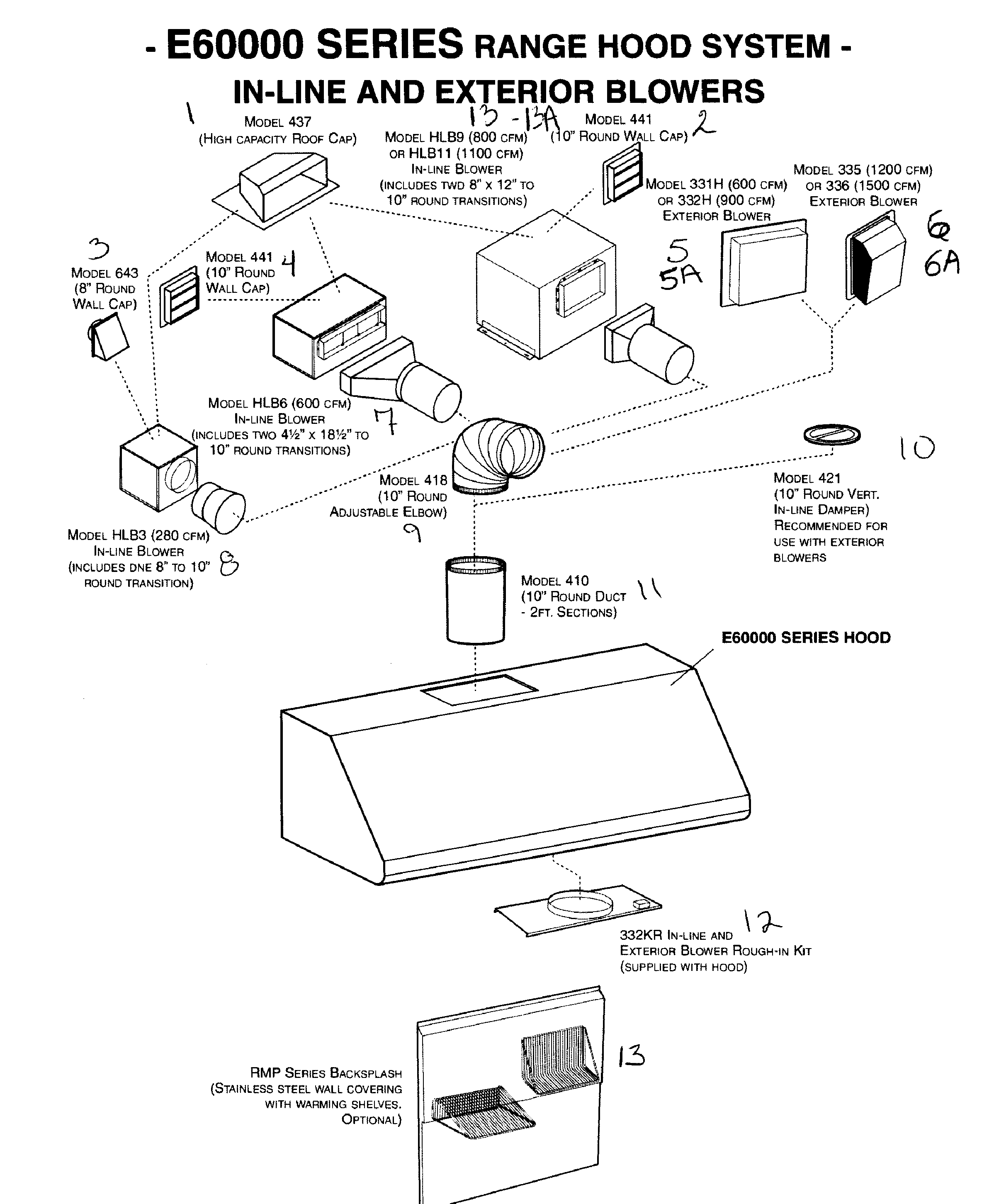

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Broan Range Hood Fan Speed Control Kit (replaces V03501) SV03501
#6

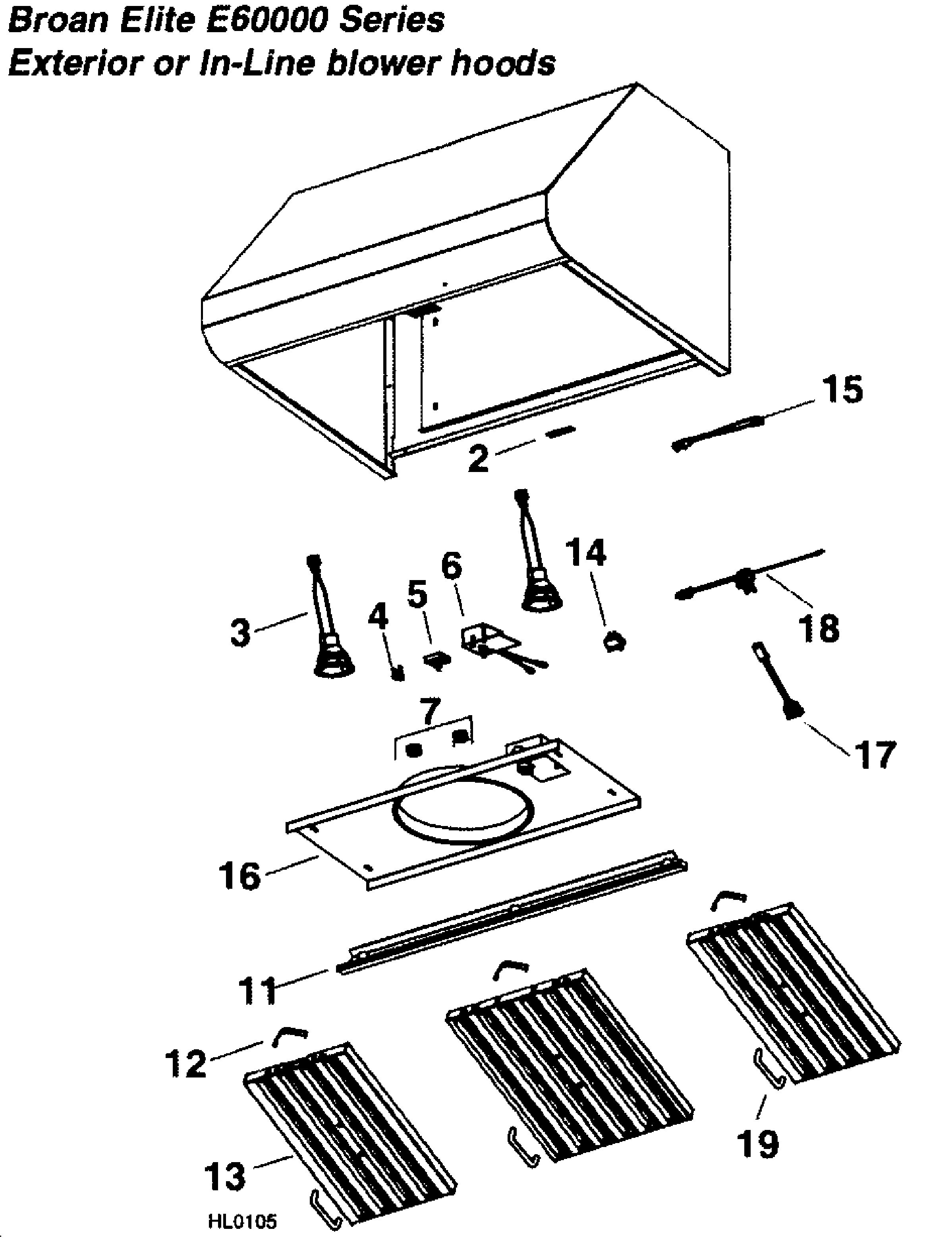

Range hood diagram

Broan range hood fan speed control kit (replaces v03501)

Part #SV03501

BEST SELLER
$75.11
7% OFF Phone Price : $81.11
In Stock
Broan Range Hood Light Socket (replaces V16569) SV16569
#3

Range hood diagram

Broan range hood light socket (replaces v16569)

Part #SV16569

$70.05
8% OFF Phone Price : $76.05
In Stock
Range Hood Vent Transition 427
#15

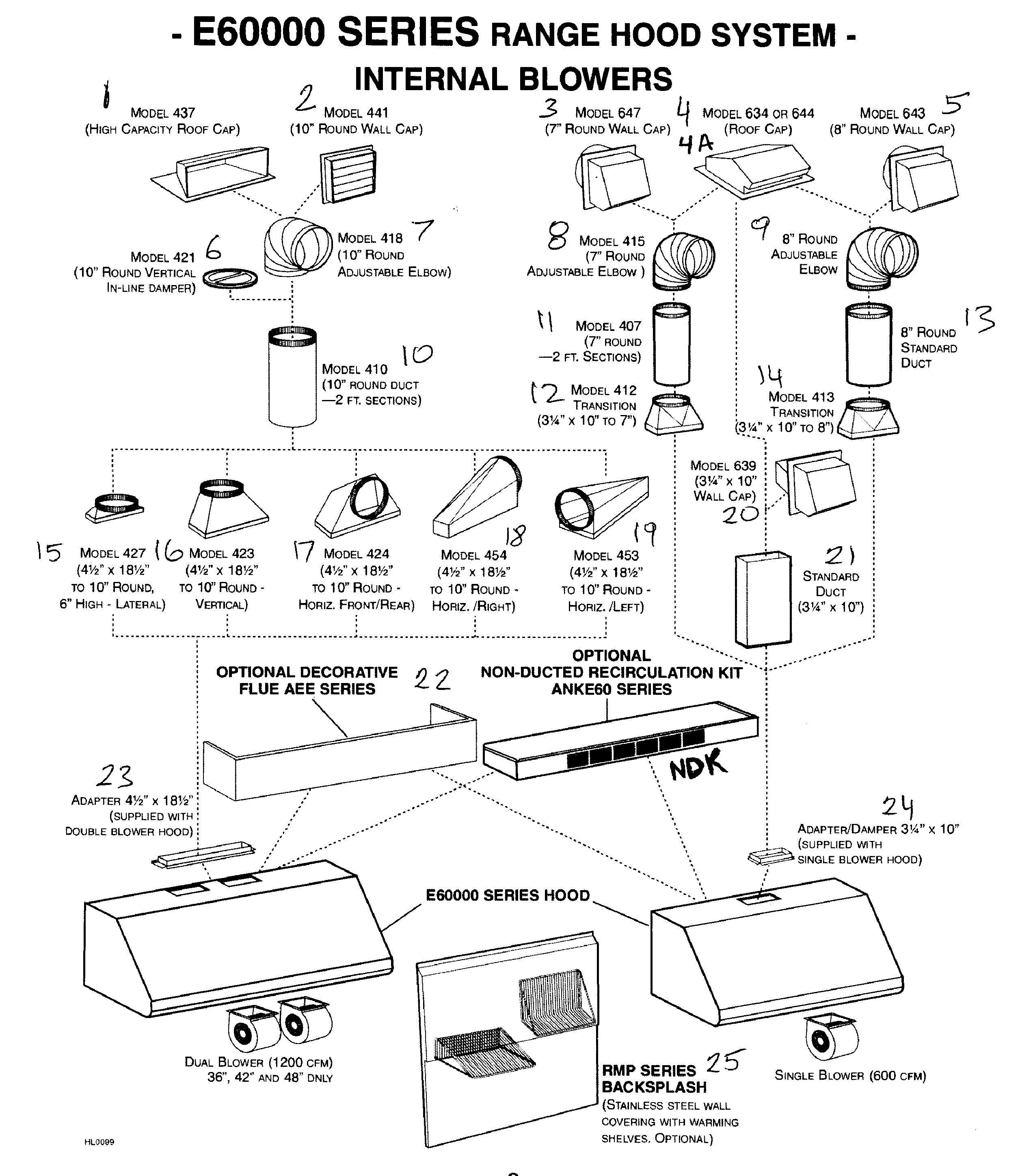

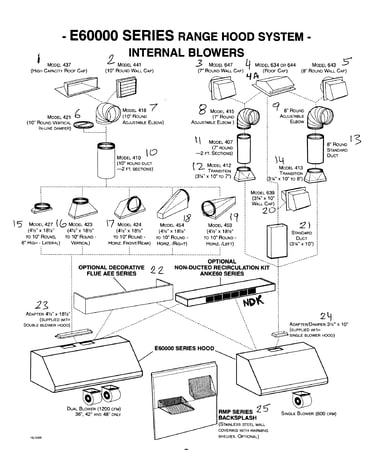

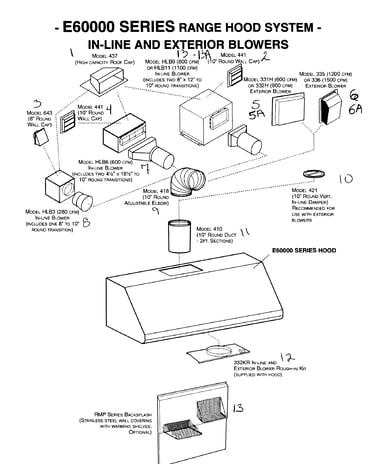

Duct assy 1 diagram

Range hood vent transition

Part #427

In Stock
Range Hood Blower Switch SV08339
#14

Range hood diagram

Range hood blower switch

Part #SV08339

In Stock
Elbow 418
Elbow

Part #418

In Stock
Damper 421
Damper

Part #421

In Stock
Kenmore Pro Handle SV07680
#19

Range hood diagram

Kenmore pro handle

Part #SV07680

In Stock
Range Hood Roof Cap 437
Range hood roof cap

Part #437

In Stock
Broan Range Hood Control Knob SV08355
#7

Range hood diagram

Broan range hood control knob

Part #SV08355

$36.11
14% OFF Phone Price : $42.11
In Stock
Spring SV08337
#12

Range hood diagram

Spring

Part #SV08337

In Stock
