Water Pump

Model # 390251800 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390251800 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Pump Body Gasket J20-18
#16

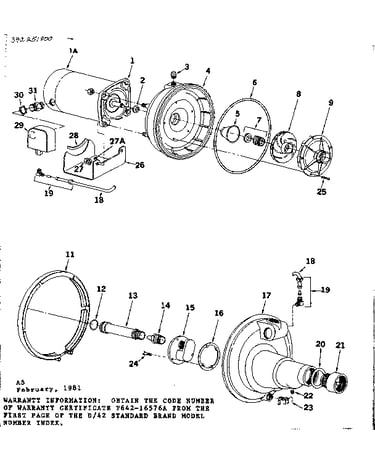

Replacement parts diagram

Pump body gasket

Part #J20-18

Replaced by #J20-18C

?
Manufacturer substitution
This part replaces J20-18. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
Back Order
Pressure Switch U217-366
#29

Replacement parts diagram

Pressure switch

Part #U217-366

Replaced by #TC2153-P2

?
Manufacturer substitution
This part replaces U217-366. Substitute parts can look different from the original.
$59.89 |
9% OFF Phone Price : $65.89
Back Order
Tube U37-211P
#18

Replacement parts diagram

Tube

Part #U37-211P

Replaced by #U37-673P

?
Manufacturer substitution
This part replaces U37-211P. Substitute parts can look different from the original.
This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
Back Order
Slinger N69-1
#2

Replacement parts diagram

Slinger

Part #N69-1

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces N69-1. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Shaft Seal U109-6
#7

Replacement parts diagram

Shaft seal

Part #U109-6

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U109-6. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
Back Order
Pump Nozzle N34P-17
#14

Replacement parts diagram

Pump nozzle

Part #N34P-17

$28.33
In Stock
Pump Diffuser J1-40P
#9

Replacement parts diagram

Pump diffuser

Part #J1-40P

$170.60 |
7% OFF Phone Price : $182.60
Back Order
Complete Fitting U111-86T
#19

Replacement parts diagram

Complete fitting

Part #U111-86T

Replaced by #U111-212T

?
Manufacturer substitution
This part replaces U111-86T. Substitute parts can look different from the original.
This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
Back Order
Pump Screw, #8-32 X 7/8-in U30-542SS
#25

Replacement parts diagram

Pump screw, #8-32 x 7/8-in

Part #U30-542SS

This item is not returnable
$5.03
In Stock
0-ring U9-226
#20

Replacement parts diagram

0-ring

Part #U9-226

$10.71
In Stock
